“The Zap-Zooper” is a drawing machine that uses sound waves to draw and creates different line types through different frequencies. This machine is a tool for mapping based on the attractor and repellent points in public space.



rov_machine_drawing_18

rov_logic_drawing_midterm

rov_hidden_logic_drawing_3

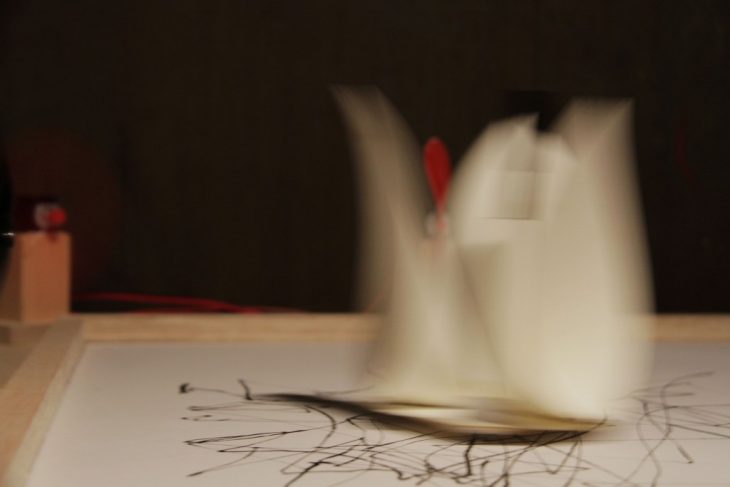

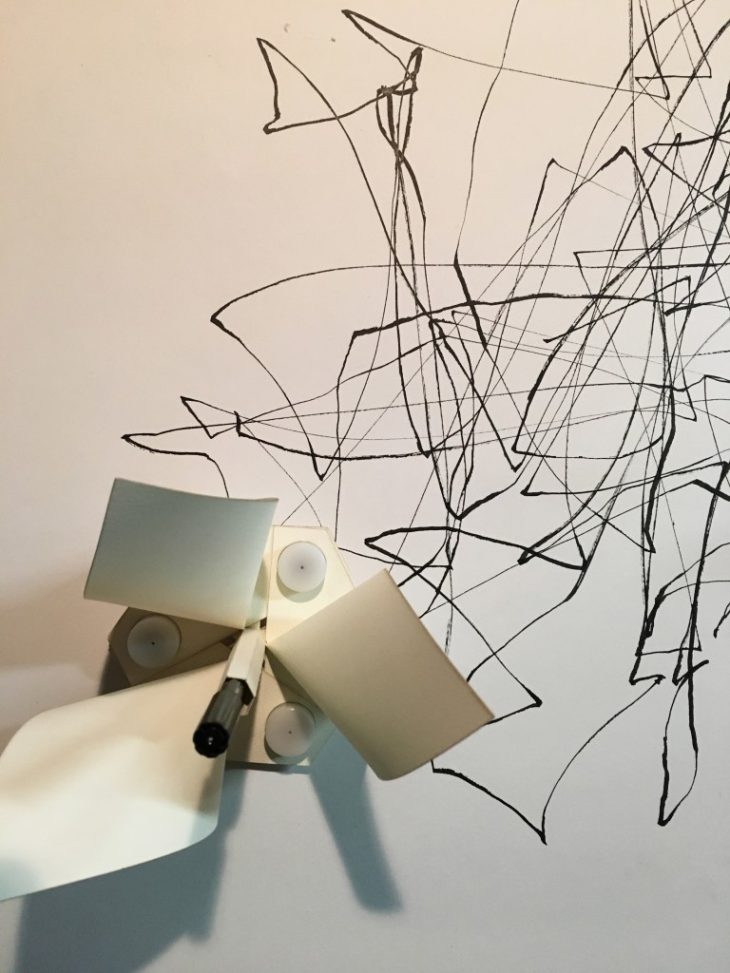

“The Kid” is the agent of the Zap-Zooper. He responses to the sound frequencies that come from the speaker and behaves through different parameters. These are Frequency, Volume, Pen Holder Geometry, Material.



rov_detail_drawing_blog

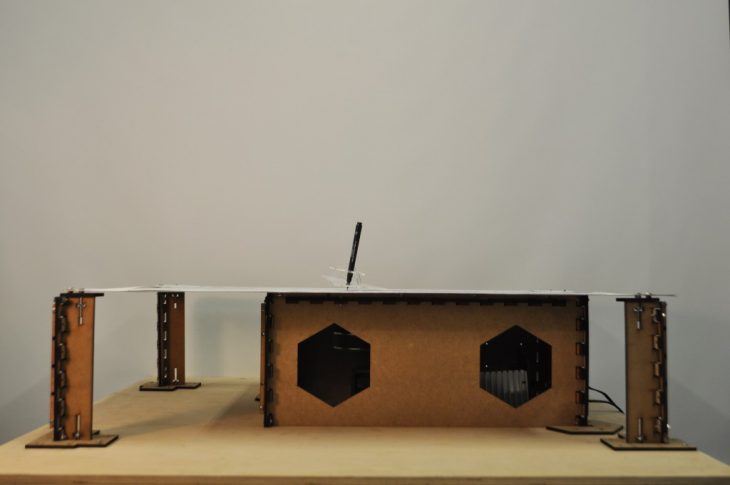

Speaker is located in the center of the board and there are some vibration dampers between the aluminium sheet and the sub-woofer box. with this dampers, there are two more parameters coming in to the calculation which are slope and non-vibrating spots.



rov_machine_blog

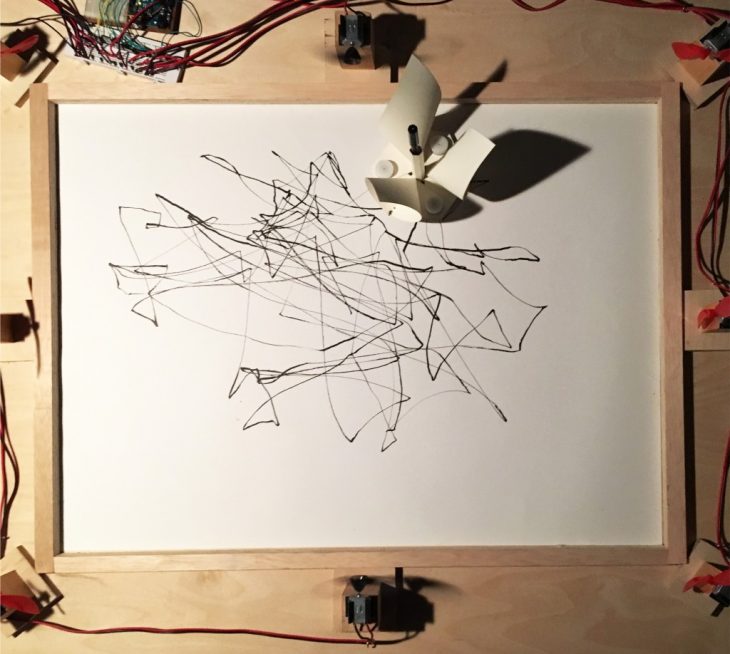

The Kid is trying to go to non vibrating points but at the same time trying to avoid them because of the slope. So this drawing is a result of that war between the slope and the vibration.



rov_performed_drawing_midterm_blog

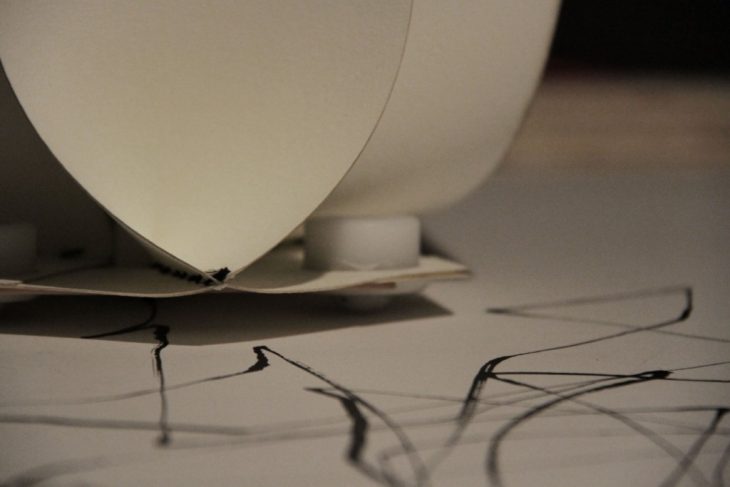

_Sail Pen



07

02



03

05





Drawing Robot is a project of IaaC, Institute for Advanced Architecture of Catalonia
developed at Master in Advanced Architecture, in 2016 of the Master in Advanced Architecture by:
Students: Cagan IZGI & Raashid NAZER, Mehmet Bostanci & Aishwarya Hokrani.
Faculty: Edouard Cabay, Rodrigo Aguirre
