Walls test remote robotic assembly

This experience was done using grasshopper parametric design in several parts of Europe and sending them for remote assembly to Aachen in Germany.

Remote wall assembly was a challenging task, for this we started having in mind different shape proposals to test.  Started with two different options: spiral wall a and wave wall with a brick model already uploaded in the file.

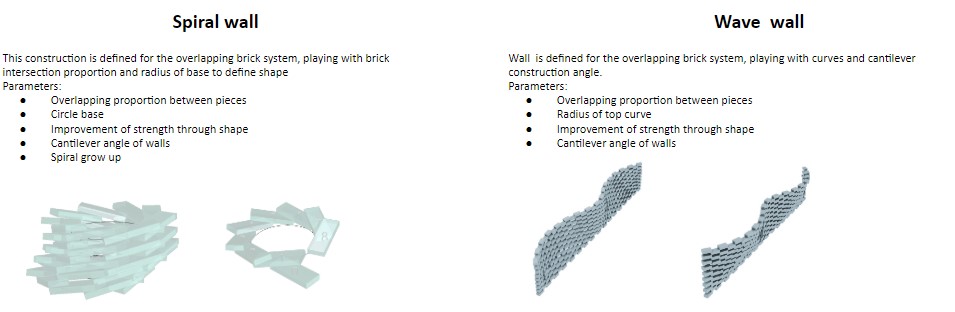

Comparing  the performance of both

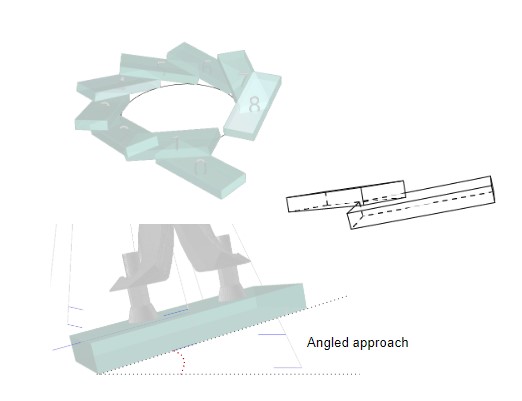

For spiral wall stablished assembly rules for stacking and growing upDefine robot approach to pieces and  simulate the assembly process and the angle for picking up

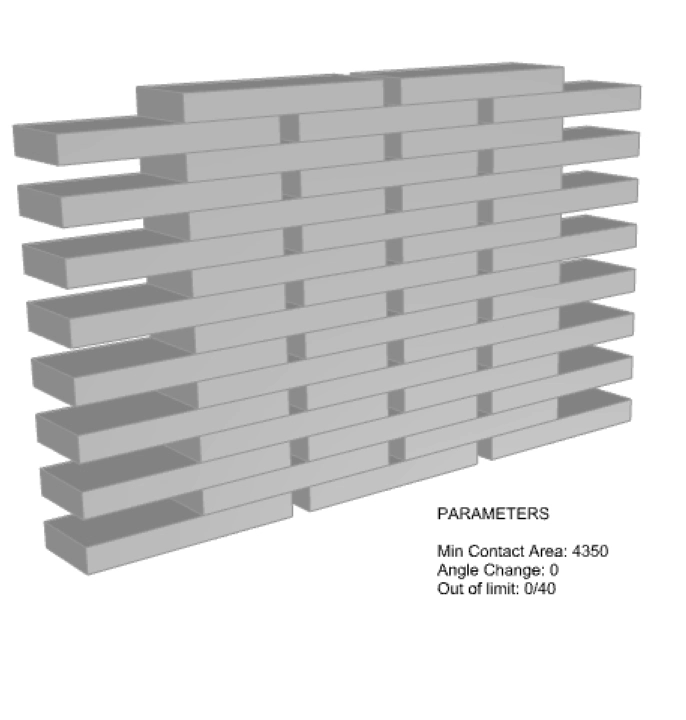

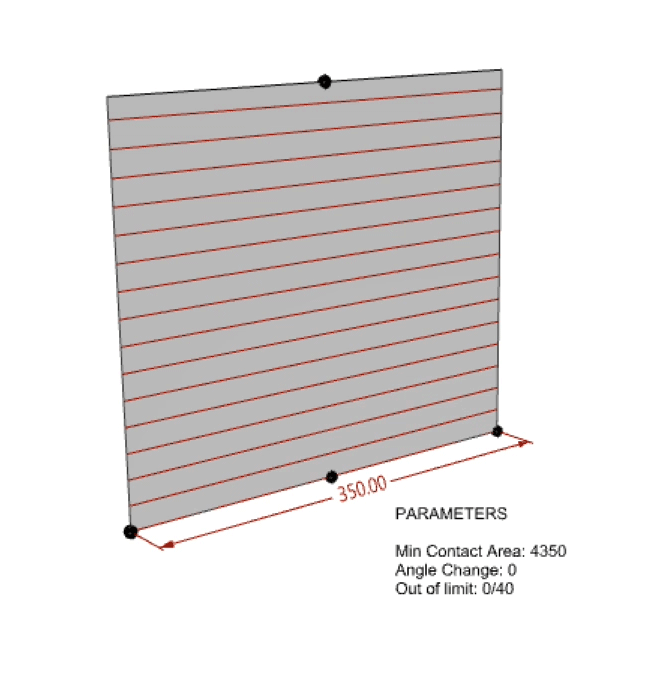

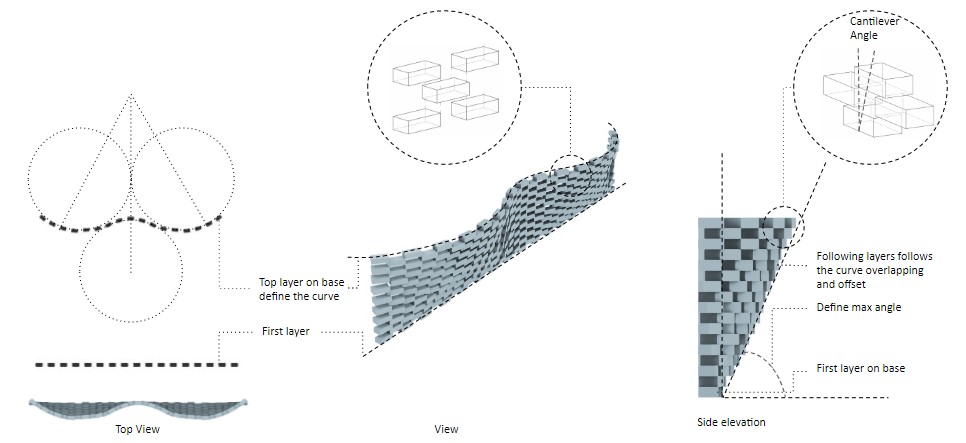

The same analysis was done with wave wall.  Geometrical and constructive rules were defined using a straight line in the base and a curve defined by 3 circles on top. This geometry defined a cantilever angle that we needed to test to understand how far we could push geometry before collapsed.

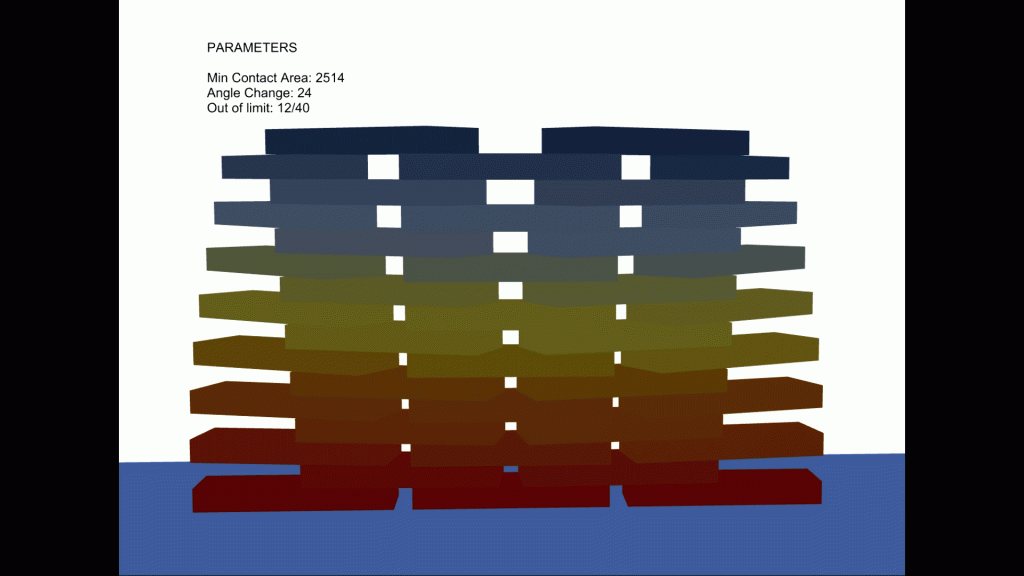

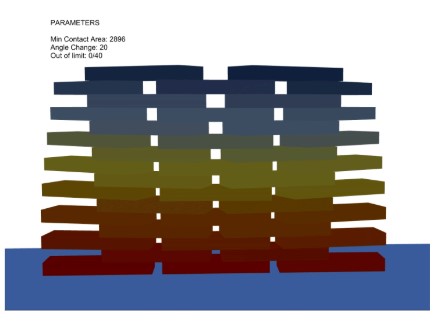

Structural analysis for wave wall to understand limit of overlapping ration between bricks before collapse

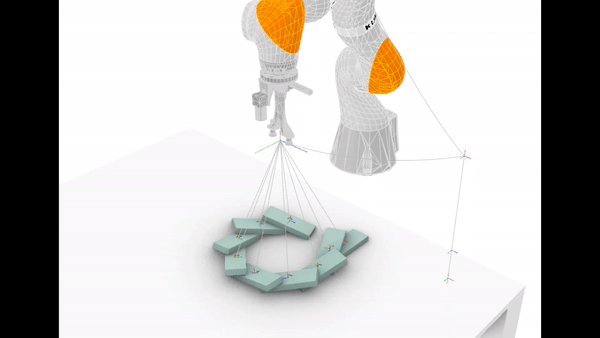

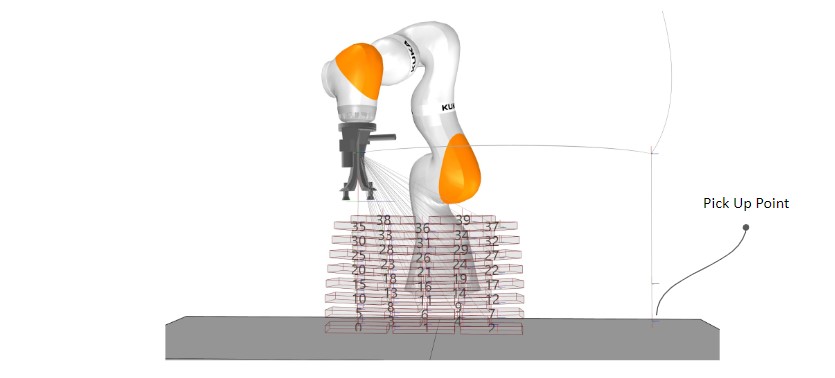

Simulation of construction to verify robotic arm position from picking point to final deployment creating a sequence for assembly

Body rigid test to verify when the structure could  collapse after put it under certain effort

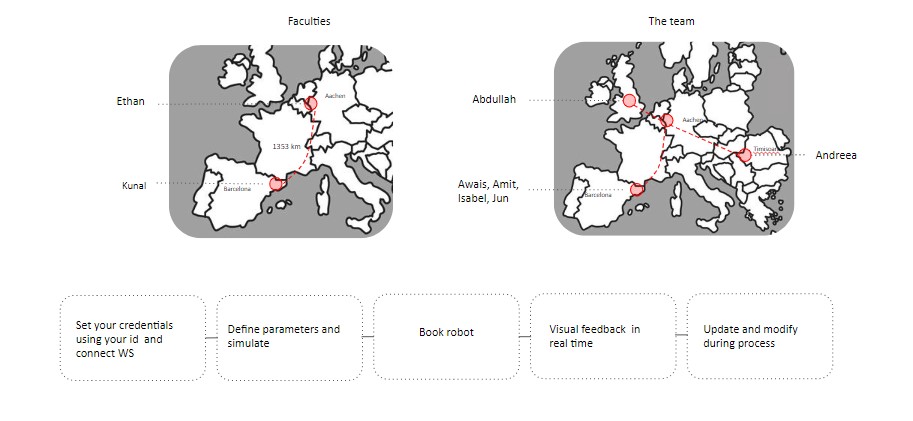

This experience was carried from multiple locations: faculties were at Barcelona (Spain) and Aachen (Germany). Student were spread in different parts of Europe (UK, Spain and Romania )

After running  the simulation, we started the remote assembly test  For this procedure we needed to set our credentials using an ID to connect to websocket. When we were connected, we needed to book the robot. Then connect with the webpage of Aachen lab where a camera w attached to the robot showed us in real time how the robot was moving. Also another frontal camera allowed us to control the assembly process remotely.

We started with few test of spiral wall , some of them failed


After these test, we runned the wave wall test

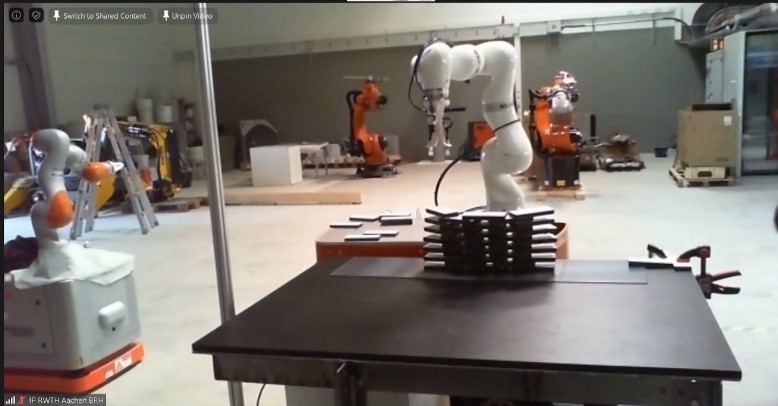

Image of the final result for wave wall test

Students: Mansoor Awais, Jun Woo, Andreea Bunica, Amit Pattar, Abdullah Sheik, Isabel Cousseau

IAAC – Master in Robotics and Advanced Construction
Workshop 3.2
Tutor: Ethan Kerber / Chair for Individualized Production, RWTH Aachen University
Tutor’s Assistant: Kunaljit Chadha / IAAC
University collaborators: Chair for Individualized Production RWTH Aachen University and Robots in Architecture Research LLC
The workshop was an initial beta test of KUKA|crc (Cloud Remote Control) software development by Sven Stumm / Robots in Architecture Research LLC.
