The merge of living units with public spaces to generate a complex urban network achieved through exploration of assembly and growth. Urban Promenade is an amalgamation of different collision meshes and geometries using assemblage exploration.
![](https://www.iaacblog.com/wp-content/uploads/2021/03/render-7-1.jpg)
Visual of Assemblage
The components are designed to create Open, Semi-open and Closed spaces with varying configurations and diverse settings. The idea was to create a loop in the environmental setting where the assemblage would grow, creating a gradient of sparse to dense spaces. This would create an opportunity to assign different functions to the spaces with successful “placemaking”.
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001.jpg)

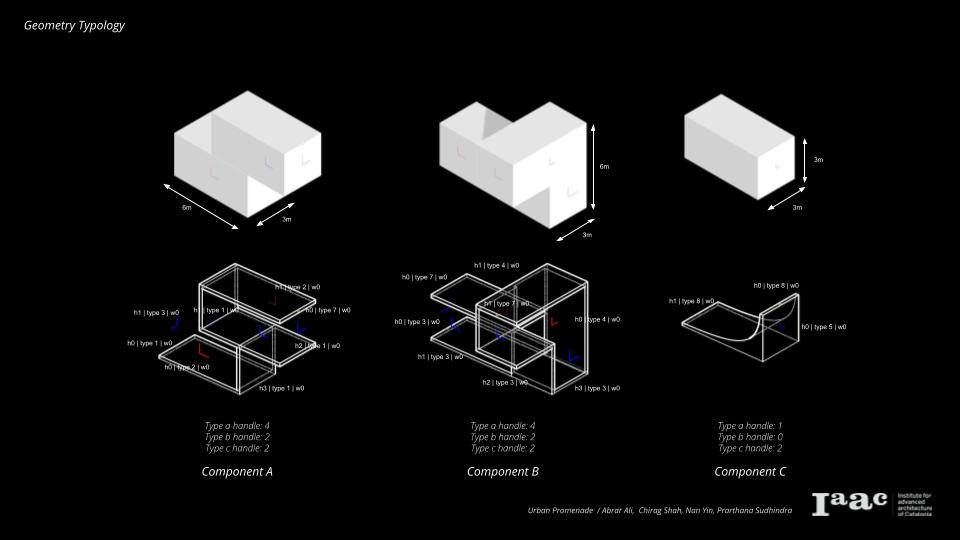

Collision meshes with their handles

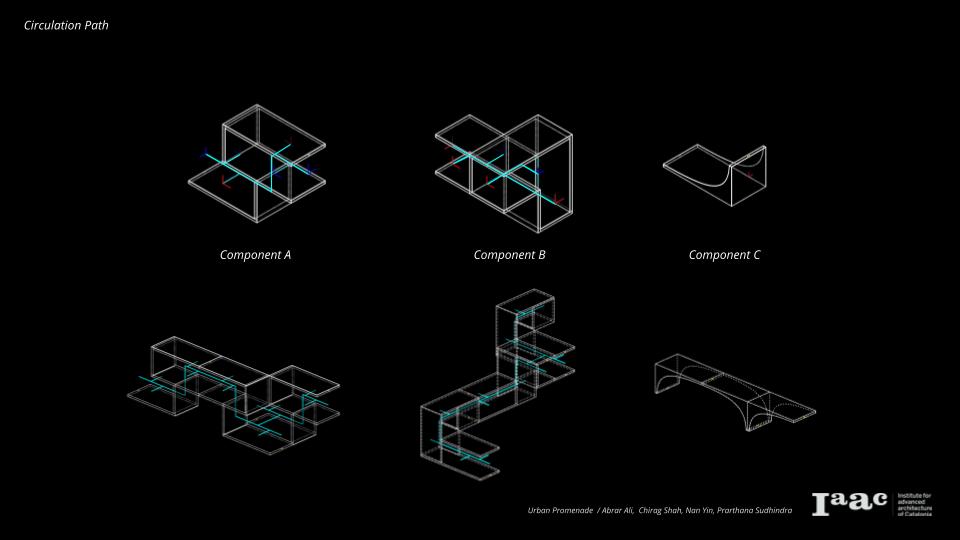

![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-2.jpg)
Circulation path
Analysis of the Heuristics and selection of connections was important to create a complex spatial setting where each space has a distinctive characteristic.
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-3.jpg)

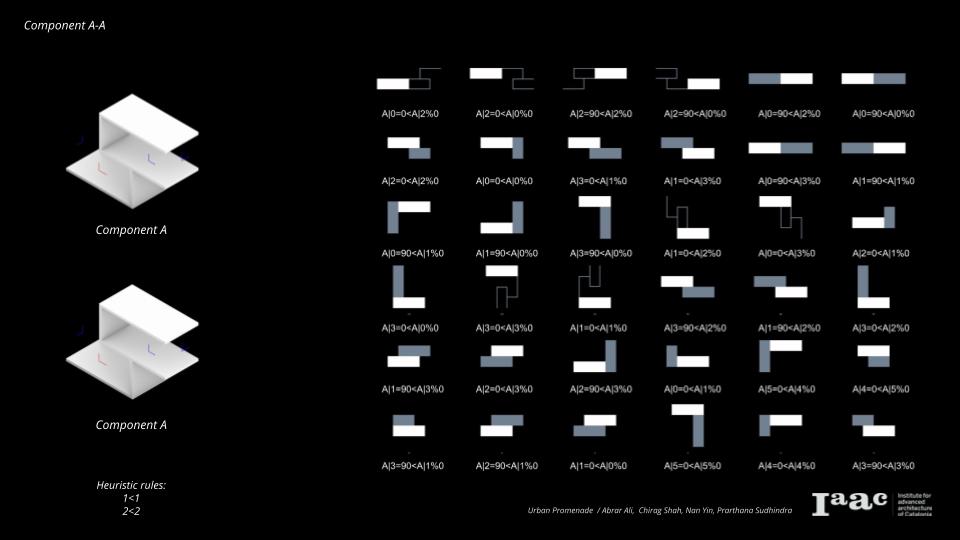

Component A-A
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-1-1.jpg)
Component A-A iteration
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-2-1.jpg)
Component B-B
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-3-1.jpg)

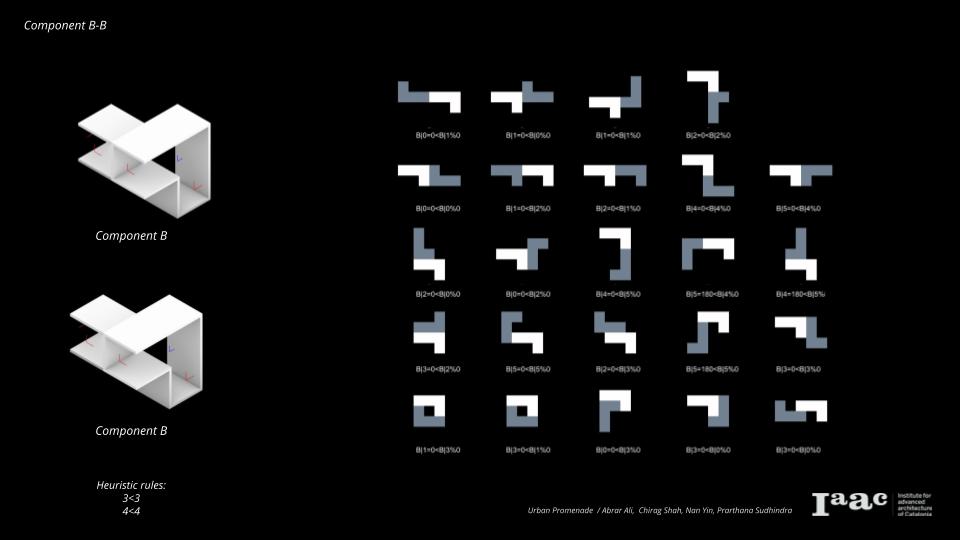

Component B-B iteration
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-4.jpg)

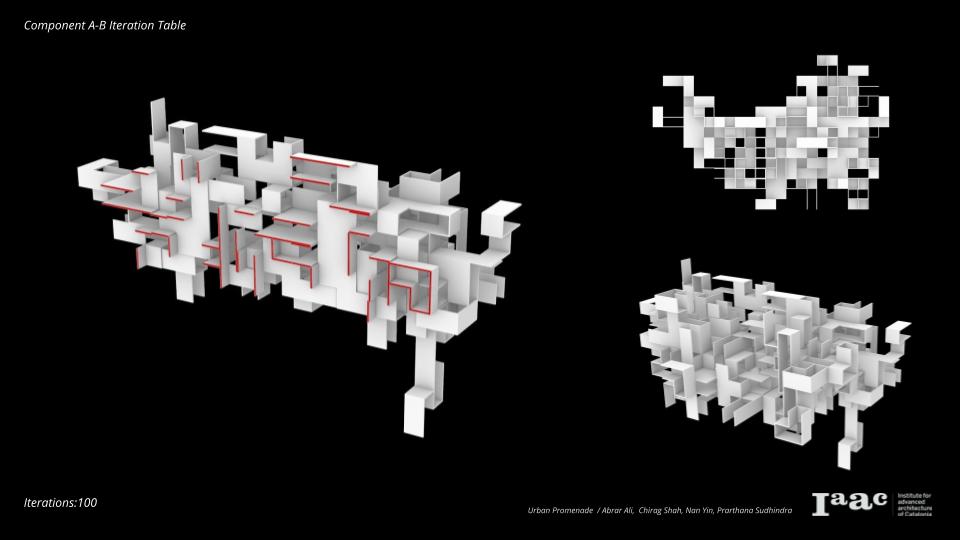

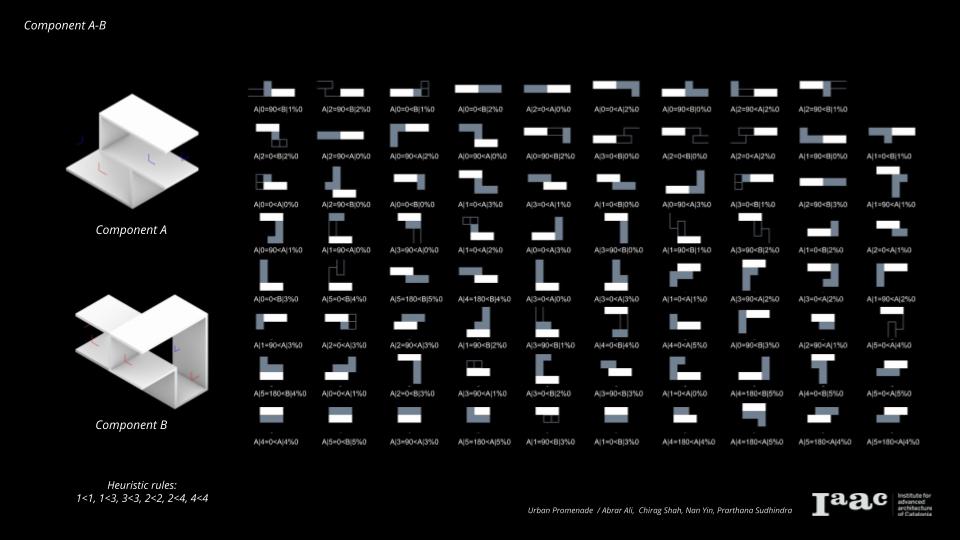

Component A-B
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-5.jpg)
Component A-B Iteration
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-6.jpg)
Component A-B-C
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-7.jpg)

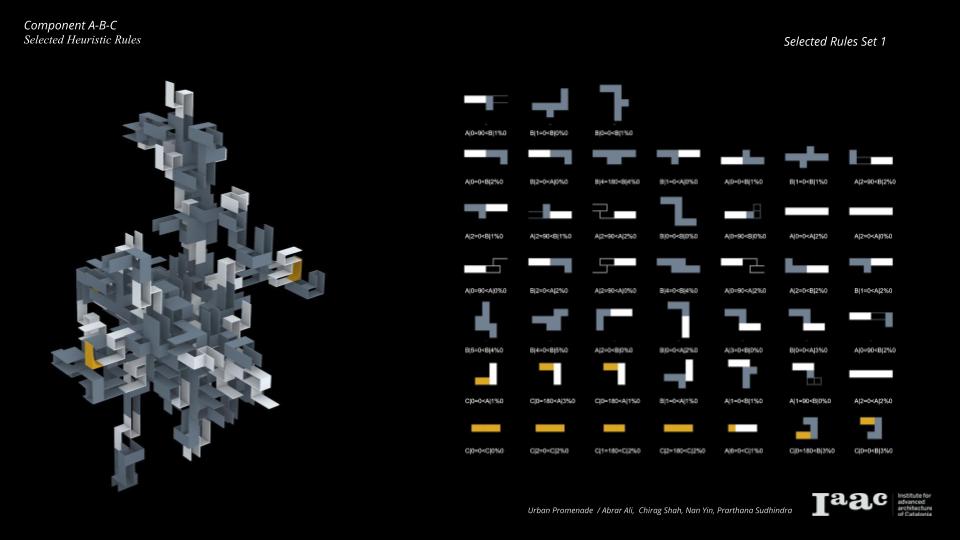

Selected Heuristics

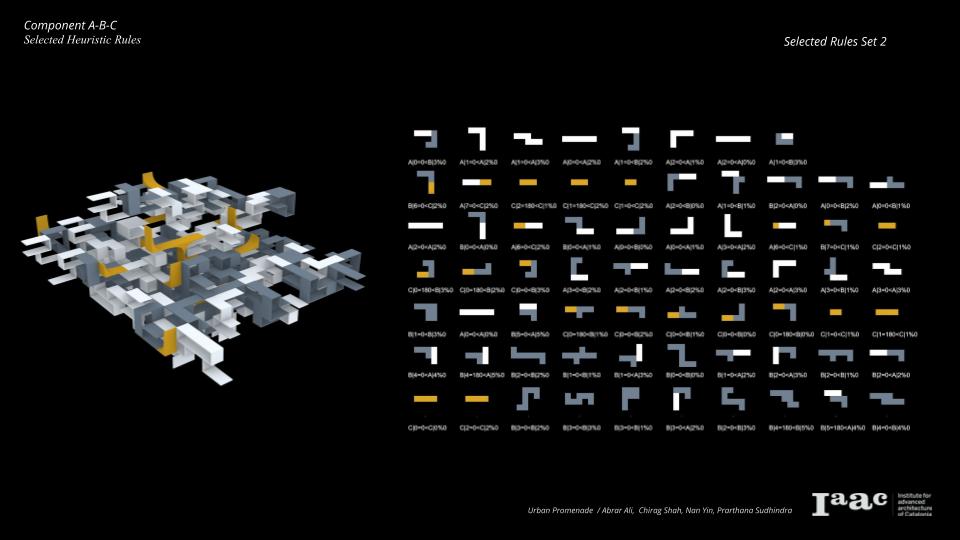

![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-8.jpg)
Selected heuristics
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-9.jpg)

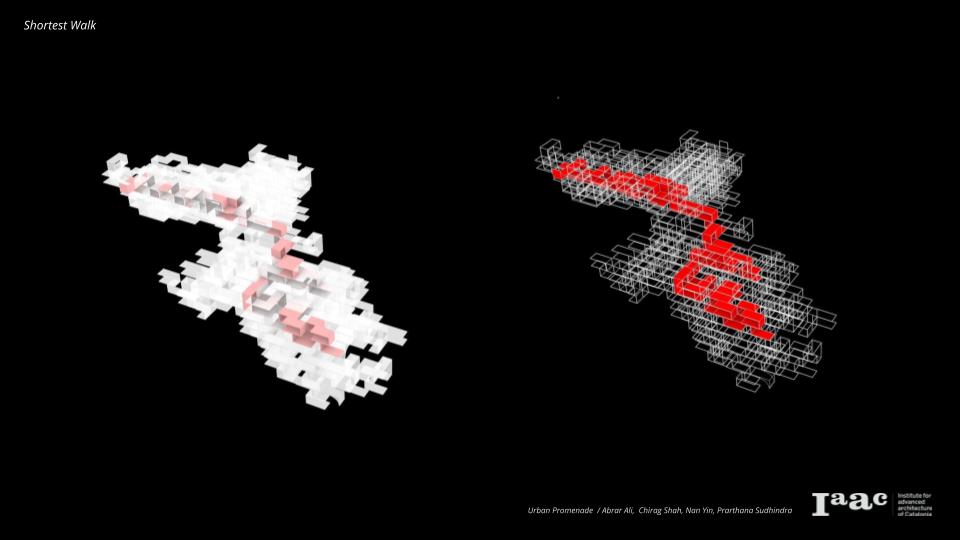

Shortest walk

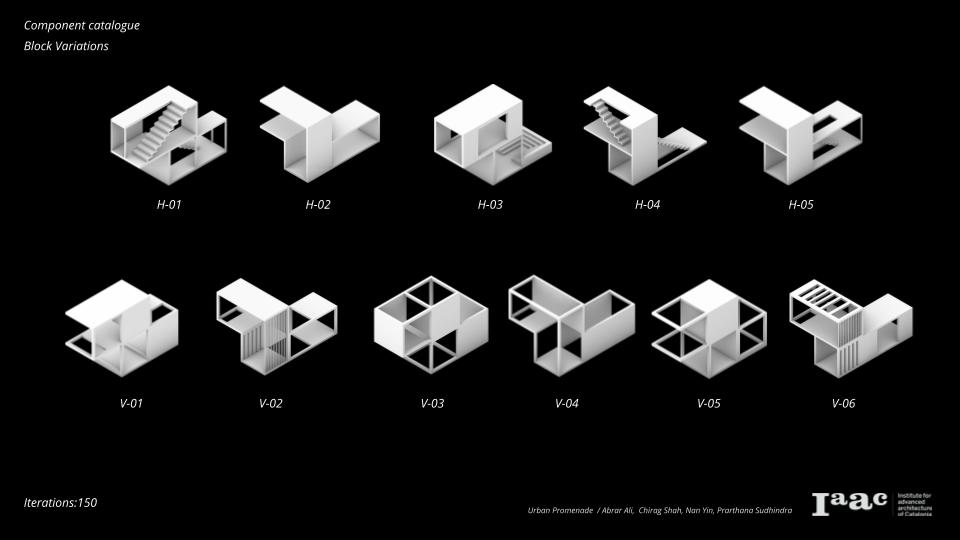

![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-10.jpg)
Component catalogue
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-11.jpg)

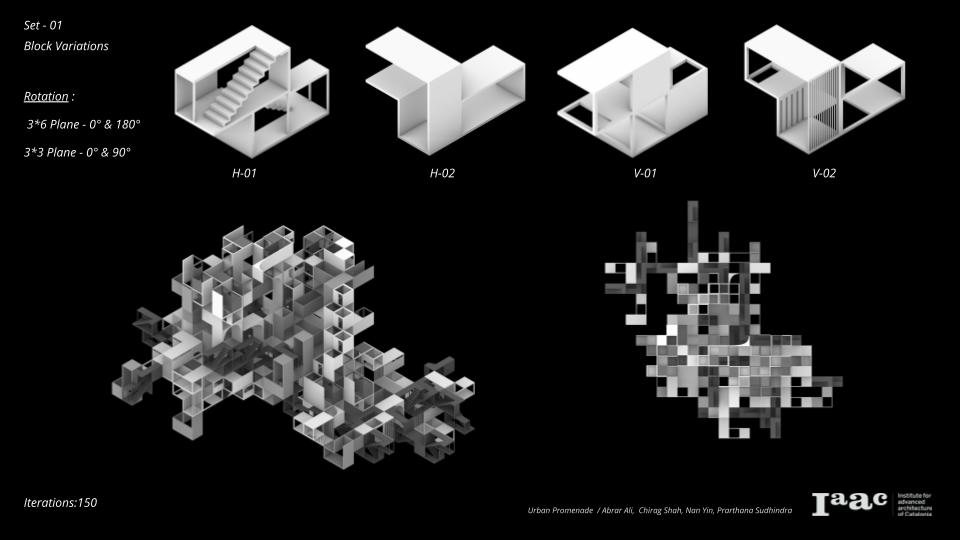

Set – 01
Block Variations – Set 01

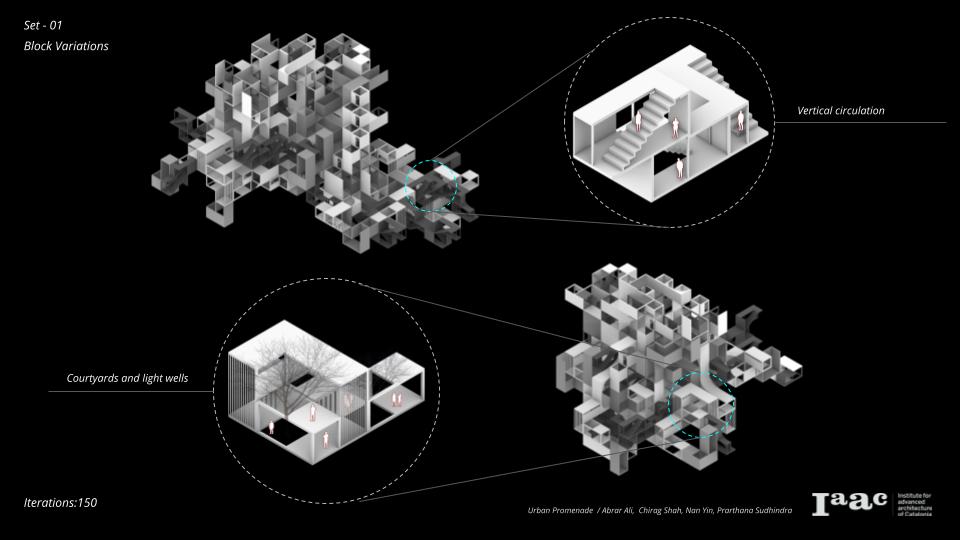

![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-12.jpg)
Set – 01
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-13.jpg)
Set – 01

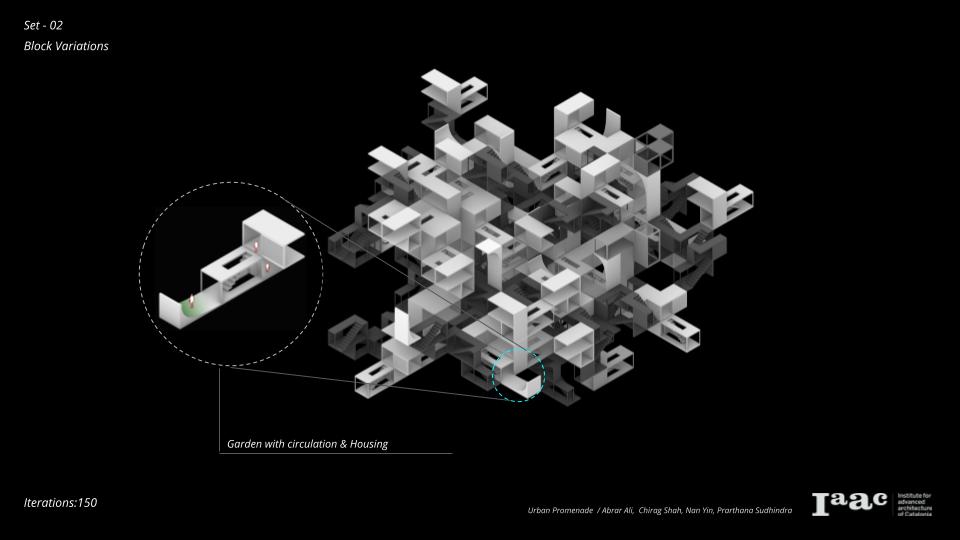

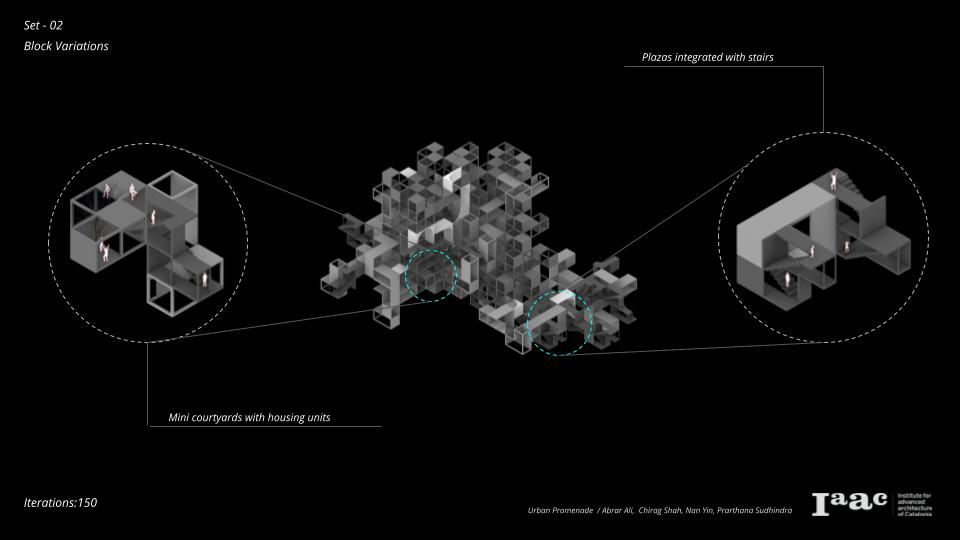

Block Variation – Set 02

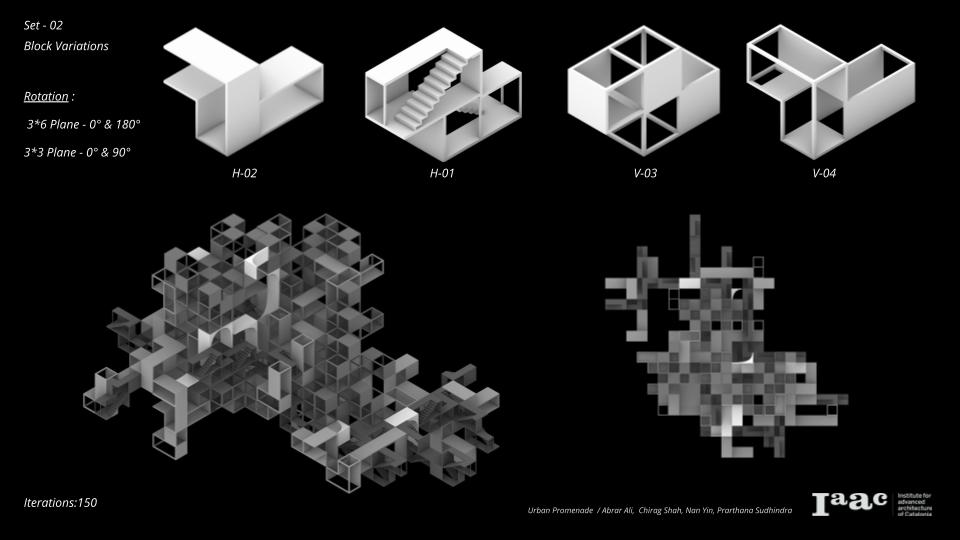

![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-15.jpg)
Set – 02

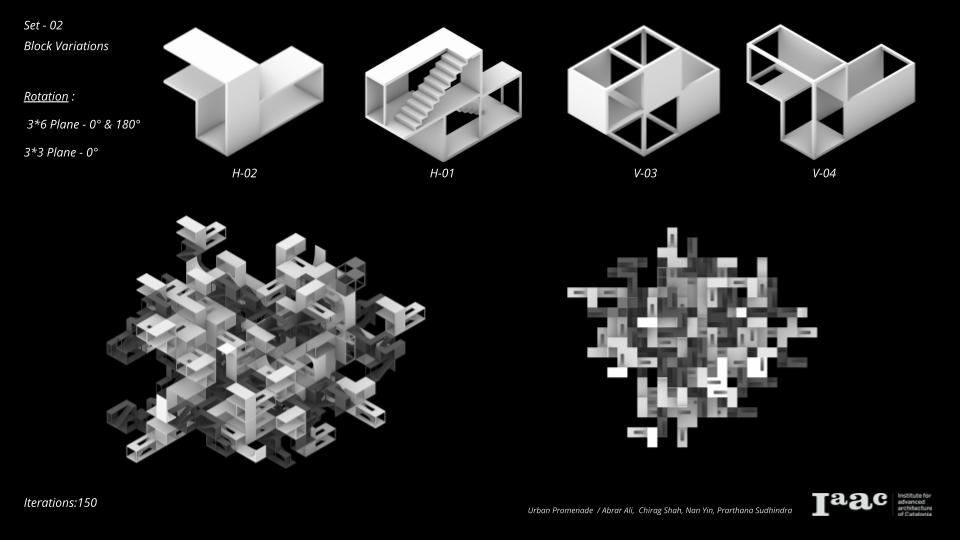

![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-16.jpg)
Set – 02
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-17.jpg)
Set – 02
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-18.jpg)
Set – 02

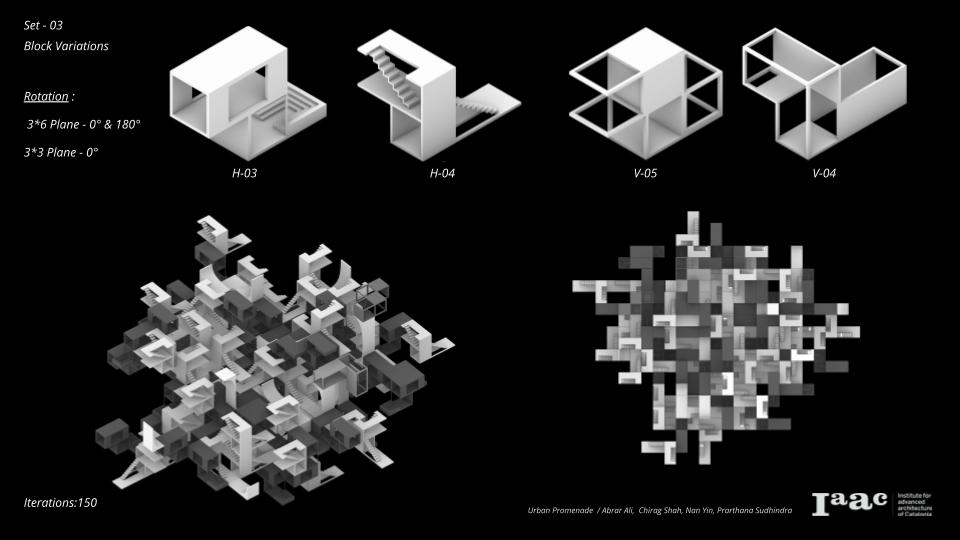

Block Variation – set 03
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-21.jpg)
Set 03

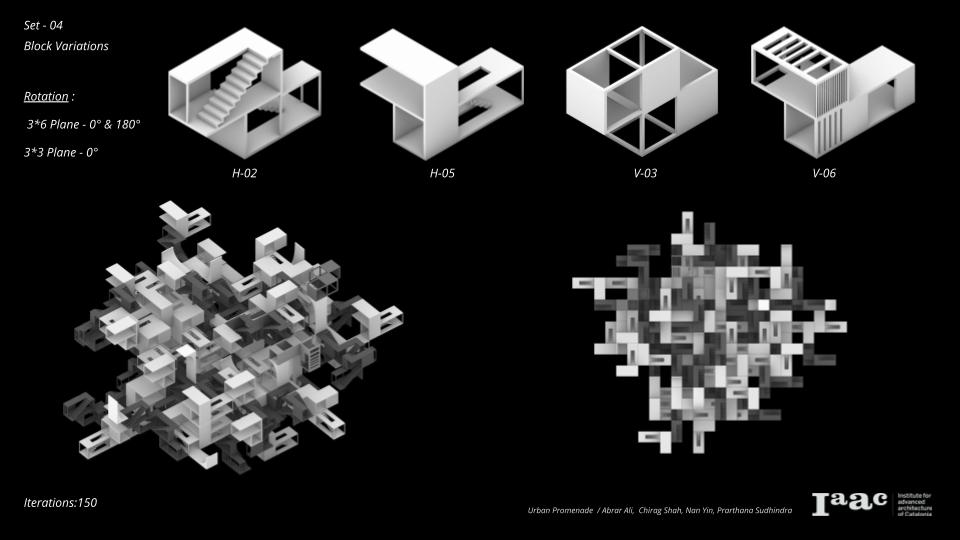

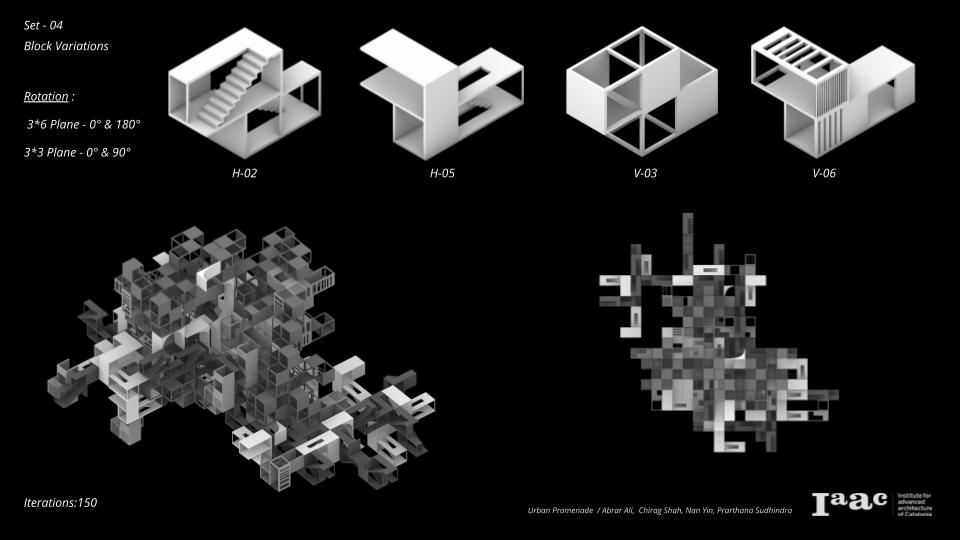

Block Variations – Set 04
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-2-2.jpg)
Set – 04
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-3-2.jpg)
Set – 04

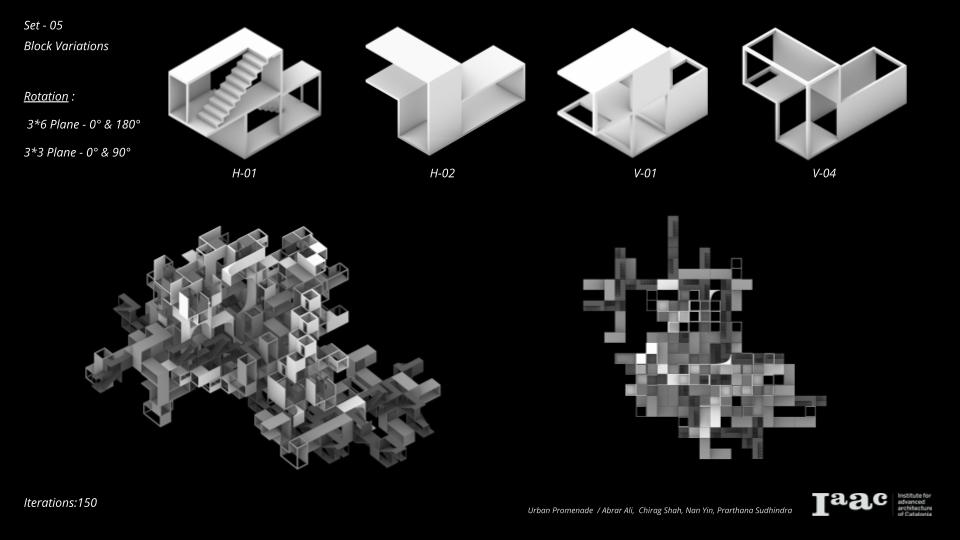

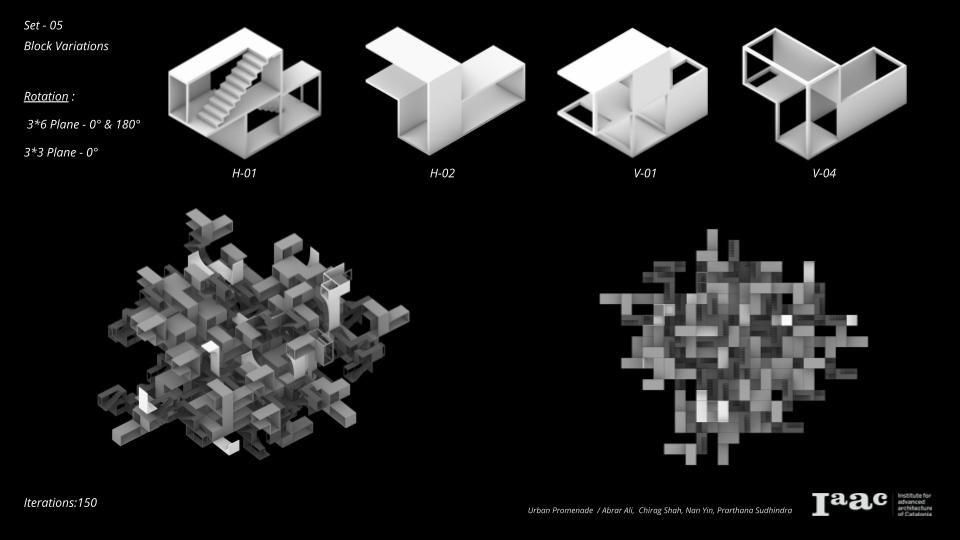

Block Variations – Set 05
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-5-1.jpg)
Set – 05
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-6-1.jpg)
Set – 05

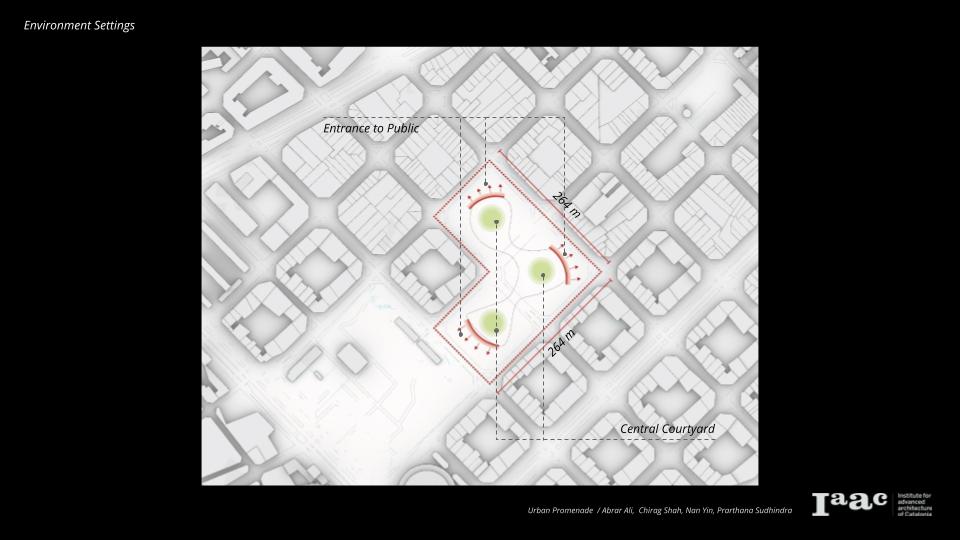

This was further developed by providing an environmental setting and creating a loop in the urban context which contained Transitional spaces and Circulation paths connecting the modules.
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-8-2.jpg)
Environment setting

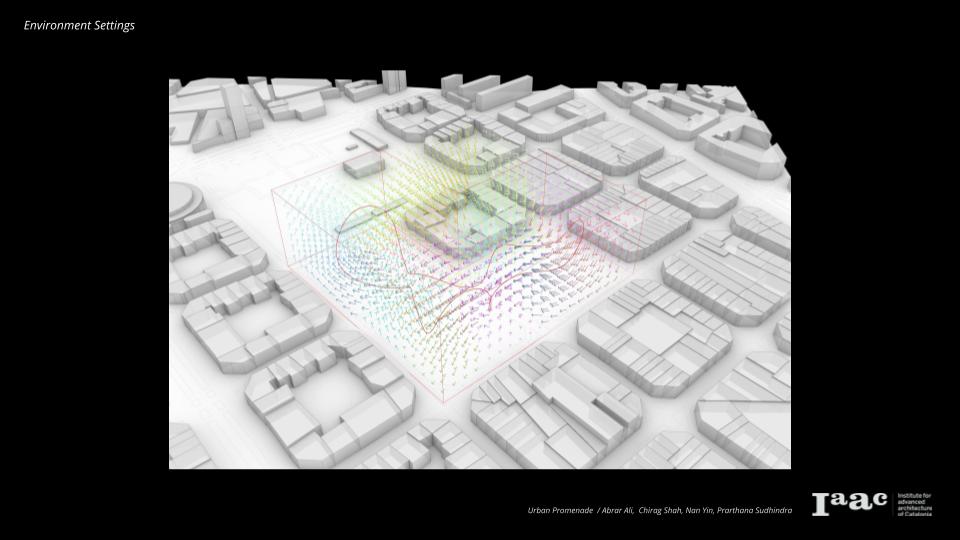

![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-9-1.jpg)
Environment setting
Environment growth
![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-1-3.jpg)
Final Assemblage
Section Slice
The Post-processing was done to provide a character to each space and make it unique.

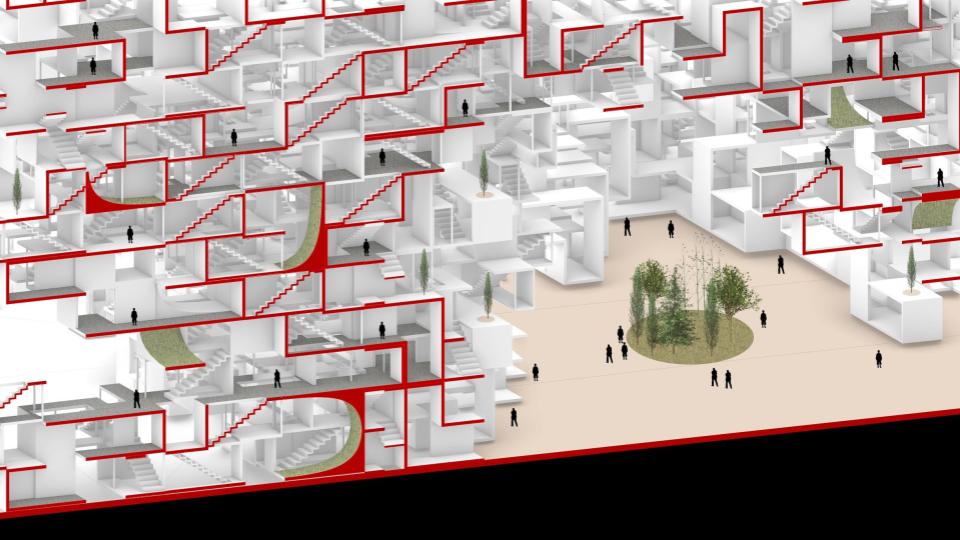

![](https://www.iaacblog.com/wp-content/uploads/2021/03/g05_p001-2-3.jpg)
Section
![](https://www.iaacblog.com/wp-content/uploads/2021/03/render-2.jpg)
Visual 02
![](https://www.iaacblog.com/wp-content/uploads/2021/03/render-5.jpg)
Visual 03
![](https://www.iaacblog.com/wp-content/uploads/2021/03/render-6.jpg)
Visual 04
![](https://www.iaacblog.com/wp-content/uploads/2021/03/render-8.jpg)
Visual 05
Urban Promenade is a project of IAAC, Institute for Advanced Architecture of Catalonia developed in the Master in Advanced Architecture 2020/21 by students –
Abrar Ali, Chirag Shah, Nan Yin, Prarthana Sudhindra
Faculty – Alessio Erioli and Andrea Graziano
