With warmer days and cooler nights, Nairobi’s subtropical highland climate, poses an interesting challenge in designing a thermally comfortable space for the community of the Masai tribe. ‘Ubuntu Village’, is designed to bring the community closer through allowing its users to involve in cultural exchange and social interaction in spaces designed to evoke sensorial experiences through the play of light and shadow, whilst conserving the traditional Kenyan architectural heritage.

01. Introduction to Hyperboloids

The following series of parameters of the hyperboloid geometry were studied to understand its sectional relationship when juxtaposed with a wall.

a. Asymptote (Range : 50-60 radians)

b. Parameters a and b (Range : 0.1-0.16m)

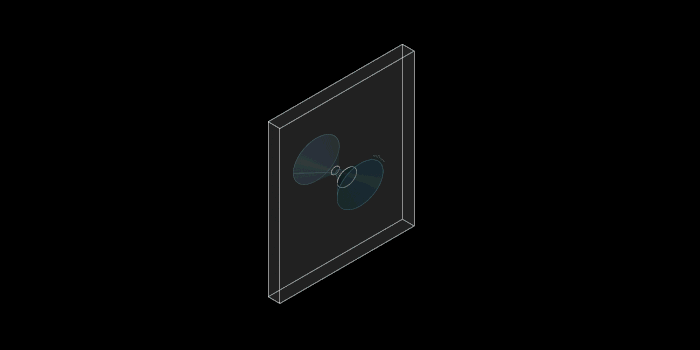

c. Rotation (Range : 0-90 degrees)
d. Tilt(Range : 0-0.25 radians)

e. Plane Offset

02. After Gaudi

A series of compositions of 3 intersecting hyperboloids were explored using radiation analysis to come to a final conclusion for the selection of a composition for manual fabrication.

In a workshop conducted with Alberto Portoles, this composition was fabricated in the following steps

a. Fabrication of the mold

b. Fabrication of the hyperboloid

c. Assembling the hyperboloids

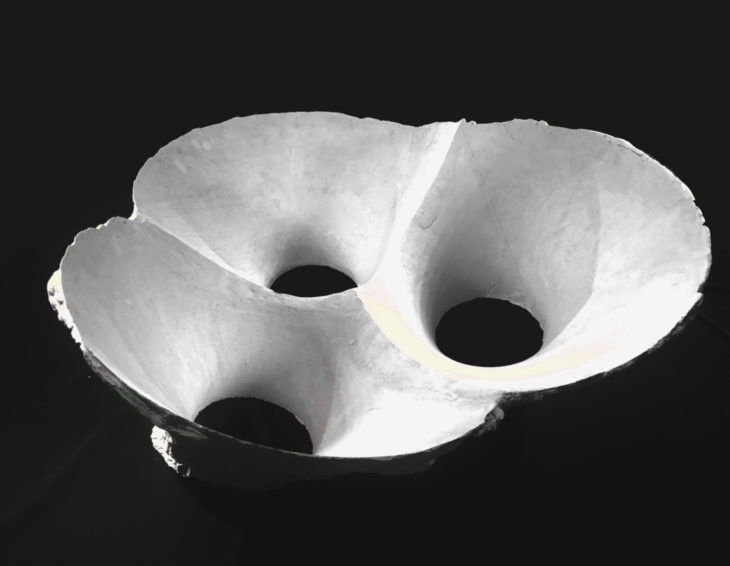

d. Final Piece


03. Site Analysis

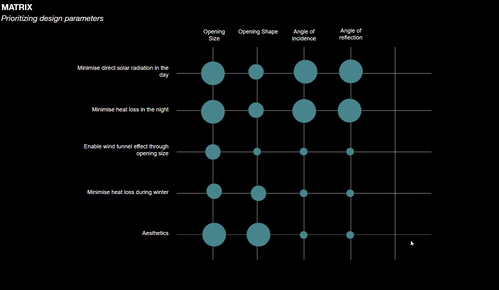

04. Design Intent

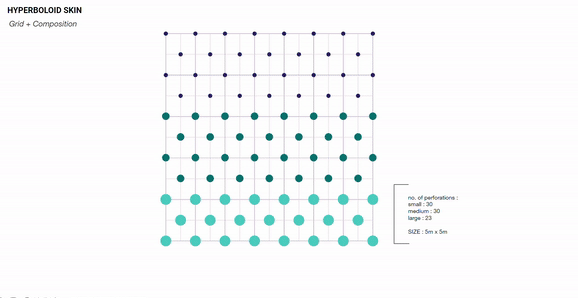

05. Grid Explorations

06. Form Development

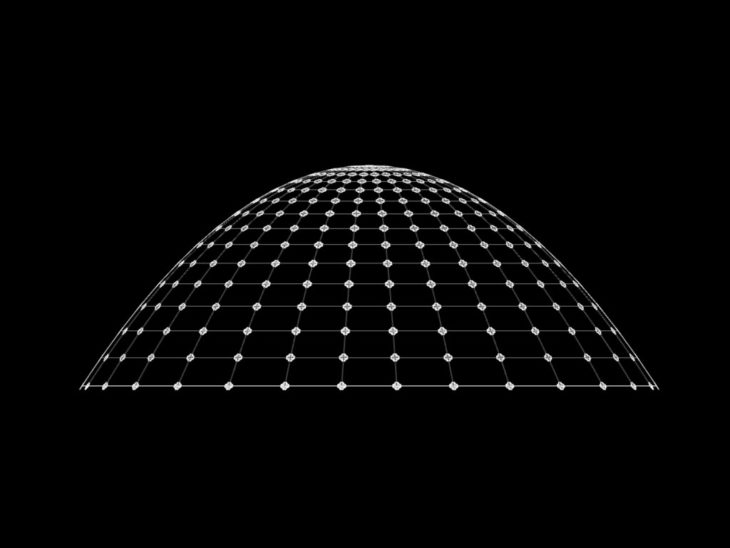

a. Divide the surface into quad panels

b. Orient first set of planes onto the vertices

c. Scale down the hyperboloids from bottom to top, and orient the same throughout the surface

d. Perform the boolean difference operation to get the perforation

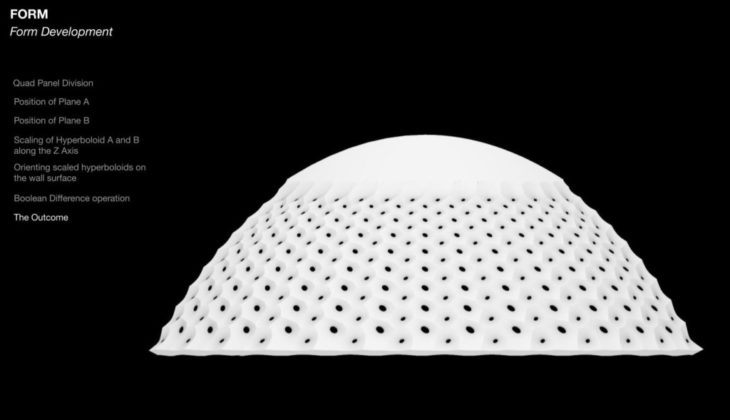

e. The Outcome

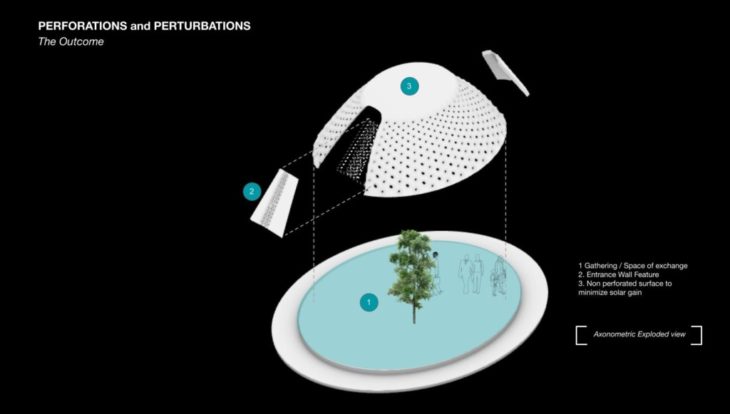

Axonometric View of the Community Center

Hyperboloid perforations and Perturbations



08. Visualizations

Exterior View – Roof Detail

Hyperboloid perforations and Perturbations

Exterior View – Ubuntu Village

Hyperboloid perforations and Perturbations

Exterior View – Entrance Detail

Hyperboloid perforations and Perturbations


After Gaudi – From Computation to Composition // “Ubuntu Villageis a project of the Institute for Advanced Architecture of Catalonia developed at Master in Advanced Architecture in 2020/2021 by:
Student: Aishwarya Arun, Disha Shetty, Enlin Guo, Gizem Demirkiran, Yue Wu – Faculty: Mark Burry, Rodrigo Aguirre & Albert Portoles | Faculty Assistant: Ashkan Foroughi
