‘Sheltered’ is a computationally driven project where the intent was to have temporary structures for easy assembly and disassembly in extreme earthquake prone regions facing the repercussions of the calamity.

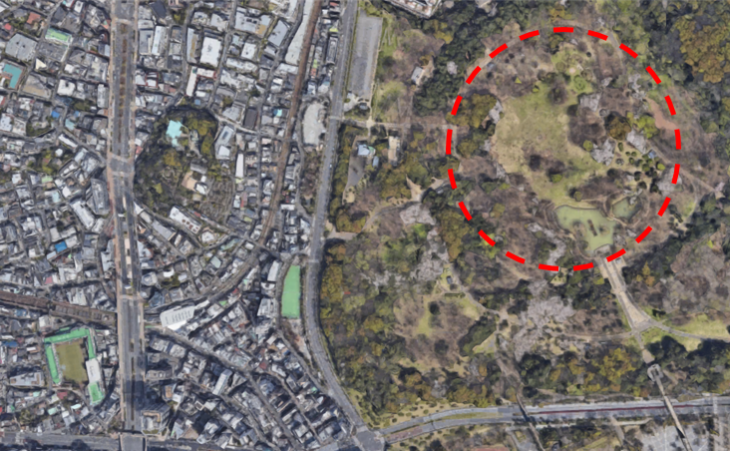

Site: Tokyo, Japan

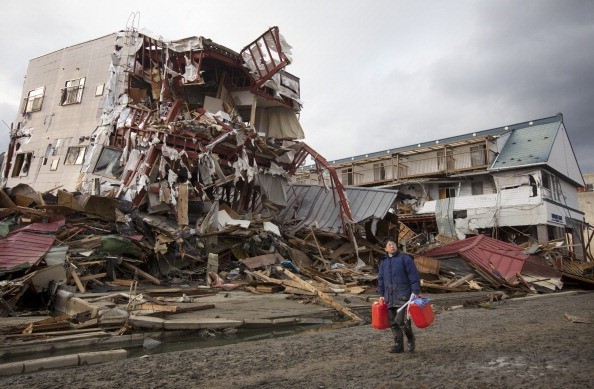

Context: Earthquakes

Proposal

The proposal was to have deploy-able temporary shelters using Minimal Surfaces that are optimized to give the survivors a pleasant living condition and shelters during these hard times.

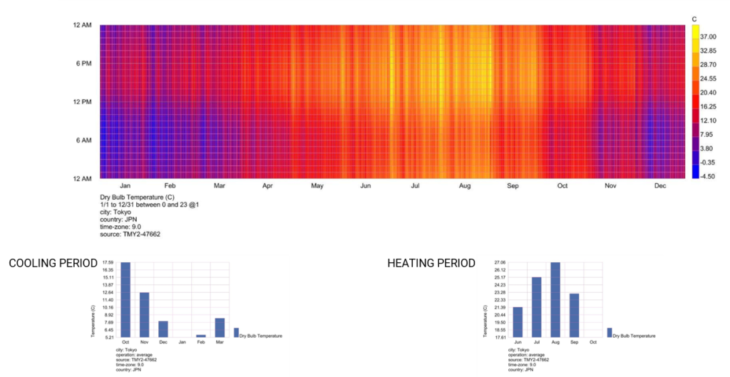

Global Context Analysis: Global Temperature

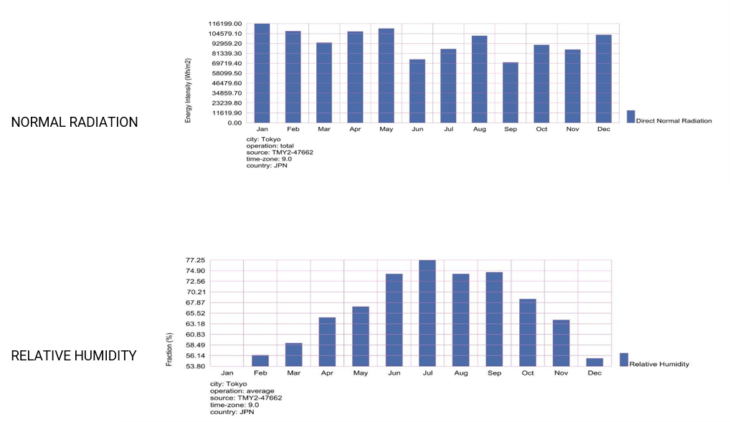

Global Context Analysis: Humidity and Radiation

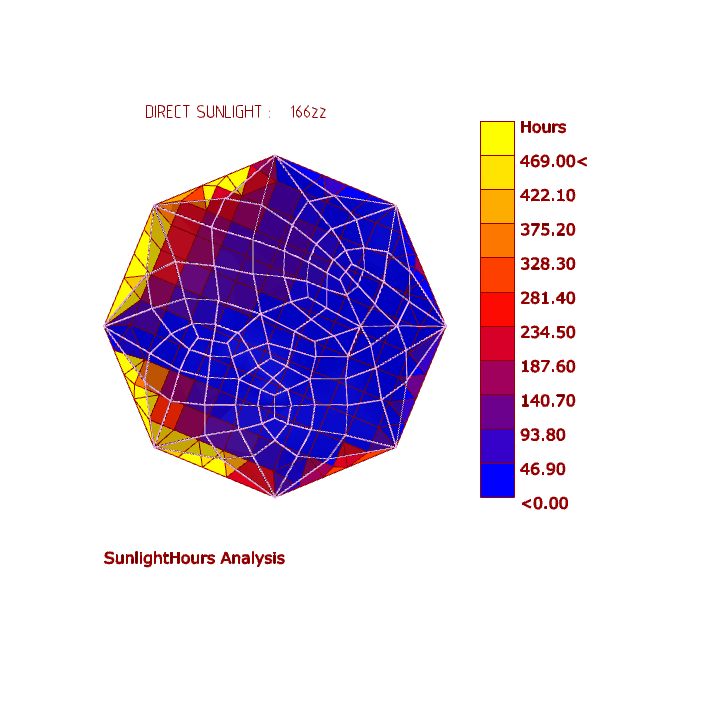

Site Analysis: Sun Light Hours

Site Analysis: Solar Radiation

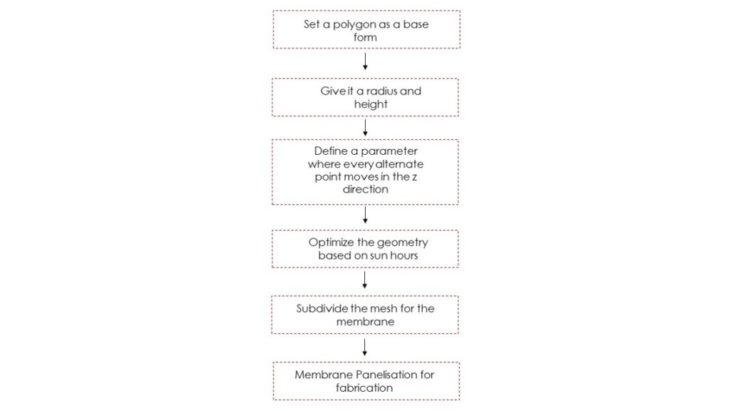

Pseudo Code

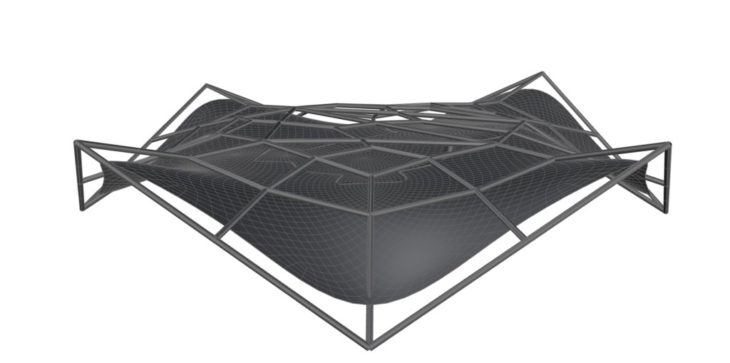

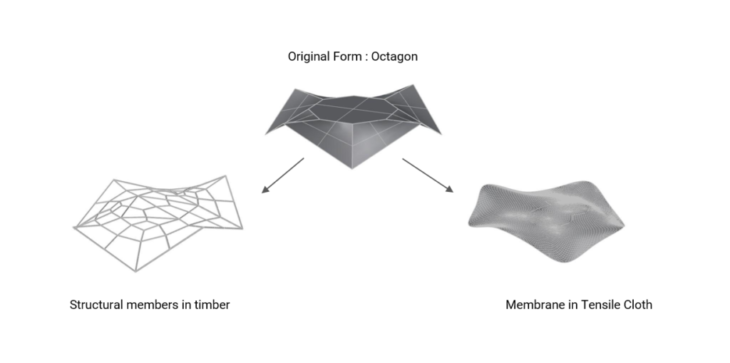

Form Finding

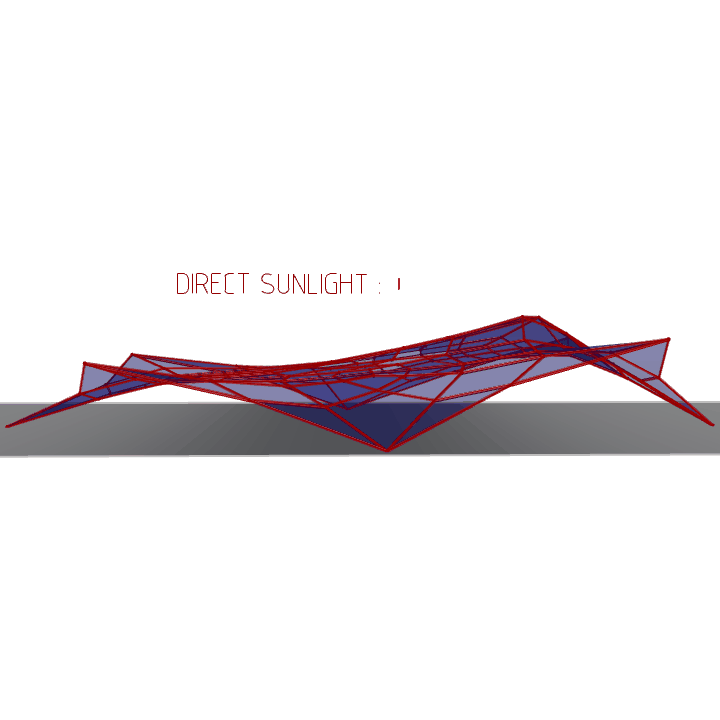

Form Finding: Optimization as per Radiation

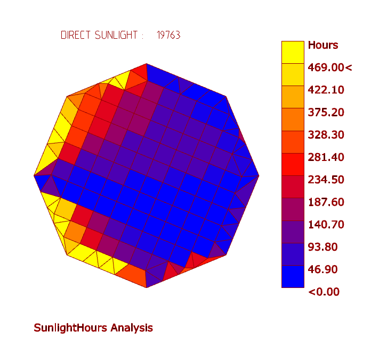

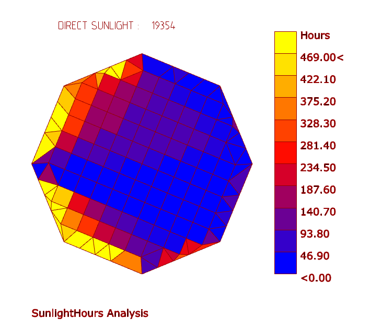

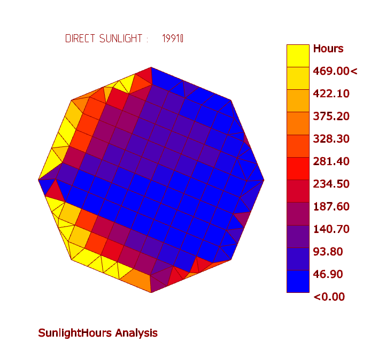

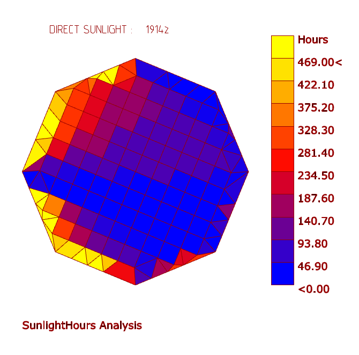

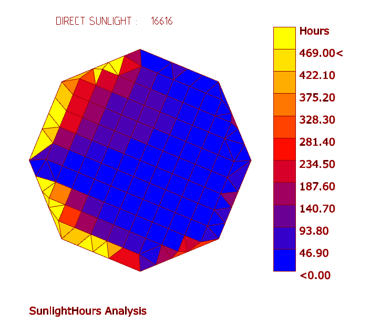

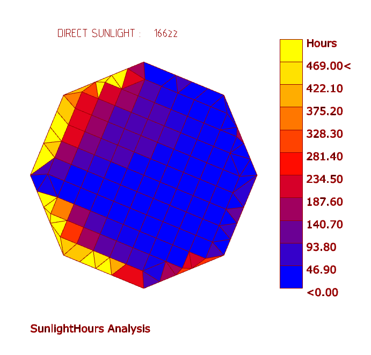

Form Iteration: Shading

Catalog

Render

‘Sheltered’ is a project of IAAC, Institute for Advanced Architecture of Catalonia developed at Master in Advanced Architecture in 2022 by Students: Rahma Hassan, Sarjak Rakholiya and Tanvee Joshi and Faculty: David Andres León, Faculty Assistant: Ashkan Foroughi.
