Louvers , that add aesthetic quality to structure  also provide passive shading .


ref : South Campus of Xi’an Jiaotong Liverpool University in Suzhou, Chi


Form development

a. Concept development

Facade development .


a. Creating openings


b. form development


Creating Louvers, that react to the solar movement .

Grasshopper script

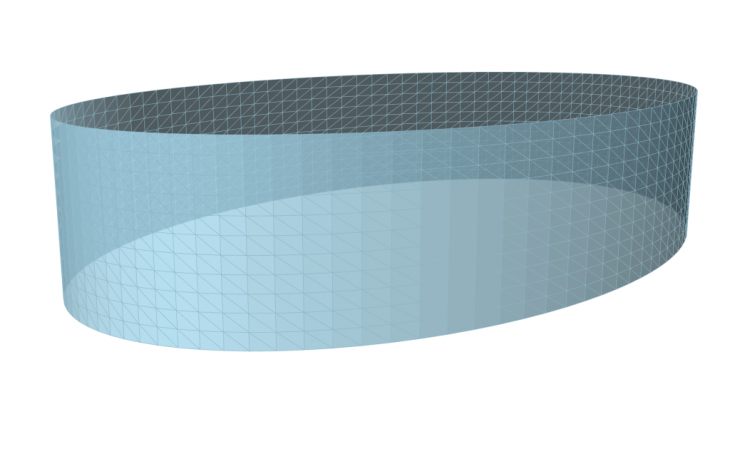

Inner surface

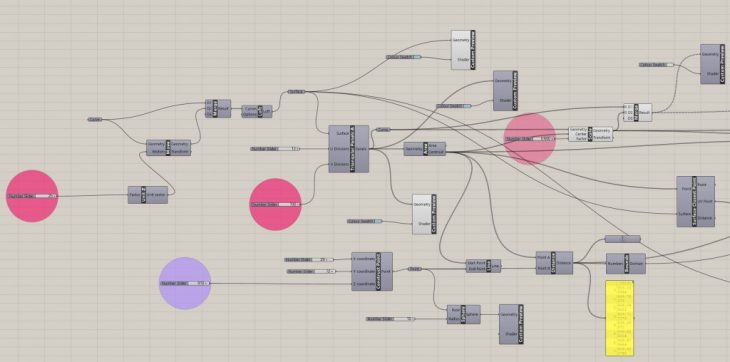

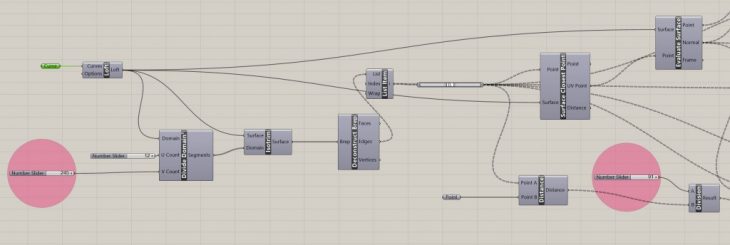

a.grasshopper definition showing the  base  structure development and triangulation used to create the            openings

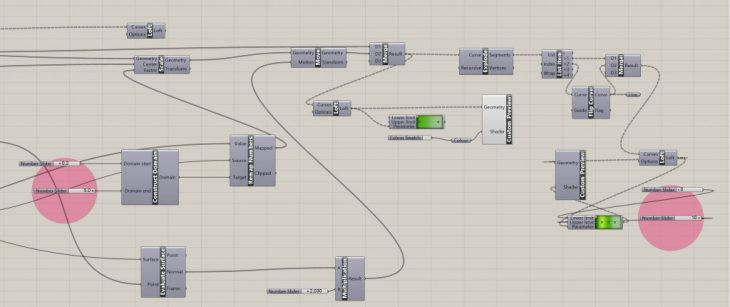

b.grasshopper definition for material application  – in terms of texture .

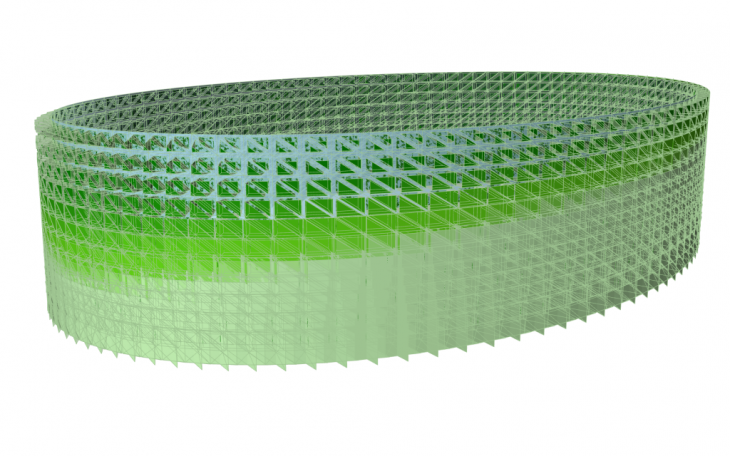

Outer  Responsive Facade :

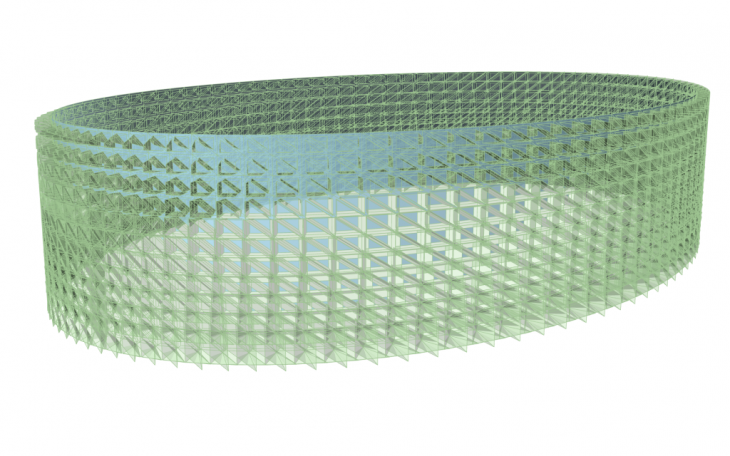

a. Definition for development of louvers

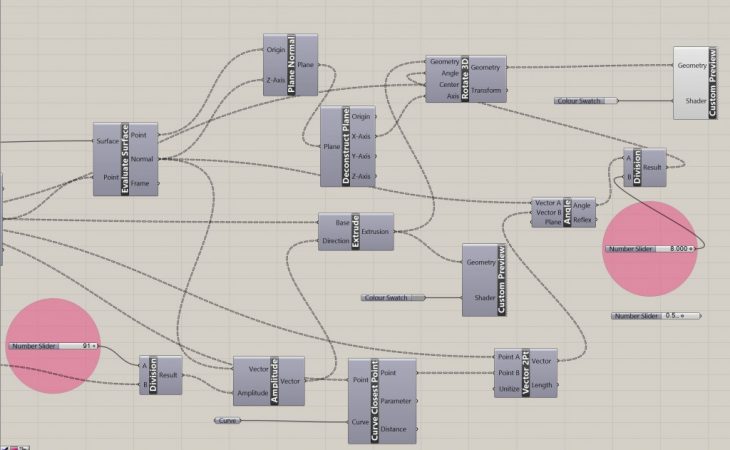

b. Definition for rotation  of louvers  according to sun path

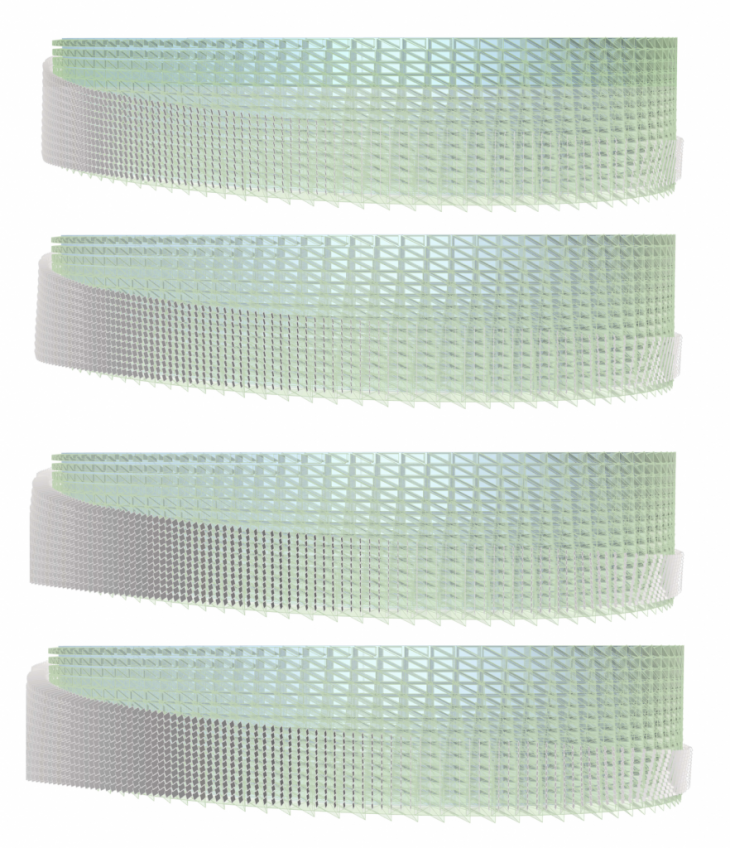

Rotation of the Louvers



Project : Passive Shading facade

Masters of Advanvced Architecture


Students: Madhurya Bayyapuneedi
