ASSIGNMENT 1

FACADE REFERENCE

The task of this assignment is analyzing a facade system and replicating it with grasshopper.

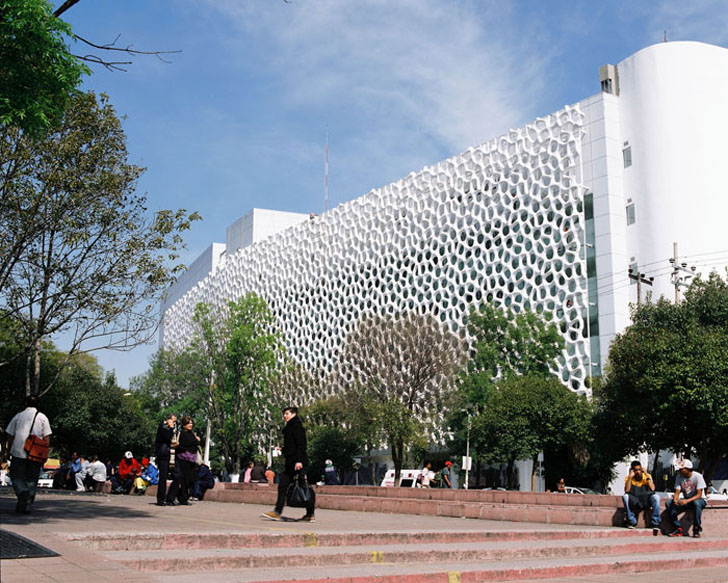

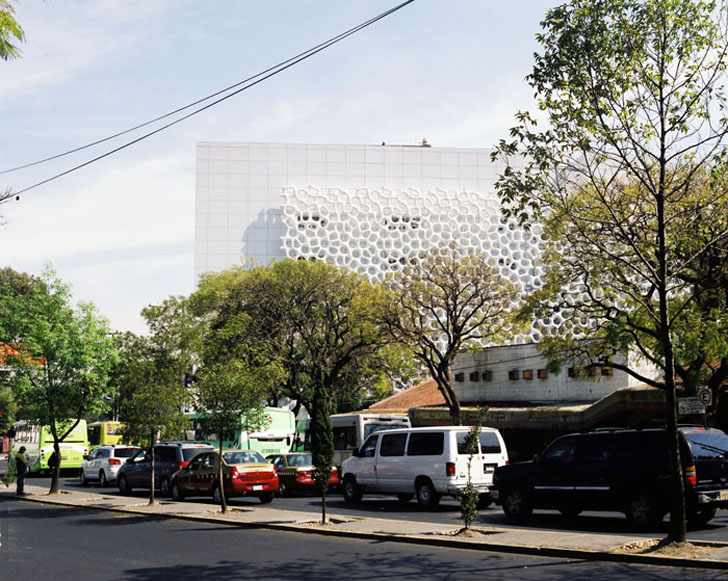

Selected facade for this assignment is Manuel Gea Gonzales’s Hospital building located in Mexico City.

PROCEDURE

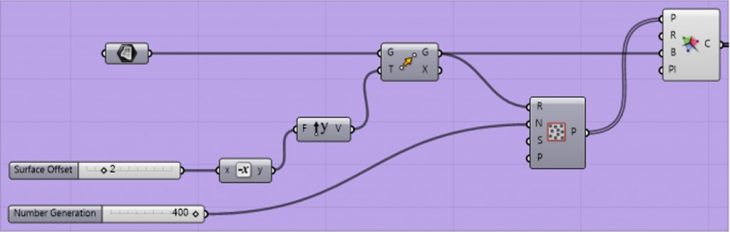

• Picking surface from rhino model
• Offsetting it to a certain distance

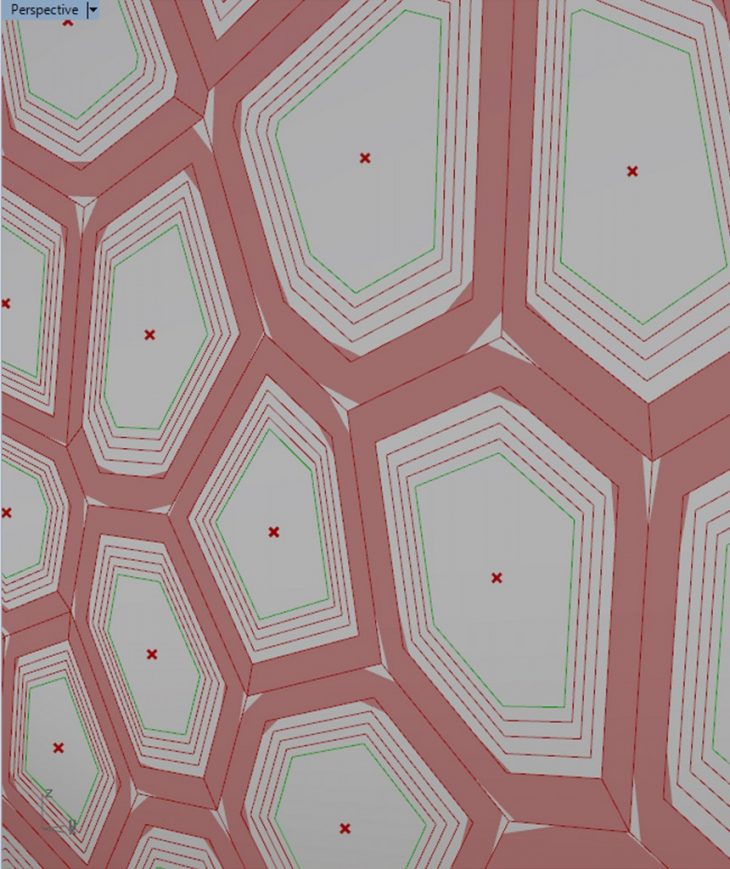

• Generating 2d points on a planar surface

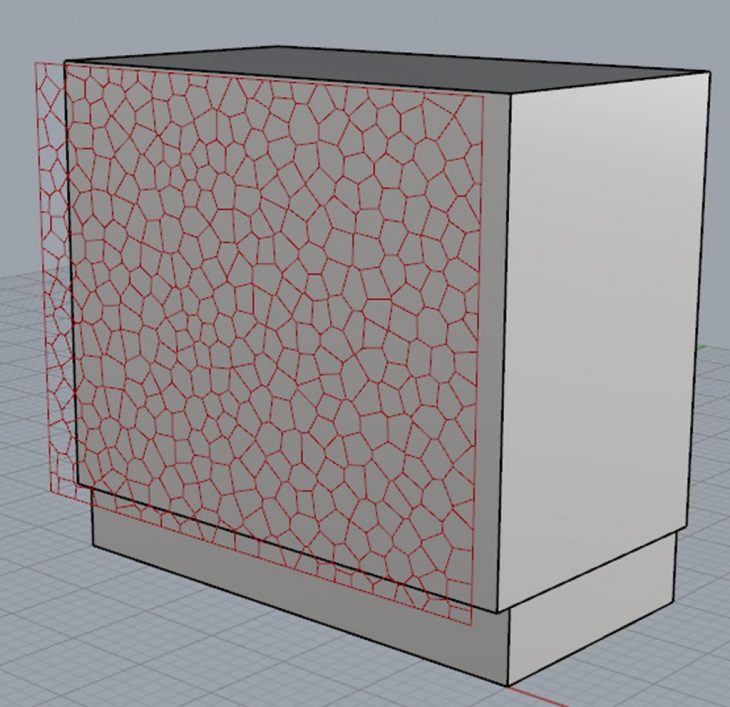

• Dividing surface with planar curves through 2d generated points

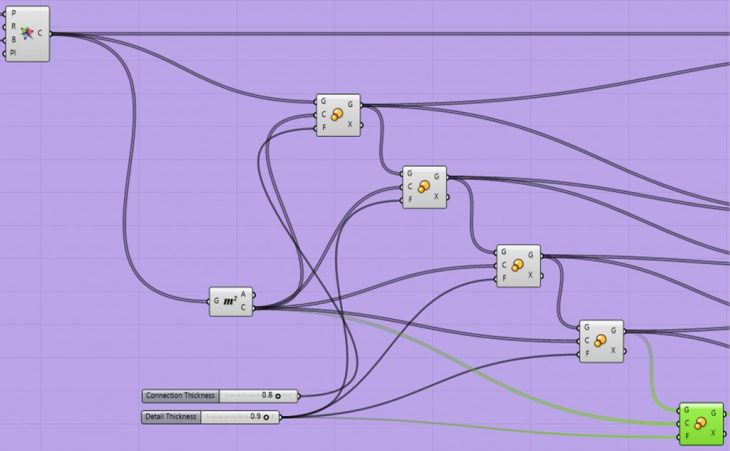

• Scaling curves to define thickness of the connection
• Scaling connection curves to create desired number of detail curves

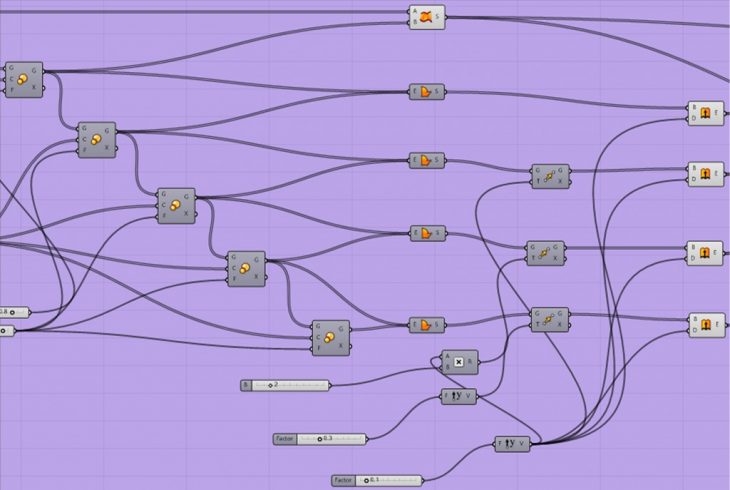

• Creating surfaces with each two curves
• Main curve + first scaled curve to define connection surface

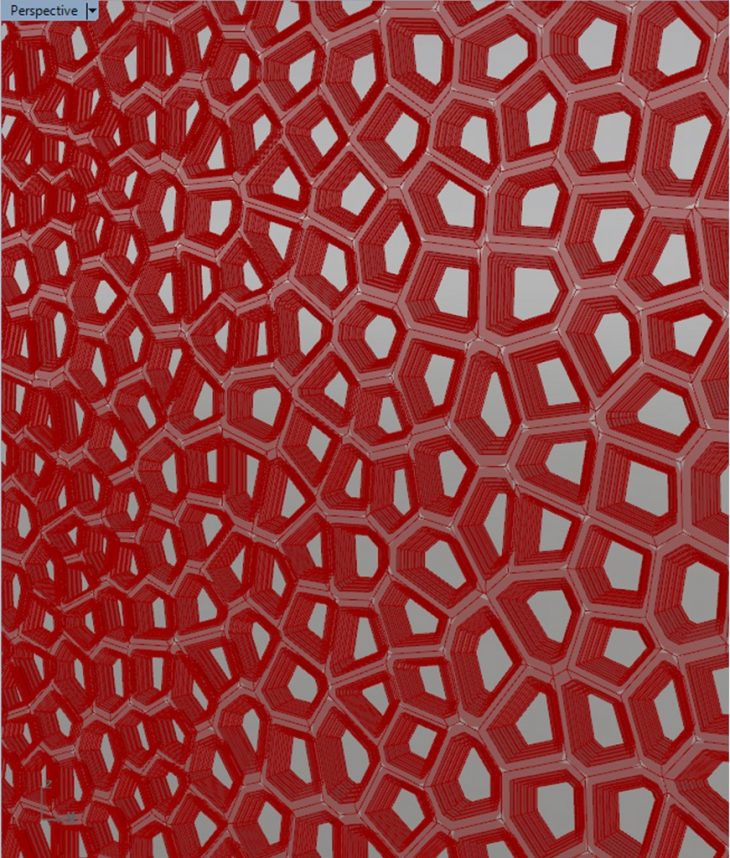

• Repeating same process to define detail surfaces
• Adjusting the positions of detail surfaces by moving each surface after previous surface

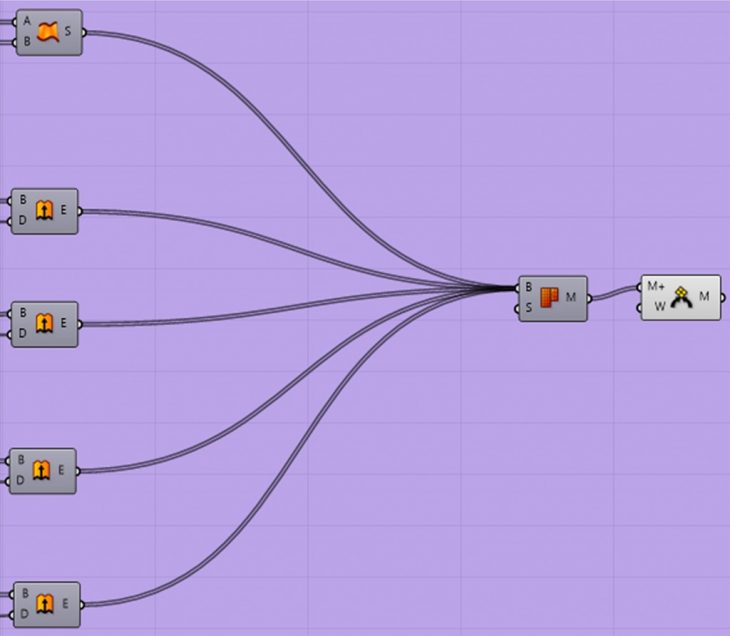

• Converting breps to mesh
• Joining and welding the mesh

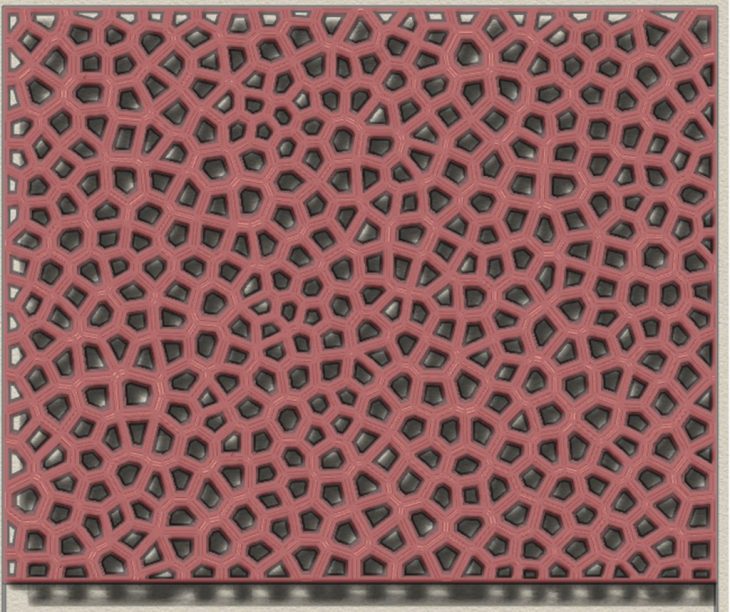

• Finally baking it
