OVERVIEW
“Opti -Blob” is a project developed as the final task for Computational design. The objective of the seminar was to develop an optimized high rise building with a responsive skin. Providing maximum of 75% site area and the pedestrian passage as constraints to the Galapagos component used in Grasshopper.
LOCATION
The site is a vacant plot opposite Parc Central del Poblenou on Avinguda Diagonal and is surrounded by a series of high-rise buildings.
FORM GENERATION PROCESS
- Points

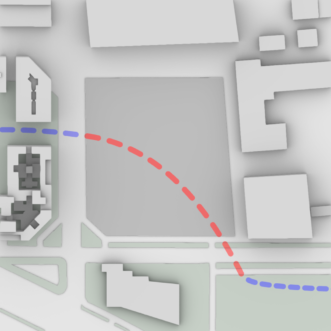

- Connections

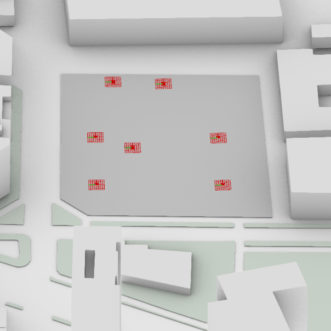

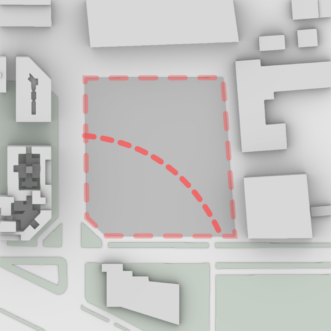

- Connections+Restriction

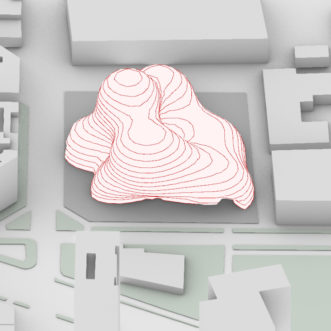

- Final Floorplates

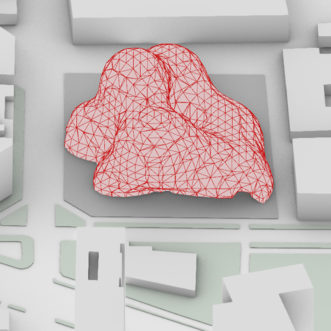

- Final Output
PSEUDO CODE
OPTIMISATION PROCESS

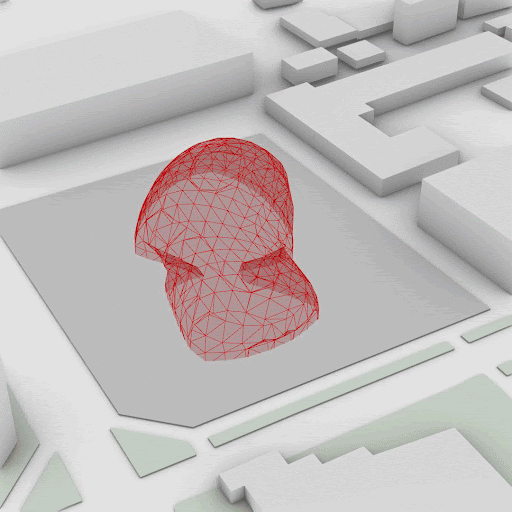

![](https://www.iaacblog.com/wp-content/uploads/2021/12/op1-1.gif)
Optimization of the mesh
FINAL OPTIMISED FORMS
![](https://www.iaacblog.com/wp-content/uploads/2021/12/1-12.jpg)
Optimized Mesh
![](https://www.iaacblog.com/wp-content/uploads/2021/12/passage-2.png)

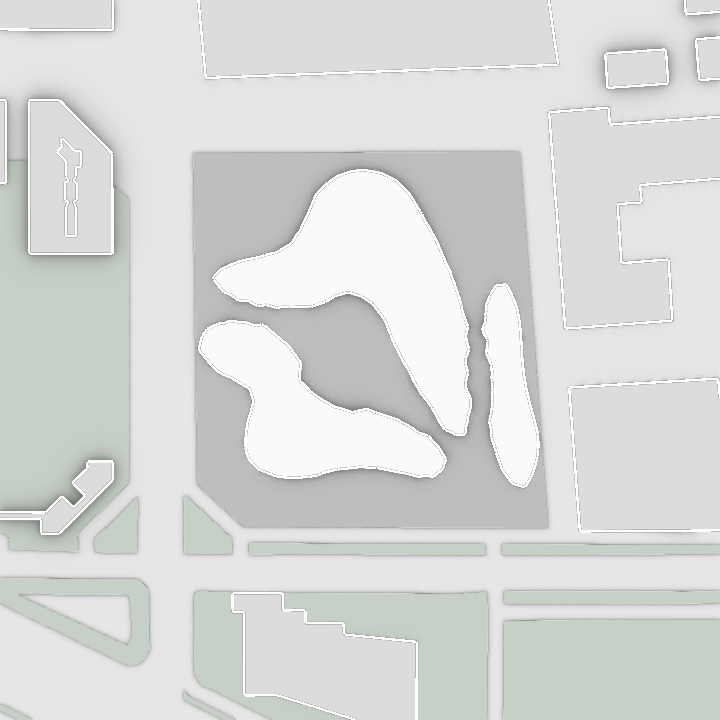

Ground floor plan/Passage
![](https://www.iaacblog.com/wp-content/uploads/2021/12/unnamed-3.jpg)

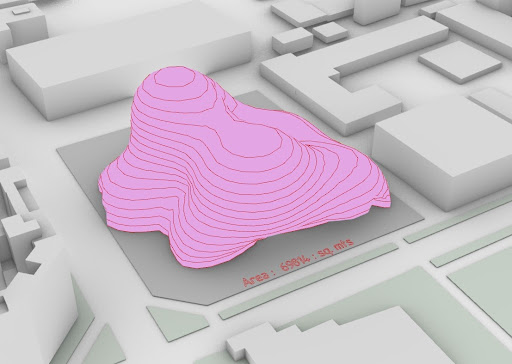

Optimized Floorplate

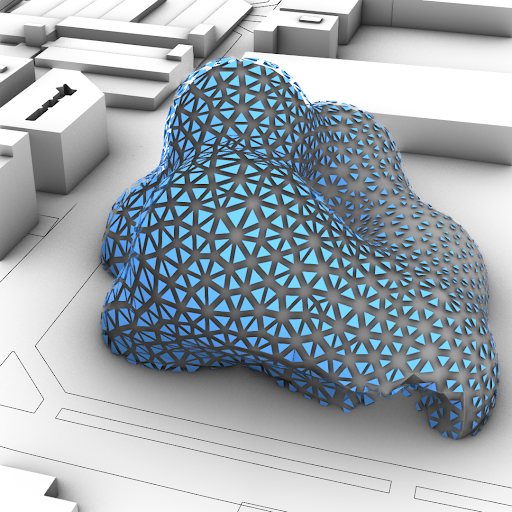

RESPONSIVE SKIN
The panels on the skin scale in accordance to the movement of the sun.
FINAL RENDER
Opti-Blob is a project of IAAC, Institute for Advanced Architecture of Catalonia developed at Master in Advanced Architecture in 2021 by Students: Aishwarya Shama Sunder Rajendra Prasad and Sarjak Rakholiya and faculty: David Andres León, faculty assistant: Ashkan Foroughi.
