Shell of the New Earth.

“Lung’s see what your eyes don’t”

“It’s like gambling, a lucky draw. Every day you wake up and look up at the sky and see how it goes. We’re powerless,”

“It was so sudden and we didn’t have time to plan anything,”

These were the words of the people living in Beijing on one of the capital’s first issued “Red Alert” days. This wasn’t a city under siege, this is a city under smog – dangerous levels of it.

IAAC_Miura Ori Skins2

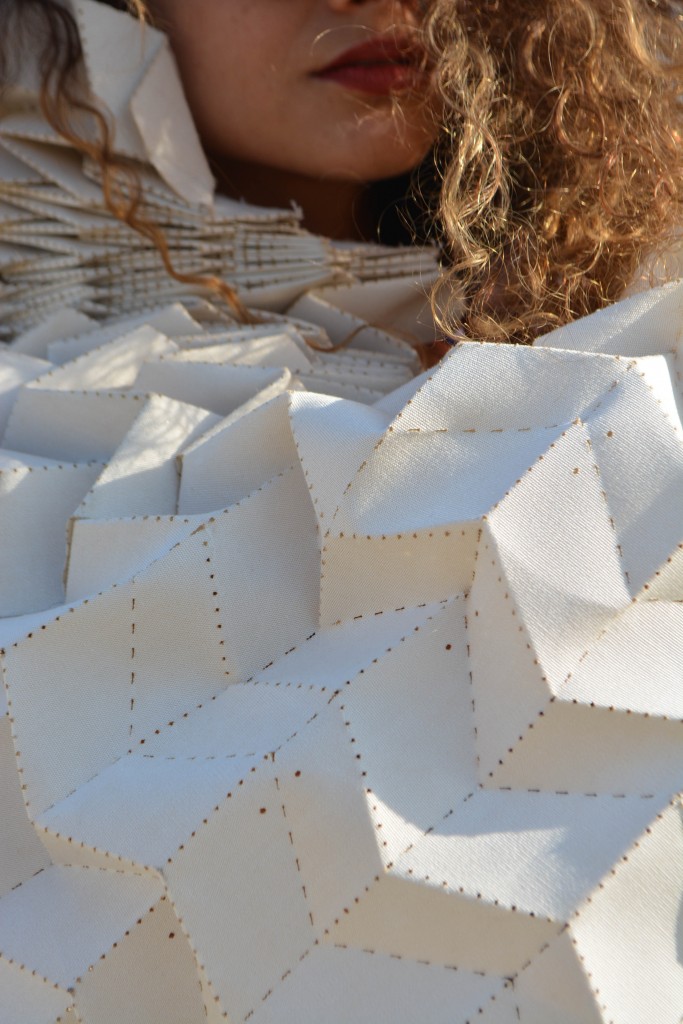

New EarthIAAC_Miura Ori Skins2Imagine a world so polluted you have zero visibility at 5m. The air is toxic , so is the water and the food. Homo sapiens are evolving to the new earth, as a result there is no verbal communication between the people. They have developed a second skin which lets them see through the smog, their faces are covered with masks. This is the atmosphere they live in, which has resulted in them being depressed. The skin becomes the communicating layer, as people are at close proximity with others the skin responds. Emotions are expressed by the vibrations created through skin. The skin is evolved to be thermochormic. This is the “New Earth” resultant of the today we are living.


Materiability
Based on the final system for the proposed skin design, the Material and Fabrication techniques decided are as follows:
– Fabric: Laser cutting / Folding
– Thermochromics: Screen Printing
– 3D Printing: SLS nylon / Mold casting

IAAC_Miura Ori Skins2


Fabric

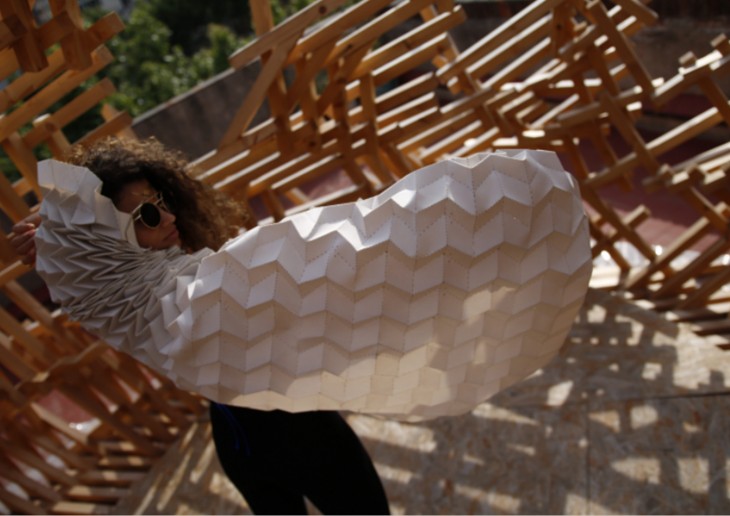

Miura Fold / Origami
The Miura fold is a form of rigid origami, meaning that the fold can be carried out by a continuous motion in which, at each step, each parallelogram is completely flat. This property allows it to be used to fold surfaces made of rigid materials.

IAAC_Miura Ori Skins2


Bi-stable Origami

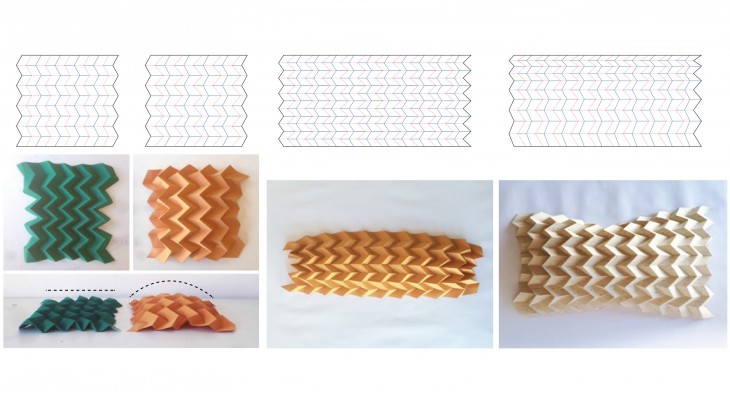

Bi-stable Auxetic structure
Bi-stable structures are structures that have two different stable configurations. Due to this interesting and distinguishing property, they are gaining popularity in deploy-able structures, robotics and micro-structural systems.

IAAC_Miura Ori Skins2


Thermochromics
Screen Printing
The Miura fold is a form of rigid origami, meaning that the fold can be carried out by a continuous motion in which, at each step, each parallelogram is completely flat. This property allows it to be used to fold surfaces made of rigid materials. Thermochromism is the property of substances to change color due to a change in temperature. The two common approaches are based on liquid crystals and leuco dyes. Liquid crystals are used in precision applications, as their responses can be engineered to accurate temperatures, but their color range is limited by their principle of
operation.

IAAC_Miura Ori Skins2


Experiment Origami
on fabric
Miura Ori folds based on angle of curves.

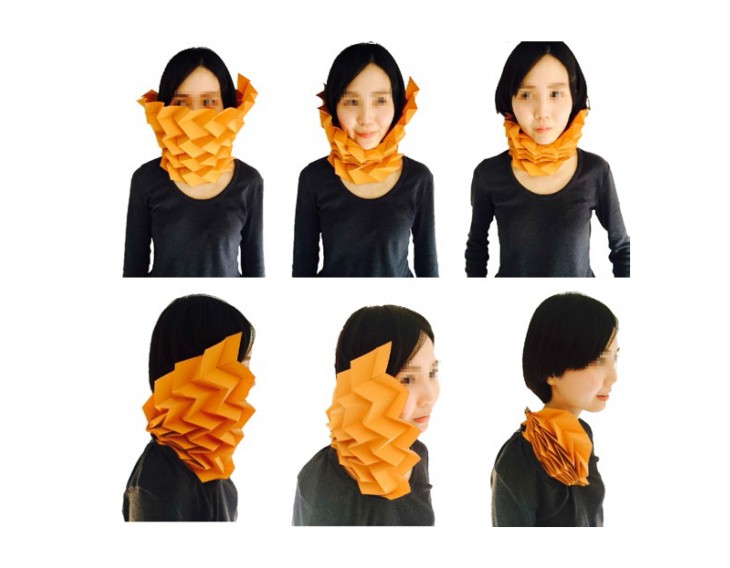

IAAC_Miura Ori Skins2


Experiment Origami
on a person
Miura Ori folds based on angle of curves.

IAAC_Miura Ori Skins2

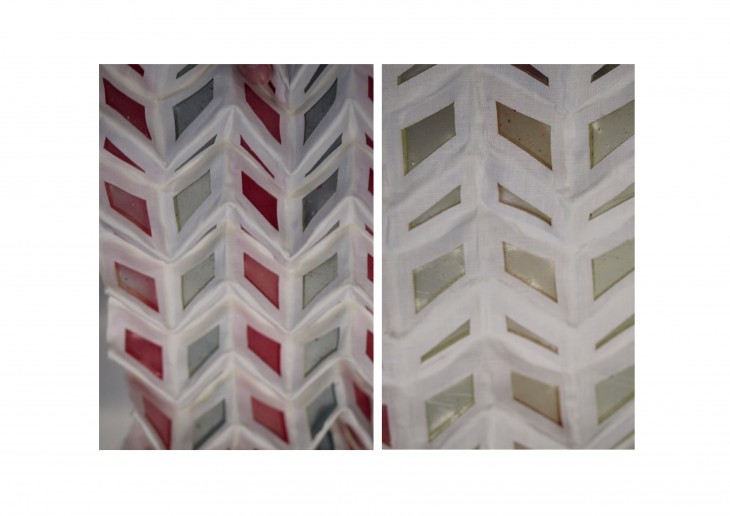

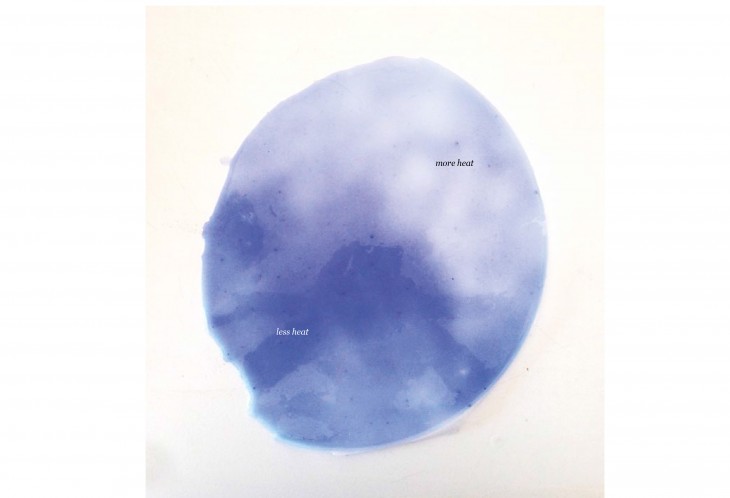

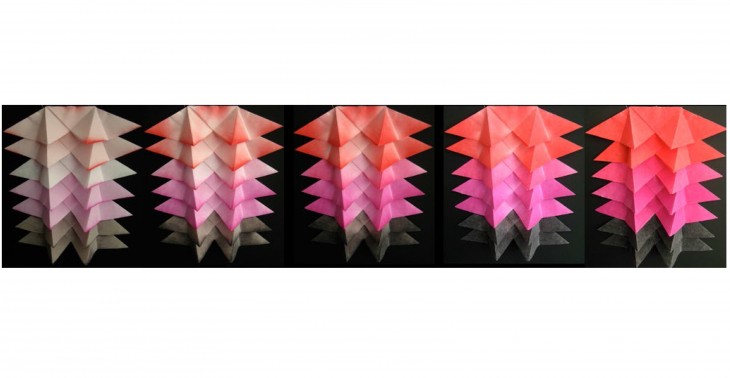

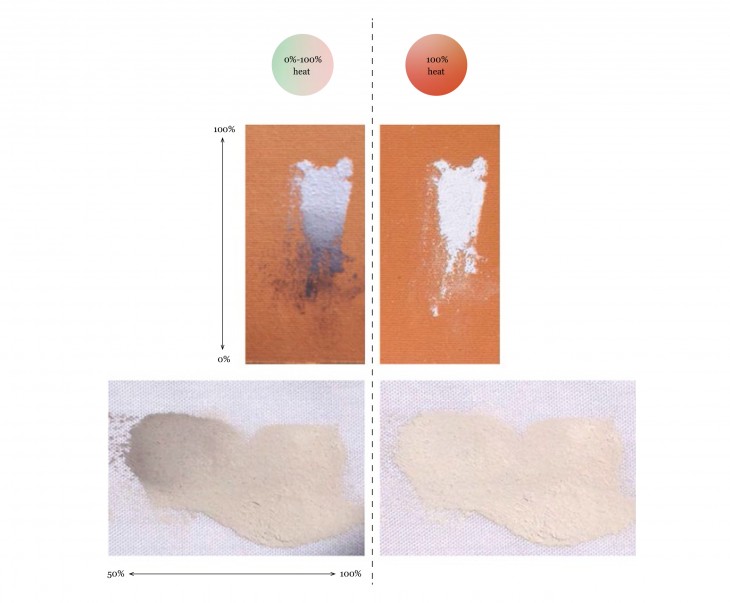

Experiment Thermochromic
with alcohol as paint
Color change with temperature.IAAC_Miura Ori Skins2


Experiment Thermochromic
with silicon
Color change with temperature.IAAC_Miura Ori Skins2

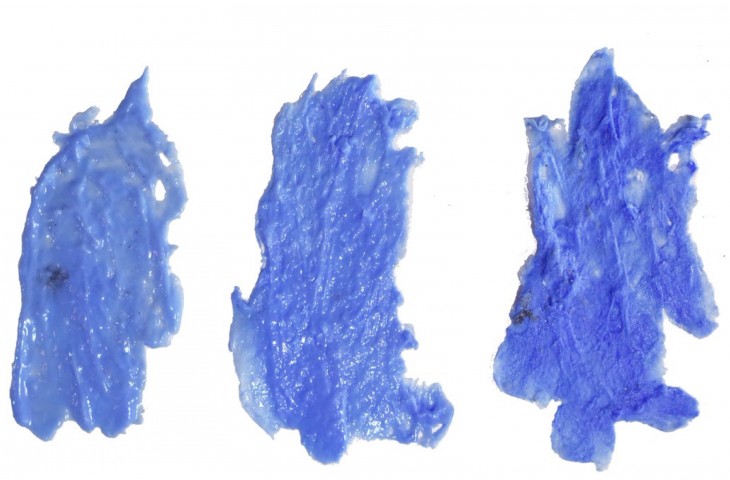

Experiment Thermochromic
with silicon
Tests with different amounts of thermochromic.IAAC_Miura Ori Skins2

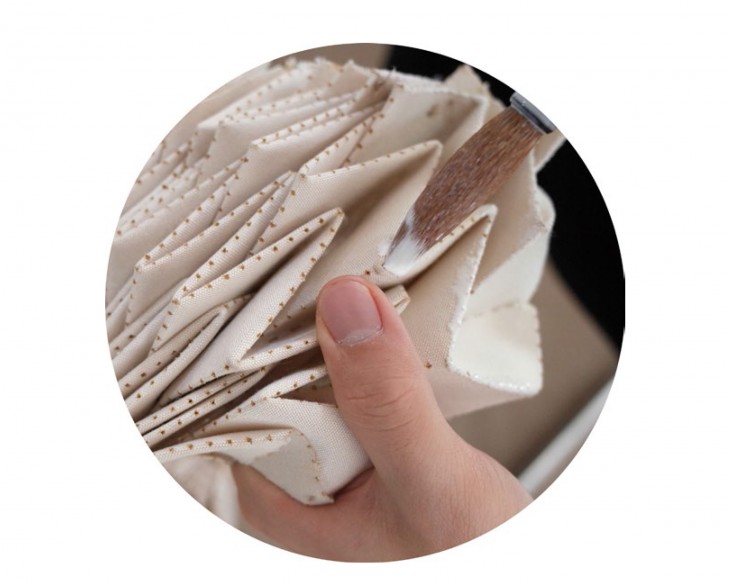

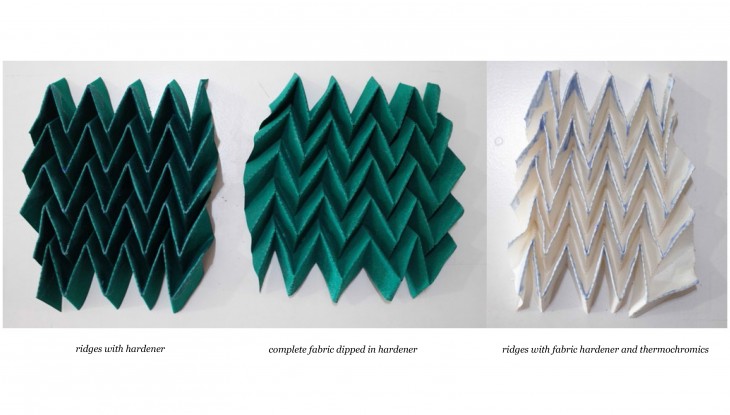

Experiment with fabric hardener
different percentage of fabric hardener was used to play with fabric movement.

IAAC_Miura Ori Skins2


Fabric Hardener
Hardener with water.IAAC_Miura Ori Skins2

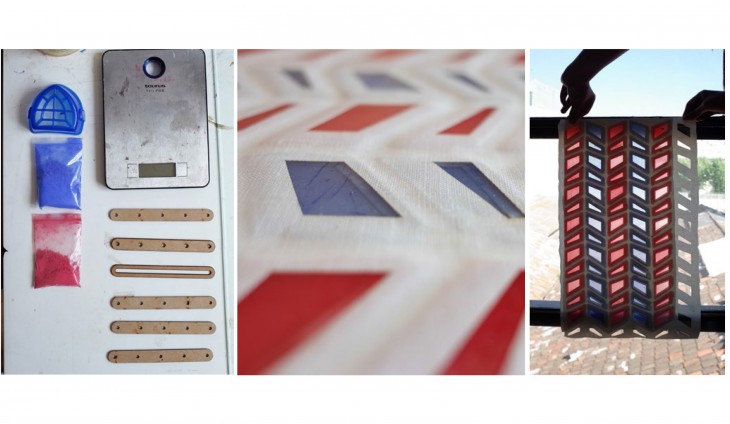

Bio plastic and fabric experiment
components used for the layering fabric and bioplastic.IAAC_Miura Ori Skins2


Bio plastic and fabric experiment

Bio plastic layered fabric origami responding to change in temperature. IAAC_Miura Ori Skins2

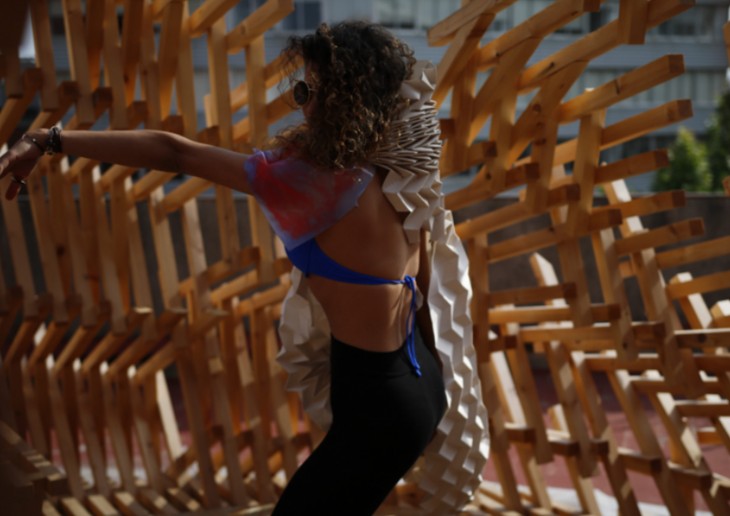

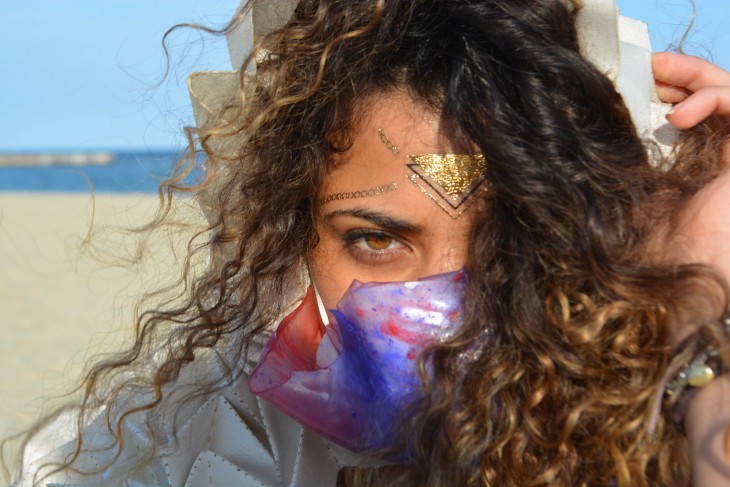

Fabrication Process.


Prototype images.

IAAC_Miura Ori Skins2

IAAC_Miura Ori Skins2

IAAC_Miura Ori Skins2

IAAC_Miura Ori Skins2 IAAC_Miura Ori Skins2 IAAC_Miura Ori Skins2


Miura Ori Skin is a project of IaaC, Institute for Advanced Architecture of Catalonia developed at Maa01, Skins2

Students: Jengrung Hong, Sameera Chukkapalli, Hsin Li, Tanuj Thomas.

Faculty: Anastasia Pistofidou, Manuel Kretzer.
