Bridge the Gate / Puentear la Puerta

Madrid 40°27′59″N  3°41′16″W

We designed a bridge structure to connect different levels of the twin office buildings, also known as puerta de europa, near the Plaza de Castilla in Madrid, Spain. We hope our design would transform the sense of wariness that a gate may typically provoke into a welcoming sense of connection that bridges embody.

PSEUDOCODE

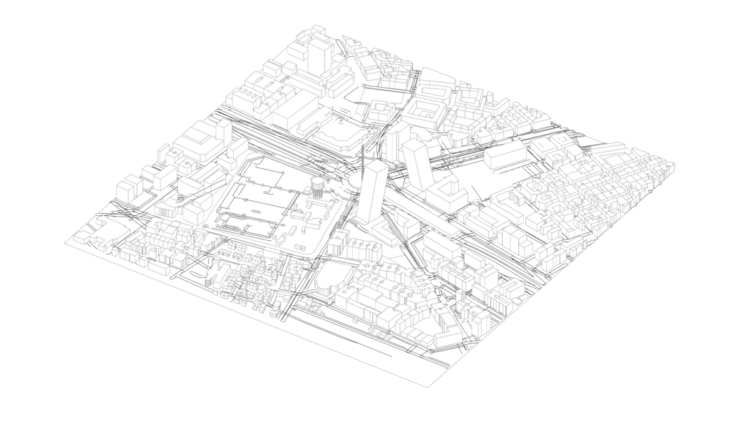

SITE ANALYSIS

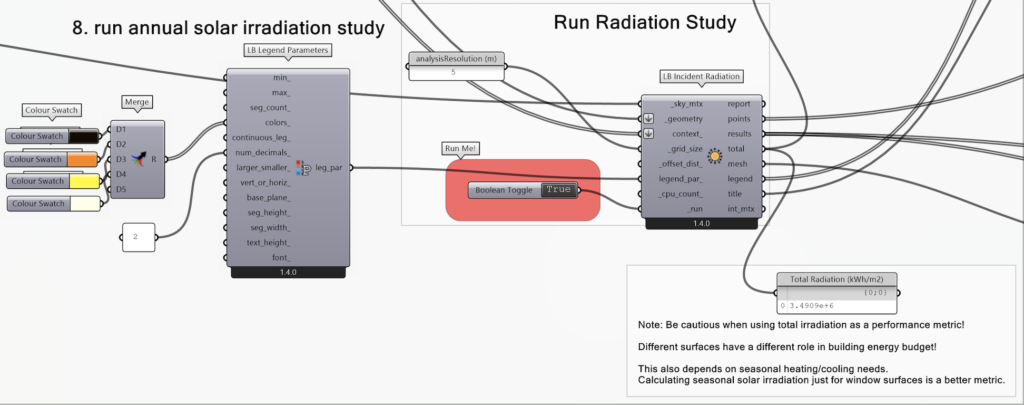

Global context analysis of the site with ladybug

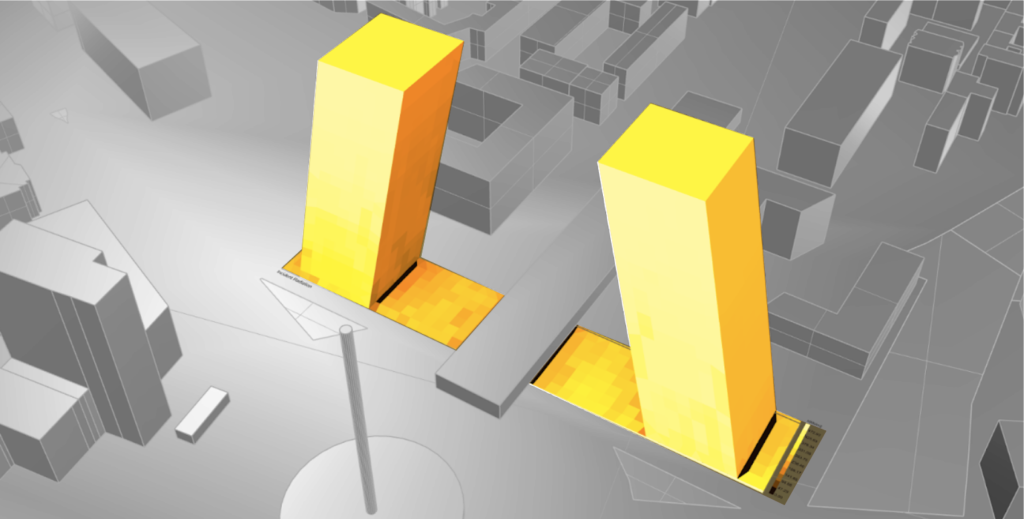

North View

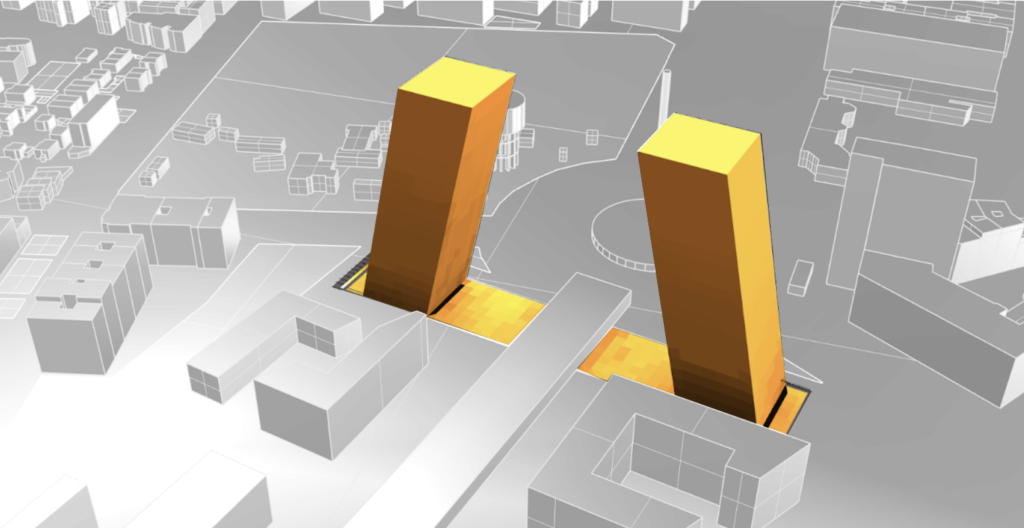

South View

FORM FINDING: MINIMUM SURFACE

DESIGN STRATEGY

  • Applying Minimum surface to reduce wind load
  • Maximizing panel area on the skin of the bridge according to massing solar radiation to harvest sufficient solar power for towers’ daily use
  • Accordingly opening apertures for ventilation plus vegetation in order to counter exterior heating effect caused by radiation, providing interior comfort.

FINAL RADIATION

PARAMETRIC SKIN STRATEGY

Apertures According to the solar radiation & shading

FINAL FORM OPTIMIZATION

PANELIZATION & TAGGING

RENDERS



Bridge the Gate Computational Design is a project of IAAC, Institute for Advanced Architecture of Catalonia developed at Master in Advanced Architecture in 2021/2022 ; Students: Divya Shah / Harshul Goti / Yue Wu ; Faculty: David Andres Leon / Ashkan Foroughi Dehnavi ; Assistant Laukik Lad / Uri Lewis Torres
