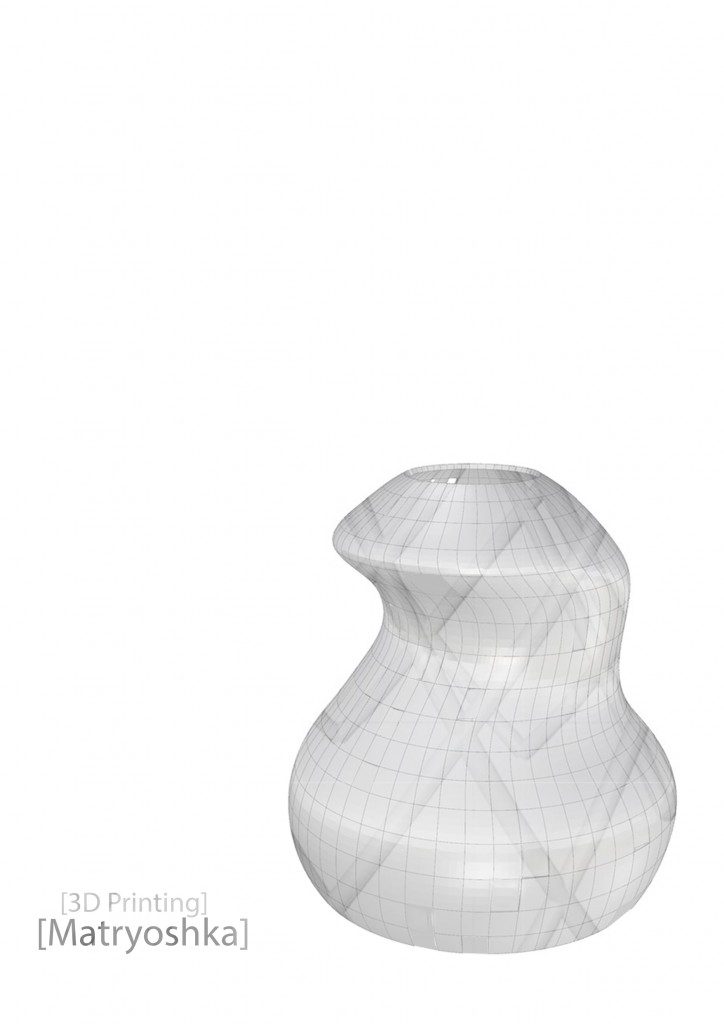

The [Matryoshka] lamp was created as a 3D printing exercise.

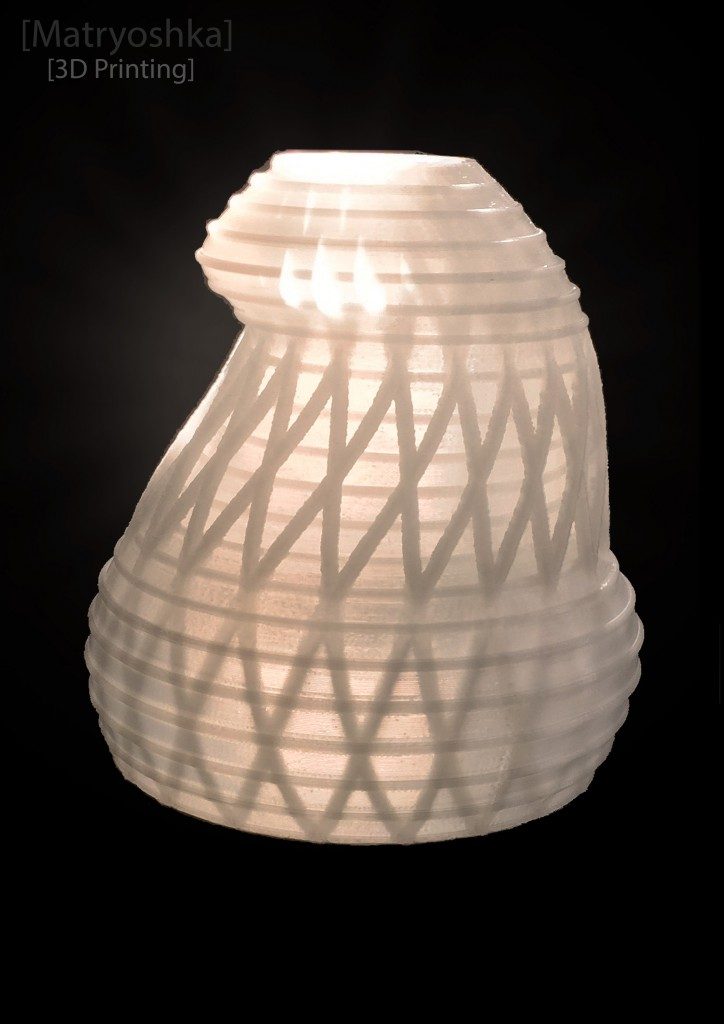

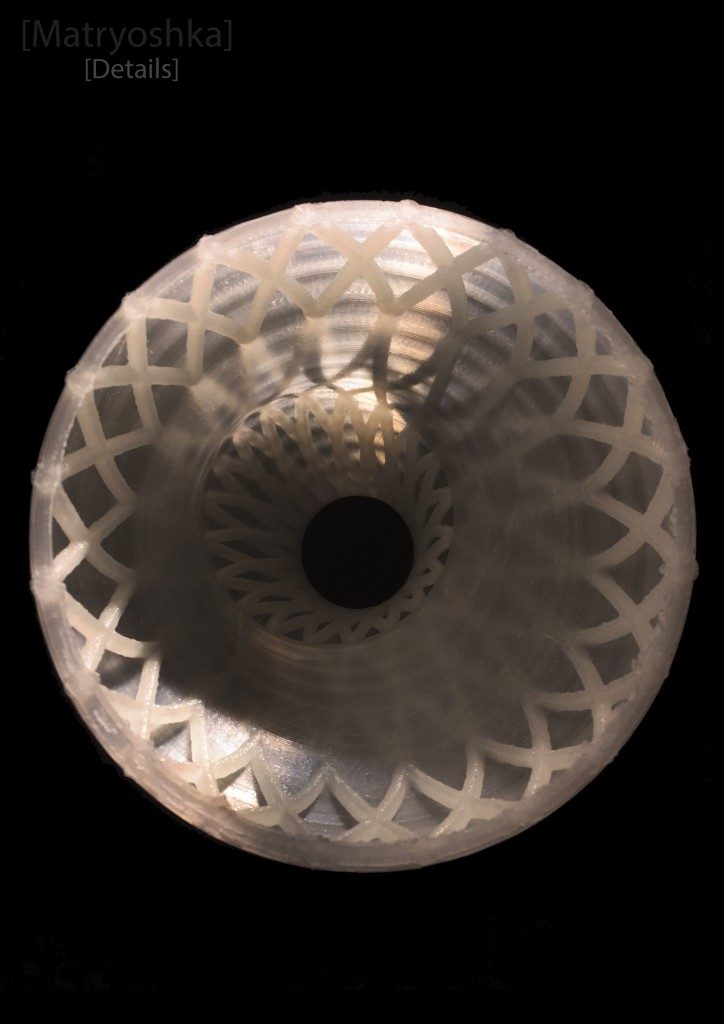

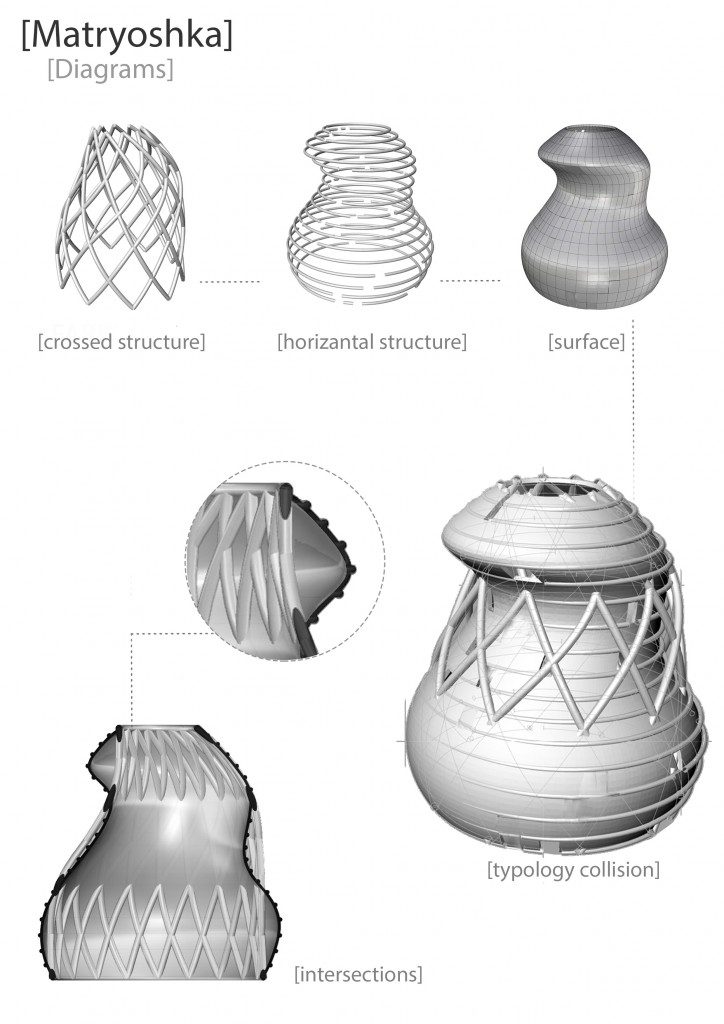

The shape is generated by the intersection of two layers, one being a surface with horizontal rings and the other being intersecting diagonal lines that weave into a diamond shaped pattern.  Therefore the shape is structurally very stable and the printing generated no complications.  The maximum angle of printing is tested at the slanted top part of the lamp.
Machining time: 9 hours
Material : PLA 3mm
Students : Maria Sfeir, Merve Savatli, Philipp Sevostianov

Tutor : Alexandre Dubor

Machine Assistant: Tomas Martin Agudo
