A light sensor connected to M5Stack, receives variant Lux levels from the context that vary from from Zero (sensorMinValue) to 5000 (sensorMaxValue), and sends the detected values to another M5Stack that is connected to the receiving physical interactive objects.

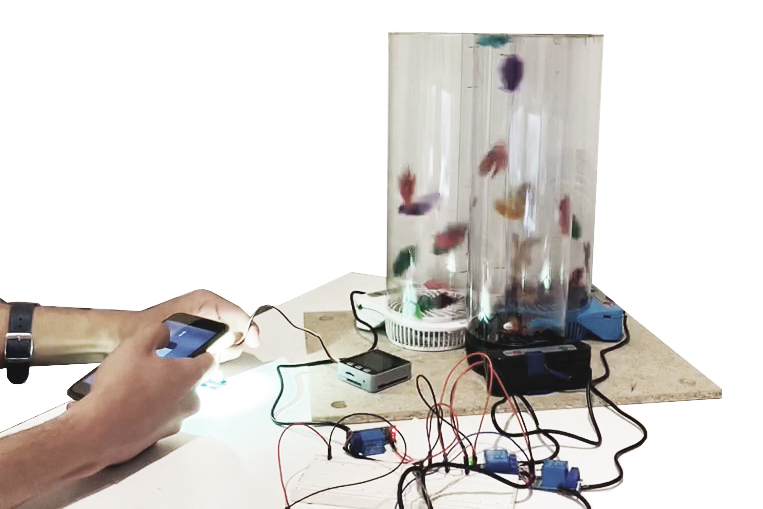

As the 5MSatck receives different controlled Lux inputs from the sender. The parameters set in the M5Stack activates three fans on a sequential movement that turns them on and off based on the Lux levels assigned for each. These fans will make a playful physical simulation of feathers moving through a wind tunnel as the fans go on and off and make feathers go up and down.

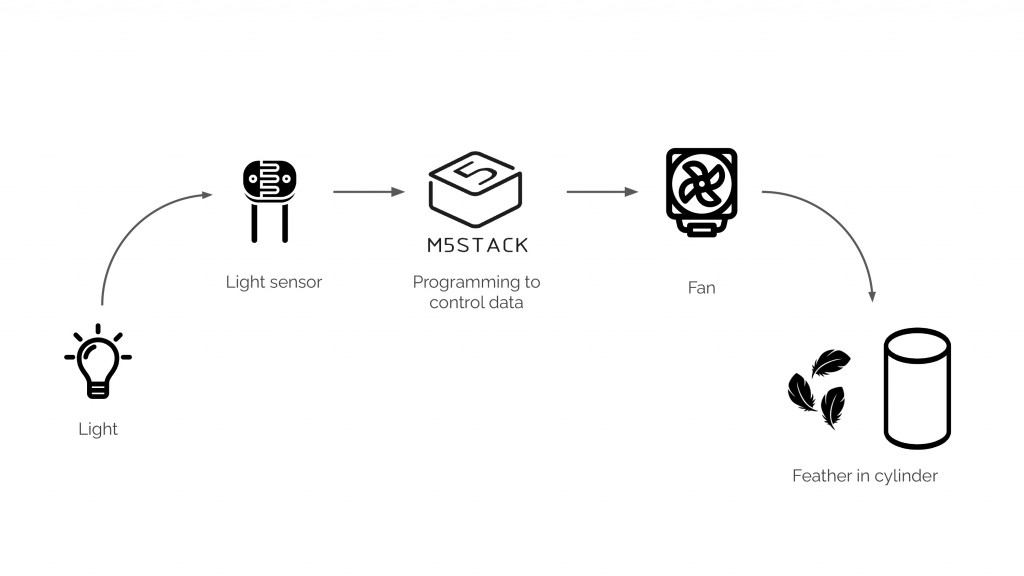

Workflow Diagram

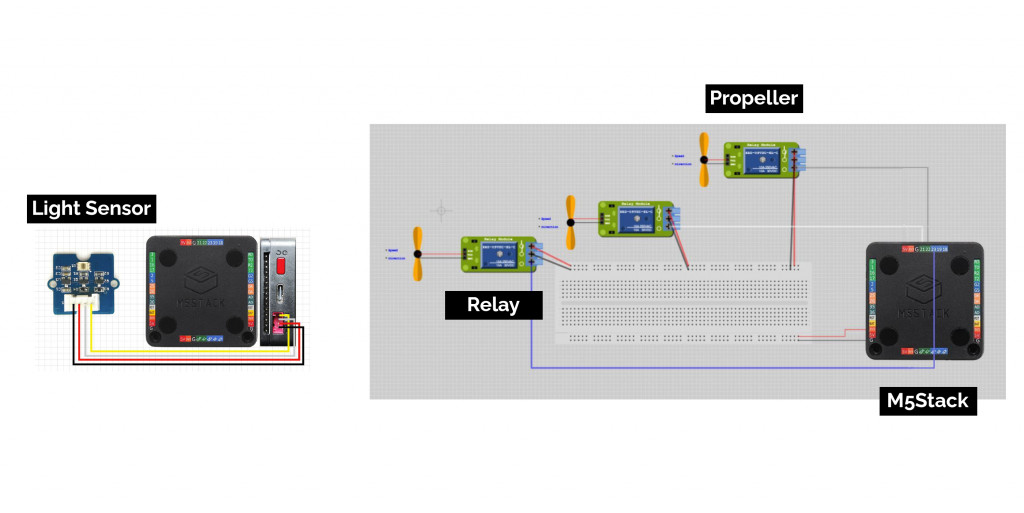

 Circuit Drawing

Reactive Propellers is a project of IaaC, Institute for Advanced Architecture of Catalonia developed at MAA01 in 2020-21 by:

Students: Jose Levy Rodriguez Suarez,  Ziyad Wassef Abdelkader Youssef Ahmed, Nan Yin
Faculty: Angel Munoz & Cristian Rizzuti
