After Gaudi: From Computation to Composition

MANIFESTO

Rio de Janeiro, one of Brazil’s most well-known cities, has a tropical (hot and humid) climate.

Our intervention attempts to create an Islamic prayer hall with the primary goal of channeling filtered sunlight through hyperboloids, as light is a vital component of Islamic architecture along with keeping in mind the climate of Rio. The site, located in the center of the city, amidst the historical and contemporary setting gives us an ideal opportunity to study diverse light patterns throughout the year and blend modern and contemporary architecture.

I. LOCATION

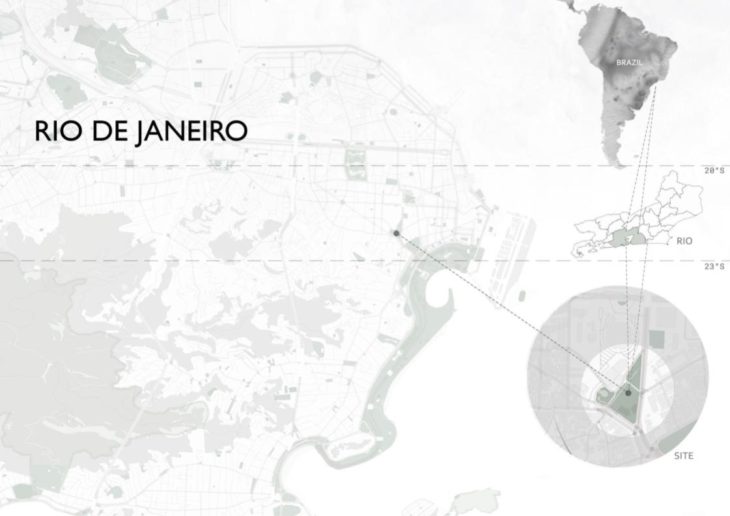

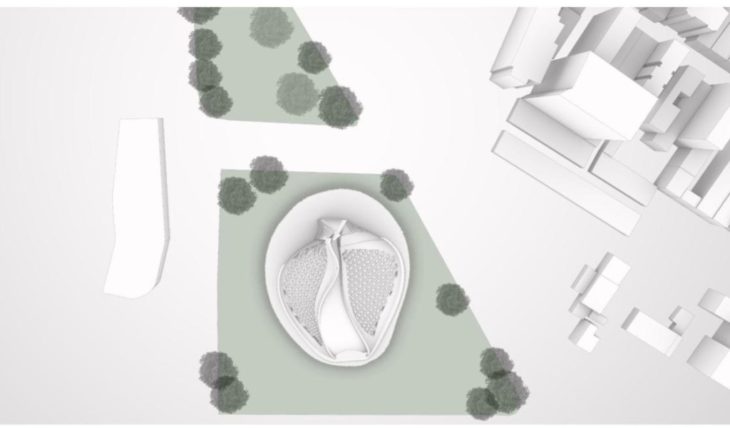

SITE

CLIMATE

The climate here is TROPICAL.

 The average annual temperature is 23.6 °C | 74.5 °F in Rio de Janeiro.

Summer months: December to February (Rains also during this time)

Hottest Month: February

HOTTEST TEMPERATURE: 32°C

Winters : long, comfortable, humid, and mostly clear.

Summer months: June to August

Coldest Month: July

COLDEST TEMPERATURE: 16°C



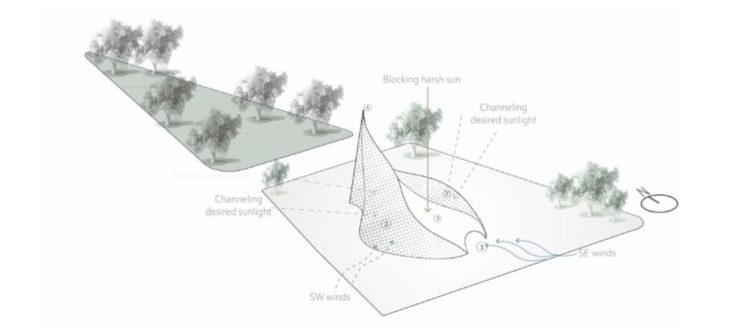

ENVIRONMENTAL ANALYSIS

II. DESIGN DEVELOPMENT

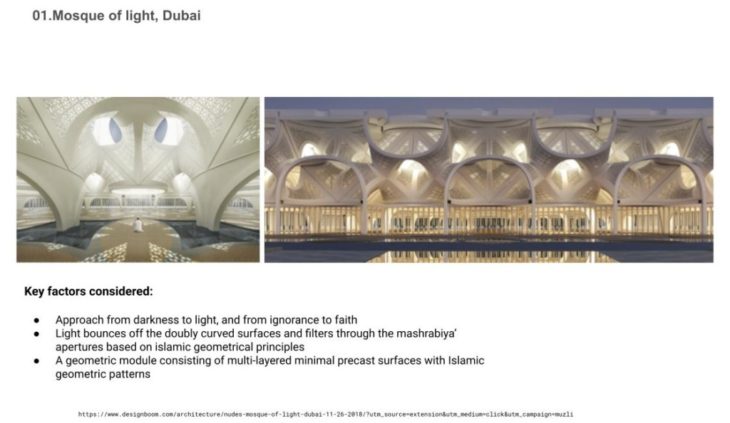

STATE OF THE ART

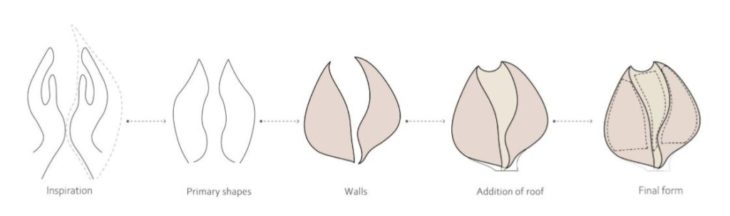

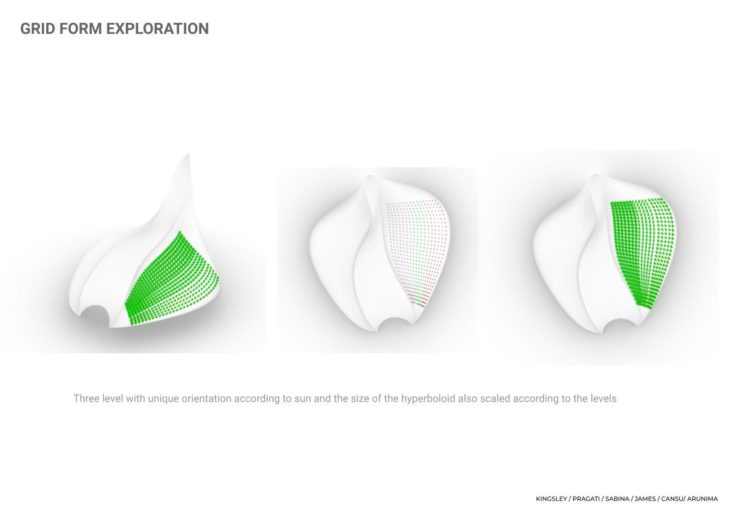

FORM EVOLUTION

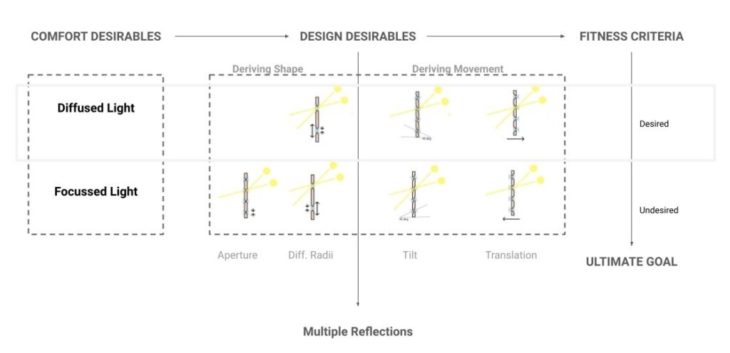

DESIGN DESIRABLES

TRANSLATION OF HYPERBOLIODS

GLOBAL VARIATIONS

Catalog/ Iterations

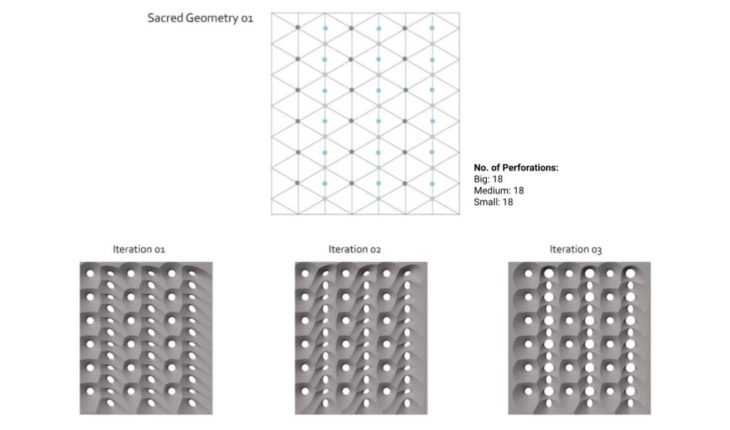

GRID 01   ITERATION 01

GRID 01   ITERATION 02

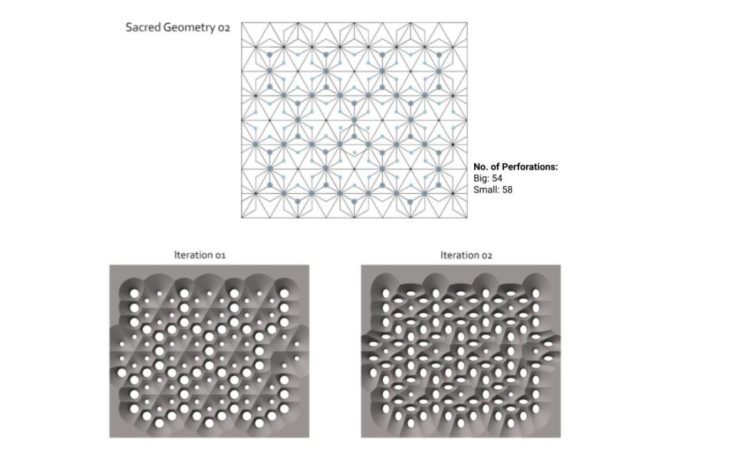

GRID 02   ITERATION 01

GRID 02   ITERATION 02

GRID 03   ITERATION 01

GRID 03   ITERATION 02

REMBRANDT CATALOG

Catalog / Summary

LOCAL VARIATIONS



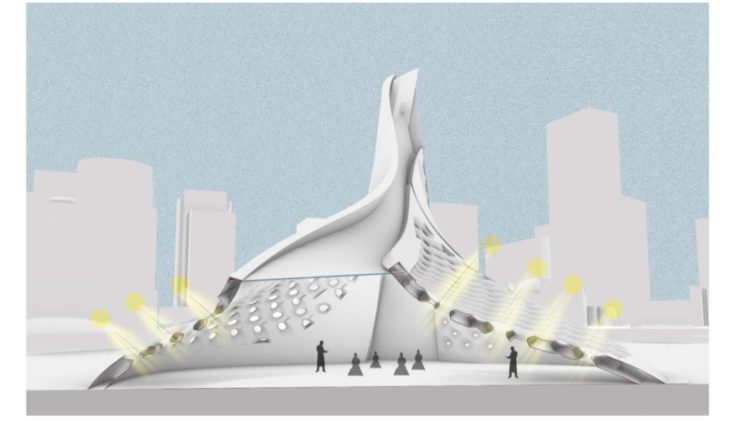

SECTIONS



ENVIRONMENTAL ANALYSIS

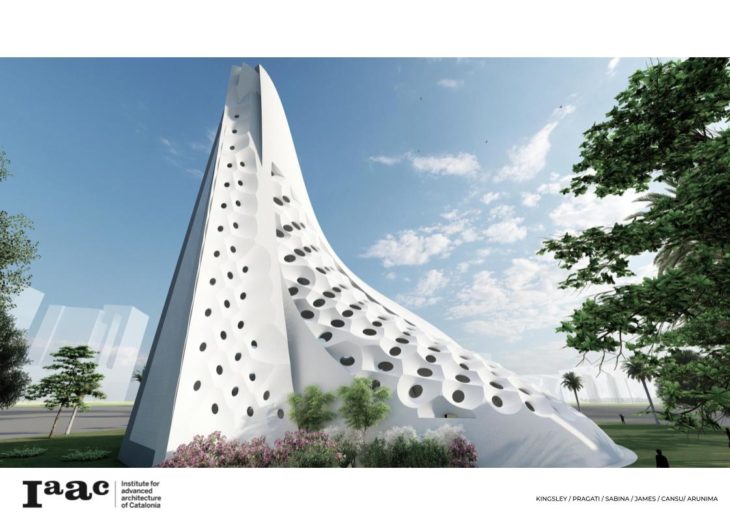

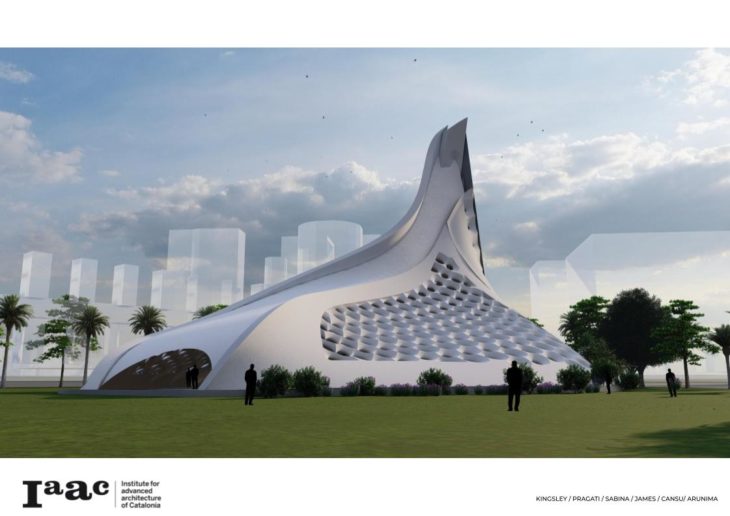

RENDERS

III. WORKSHOP

PROTOYPE

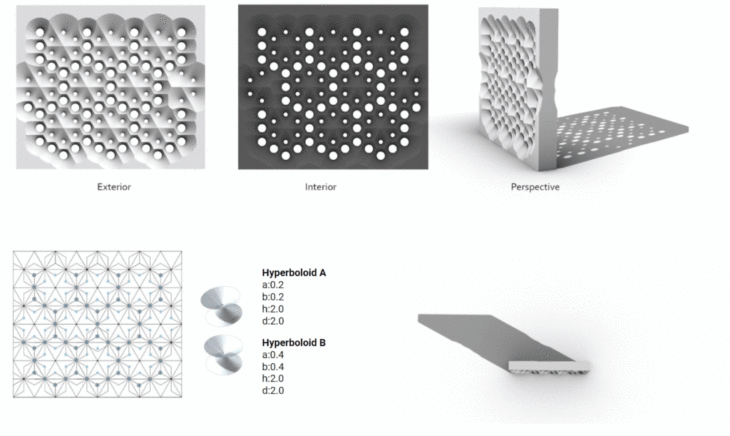

HYPERBOLOID PARAMETERS



MOLD PROCESS

FINAL PROTOTYPE



WORKSHOP VIDEO

(HALL OF SOLICITATION) is a project of IAAC, Institute for Advanced Architecture of Catalonia developed at (Masters in Advanced Architecture) in (2021/2022) by:
Students: James Kingsley Claudin, Pragati Vasant Patil Kulkarni , James Alcock, Cansu Kılınç, Sabina Javanli
Faculty: Mark Burry, Rodrigo Aguirre, Ashkan Foroughi
