ABSTRACT
Optimization of deck foundation and floor area based on the surface of the sea bed
pseudo code
![](https://www.iaacblog.com/wp-content/uploads/2021/06/for-grasshopper-1-730x411.jpg)

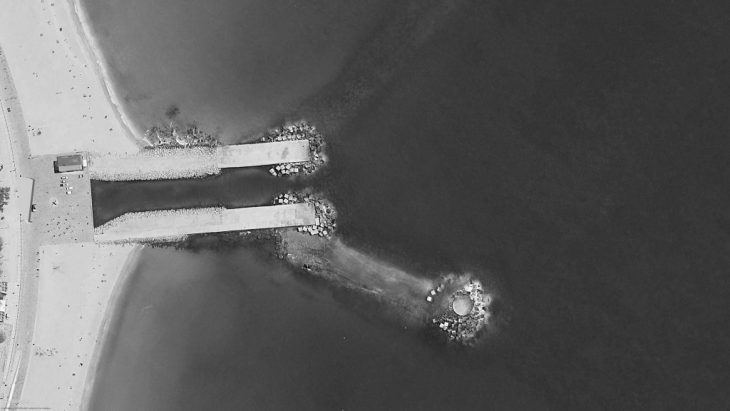

1.satellite view to extract the topography and context
![](https://www.iaacblog.com/wp-content/uploads/2021/06/ff2-730x516.jpg)
2.Using the image sampler analyzing the sea shallow area
![](https://www.iaacblog.com/wp-content/uploads/2021/06/1-4-730x439.png)

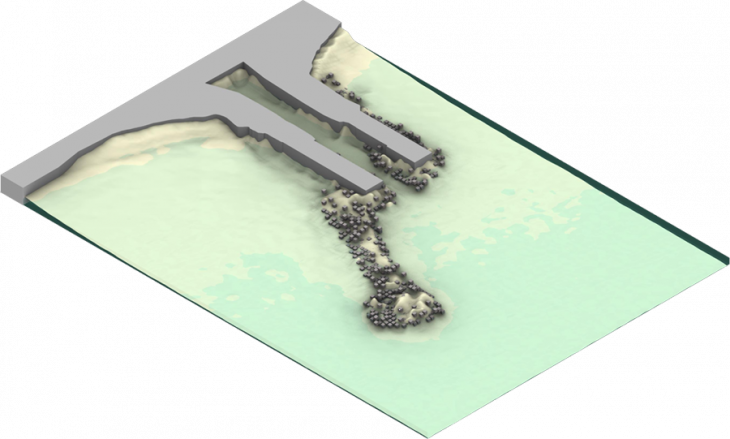

3.Generating the site context based on the image sampler data (Topography).
![](https://www.iaacblog.com/wp-content/uploads/2021/06/2-3-730x439.png)
4.Selecting the area to analyze the depth to place the foundation
![](https://www.iaacblog.com/wp-content/uploads/2021/06/3-3-730x440.png)

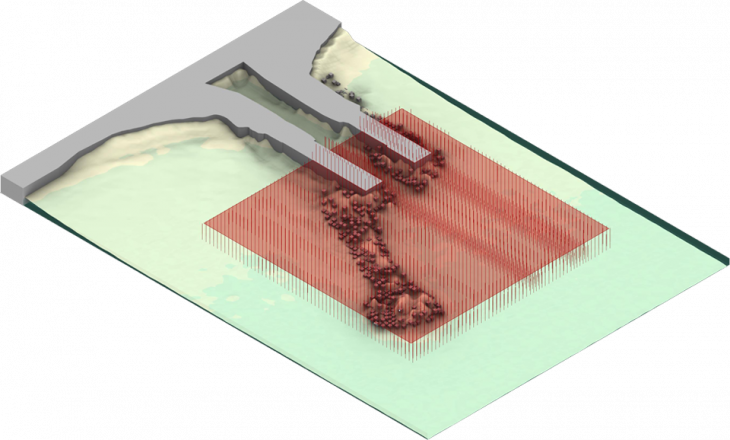

5.Extracting the height parameters to optimize the floor area based on the shallow surface
![](https://www.iaacblog.com/wp-content/uploads/2021/06/4-2-730x438.png)

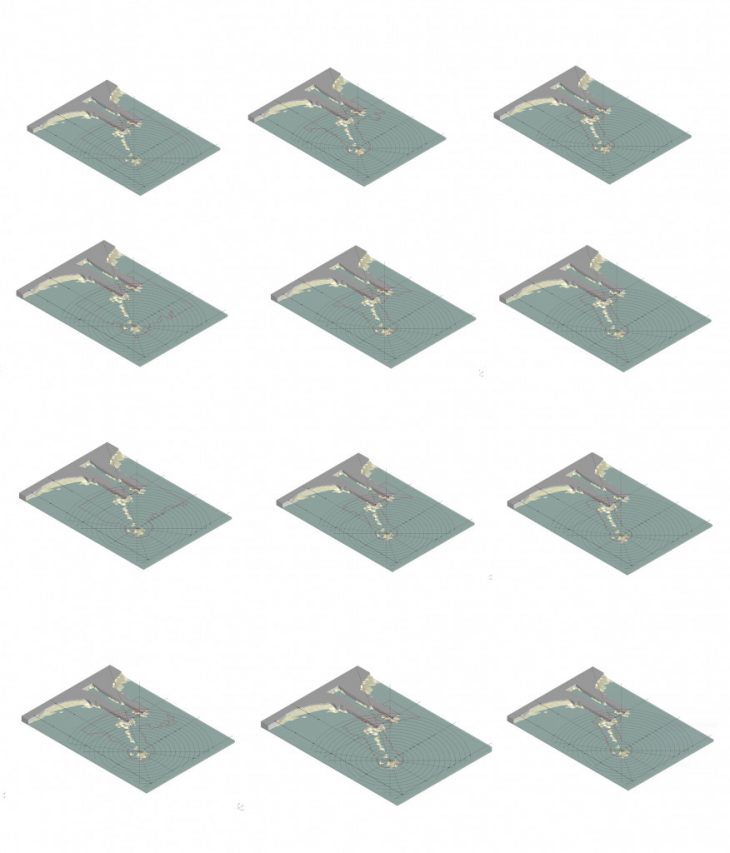

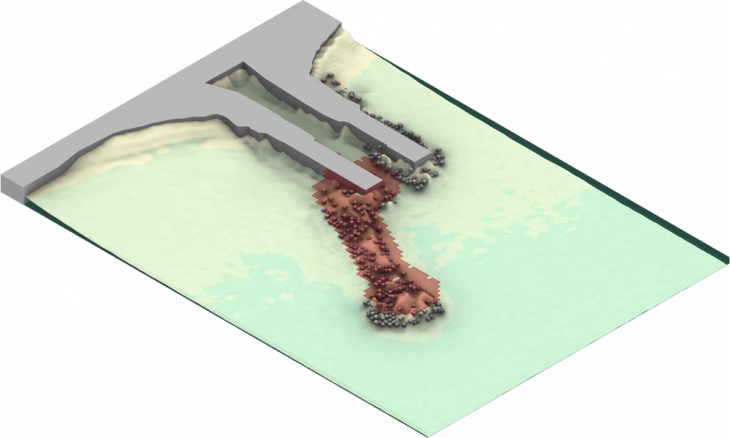

6.Running Optimisation to have a max deck area with a max range of 8m depth in the sea
Objective
Fitness values
Minimum depth from the ground level to the sea bed
(Meter : 5-10m)
The maximum area of the deck
( Sq.Meter : ?)

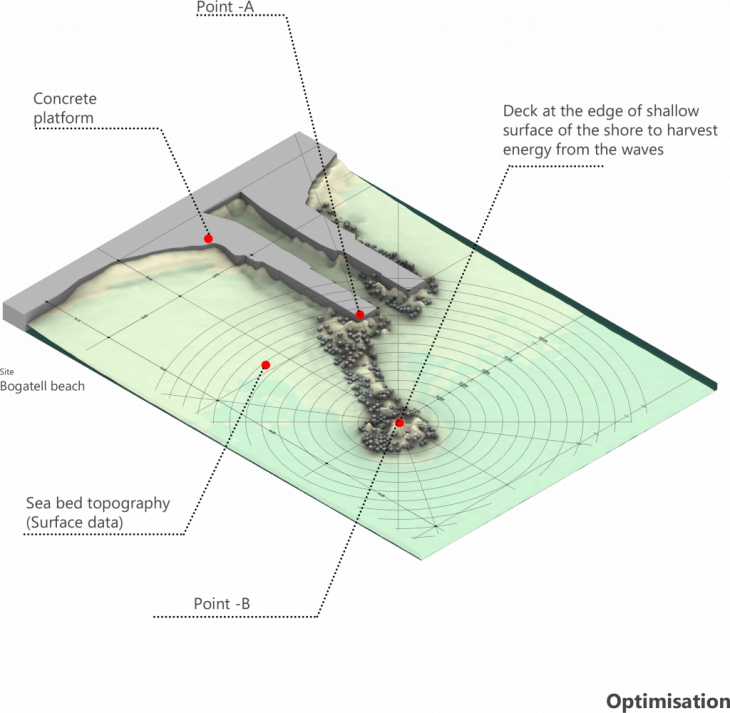

Running a wooden platform between the point-A and point-B with a
column holding with the shallow surface of the sea

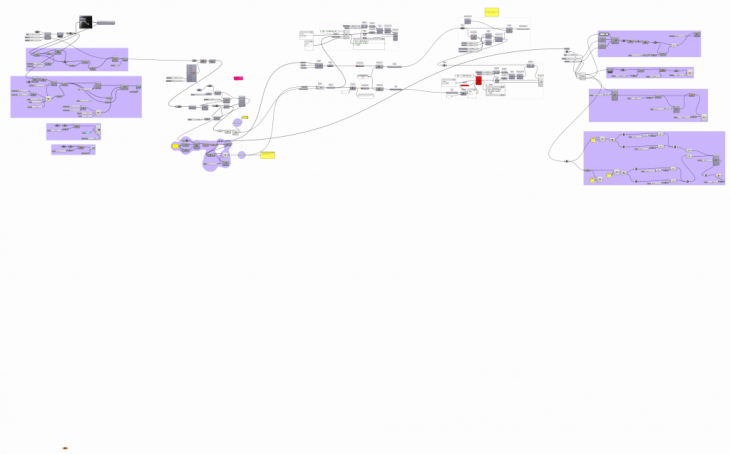

Script

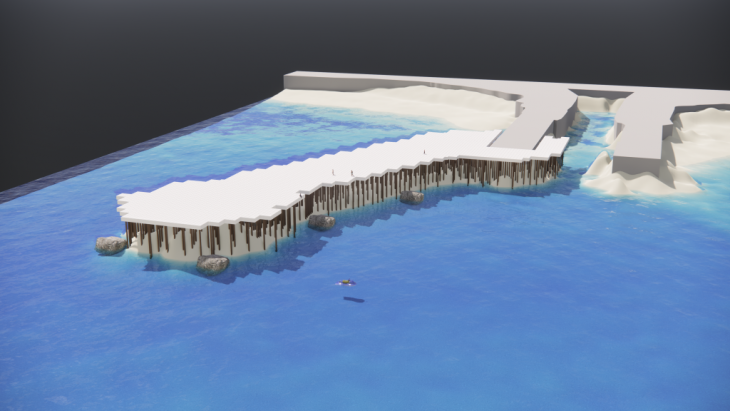

Renders
Credits.Info
Genetic Optimization // Nebulous is a project of the Institute for Advanced Architecture of Catalonia developed at Master in Advanced Architecture in 2020/2021 by:
Student: Karthy krishna,Chirag and kajal
Faculty: Rodrigo Aguirre | Faculty Assistant: Ashkan Foroughi
