Lights of Fortune

Hyperboloid composition

Manifesto

Light is an essential element to perceive architecture and to live and work in buildings. Creating a space with an Enlightened Rhythm of Natural Light with the composition of hyperbolic geometry, which is defined by the analysis of specific location data. It creates an opportunity to feel spirituality.

References

Church of light by tado and Ando, the intersection of natural light and solid raise the

occupant’s awareness to feel the spiritual.

Location

Location: Singapore

Singapore is situated near the equator and has a typically tropical climate, with abundant rainfall, high and uniform temperatures, and high humidity all year round. Many of its climate variables, such as temperature and relative humidity, do not show large month-to-month variation.

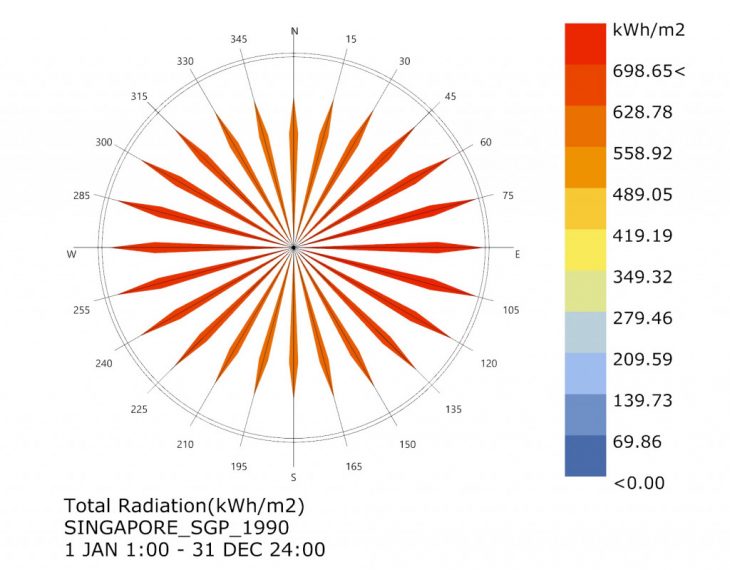

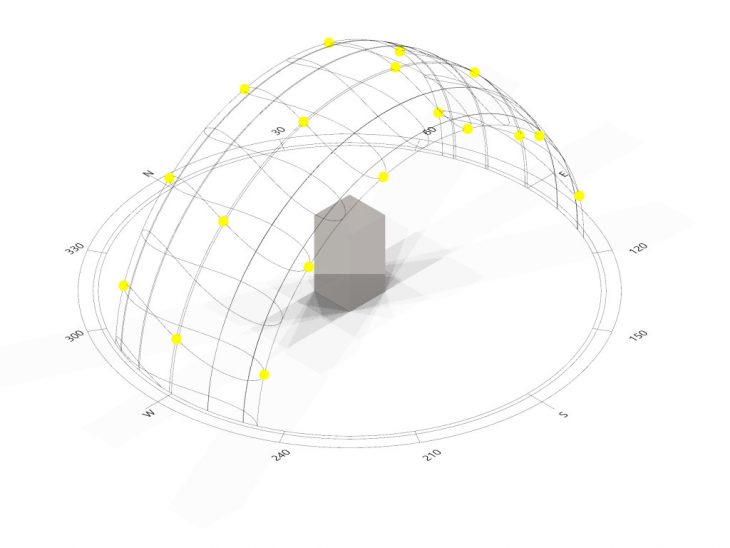

Radiation analysis

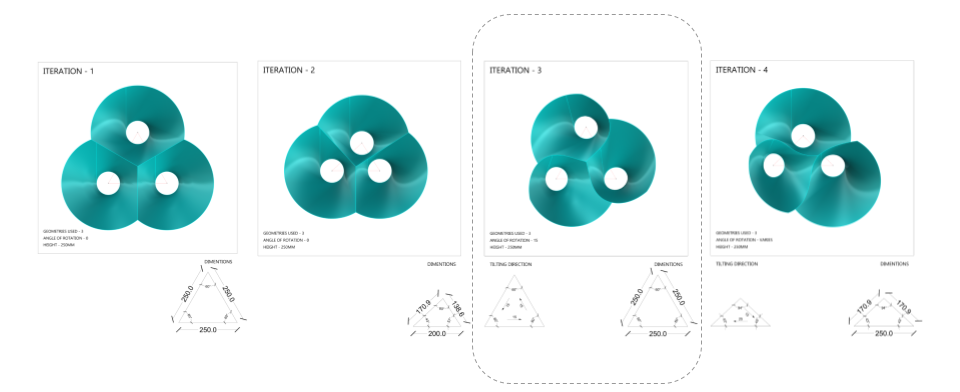

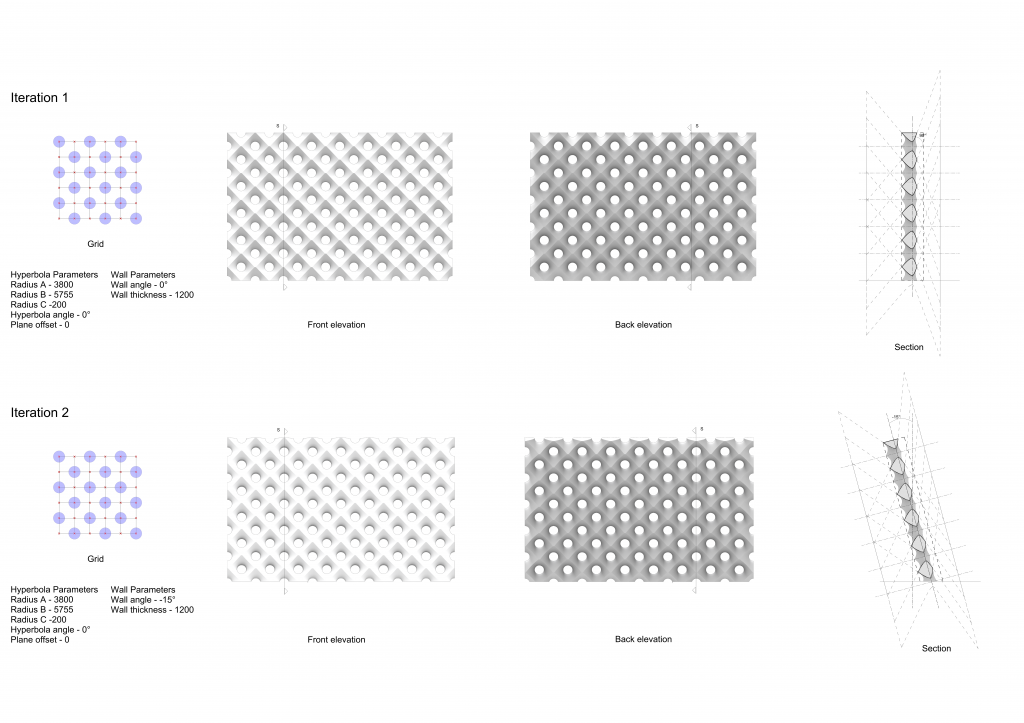

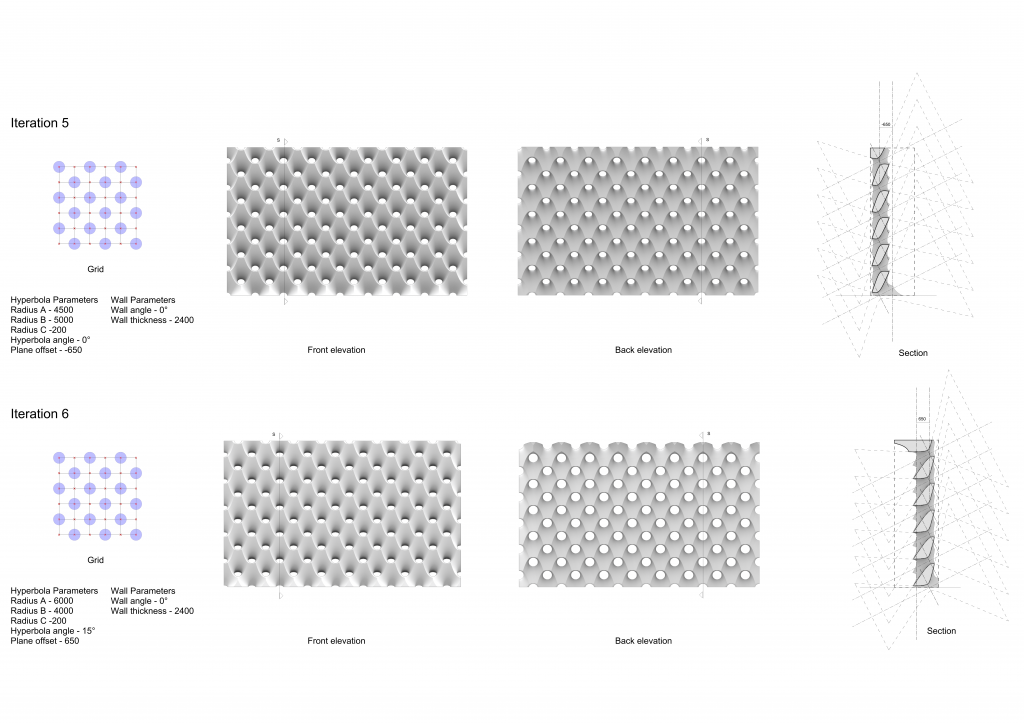

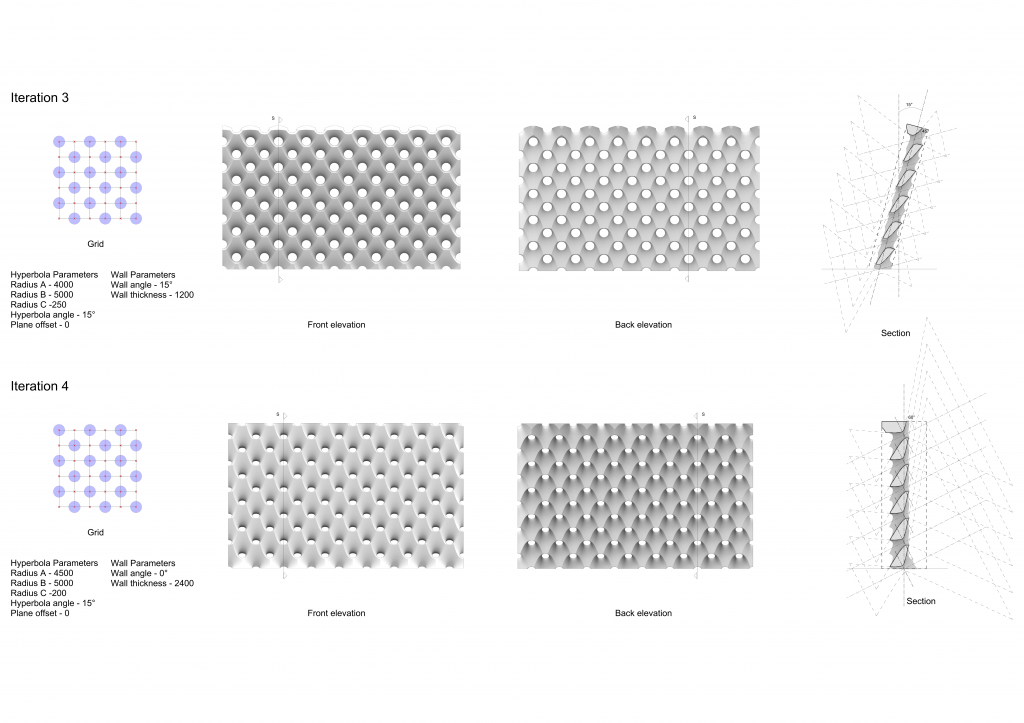

Grid and Hyperbola Explorations

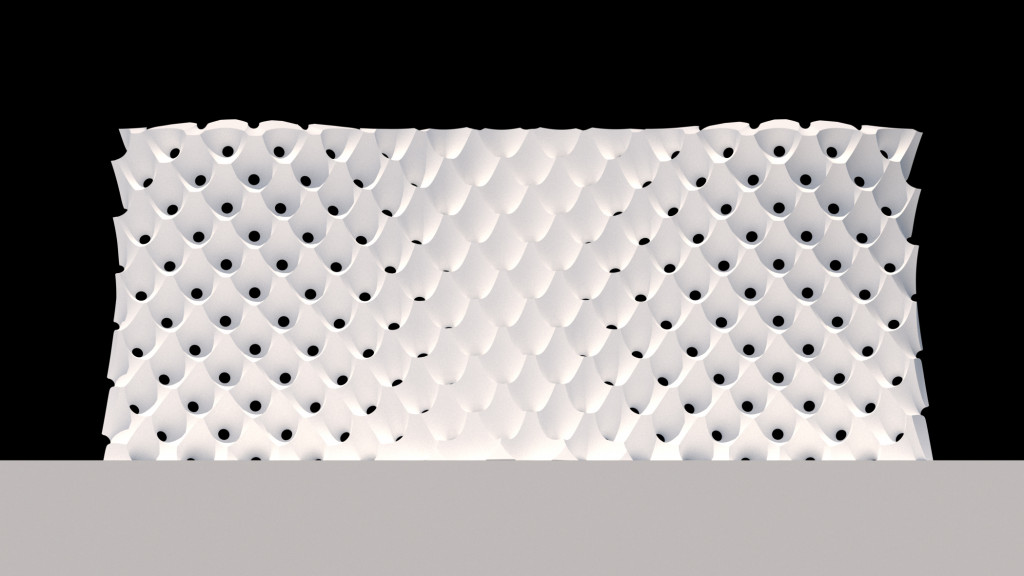

Final Composition

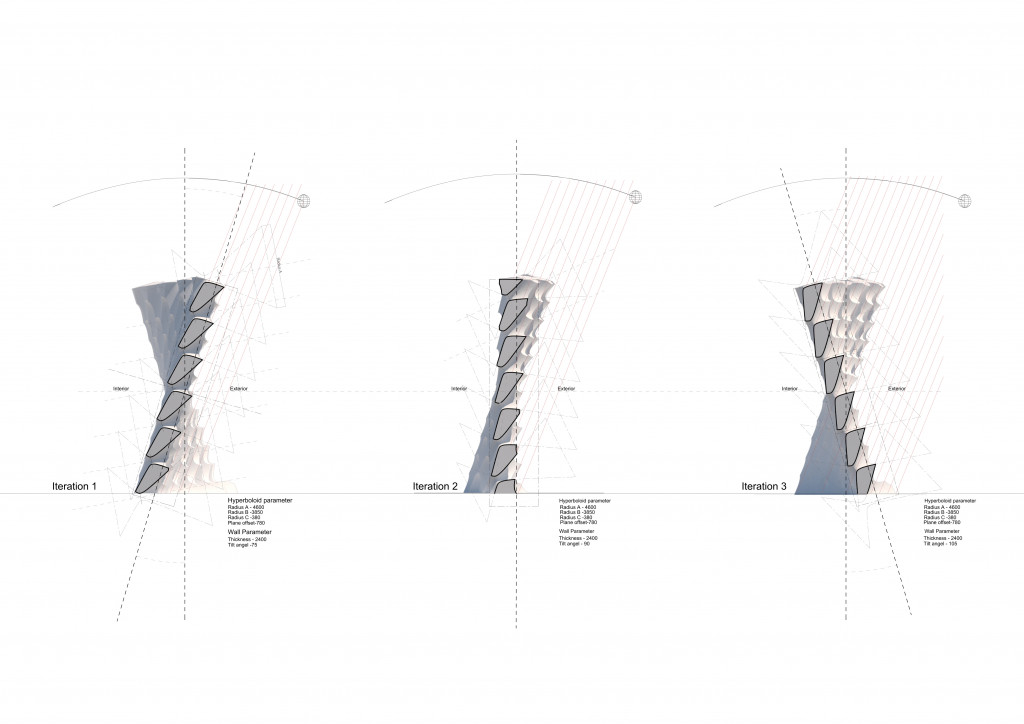

Considering the sun path which is symmetrical for whole year.The wall inclination parameter are iteration to understand how the sunrays are responding to the hyperboliod composition .

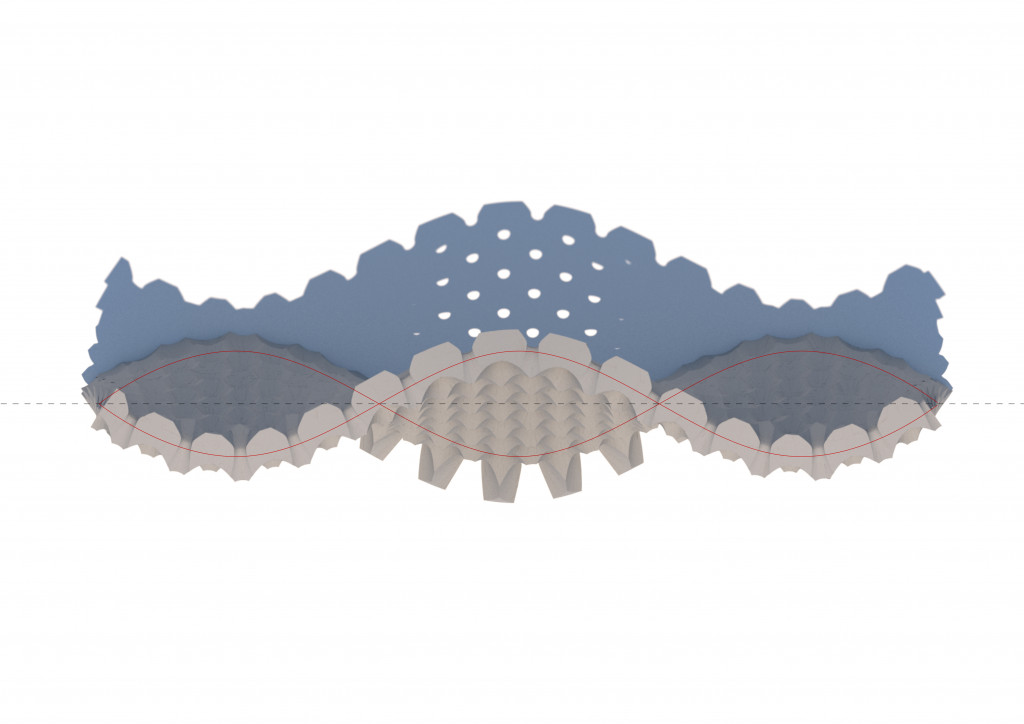

Plan

Animation

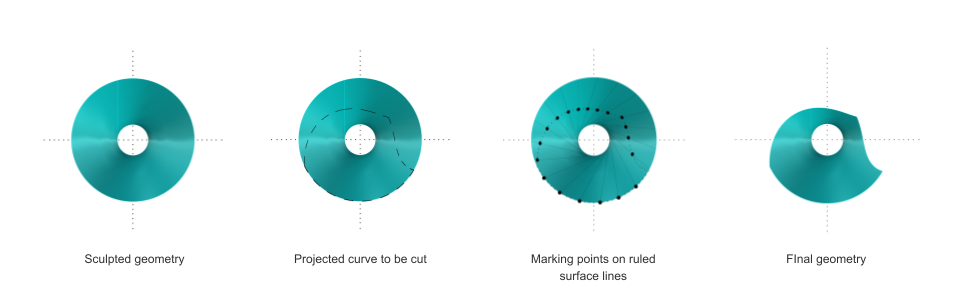

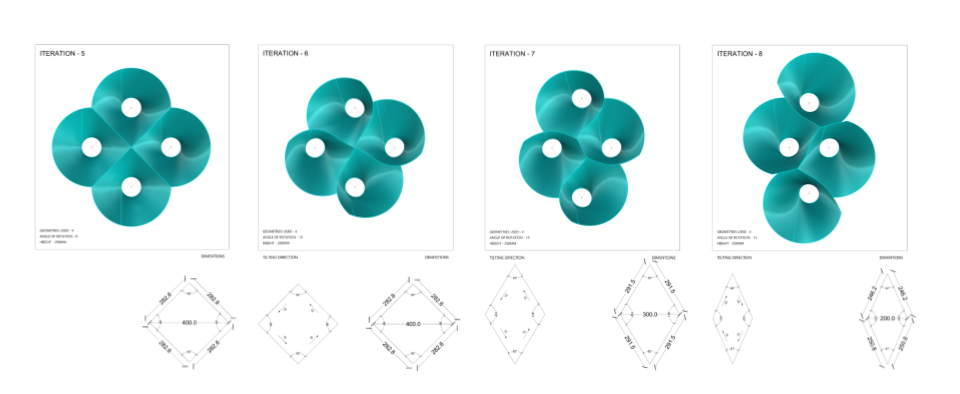

Design exploration of sculpting model

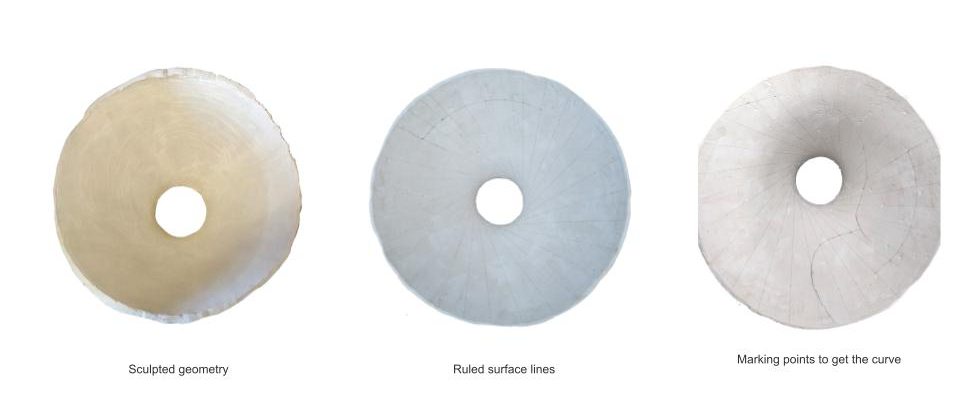

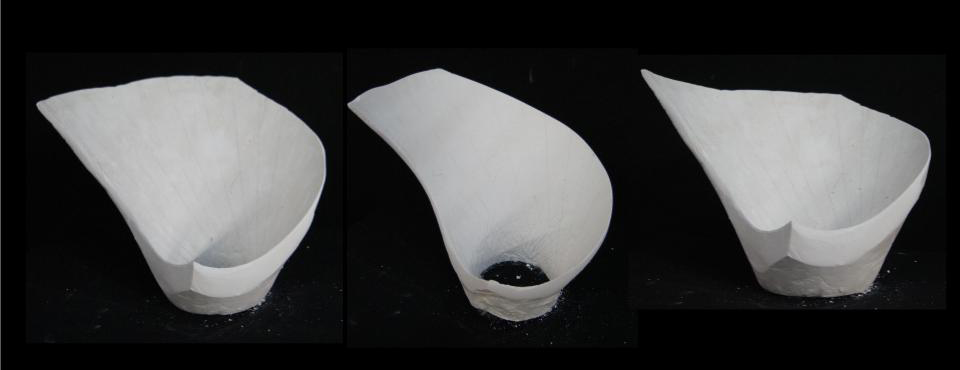

fabricated pieces

shaped based on the intersection technique

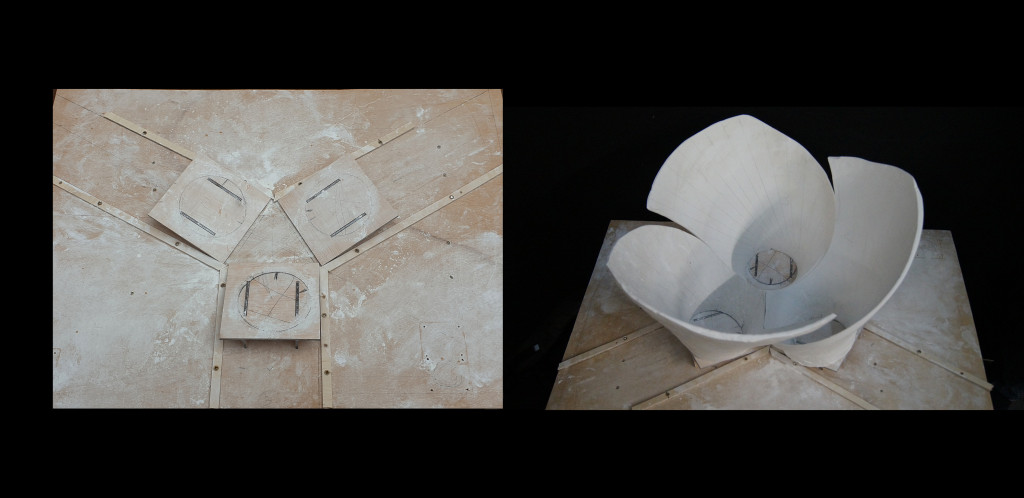

the board with a guide helps to get the triple points

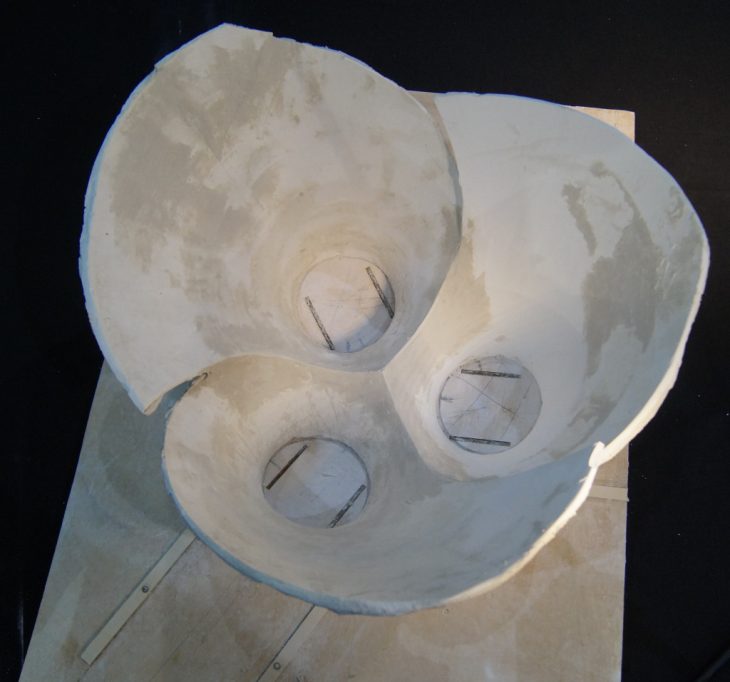

final composition with triple points

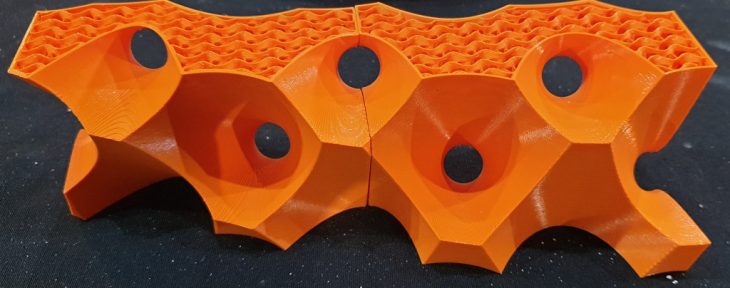

3d print fabrication prototype









After Gaudi – From Computation to Composition //

Lights of Fortune  is a project of the Institute for Advanced Architecture of Catalonia developed at Master in Advanced Architecture in 2020/2021 by:
Student:  Karthy Krishna, Ashwin Parandhman, Aniket Sonawane
Faculty: Mark Burry & Rodrigo Aguirre | Faculty Assistant: Ashkan Foroughi
