[ el Primero ]

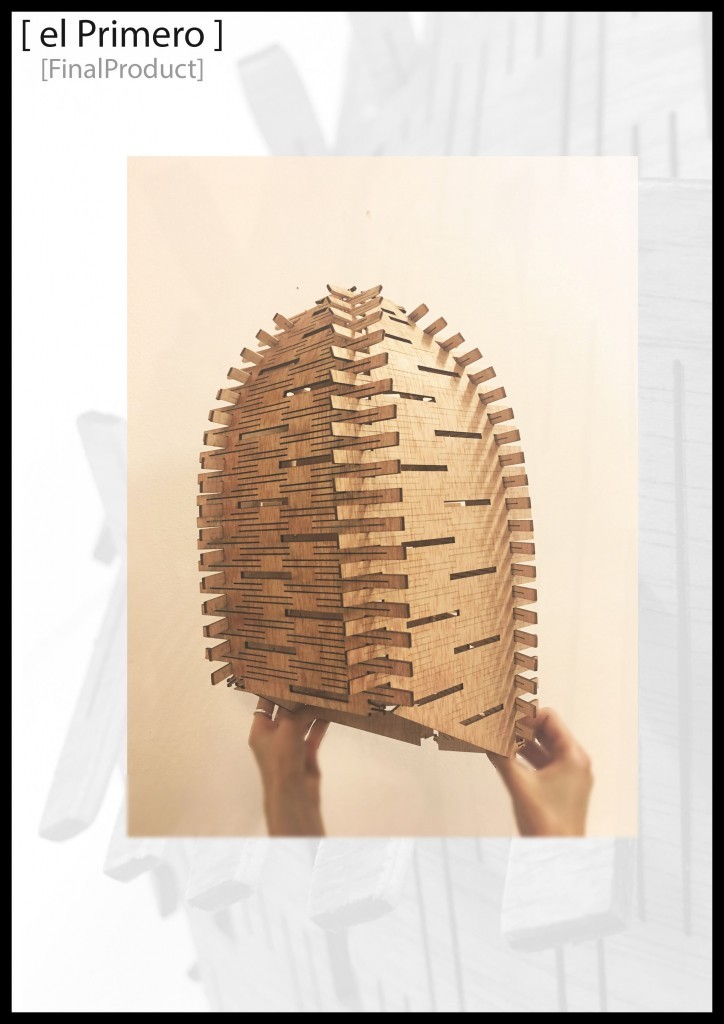

The lamp creation was based on the kerfing of plywood.
After doing an extended research on the material behavioral limits.

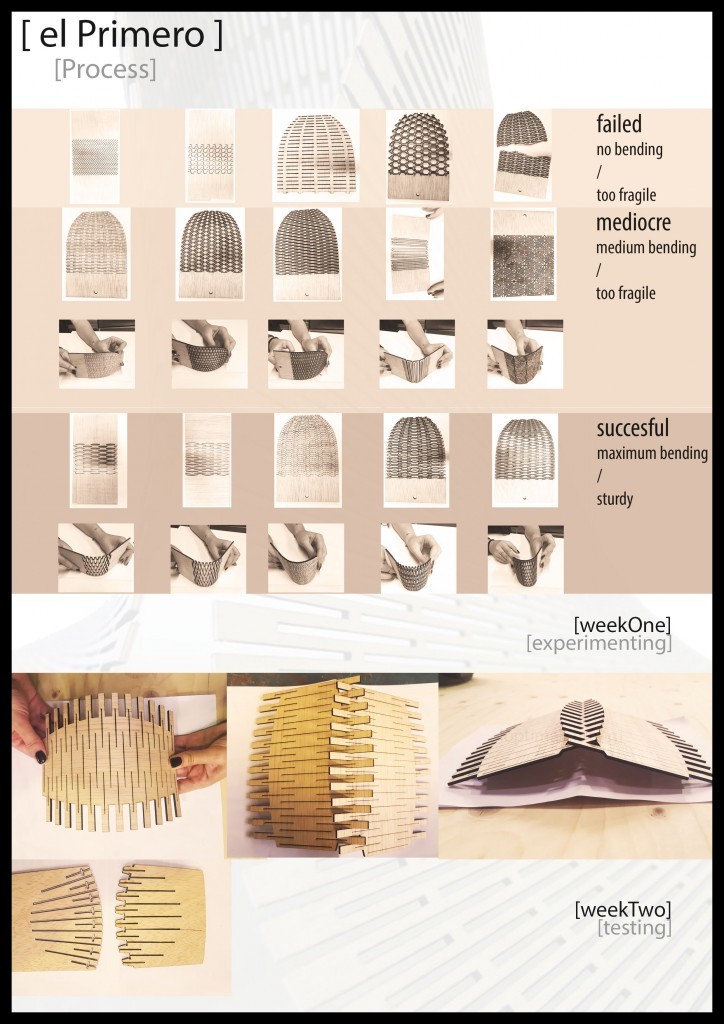

Also we experimenting the capability to bend the plywood.
We conclude the curvature angle depends on the material thickness, the grain direction, and the pattern density.

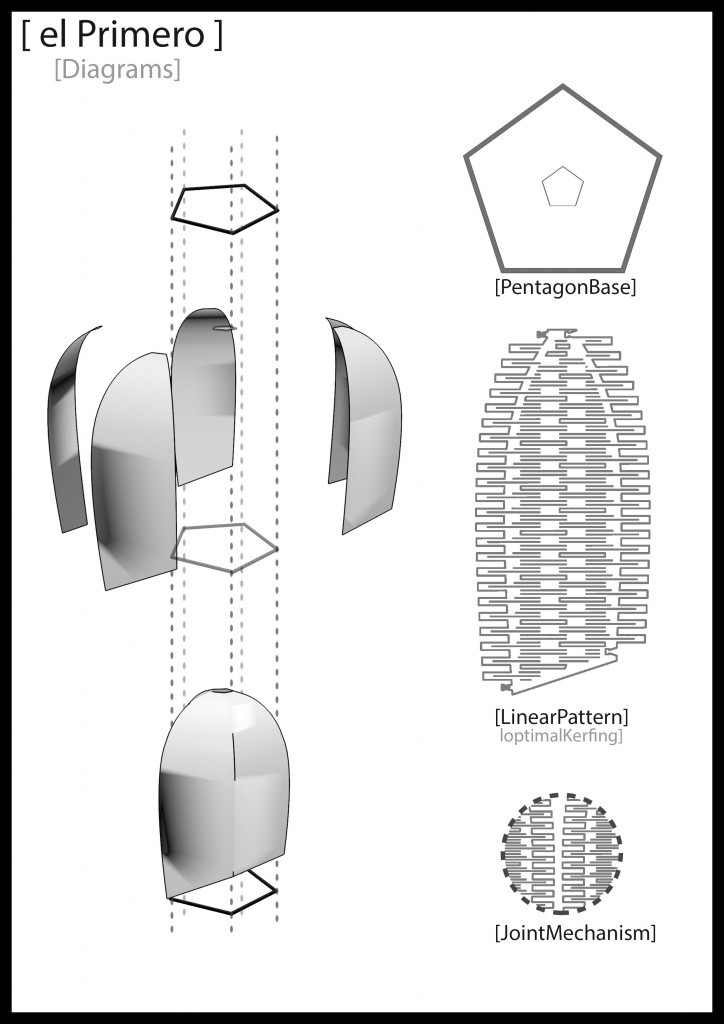

As a result, the lamp will have a pentagon base that will help us to lock all the pieces together while bending
the plywood into the shape desired, without the need to add any separate joints to connect it,
the joints will be merged with the main pieces on its periphery.
While the surfaces will bend in one direction, they will lock in the opposite direction.

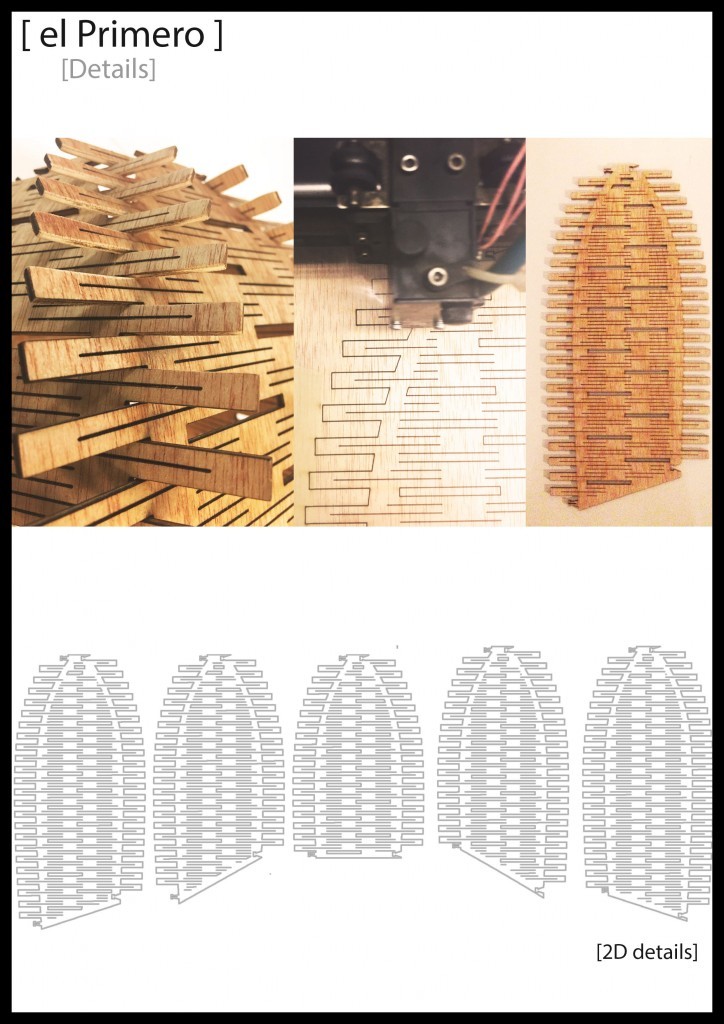

Technical Details:
Machining time: 67min
Type Material: Plywood 4mm
Fabrication strategy: Kerfing
References:
www.jslagrange.com/Peacock
www.instructables.com/id/Laser-cut-Arduino-radio-enclosure/
thelasercutter.blogspot.com.es/
Students: Maria Sfeir, Filipp Sevostianov, Merve Savatlı
Tutors: Djordje Stanojevic, Kunaljit Singh Chadha
Institute for Advanced Architecture of Catalonia
Master in Advanced Architecture
2016/17
