// BRIEF

The aim of this 3D printed project is to create a single tile that will become one piece of  a lamp created by 24 different tiles. Our main focus during the design process was light quality. In order to create different effects with light we took curvature and density as our two main parameters. Our curves’ spread out from dense starting points to a relaxed position until they reach the frame in order to create a gradient effect on light.

// REFERENCES

// DETAILS

Overlapping layers of different curves, change the density of light passing through the material. Considering the qualities of th ematerial, white ABS, overlapping layers create a gradient of shadow. Tiles curvy design allows it to have a different look and light density from different points of view.

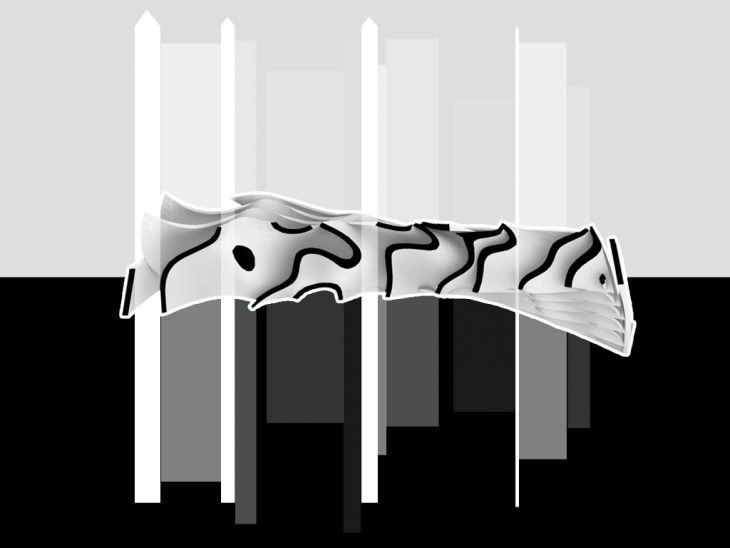

Light passing through the overlapping layers, changing density and direction.

// PRINTING

Estimated Print Time: 11h 24m
Materia Usage: 17.10 m (41g)
Material: White ABS
Support: 20 degrees
Layer Thickness: 0.8 mm
Quality: Normal
Infill: Mesh

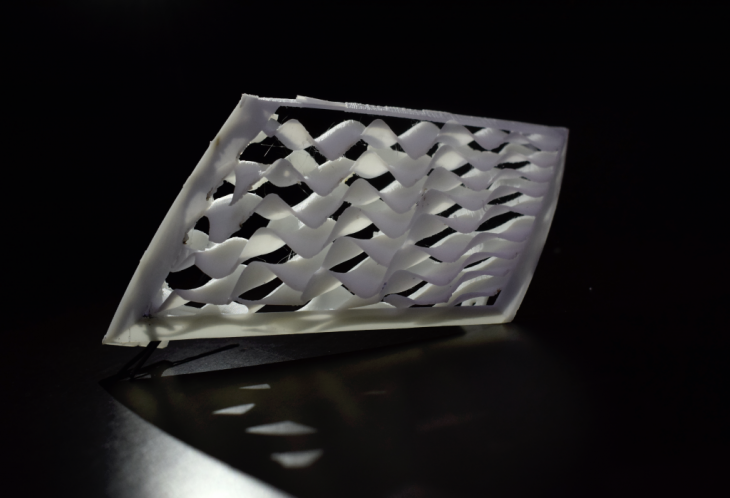

// TILE

// LIGHT QUALITY

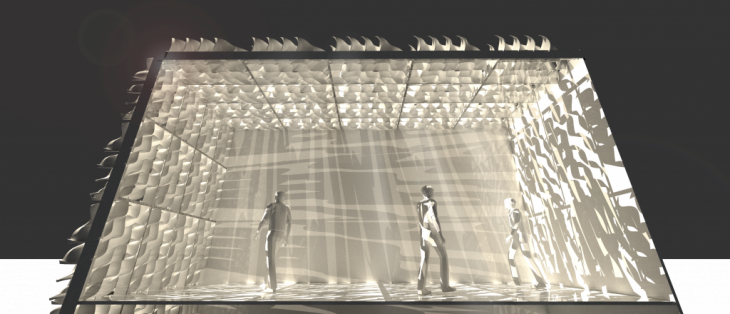

// ARCHITECTURAL APPLICATION

Digital Fabrication II // 3D Printing is a project of IaaC, Institute for Advanced Architecture of Catalonia developed at the Master in Advanced Architecture in 2019/2020 by:
Students:Hanna Lepperød, Stefana – Florina Zapuc, Deniz Akyürek
Faculty: Lana Awad, Ricardo Mayor, Sujal Kodamadanchirayil
Assistants: Alaa Al Baroudi & Sara Rosenberg
