CONCRETE FOLDS treats a structural component with the lightness of a folded paper.
CONCRETE FOLDS is an ever changing shadow pattern combination for your partition wall.

is it LIGHT, STRUCTURAL and MODULAR.

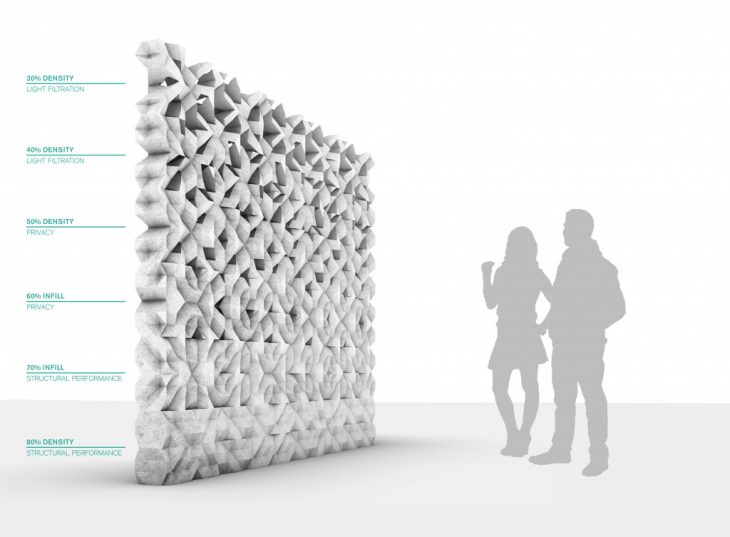

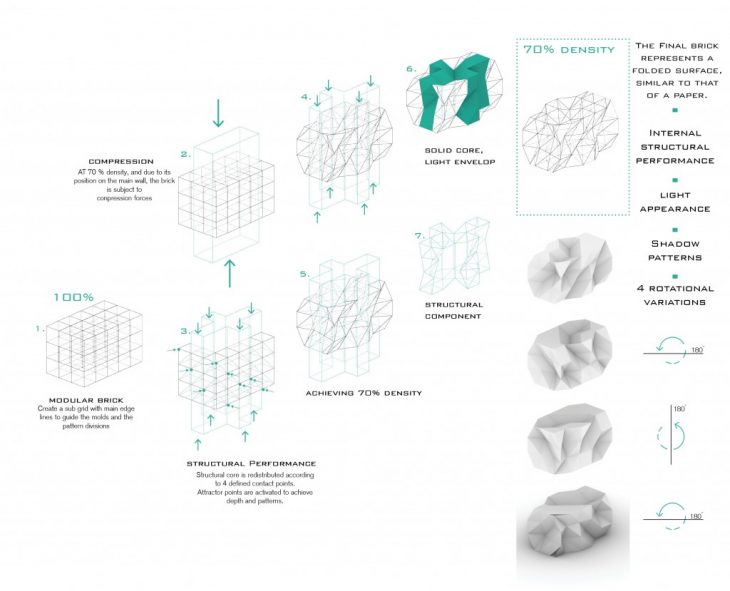

CONCEPT DIAGRAM

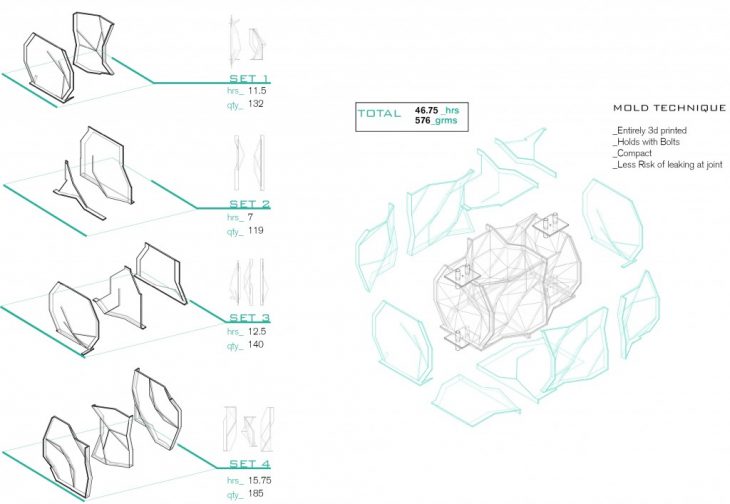

EXPLODED VIEW OF MOLD . OPTIMIZATION FOR COMPACT ASSEMBLY AND DURABILITY

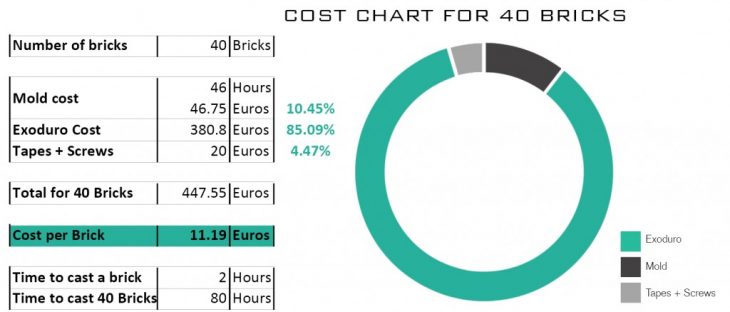

OPTIMIZED MOLDING TECHNIQUE FOR 40 UNITS

























100 MODULES ADAPTATION










|CONCRETE FOLDS|
is a project of IaaC, Institute for Advanced Architecture of Catalonia
developed at the Master in Advanced Architecture in 2018
by: Yara Tayoun, Ivan Marchuk, Tarek Kassouf and Abhay Devidas
Faculty: Alexandre Dubor, Lana Awad
