Introduction

Background

The Institute for Advanced Architecture of Catalonia in Barcelona has a longstanding relationship with Foster + Partners in London. Every year, the Master in City and Technology collaborates with the Foster + Partners Urban Design Group for a deep dive into the frontiers of urban transformation. Although the studio takes place over six weeks, it represents the culmination of many months of study in the realm of technology-driven urban design.

Circular Urban Design

The Master in City and Technology explores many different aspects of urban design, from the technological to the ecological. In this project, the focus is on circularity. It asks the question- how can urban transformation create positive feedback loops that nudge communities toward circularity? From the circularity of materials to the circularity of human processes that shape the urban environment itself. This question demands that we go beyond the architectural design of space, and think critically about how communities interact with and co-create space over time.

The concept of circularity implies that the design process itself is not linear. It doesn’t begin at the outset of the project and end with construction. Rather the design process is a matter of local stakeholders co-creating space as time goes on. Circular urban design relies on continuous cycles of co-creation that are embedded in the project brief from the outset. Co-creation within the community carries on long after the formal design process is over. The circularity brief asks us to thoughtfully consider how urban space can be designed to meet the needs of the community in a sustainable way over the long term.

Community Analysis

The Sant Marti District

With its many factories-turned art studios standing next to ultra-modern skyscrapers, Sant Marti is a dynamic and complicated district. It’s still in the middle of a multi-decade transformation. During the industrial revolution, it was Spain’s most economically productive neighborhood. Later, as manufacturing went abroad, Sant Marti fell into poverty and disrepair.

The 22@ Plan

After the ’92 Olympics kickstarted Barcelona’s meteoric growth, the City devised the 22@ plan. The plan called for revitalization in the industrial heart of Sant Marti, with the ambition to create the first purpose-built innovation district in Europe. The plan involves spaces across the district but is mostly concentrated in two areas: 22@ South (where IAAC is located), and 22@ North (situated in the Provençals Del Poblenou neighborhood). The plan has been largely successful at attracting tech companies, foreign investment, and university students, but it has its detractors. Housing has become less accessible to lower-income residents while cultural change has created social tension.

Art & Technology Communities

The transformation of the neighborhood has especially generated tension amongst the artistic community that took up residency in the area due to the abundance of affordable industrial space. With rents rising and suitable spaces being redeveloped, artists rightfully fear they will no longer be able to call the area home. Many groups and institutions, such as La Escocesa, have organized themselves and spoken out. What would the area look like without the artists that first brought cultural energy back to the disused industrial buildings? The City has redeveloped the 22@ plan in an attempt to account for questions like that, but this project addresses the issue at a deeper level.

At its core, the 22@ plan was designed to attract technology companies, and therefore tech workers, to Barcelona. Ranks of well-paid tech sector employees and the services that cater to them are moving into the 22@. How will they integrate and interact with existing locals and the arts community? Circular urban design could help create community ties where there could otherwise be animosity.

Site Analysis

Provençals Del Poblenou

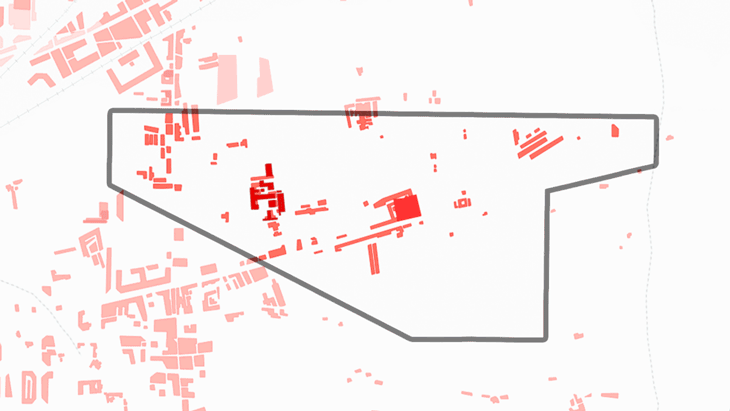

The Proveçals Del Poblenou neighborhood is the site chosen for this studio project. Situated at the heart of the Sant Marti District, Provençals is home to the 22@ North and is currently undergoing heavy redevelopment. It is also home to many important cultural heritage buildings related to the arts community. This makes it one of the most dynamic areas in Sant Marti and a fascinating case study site for the studio.

Urban Morphology

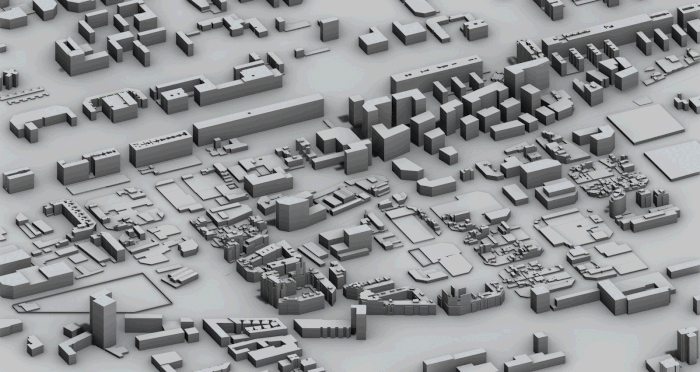

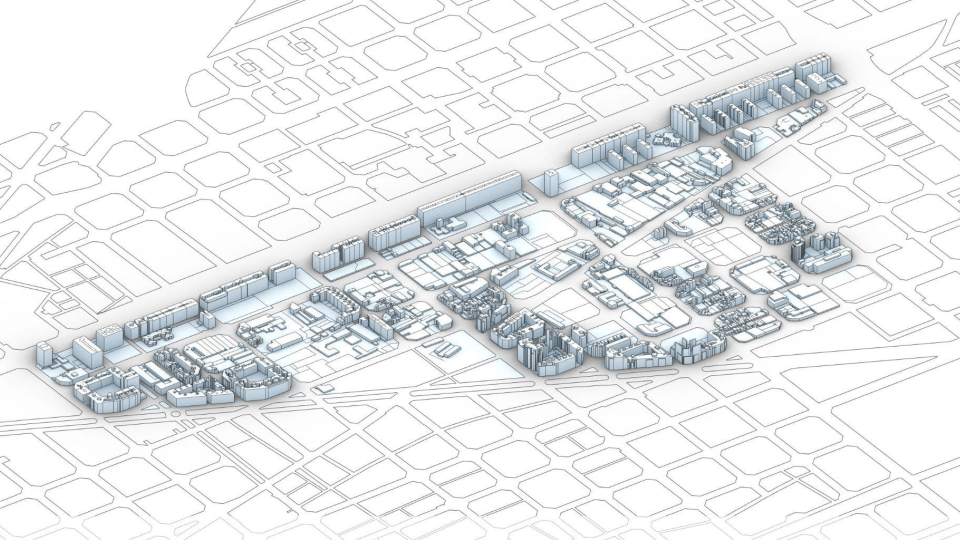

Provençals is a wedge-shaped area bordered by the Gran Via highway and Avinguda Diagonal. Pere IV, which runs diagonally through the neighborhood, has been dubbed the Creative Mile in the 22@ plan. It runs between 22@ North and 22@ South and is the longest-standing historical axis of the area. The Poblenou Central Park, designed by Jean Nouvel, lies at the intersection of Diagonal, the Creative Mile, and the green axis (a linear green street that extends from the Central Park). These elements form the urban structure of the project.

Land Use

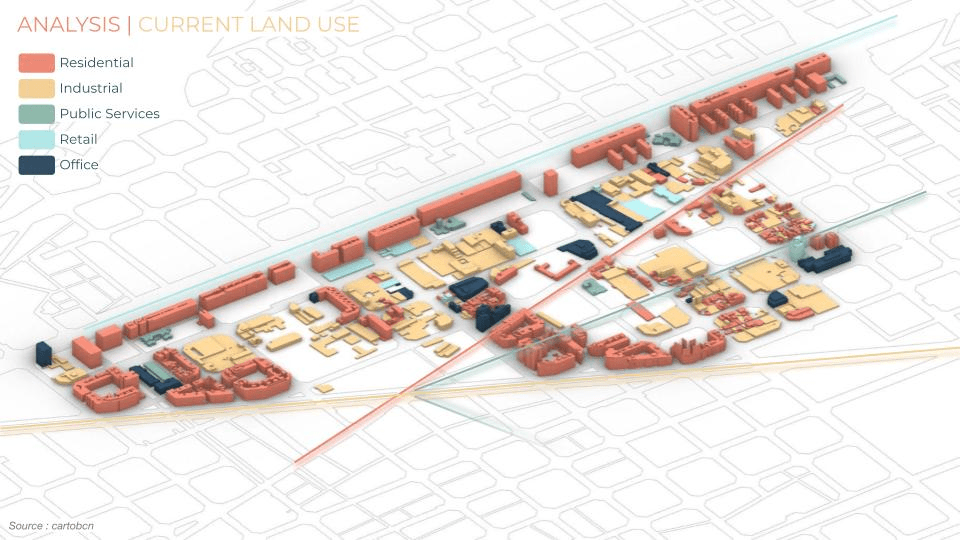

Analysis of the land use shows the extensive planning changes involved in the 22@ plan. The many disused industrial plots are being redeveloped into commercial office and retail space, cultural destinations, and new housing. Importantly, Provençals is home to many Fabricas (factories converted to new uses), schools, galleries, and museums. These elements anchor the arts community and play a central role in the design strategy below.

Urban Design Proposal

Project Concept

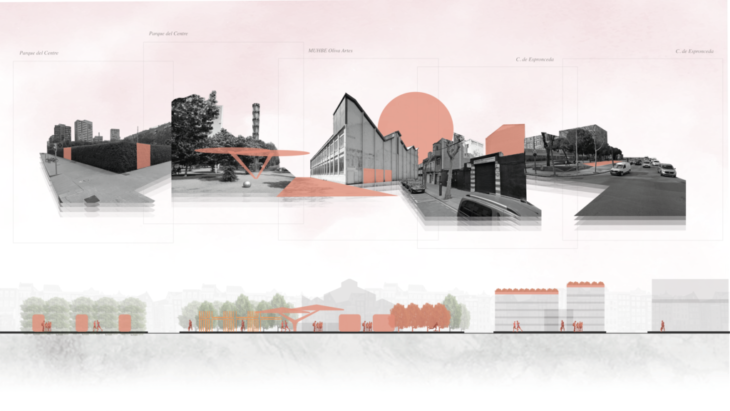

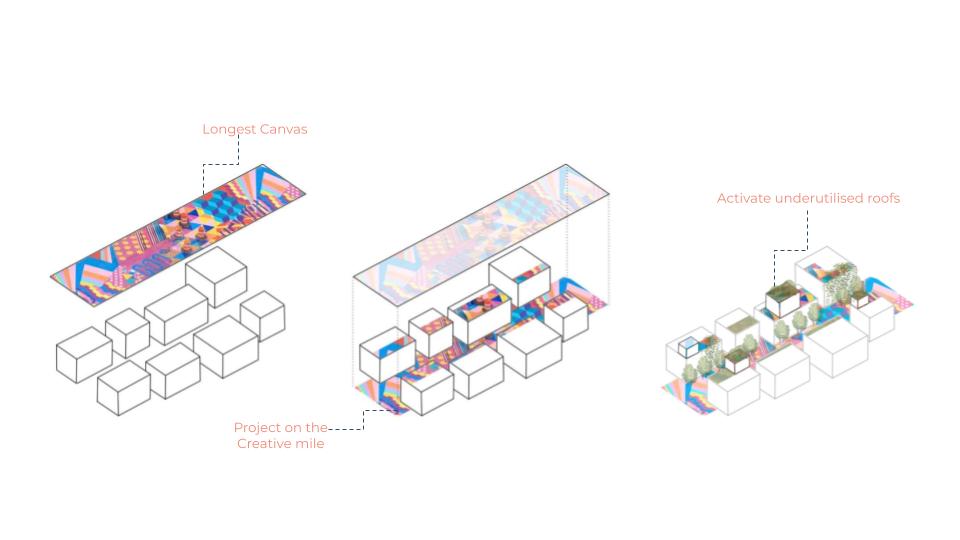

In response to the context and questions posed above, we devised a project concept that aims to transform the urban space and bring the community together. At the heart of the concept is the activation of the Creative Mile as an urban spine that connects three nodes: a green hub, a creative hub, and a technology hub. Each hub serves as an anchor for the surrounding community. The Creative Mile itself has been reimagined as the longest urban canvas in the city… a dynamic space for greenery, art, and technology such that the physical infrastructure of the city represents the values of the community it serves.

With the tactical use of greenery, art, and interactive technology, the Creative Mile Canvas becomes a source of activation at the street level. Taking this concept one step further, the activation expands beyond the ground floor by including the adjacent facades and rooftops.

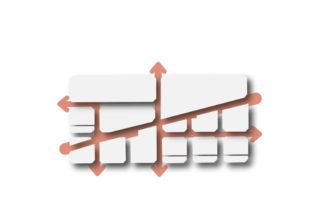

Objectives

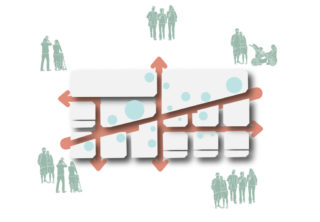

The project concept aims to achieve two objectives:



Design Strategy

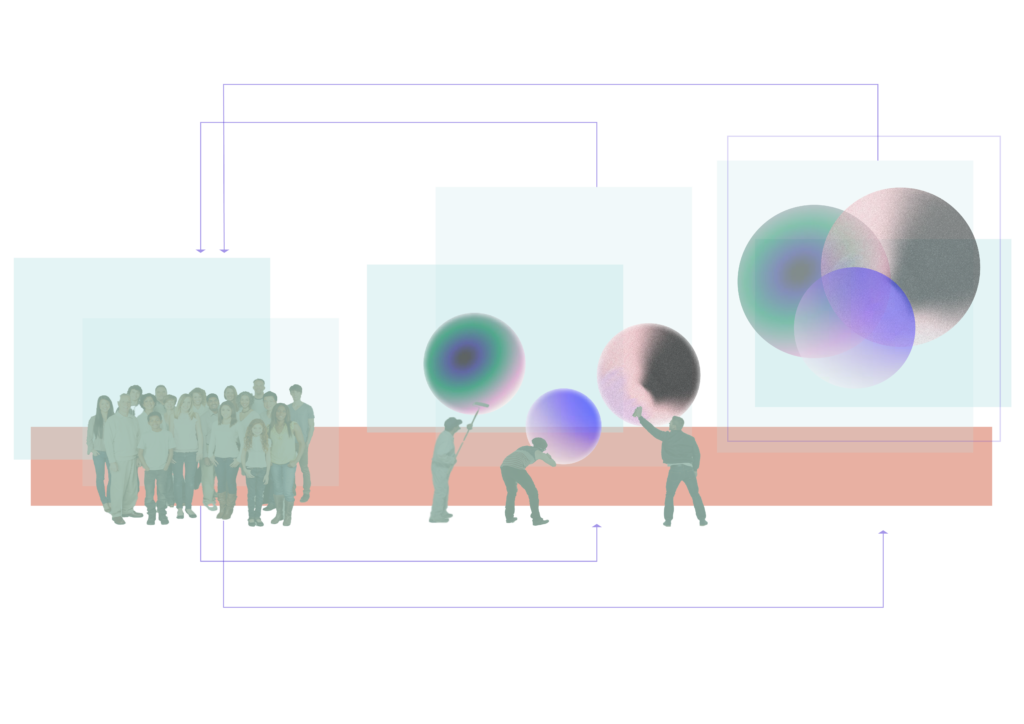

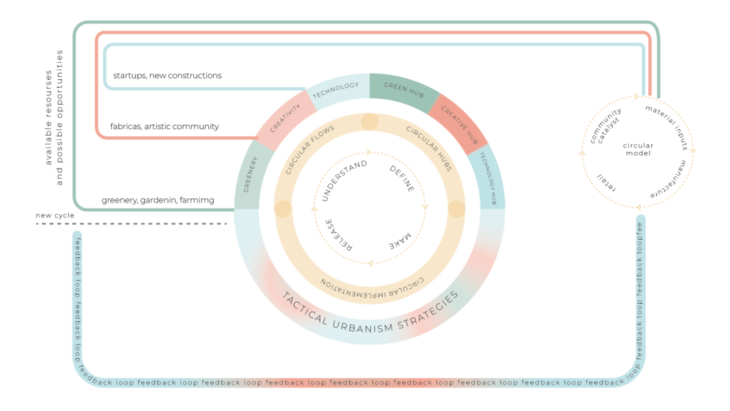

The design strategy is grounded in engagement with the community. Activation of the Creative Mile through urban design provides a foundation for community stakeholders to become the main agents of creative development in the surrounding neighborhood. Based on the idea of tactical urbanism, where lightweight community-driven interventions are tested out for efficacy, the strategy below leverages the talent in local organizations like schools, universities, art studios, and small businesses to drive the capillarization of activation into the urban fabric. This combination of top-down and bottom-up design works in concert toward the common goal of a well-integrated and dynamic urban space.

Community Hub Model

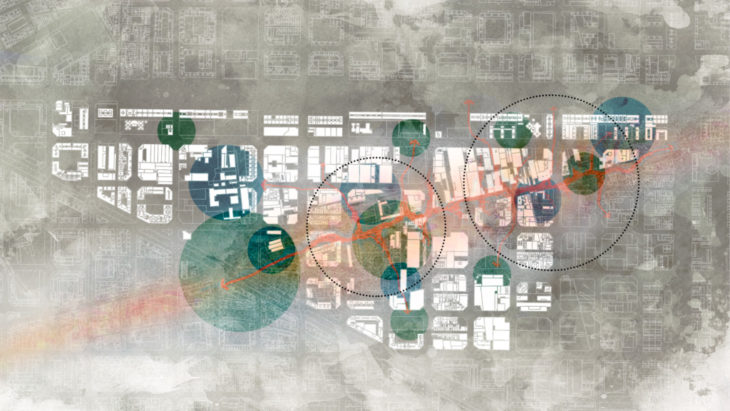

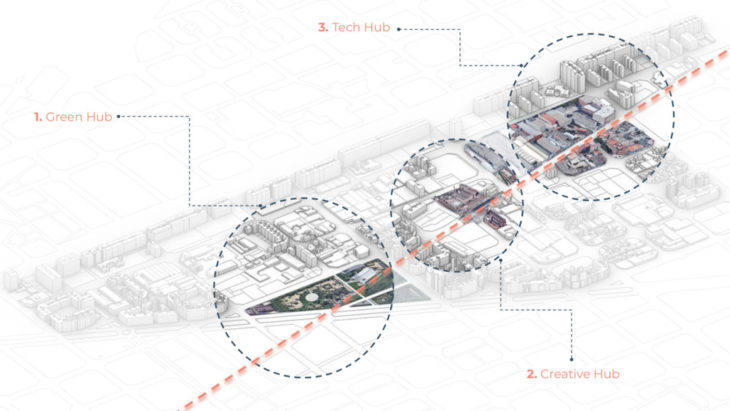

The three zones that line the Creative Mile serve as community hubs. Each zone is anchored by a hub that hosts circular material flows and community interactions related to the theme of the zone. Following is a look at each hub individually.

Zone 1: Green Hub

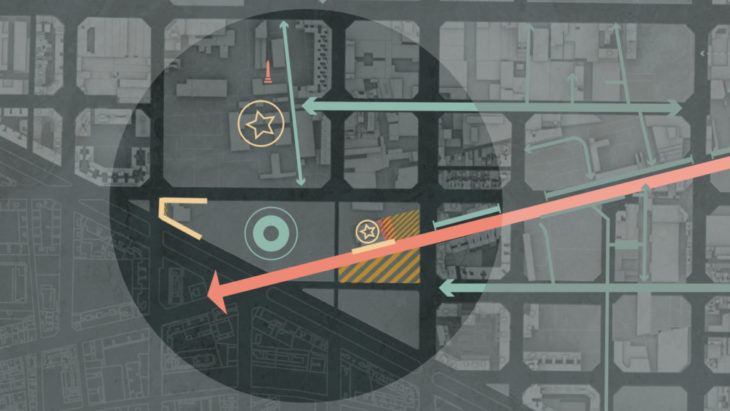

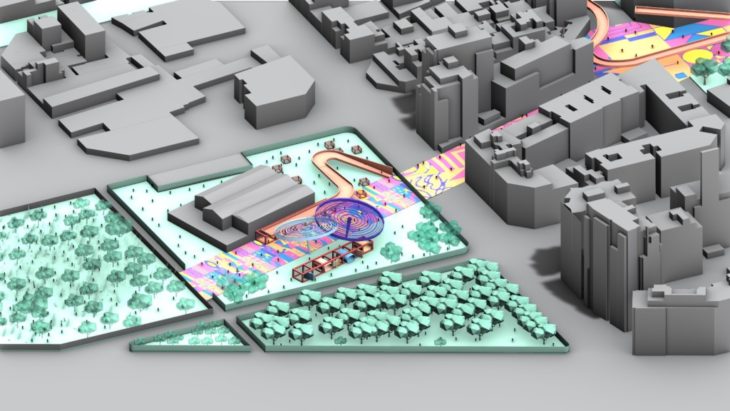

The Green Hub is anchored by the local history museum inside the Central Park. As an orienting space, the park has been reconsidered as a more porous environment that gives visitors a clear sense of direction. The walls of the park and museum are opened up to encourage interaction and flow. Greenery is increased inside the park and spills out into the surrounding streets and onto the nearby facades and rooftops. The circular community hub provides residents with a place to recirculate goods related to urban farming, gardening, and greenery. Possibilities include a seed bank, a garden supply co-op, and a residency program for local experts to teach others the skills needed to build and maintain an ecologically dynamic neighborhood.

Zone 2: Creative Hub

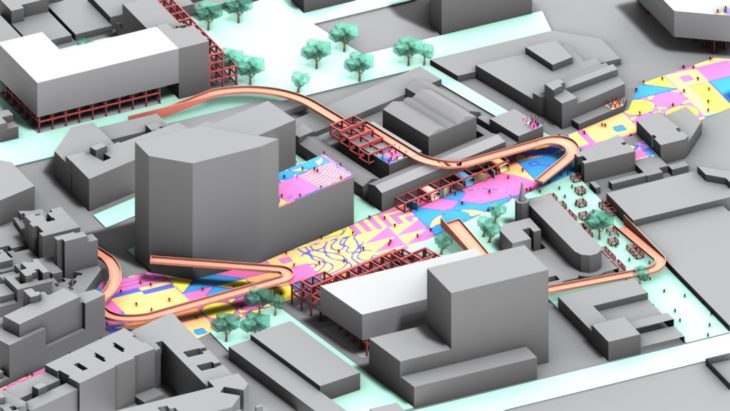

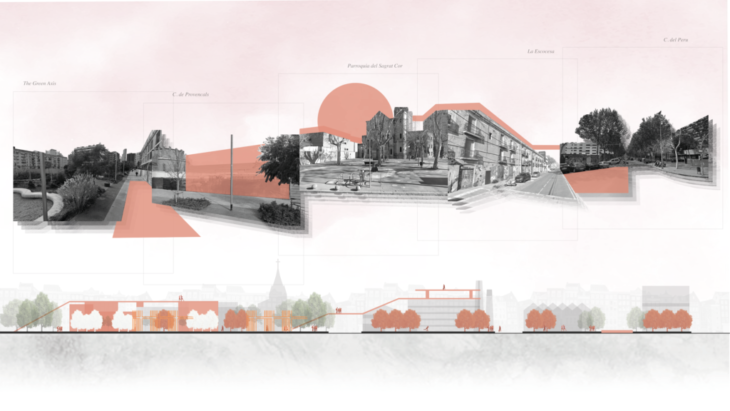

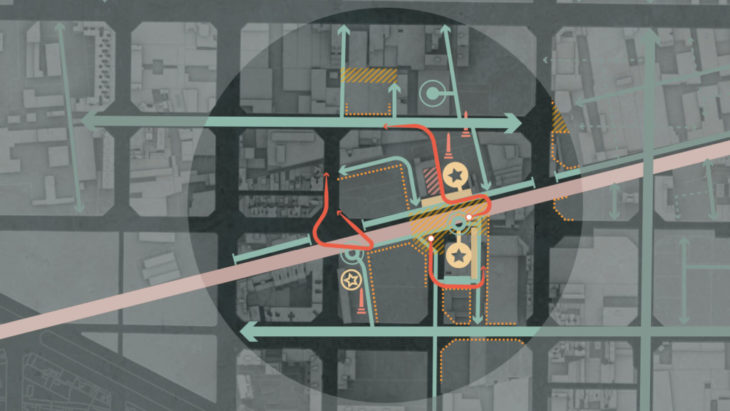

The creative Hub is anchored by La Escocesa arts collective. The facade of the collective is redesigned with revolving wall elements to allow artists to better showcase their work. The church across the Creative Mile is activated with a new plaza dedicated to public art. Rooftop walkways connect multiple buildings, allowing the art exhibition space to expand three-dimensionally. The circular community hub allows artists and residents to recirculate various materials for artworks and tactical urbanism experiments. Additionally, the hub becomes a community resource where artists-in-residence can teach community members skills related to creating art and using public art and tactical urbanism to improve the neighborhood.

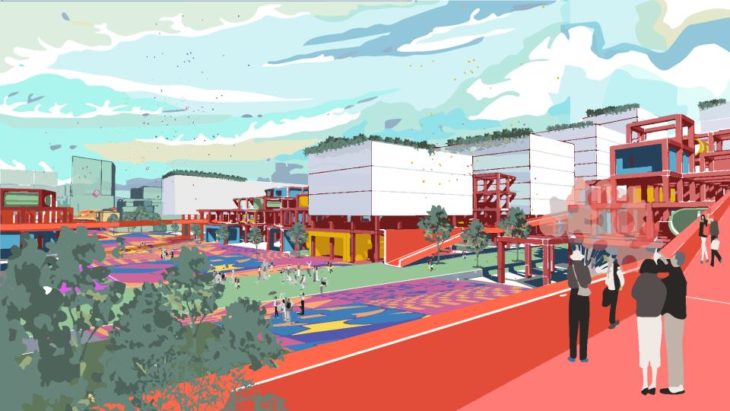

Zone 3: Technology Hub

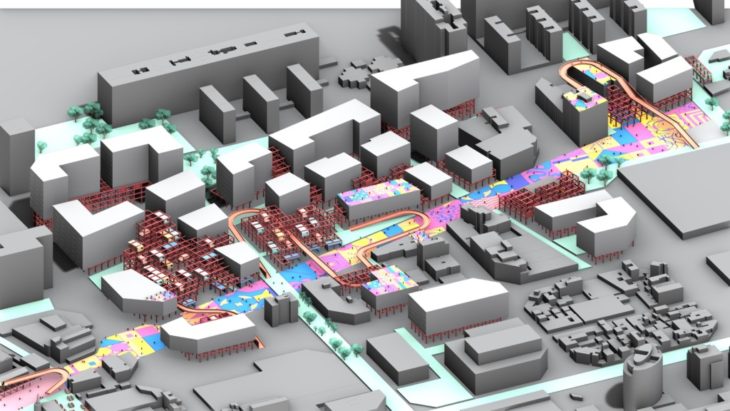

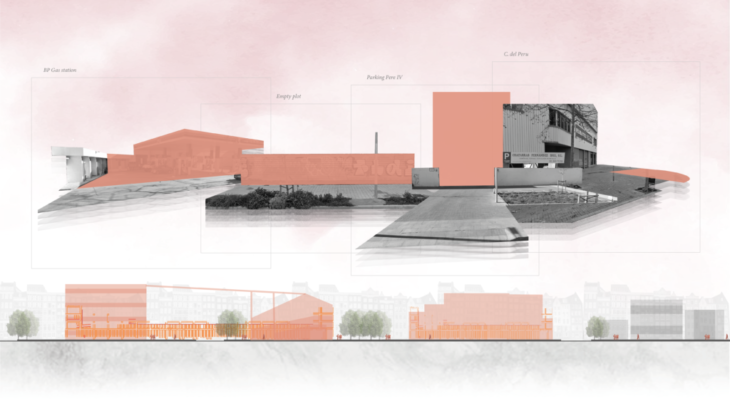

The Technology Hub anchors the far end of the Creative Mile. It hosts new housing, including affordable social housing, commercial space for tech companies and incubators, and university housing and facilities. Much of the existing buildings are refurbished and repurposed. The new developments are focussed on flexible structures which allow modular uses such that tenants and layouts can be adapted to changing demands as the neighborhood evolves. Much of the ground plane of these new structures are open-plan modular spaces that allow interactivity and the open flow between users and the general public. Throughout the streetscape and over the rooftops via elevated walkways, the programmatic focus is on interactive technologies that let people engage with emerging tech and explore data about the neighborhood.

Canvas Del Provençals
This strategy envisions a neighborhood in which creativity and civic engagement are not restricted to one axis, but are integrated throughout. Through the positive feedback loops described, creativity acts as a catalyst for synergy between the urban fabric and the community. Over time, a more well-integrated neighborhood emerges.



Canvas Del Provençals is a project of IAAC, Institute for Advanced Architecture of Catalonia developed at Master in City and Technology in 2021/2022 by Students: Maria Augusta Kroetz, Gayatri Agrawal, Joseph Bou Saleh, Lucas Zarzoso, Ocean Jangda, and Faculty: Laura Narvaez Zertuche, Bruno Moser, Andy Bow
