CONCEPT

Lake Kaindy is located in the south of Kazakhstan, a lake was formed as the result of a major limestone landslide forming a natural dam. It blocked the gorge and was filled by mountain river water. All caused by a relevant earthwuake in 1911.

As a result, my aim is to reproduce this floting forest, a light installation whose density of branches and abstract image of this artificial forest may reproduce this dreamly atmosphere and translate you into it.

This design correspond with a recursive growth of a simple stick, whose recursivity would define this faded and dense view.

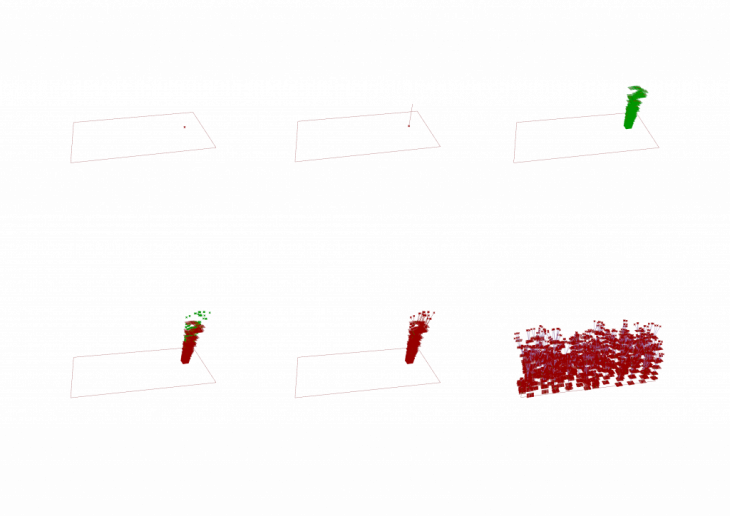

PSEUDOCODE DIAGRAM

  1. Generate a point
  2. Define a perpendicular line
  3. Propagation of parallel planes
  4. Selection of random points in subdivided planes
  5. Join points in order to create the connections of the lines (tree).
  6. Propagation of the same effect.

LOCATION OF THE INSTALLATION

In the Mies Van der Rohe Pavilion in Barcelona , we are supposed to place our installations.

ITINERATIONS (with their respective values)

ITINERATION 01


RECURSIVITY
Repetitions: 3

POINTS (Populate 2D)
Number: 75
Seeds: 3

HEIGHT
Min-Max: 0.2 – 4.9
Change of variations: 26
Change of variations 2: 22

BRANCHES
Number: 3
Quantity of divisions: 5
Min-Max: 0.04 – 0.94

INCLINATIONS
Min-Max: 0.1 – 0.5
Variety: 7

ANGLES
Min-Max separation: 56 – 97
Variations: 820

ITINERATION 02

RECURSIVITY
Repetitions: 2

POINTS (Populate 2D)
Number: 116
Seeds: 4

HEIGHT
Min-Max: 3.4 – 4.0
Change of variations: 18
Change of variations 2: 15

BRANCHES
Number: 1
Quantity of divisions: 2
Min-Max: 0.72 – 0.81

INCLINATIONS
Min-Max: 0.3 – 0.4
Variety: 9

ANGLES
Min-Max separation: 35 -97
Variations: 450

ITINERATION 03

RECURSIVITY
Repetitions: 1

POINTS (Populate 2D)
Number: 71
Seeds: 8

HEIGHT
Min-Max: 0.6 – 5.0
Change of variations: 9
Change of variations 2: 27

BRANCHES
Number: 4
Quantity of divisions: 5
Min-Max: 0.87 – 1.00

INCLINATIONS
Min-Max: 0.2 – 0.9
Variety: 4

ANGLES
Min-Max separation: 49 -100
Variations: 673

ITINERATION 04

RECURSIVITY
Repetitions: 1

POINTS (Populate 2D)
Number: 73
Seeds: 3

HEIGHT
Min-Max: 4.5 – 5.0
Change of variations: 30
Change of variations 2: 33

BRANCHES
Number: 10
Quantity of divisions: 6
Min-Max: 0.81 – 0.88

INCLINATIONS
Min-Max: 0.4 – 0.6
Variety: 3

ANGLES
Min-Max separation: 3 -99
Variations: 846

ITINERATION 05

RECURSIVITY
Repetitions: 1

POINTS (Populate 2D)
Number: 132
Seeds: 5

HEIGHT
Min-Max: 0.1 – 1.5
Change of variations: 19
Change of variations 2: 48

BRANCHES
Number: 3
Quantity of divisions: 6
Min-Max: 0.81 – 0.88

INCLINATIONS
Min-Max: 0.3 – 0.4
Variety: 4

ANGLES
Min-Max separation: 52 -100
Variations: 109

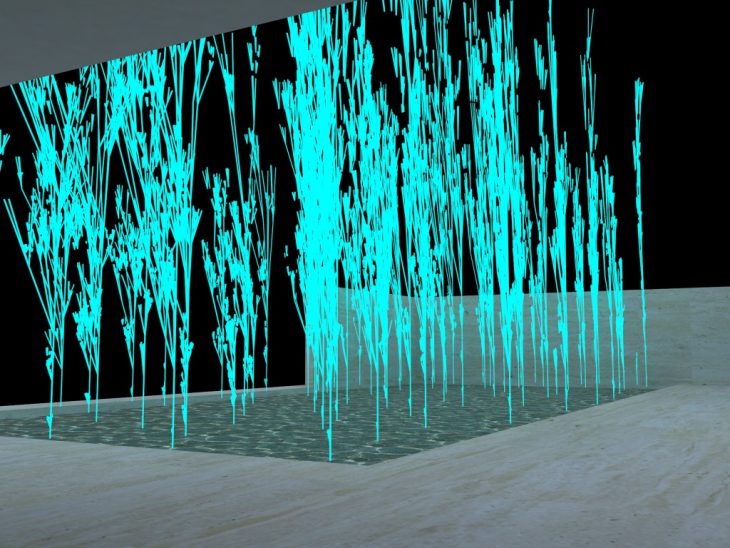

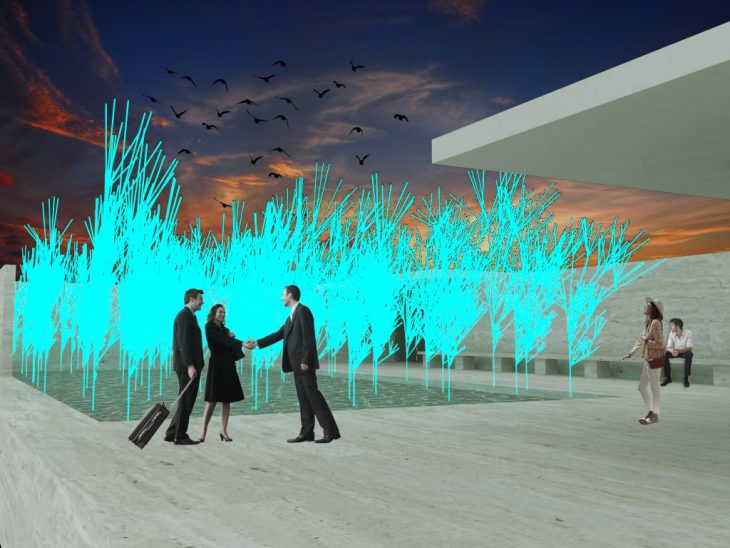

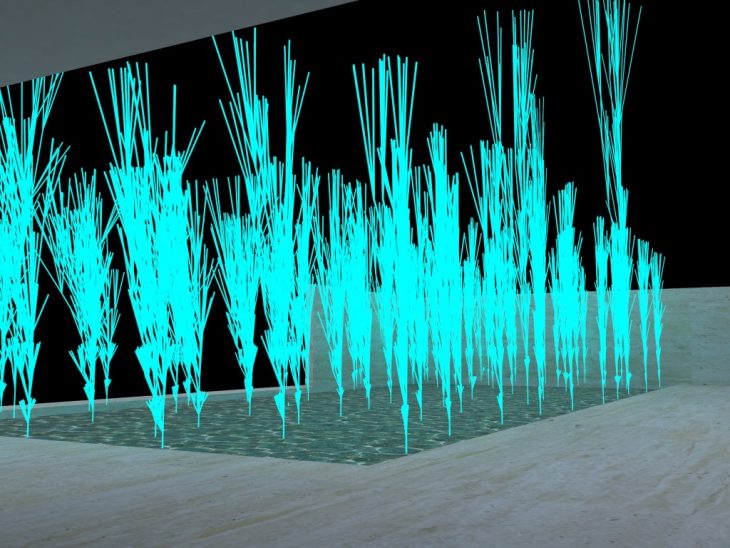

FINAL RENDER

VIDEO

Illuminated Kaindy is a project of IaaC, Institute for Advanced Architecture of Catalonia developed at Master in Advanced Architecture 01 in 2019  by:
Students: Jose Isidro Pastor Tormo
Faculty: Rodrigo Aguirre
