ANIMATED SYSTEMS // Rin Wedding studio

Assignment 2

Inspired by the woman’s curves, the façade of the building looks like a wedding dress. Its front view is on the West side, which means very hot in the afternoon. The solution is creating the air mattress in the front of the building in order to reduce direct sunlight exposure to the space used inside.

Transparent polycarbonate sheets are stacked like many plies, thus, the air can be flushed in and out. Furthermore, each sheet can be adjusted to the tilt angle through the supporter.

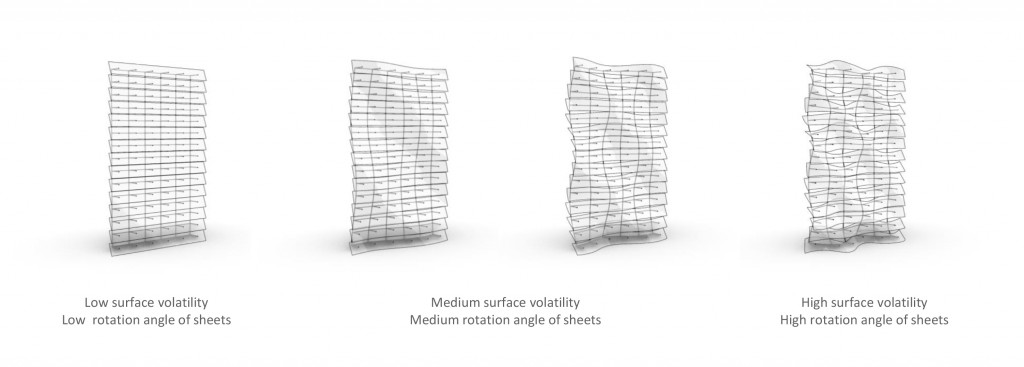

The tilt angle of the poly sheets modifies the façade and creates a sense of motion when viewing the building from a great distance.

Pseudo Code



Script

Code Development

Catalogue



Render







Animated Systems//Rin Wedding Studio is a project of IAAC, Institute for Advanced Architecture of Catalonia
developed for Computational Design, at Master in Advanced Architecture MAA01, in 2020 by:

Student:
Nan Yin

Faculty:
TUTORS: Rodrigo Aguirre
ASSISTANTS: Ashkan Foroughi Dehnavi
