REFERENCE FACADE

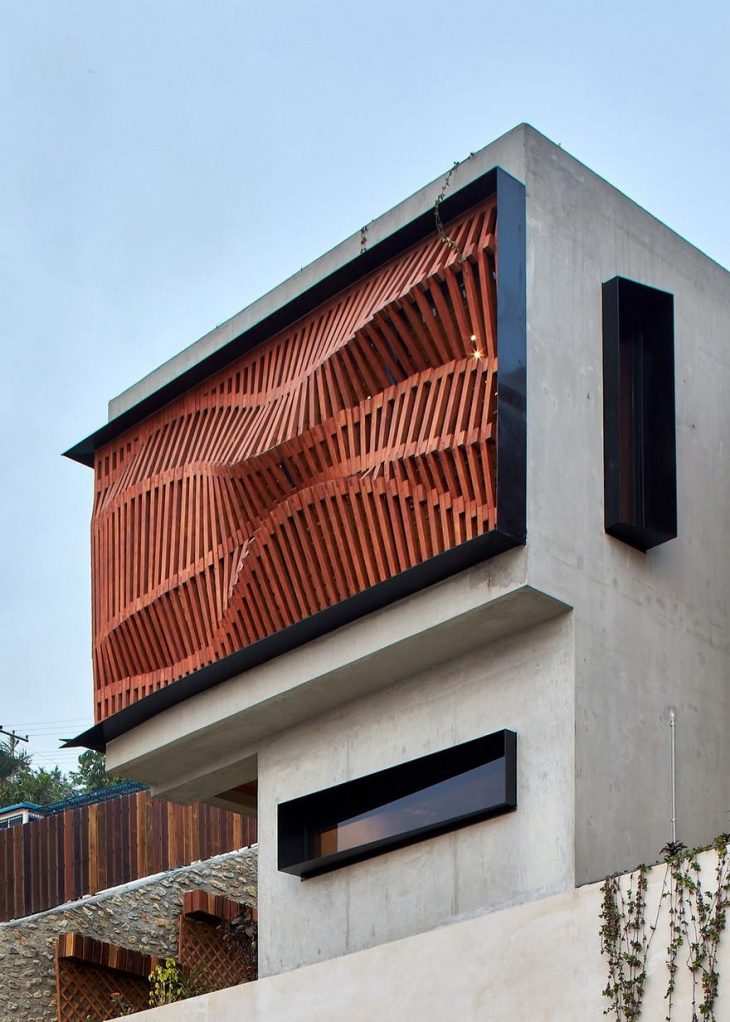

The Small House is a compact 2-bedroom dwelling situated at the top of a steep, west-facing block facing Port Moresby Harbour – overlooking a former cargo terminal and capturing views to the Coral Sea beyond. Currently under construction, the house continues a research trajectory into the creation of bespoke forms through computational design techniques and rapid prototyping fabrication coupled with on-site assembly.
![](https://www.iaacblog.com/wp-content/uploads/2020/11/port-moresby-small-house-12-730x1022.jpg)
Credits – Studio workshop

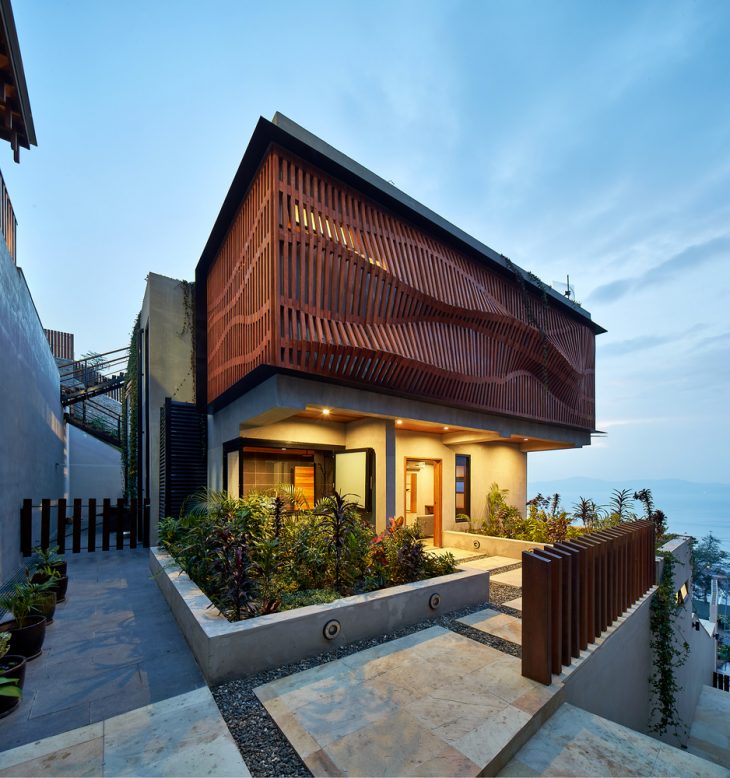

The wrapper and doors are constructed from 50×50 mm rough-sawn acetylated pine timber which is glued and doweled at digitally-executed complex half-lap joints. The wrapper and doors, with a total area of over 80 square meters, contain over 2200 pieces in total and over 700 unique pieces with CNC milled half-lap joints, often on both ends. The entire assembly has been organized as a system of seamless 1200mm panels and doors which serves not only to aid in transportation and erection, but also to minimize the need for skilled labour on-site.
![](https://www.iaacblog.com/wp-content/uploads/2020/11/port-moresby-2-730x778.jpg)
Credits – Peter Bennets

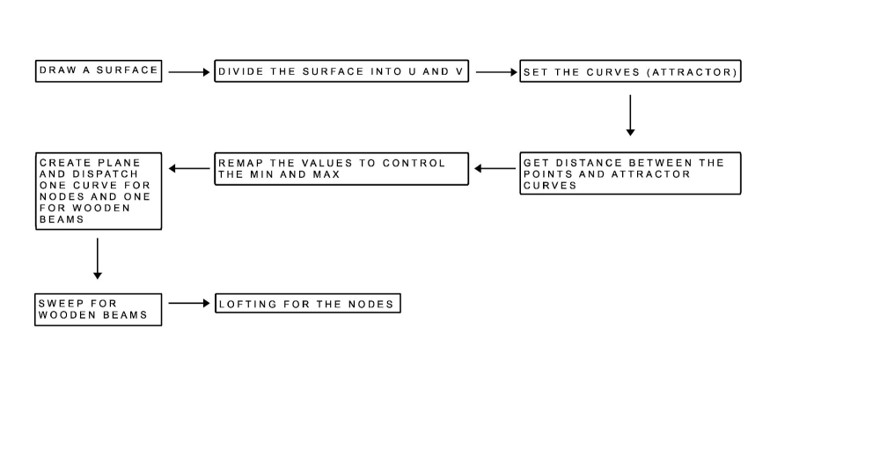

PSEUDO CODE
SCRIPT
![](https://www.iaacblog.com/wp-content/uploads/2020/11/script.jpg)

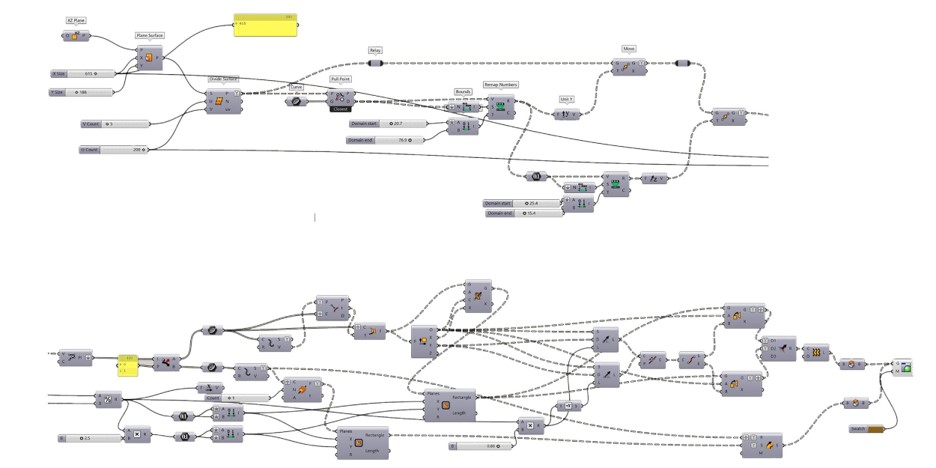

Grasshopper script
CODE DEVELOPMENT
![](https://www.iaacblog.com/wp-content/uploads/2020/11/code-development-4.jpg)

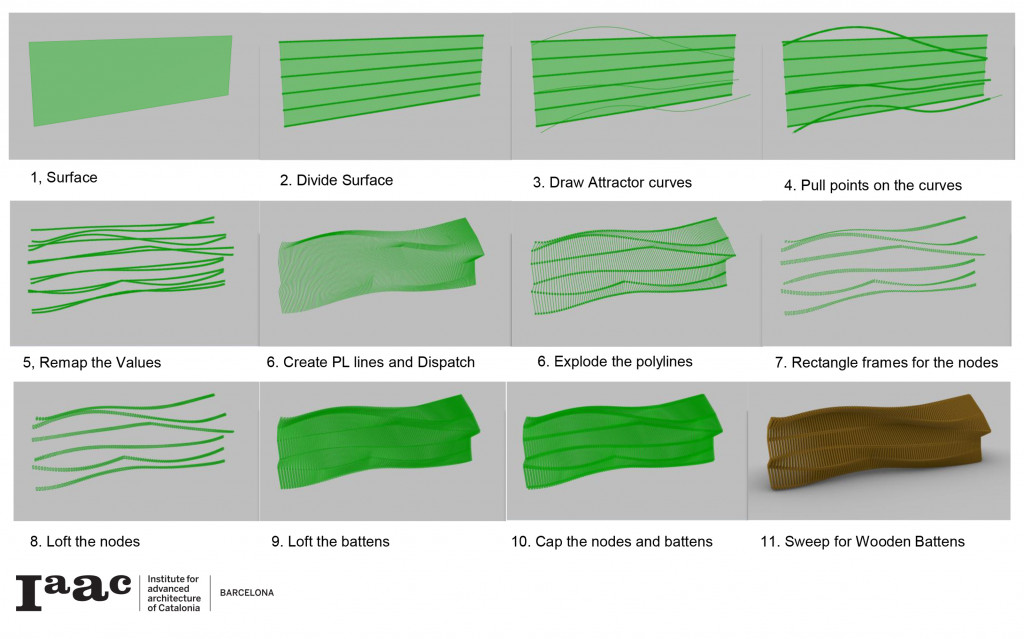

Code development
FACADE RENDER
![](https://www.iaacblog.com/wp-content/uploads/2020/11/render-2-1-730x411.jpg)
Rendered Image of the facade
![](https://www.iaacblog.com/wp-content/uploads/2020/11/render-1-730x411.jpg)
Rendered Image of the facade
ANIMATION
</p>
Animated Systems – BBC Pavilion Cannes is a project of IaaC, Institute for Advanced Architecture of Catalonia developed at the Master in Advanced Architecture in 2020/2021 by Students: Abrar Ali, Rosamary Machado, Daniel Sorial
Faculty: Rodrigo Aguirre | Faculty Assistant: Ashkan Foroughi
