REFERENCE FACADE

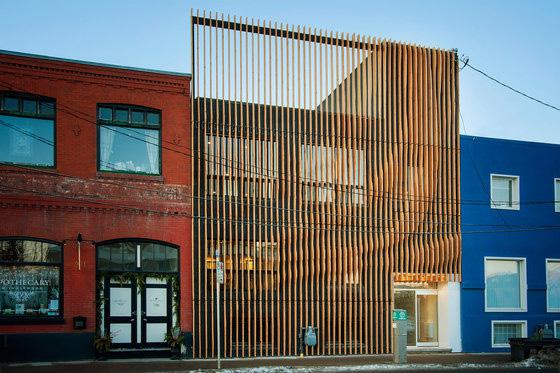

Junction 9 is a reimagination of a two-story building in the historic Calgary neighborhood of Inglewood. The project was a development of a screen of vertical fins which was made of abandoned 100-year-old fir. The design replicates the flowing movement happening inside the building.
![](https://www.iaacblog.com/wp-content/uploads/2020/11/img11.jpg)
Credits – Modern office of Design+ Architecture

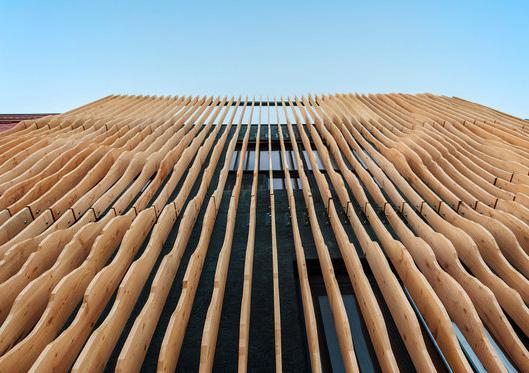

Parametric design was used to capture the sense of movement. A topographic relief of varying depths applied to the vertical fins creates an alternating field of opacity and transparency when viewed from different angles, putting the screen in a constant state of flux.
The screen morphs from a vertical to a horizontal application above the front entry, forming a soffit condition that bleeds into the main reception area.
![](https://www.iaacblog.com/wp-content/uploads/2020/11/img14.jpg)
Credits – Modern office of Design + Architecture
FACADE DETAIL
![](https://www.iaacblog.com/wp-content/uploads/2020/11/capture-1-730x524.png)

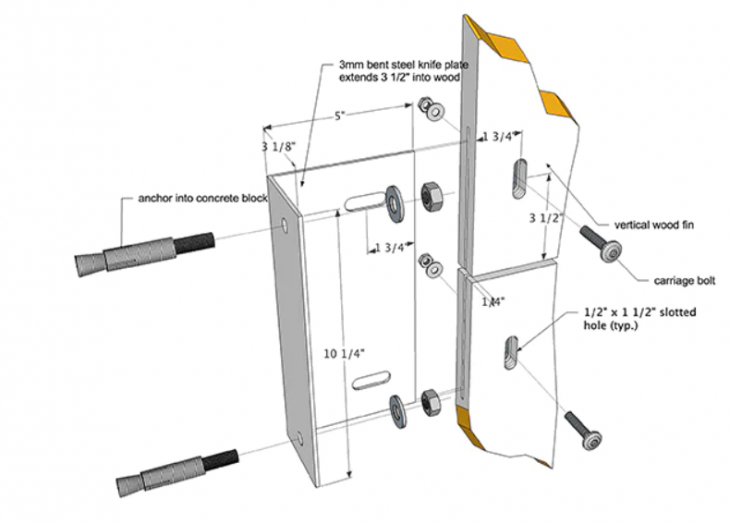

FIN FIXING DETAIL
PSEUDO CODE

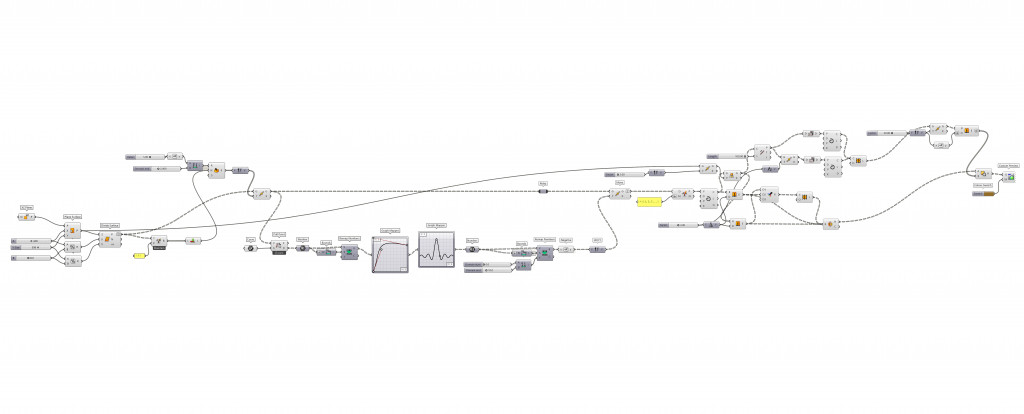

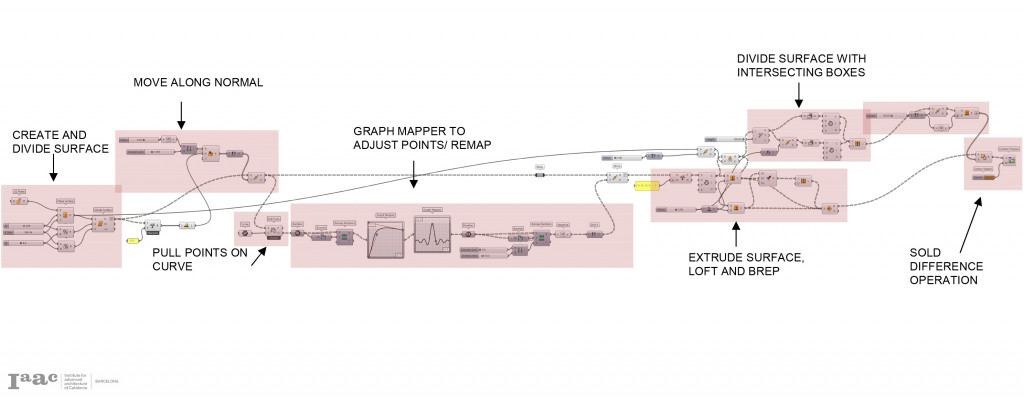

GRASSHOPPER SCRIPT
CODE DEVELOPMENT
FACADE ARRAY
ANIMATION VIDEO
FACADE RENDER
![](https://www.iaacblog.com/wp-content/uploads/2020/11/final-min.jpg)
FACADE RENDER
Animated Systems – JUNCTION 9 is a project of IAAC, Institute for Advanced Architecture of Catalonia developed in the Master of Advanced Architecture 2020/21 by Student: Prarthana Sudhindra and Faculty: Rodrigo Aguirre and Faculty Assistant: Ashkan Foroughi Dehnavi
