Introduction
Slime Molds Are Earth’s Smallest, Oldest Farmers.
When the inner field of the fungus dries out, the microbes that live inside start calling for each other to assemble in a very fascinating way, towards central collection spots.
![](https://www.iaacblog.com/wp-content/uploads/2021/03/slime-fungus.jpg)
Reference link:
https://www.wired.com/2011/01/bacteria-farming-amoeba
The microbes organize themselves in lines that are directed to the edges of the cores to support and ensure the survival of the organism.
The result is a wiggling mass that would contain all the cells that gathered to give life to this new organism.
Workflow
![](https://www.iaacblog.com/wp-content/uploads/2021/03/ziyadwassef_presentation_page_08-730x411.jpg)
Pseudo Code diagram
Base Geometry
![](https://www.iaacblog.com/wp-content/uploads/2021/03/ziyadwassef_presentation_page_03-1-730x409.jpg)

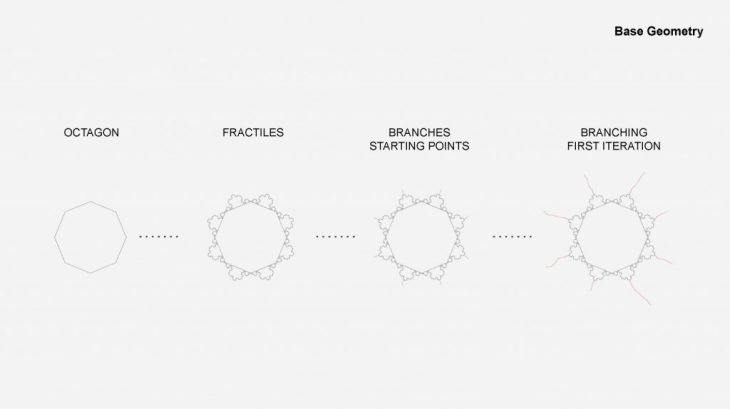

Base Geometry Iteration
The base geometry is an Octagon that is iterated into a branching core. The branches start forming only from the furthest points of the iterated geometry from the center of the base geometry.
Growth Environment
![](https://www.iaacblog.com/wp-content/uploads/2021/03/ziyadwassef_presentation_page_04-1-730x409.jpg)

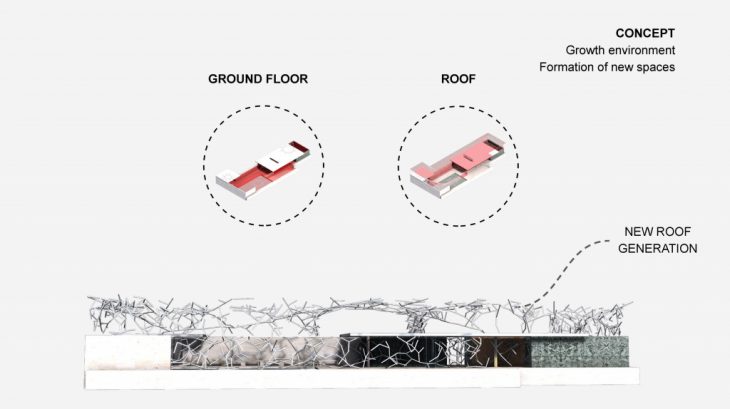

Concept – Growth Environment
The branching elements’ growth starts from the ground level of the structure, then the branches climb through the open spaces of the ceiling to form a new shell as an extension to the pavilion. The newly generated roof structure is expanding within a given curved ceiling form.
![](https://www.iaacblog.com/wp-content/uploads/2021/03/ziyadwassef_presentation_page_05-730x450.jpg)

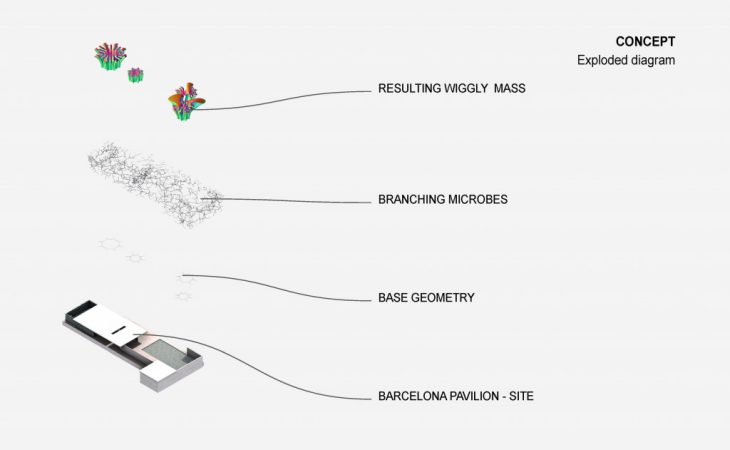

Exploded Diagram of the proposal
The resulting form of the branching elements is a blooming mass that grows from the core iterated geometry that is located on water and top surfaces of the structure.
Variations of Iterations
![](https://www.iaacblog.com/wp-content/uploads/2021/03/ziyadwassef_presentation_page_06-730x410.jpg)

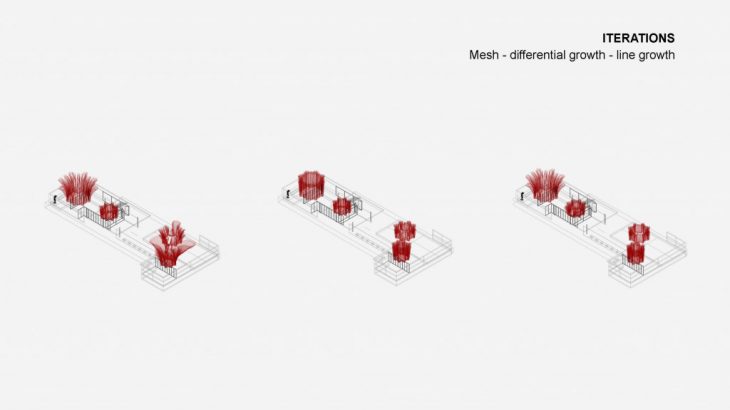

Mesh growth Iterations
![](https://www.iaacblog.com/wp-content/uploads/2021/03/ziyadwassef_presentation_page_07-730x411.jpg)

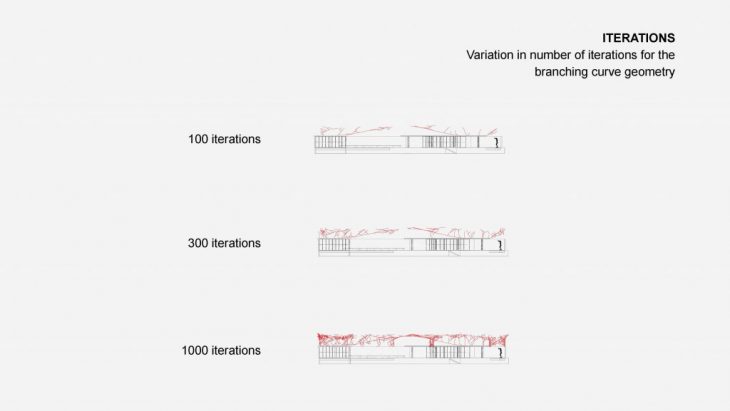

Variations of Iteration
Code/Grasshopper Script
![](https://www.iaacblog.com/wp-content/uploads/2021/03/ziyadwassef_presentation_page_09-730x416.jpg)

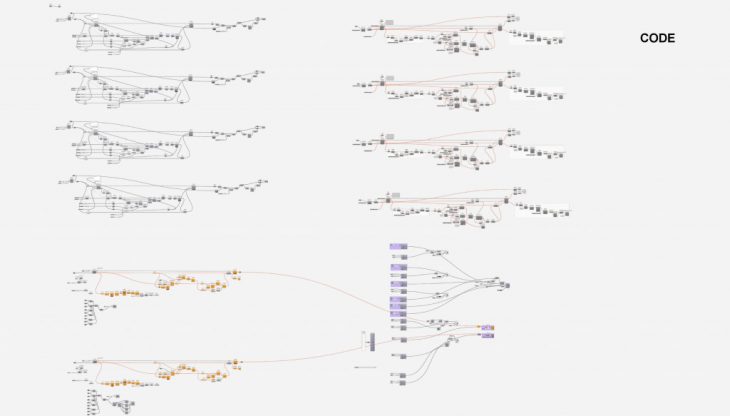

Grasshopper Script
Renders
![](https://www.iaacblog.com/wp-content/uploads/2021/03/image3_000-730x321.jpg)
Exterior Render
![](https://www.iaacblog.com/wp-content/uploads/2021/03/image4-730x373.jpg)
Interior Render
Credits
ALGORITHMIC EMERGENCE // Architecture of the Slime Fungus is a project of the Institute for Advanced Architecture of Catalonia developed at Master in Advanced Architecture in 2020/2021 by:
Student: Ziyad Wassef Abdelkader Youssef Ahmed
Faculty: Rodrigo Aguirre | Faculty Assistant: Ashkan Foroughi
