WEAVE

_____________________________________________________________________________________________________________________________________________________

Weave is an Urban Intervention based in Mexico city, it explores the possibility of how the context can be used as a canvas to build upon and
taking into consideration the Segundo Piso.In a dense urban fabric such as Mexico City, where there is a scarcity of available real estate for new
 Construction, Weave looks towards activating the rooftops of existing infrastructure by creating a new network of built mass with social housing
as the main function. The project is highly influenced by its context in terms of design and language.

PRECEDENTS AND CASE STUDY – EXPERIMENTAL PROTOTYPE COMMUNITY OF TOMORROW (EPCOT), 1966 – WALT DISNEY

____________________________________________________________________________________________________________________________________________________

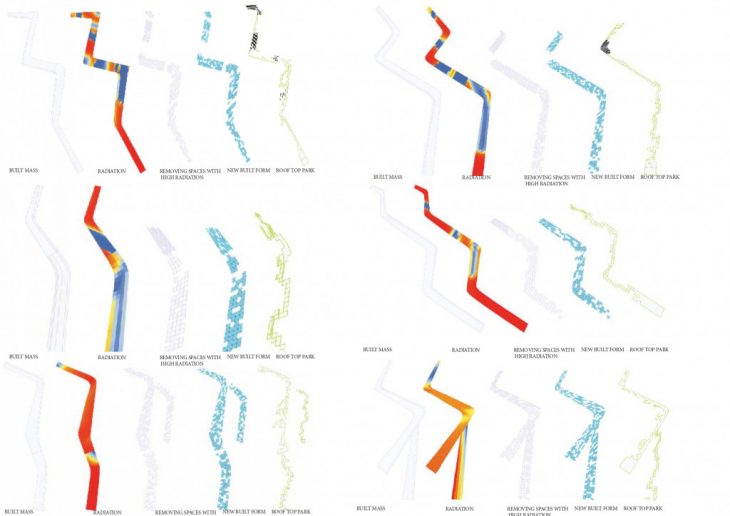

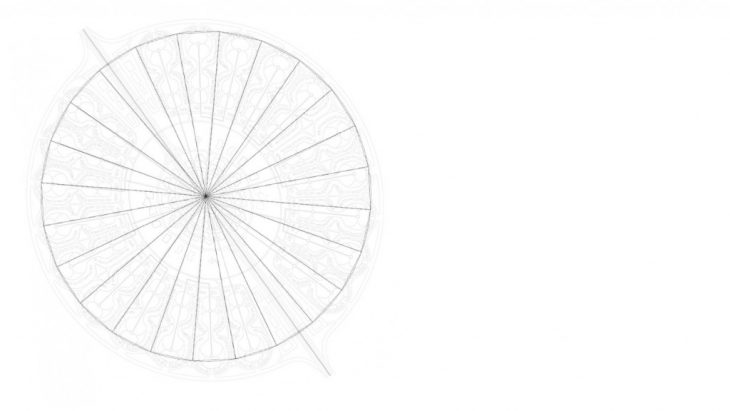

ANALYSIS OF MASTER PLAN –

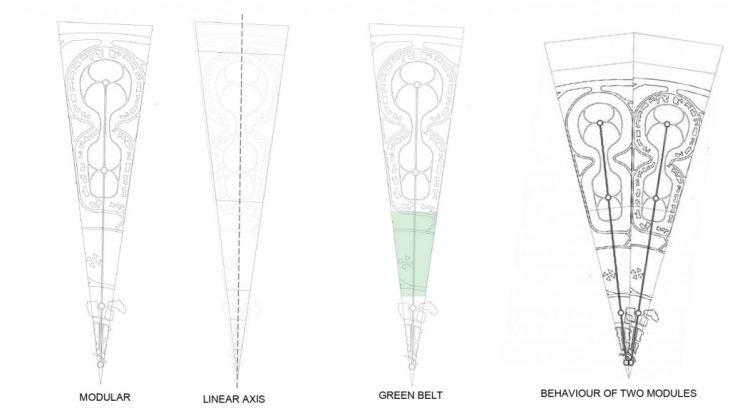

ANALYSIS OF TRIANGULAR SECTIONS –

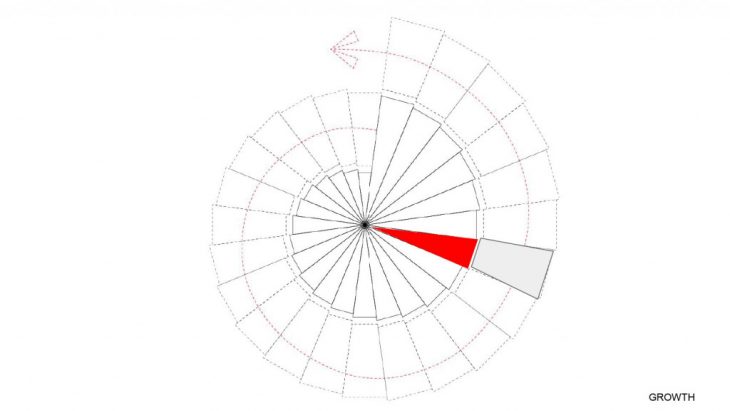

GROWTH OF NEW CITY PROPOSAL –

EX-NOVO CITY –

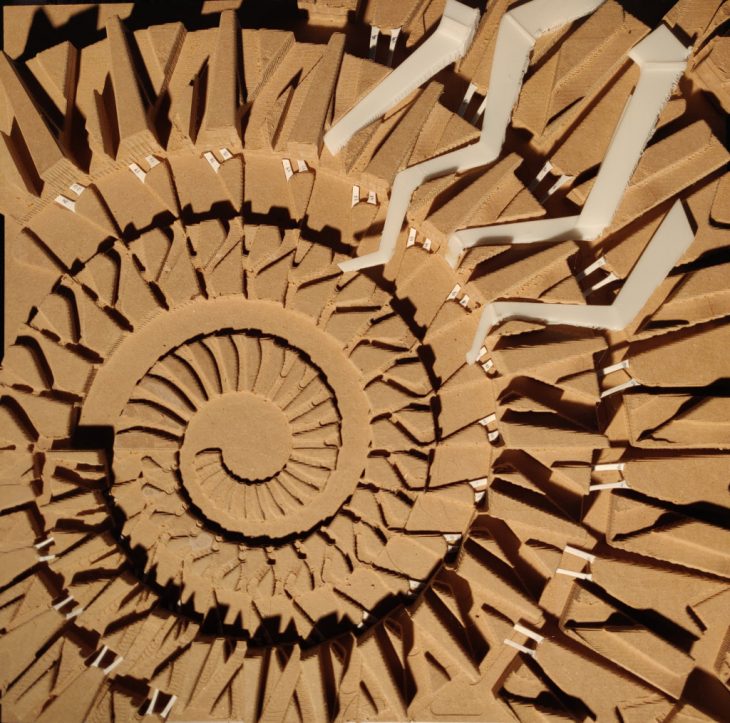

PHYSICAL MODEL –

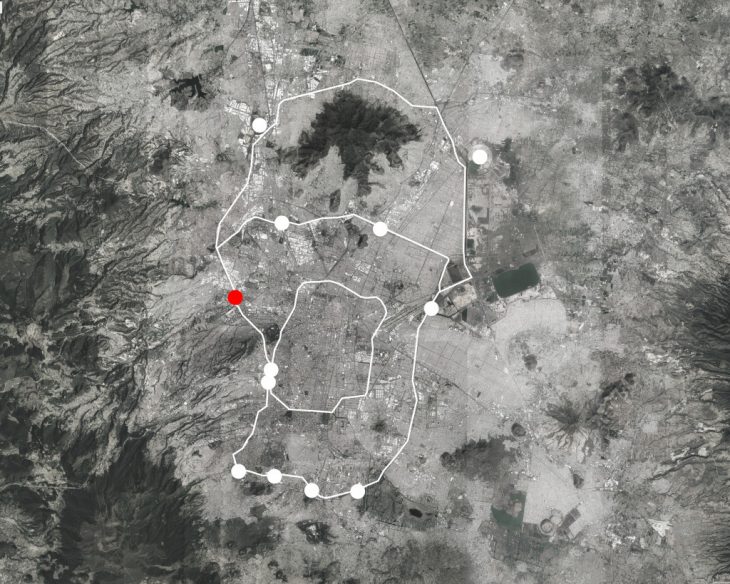

SITE LOCATION – MEXICO CITY

____________________________________________________________________________________________________________________________________________________

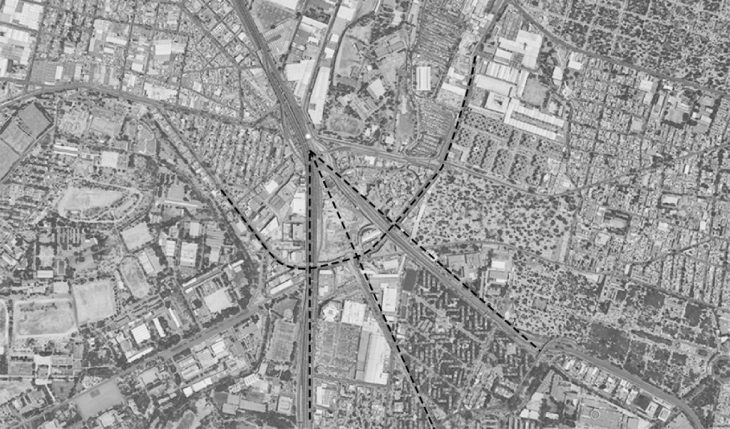

SITE JUSTIFICATION - Required a site with Triangular aspects in order to incorporate the urban intervention.

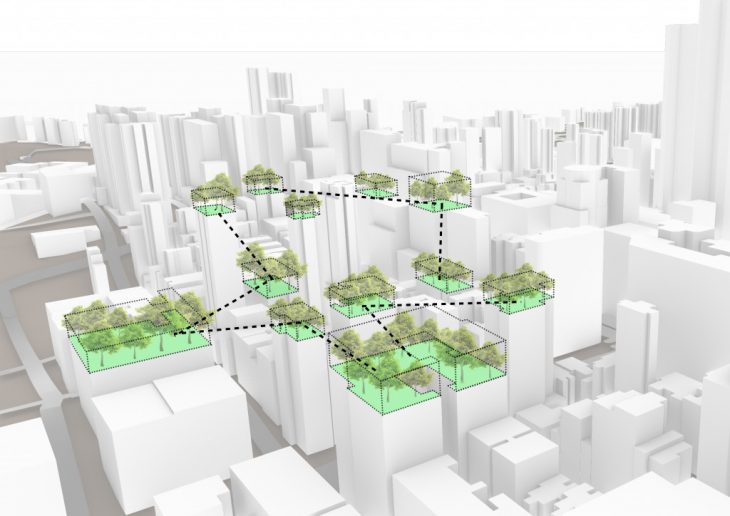

Concept - In a dense urban fabric, there is a scarcity of urban spaces. Activating the rooftops, to create a new network between these rooftops.
These inturn, becomes built mass for functions.

____________________________________________________________________________________________________________________________________________________

PROJECT DEVELOPEMENT –

____________________________________________________________________________________________________________________________________________________

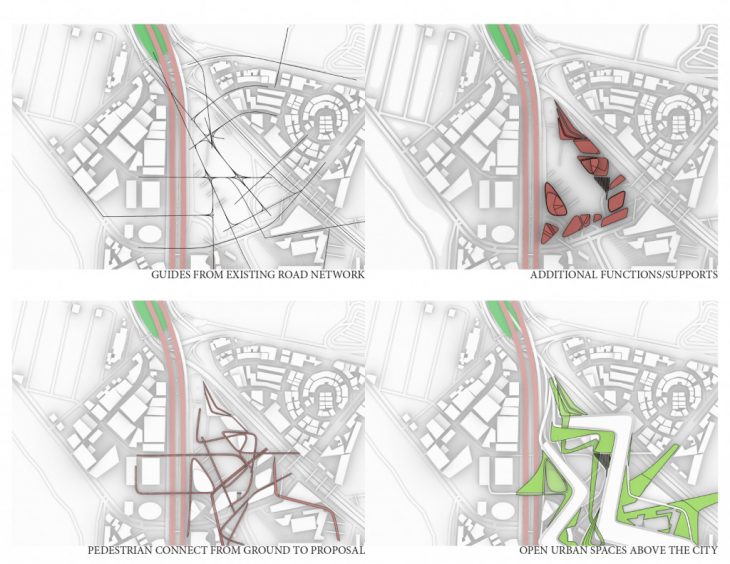

SEGUNDO PISO WITH EXISTING ROAD NETWORK -

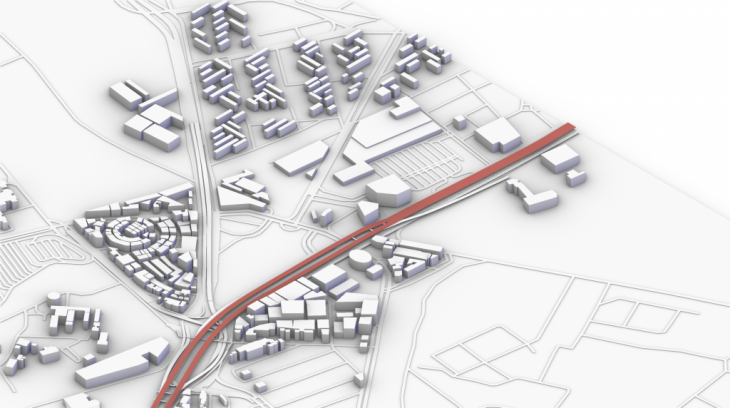

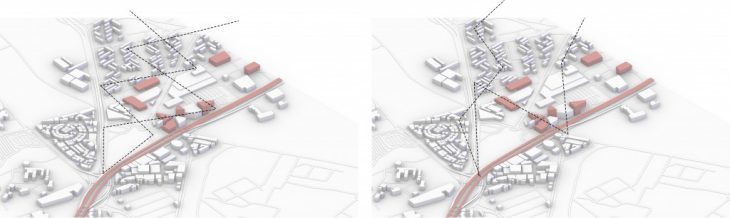

EXISTING BUILT CONTEXT -

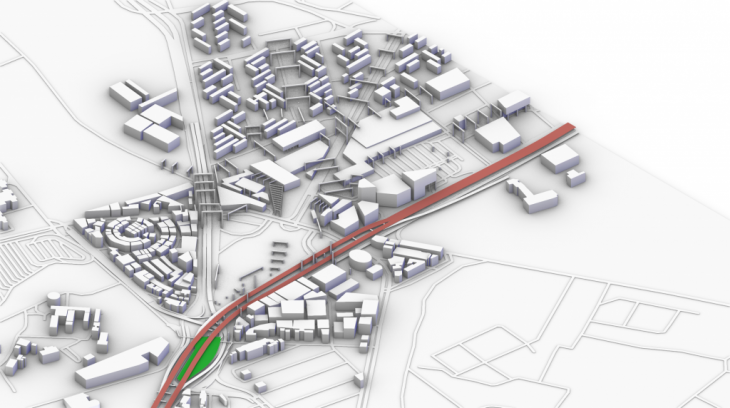

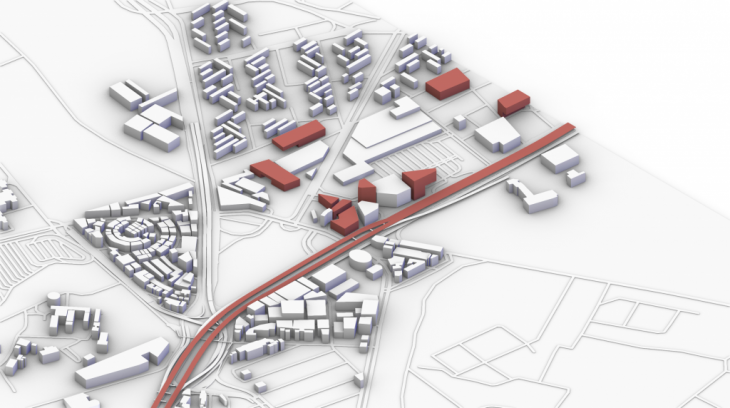

BUILDINGS ADDED FOR ADDITIONAL SUPPORTS AND FUCNTIONS -

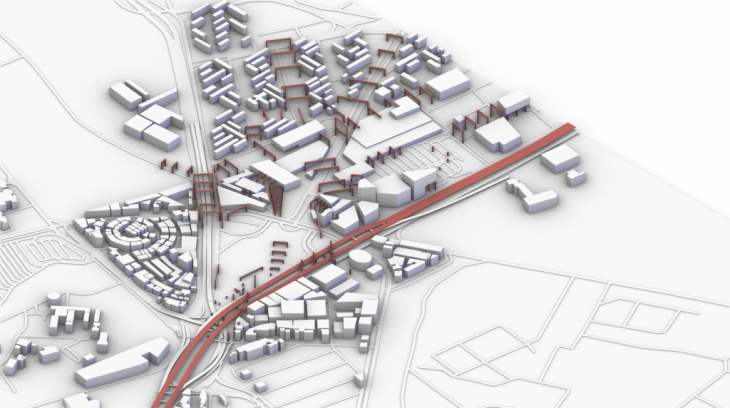

COLUMNS SUPPORTS IDEATING FROM THE SUPPORTS FOR THE SEGUNDO PISO - Catalogue of Columns to create interesting spaces below.

GREEN PLATFORM - In the interection, which is the stating point for all pedestrian access.

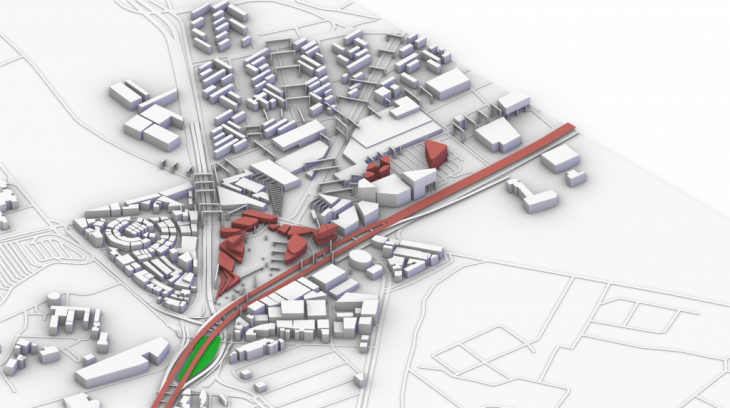

ADDITIONAL FUNCTIONS - New structures for public functions and supports.

ITERATIONS FOR WEAVING -

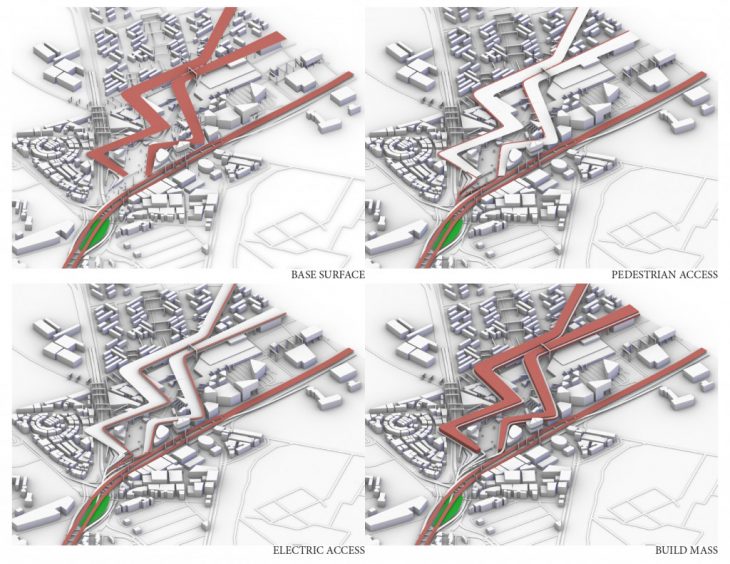

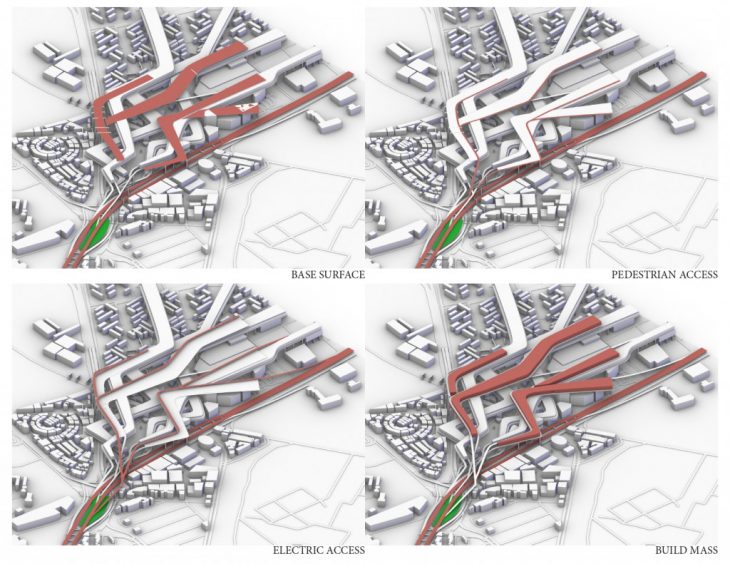

LEVEL 1 - BUILD UP : BASE SURFACE - PEDESTRIAN ACCESS - ELECTRIC ACCESS - BUILT MASS

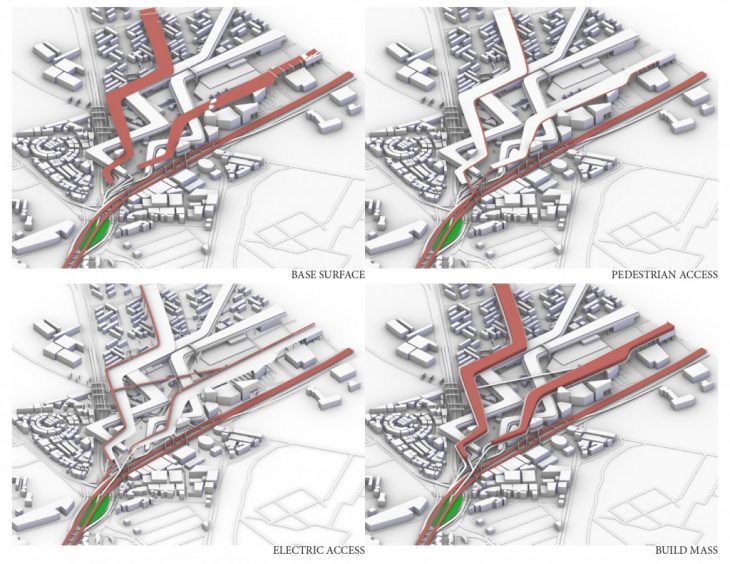

LEVEL 2 - BUILD UP : BASE SURFACE - PEDESTRIAN ACCESS - ELECTRIC ACCESS - BUILT MASS

LEVEL 3 - BUILD UP : BASE SURFACE - PEDESTRIAN ACCESS - ELECTRIC ACCESS - BUILT MASS

LEVEL 3 - BUILD UP : BASE SURFACE - PEDESTRIAN ACCESS - ELECTRIC ACCESS - BUILT MASS

DETAILING CONNECTIONS BETWEEN GROUND AND PROPOSAL -

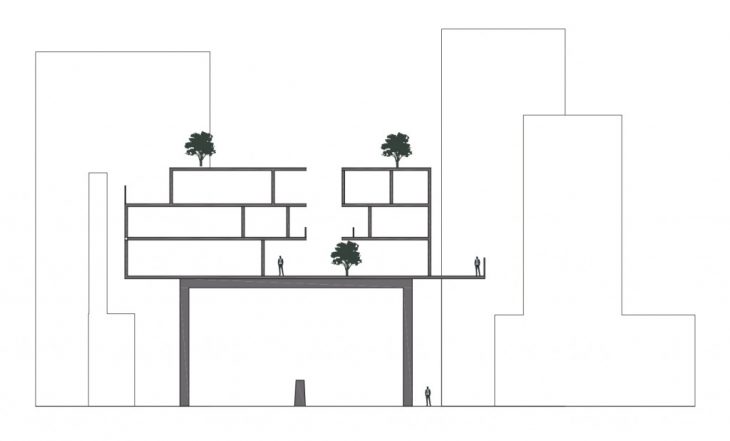

SECTION CATALOGUE -


MONOCHROME DETAIL VIEWS -





RENDERS -

WEAVE is a project of IaaC, Institute for Advanced Architecture of Catalonia
developed at Master in Advanced Architecture in 2019 by:
Students: Pratik Borse
Faculty: Willy Müller – Jordi Vivaldi Piera
