INTRODUCTION

As the name suggests, Weather-wise Waterfall is a responsive waterfall to the surrounding temperature and humidity. Depending on the range of values of the location where the waterfall is set up, the intensity of water falling and colour of light changes.

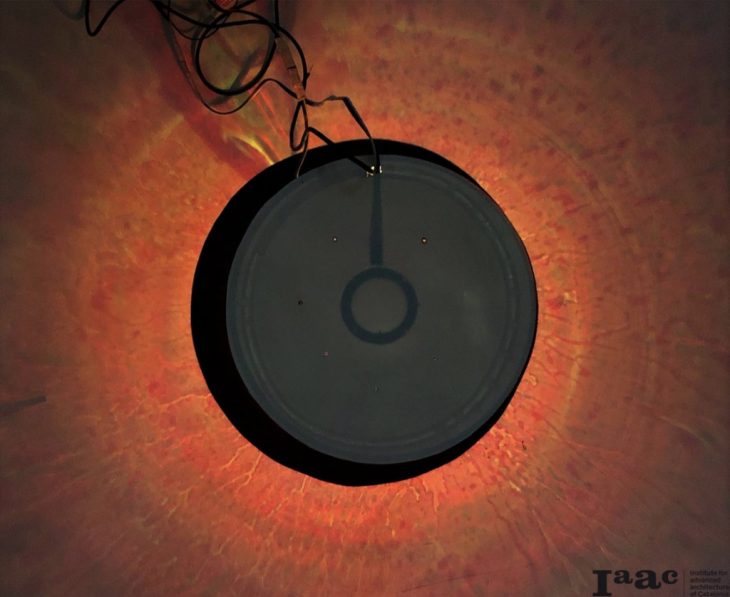

Top View of Weather-wise Waterfall

PROCESS

The project was created using the temperature and humidity sensor. The set up is such that the sensor continuously collects data and transmits the recorded temperature and humidity values to receiver.  The data received is translated to the intensity of water falling from the pipe which is governed by the temperature whereas the LED ring lights up and changes colour depending on the humidity. Since our prototype was set up in Barcelona, the temperature range was set between 18 to 42°C and the humidity range was set between 30-60%.

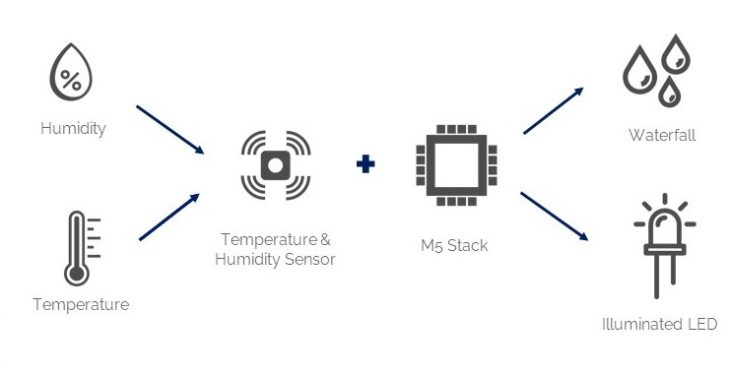

Workflow Diagram

EQUIPMENT

The equipment used for this project was a Grove Temperature and Humidity sensor, water pump, 2 Neopixel 12 LED rings, 8mm diameter pipe, 1 polypropylene sheet and a 20×20 Glass container

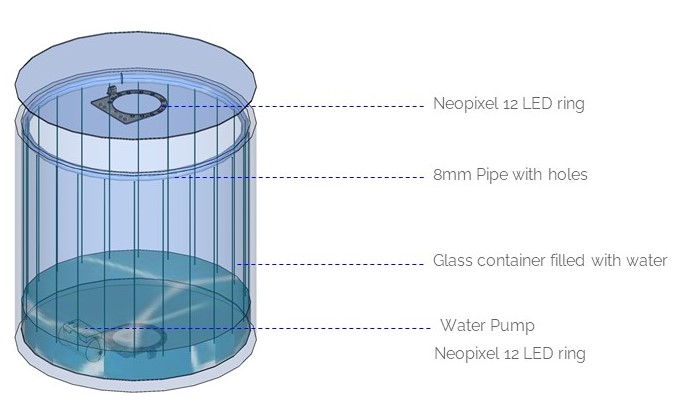

Weather-wise Waterfall Assembly

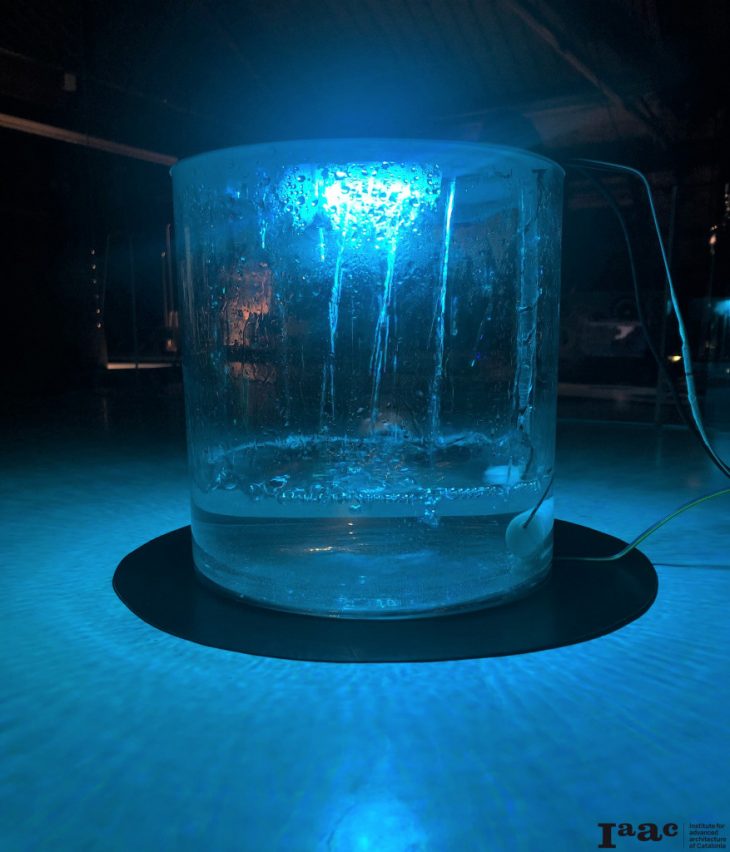

Working Prototype



Weather-wise Waterfall is a project of IAAC, Institute for Advanced Architecture of Catalonia developed in Masters in Advanced Architecture in 2020/21 by students: Laukik Lad, Hairati Tupe, Prarthana Sudhindra, and faculty: Angel Munoz, Cristian Rizzuti.
