Assignment​ ​1:
Parametric Façade

Im1. Facade made by Kengo Kuma

First step: Understand how the facade works.
Thinking the wall as a division of lines we find two differents type of row that are the opposite of one another.

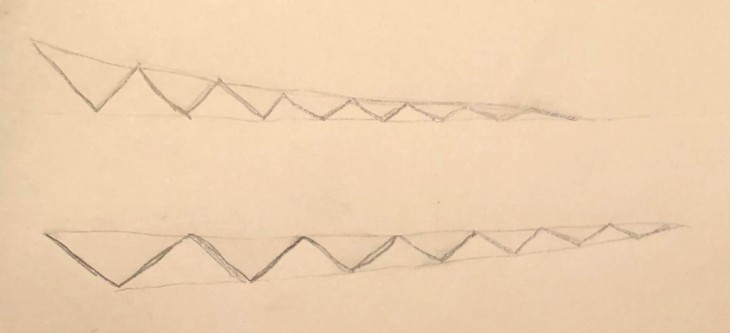

Im2. Sketch by Rafael Mas

It decrease in differents ways.

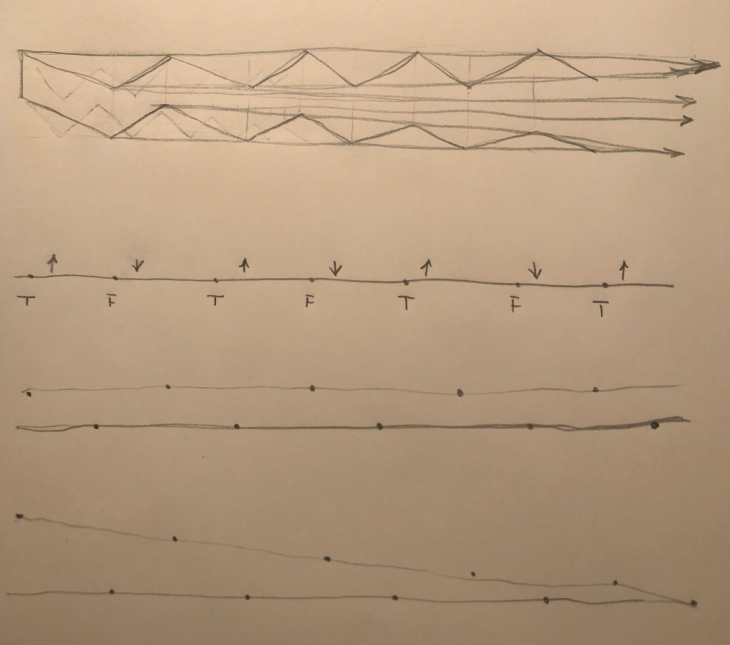

Im3. Sketch by Rafael Mas



Second step: Divide the lines into points and make one point go up and the second go down.
(With true or false)
And then each high point need to go slowly decreasing.
The same happen with the other line ut in an opposite way.
(Series of number)
With this make two lines and loft them together.

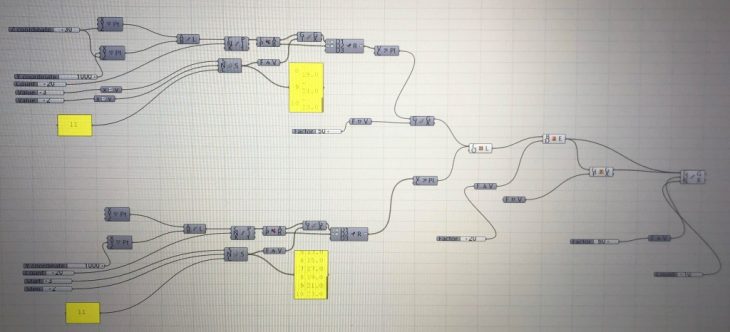

Im4. Grasshopper code

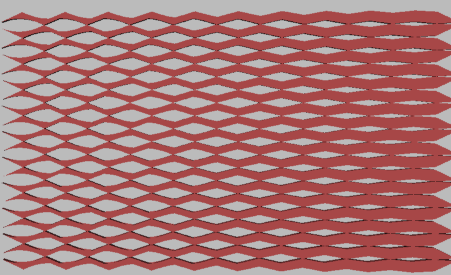

Im5. Facade

Parametric Façade is a project of IaaC, Institute for Advanced Architecture of Catalonia
developed at Master in Advanced Architecture, in 2017-2018 by:
Students: Rafael Mas Carvalho
