Parametric Facade

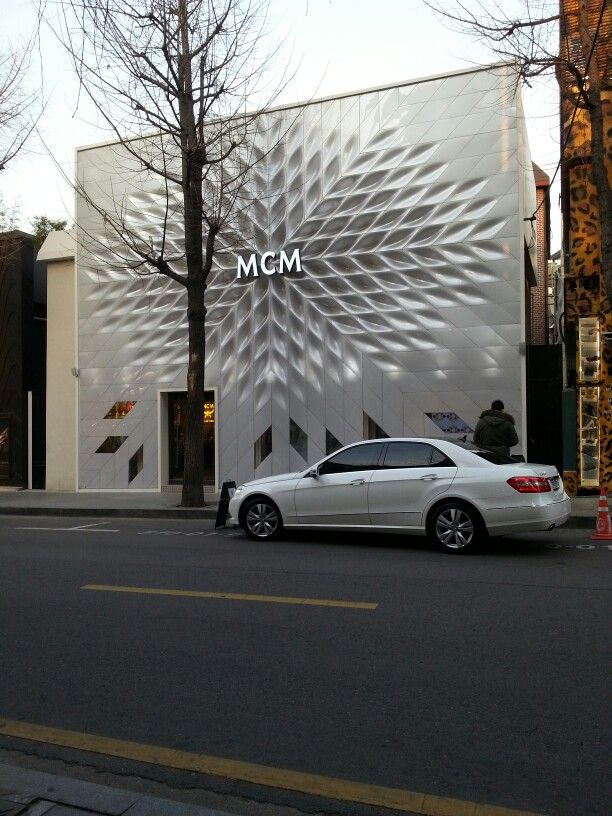

MCM BUILDING /THE_SYSTEM LAB
Seoul /South Korea

resource :

https://www.pinterest.com/pin/444871269415962124/

GH Analysis

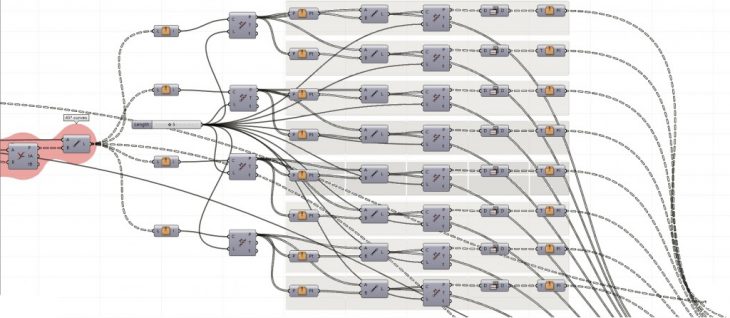

1. Make a plane Surface (size:100)

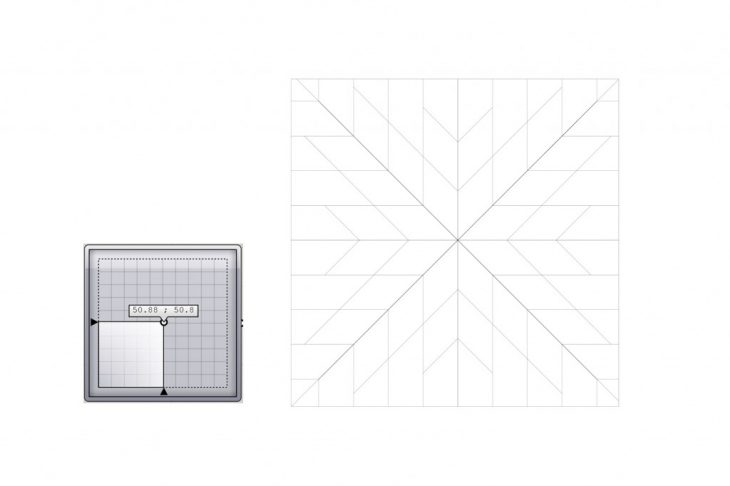

2. Defining the center of the radiation by MD Slider

3. Create 45° lines which from the center to the end at the surface edges

4. After divide those lines by length(5,10,15), connect the points to the surface edges vertically and horizontally

5. Merge all curves made above as cutter to split the original surface.
6. Scale every diamond panel smaller inside and move it on the Z axis (controlled the height by measure the distance between each panel and the center of the radiation )
7. Loft original diamond and small panels.

Parametric Controller

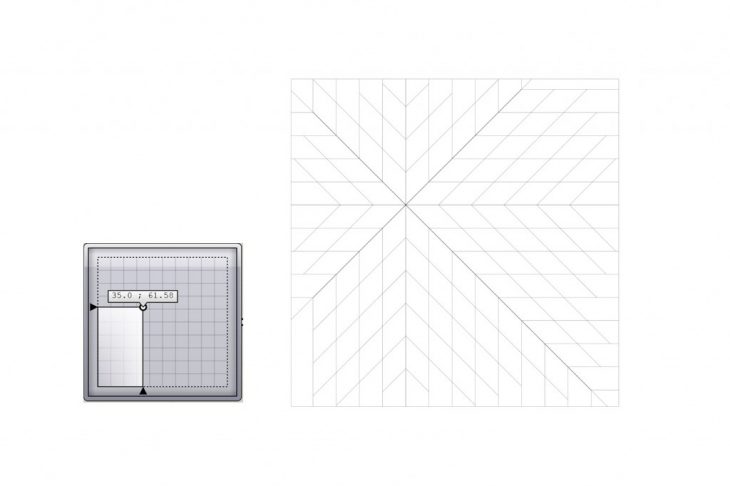

Divide length: 5

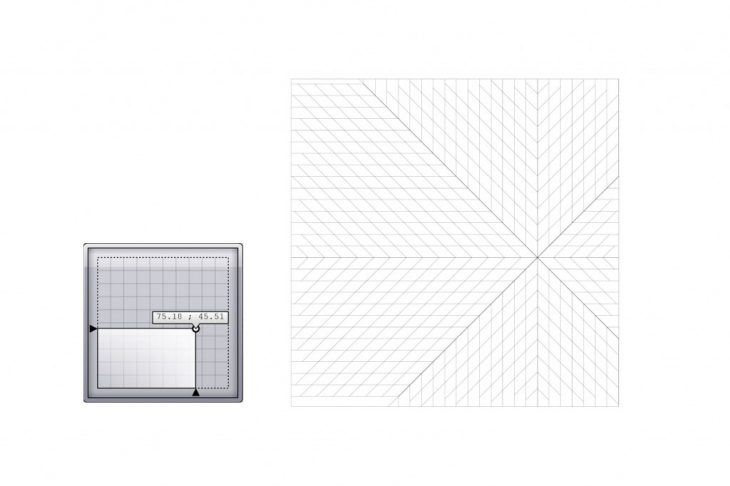

Divide length: 10

Divide length: 15

Computational Design // IaaC, Institute for Advanced Architecture of Catalonia
Developed at Master in Advanced Architecture in 2018/19 by:
Student: Chiou, Jing-Wen
Faculty: Rodrigo Aguirre, David Andres Leon
Assistant: Daniil Koshelyuk
