DECODING PARAMETRIC FACADE:

This assignment aims at decoding and setting up a logical and hierarchical computational strategy for an existing façade system. The reference façade selected for this exercise is
ArboSkin Pavilion by ITKE.

Step by step:

  • A curve is drawn or selected for the desired geometry to be generated on

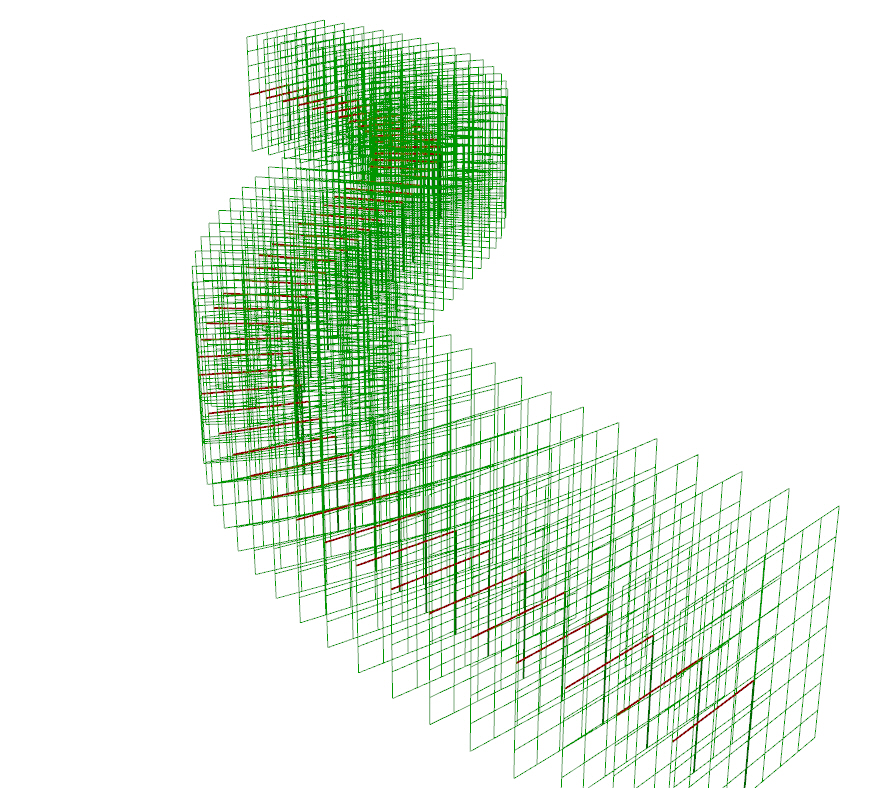

  • Perpendicular frames are generated on the curve

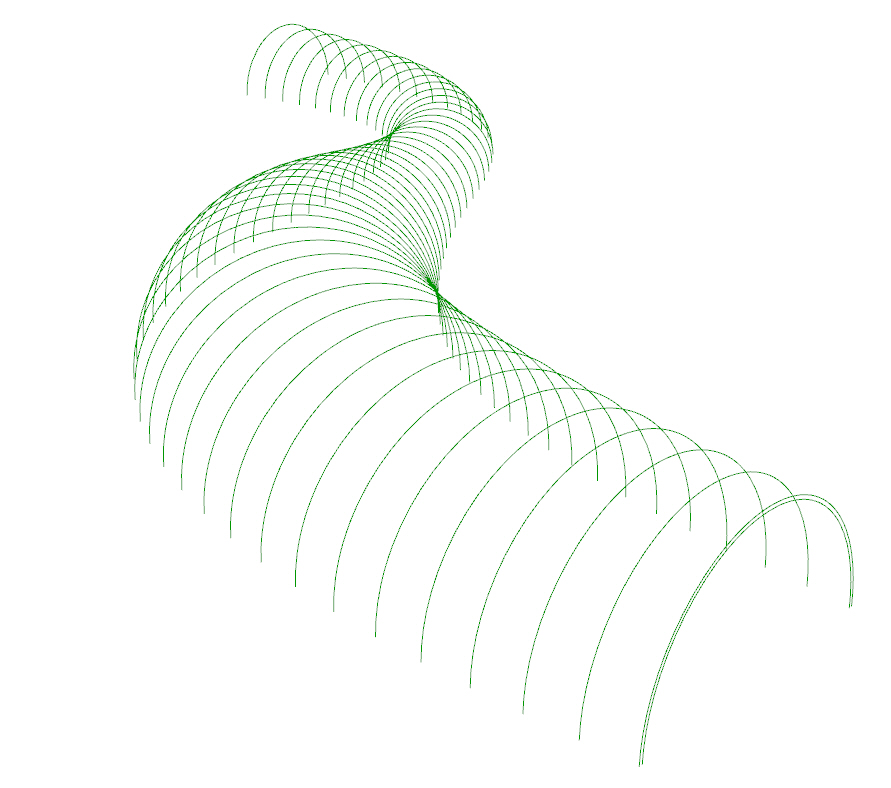

  • Different sizes of circles are created on these planes and cut in half

  • Curves are lofted to create a surface

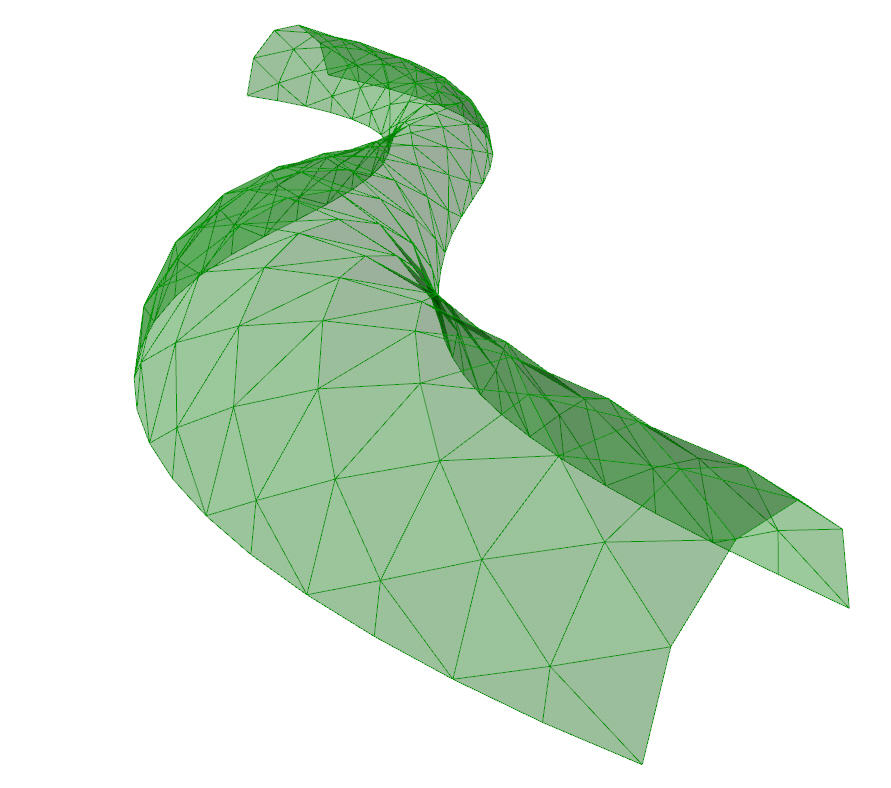

  • Triangle panels are generated on the surface

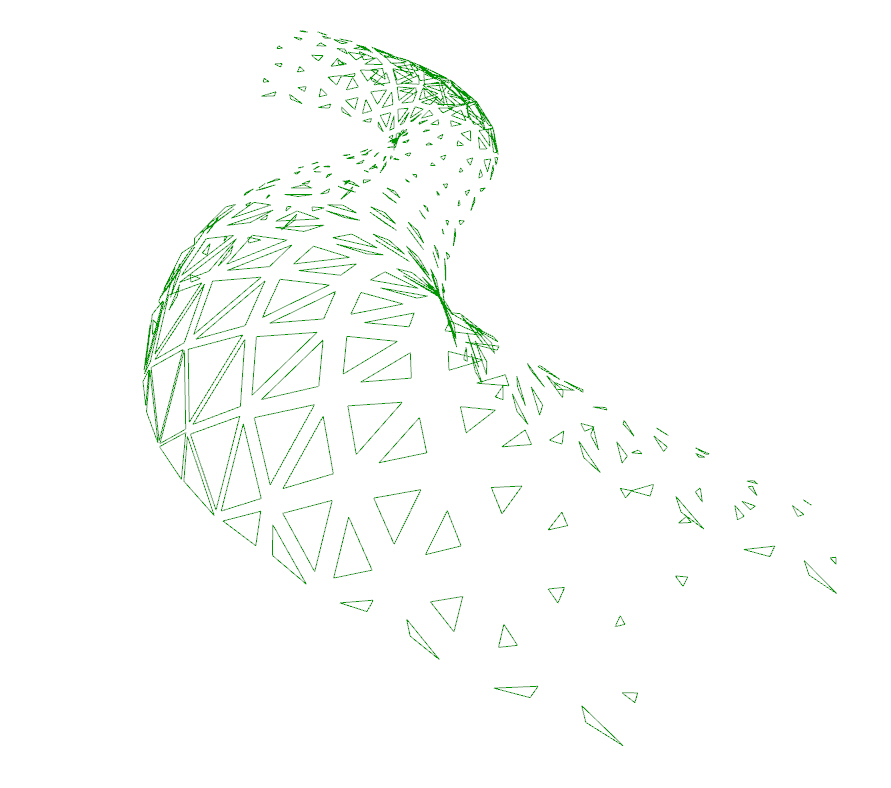

  • Triangle frames are gathered from the panels

  • Depending on two attractor points, frames are resized

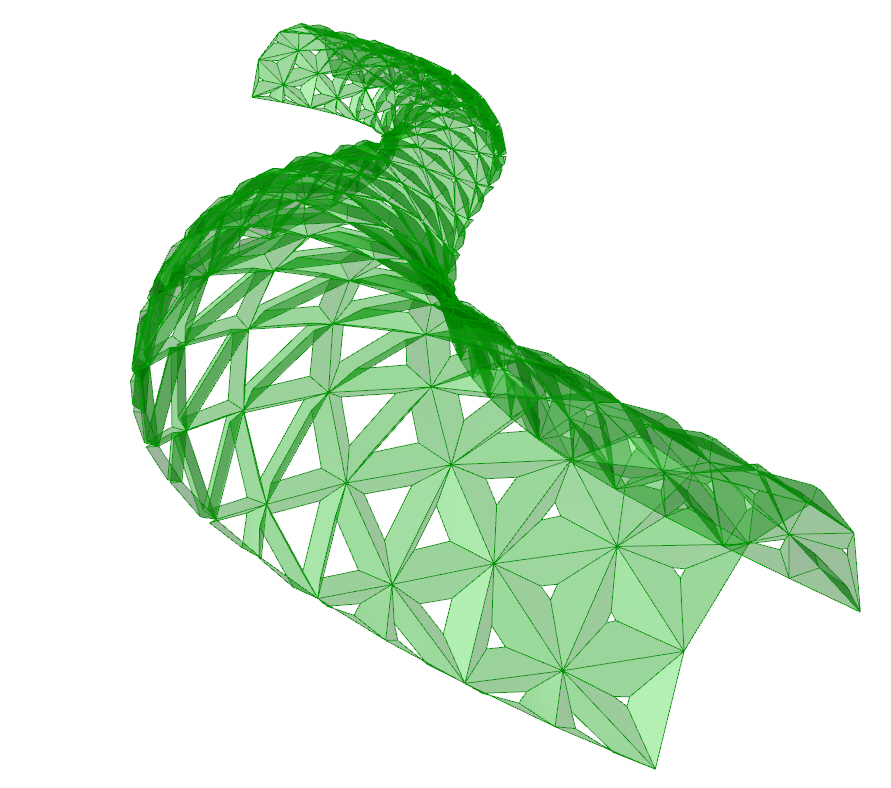

  • Resized frames are moved away from their normals and lofted with the previous frames

  • Surfaces are joined and thickened



Result:

Grasshopper Script:



This exercise is part of the first assignment for the computational design studio (SO.03)

Faculty: Rodrigo Aguirre and Aldo Sollazzo.

Parametric Façade Exploration is a project of IaaC, Institute for Advanced Architecture of Catalonia developed at MAA01 in 2017-2018 by:

Student: Oğulcan Üneşi
