MISILLA | a chair with 3D printed joints

Misilla is a small chair made of plywood and PLA 3D printed joints. The 3D printed joints are designed in order to fit exactly to the 15mm plywood and they could be used to solve similar problems in other applications.

Ergonomics determine misilla’s specific dimensions in order to make it comfortable for the user; while the key aesthetic objective is to combine these two opposite materials in a highlighting way for both of them.

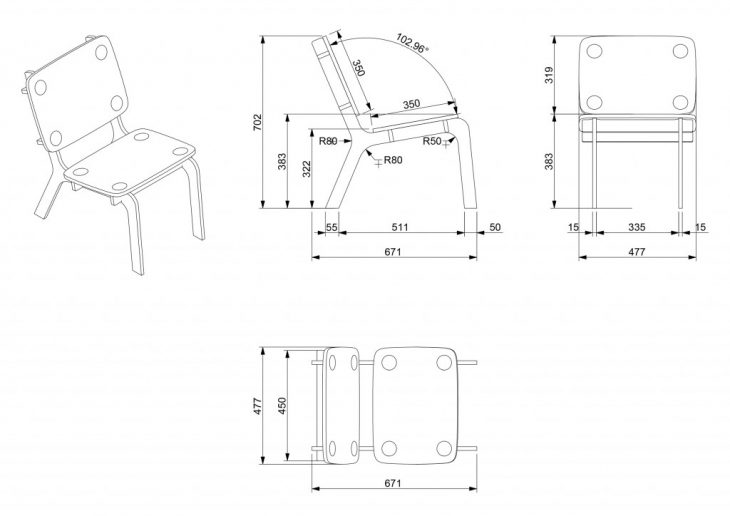

Plans with dimensions of the chair.

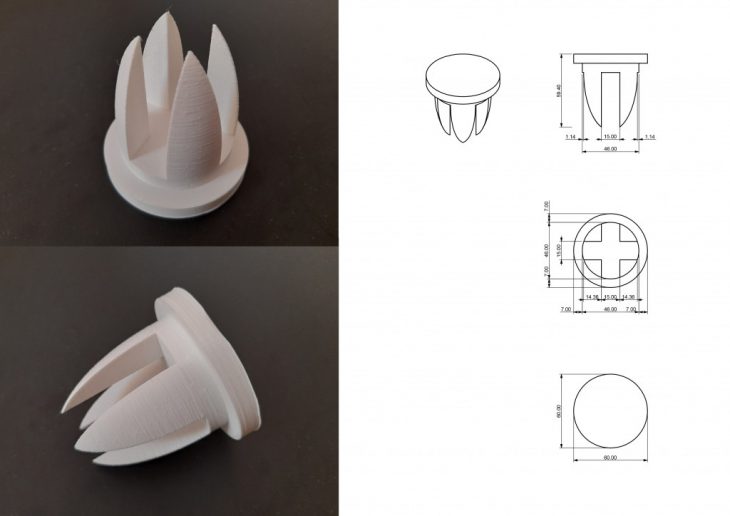

The 3D Printed Joint and its dimensions.

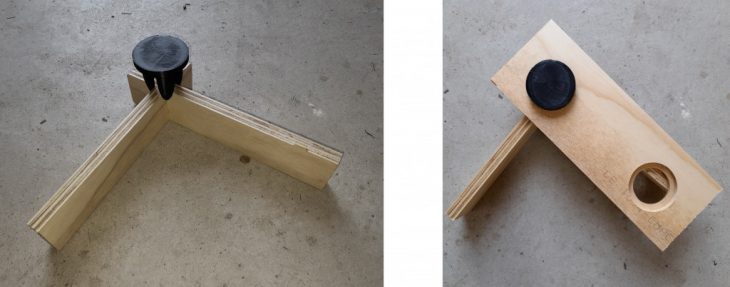

Testing of the 3D Printed Joint with a piece of Plywood.

Misilla’s frame is composed by two main pieces that shape the legs and the back and they are connected by four identical crosspieces that are fixed with a simple wood joinery system. Two identical pieces are designed to form the back and the sitting area of the chair and they are connected to the frame with the key elements of misilla’s concept, which are the 3D printed joints.

Image before the assembly of all the pieces. The plywood was cut using a CNC machine and 8 3D-Printed Joints were needed.

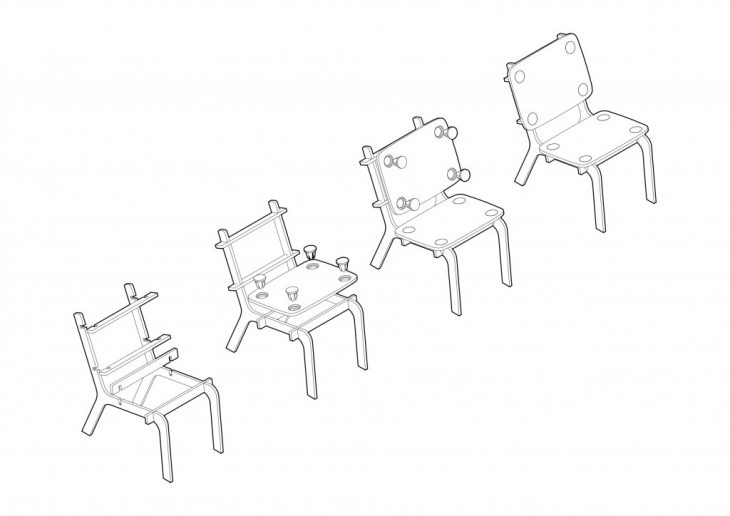

Diagram – Assembly Process

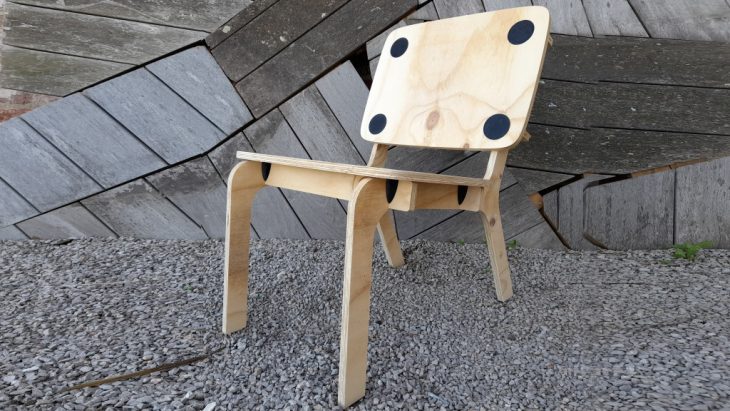

Detail of  the 3D Printed Joint on the chair.

Closeup of the 3D Printed Joint from a side-view.

Misilla – my chair

 Assembly video

Credits

Misilla is a project of IAAC, Institute for Advanced Architecture of Catalonia, developed at MAEBB in 2020/21 by student: Dafni Vakalopoulou and faculty: Eduardo Chamorro.
