Abstract

In the context of rapid urbanization, balancing the development and conservation of green space is a challenging task for urban planning and urban administrative management. Accurate measurement of green spaces in urban areas is an important source of information when evaluating the effect of urban development on green space.

This study aims to create a tool which gauges the understanding of green and urban spaces through a selected key performance indicators, based on visual inputs in an urban setting. Some of the three main inputs applied includes tree geo-locations, number of buildings, and road area. Furthermore, this urban generator tool may provide a virtual visualization key performance index such as green space, CO2 capture, sum of buildings, and green density in urban planning and replace the traditional green indexes at a community scale for urban administrators.

Efficient computation and visualization is accomplished through the use of techniques from computational design inputs. The study will demonstrate the effectiveness of urban generator in helping planners to develop simulation tools to understand green and urban spaces, particularly in this case, the city of Barcelona. Moreover, depicting how a data-driven understanding of the value and impact of speculative iterations can benefit the design-development process for urban planners and city municipalities to quickly have data-driven decision making for urban development.





Importance of green urban spaces in cities

More than 54% of the global population live in cities and the urban population is predicted to increase from the current 3.5 billion to 6.2 billion in the next 30 years. Thus,  most of the global population now have their daily contact with nature and wildlife through urban green spaces. An increasing number of studies show the importance of green spaces in urban areas, the main contributions of green infrastructure and biodiversity are as follow; Ensures the presence of nature in the city, reduces air pollution, sequesters and stores carbon, reduces noise pollution, moderates temperatures, opens up pockets of space and contributes to pacifying the city, contributes to physical and mental health and wellbeing, promotes contact and interaction with nature, and most importantly improves livability of the city.

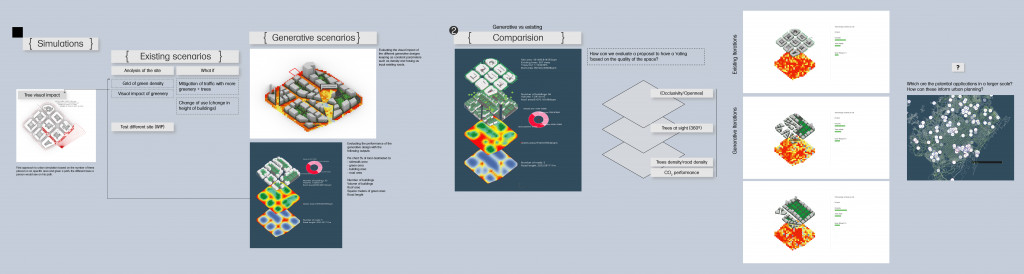

Methodology

The approach of the project has been experimental, by applying different tools we have tried to understand the spaces and the tools itself. This has been applied in different parts of the city, modifying the existing scenarios but also proposing new layouts based on generative design and the analysis of their outputs.

One of the method of the simulation will use Isovist as a tool to generate the number of trees in a given path. The output of the simulation will then be used to evaluate the key performance indicators mentioned, to then used for model comparison to determine the best performing urban model for the city of Barcelona.

An isovist is the set of visible points from a vantage point. In the field of landscape architecture and landscape planning a similar concept is known as a ‘viewshed’ (Lynch 1976). Based on the concept of an Isovist, the given point will represent as a citizen walking in the city in a given path, that projects the perspective of a single observer in its environment. What is visible to that observer constitutes the isovist, or in other words: an isovist is a Euclidean, geometrical representation of space (a region), as can be seen from one observation point bounded by occluding surfaces.

Existing scenarios

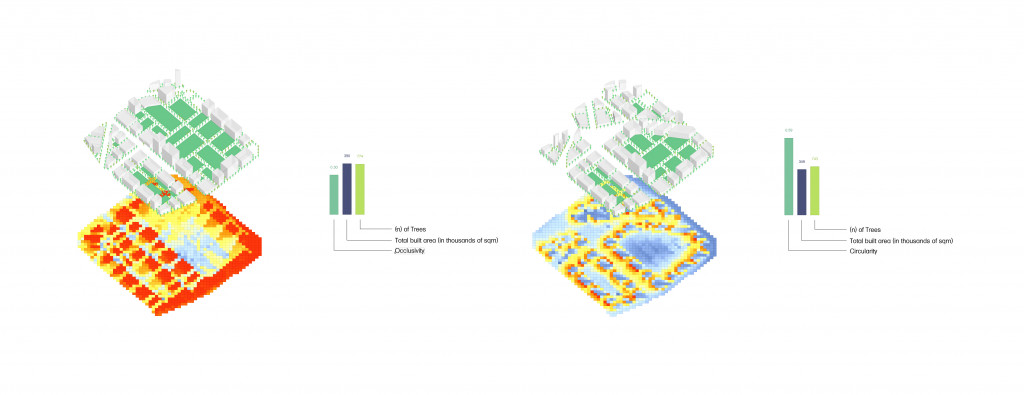

The given point will represent as a citizen walking in the city through a shortest given path between two points, that projects the perspective of a single observer in its environment. The result of such a method will give us an output score of occlusivity (openness) and the amount of trees visible and circularity. At this stage of elementary scenario, the process is used to analyse the green density within the selected area.



Trees in sight (Isovist)

Aoki (1991) [2] suggested that most people have a favorable impression of a street landscape if greenery is present in more than 30% of the view. Using the Isovist tool of DeCoding Spaces, the retrieved geo-located tree points data of Barcelona can then be regarded as a variable to evaluate a greenery score index. The trees that are visible in specific degrees from where the person is standing in the selected area of simulation.



Generative scenarios

In addition to spatial impact measures, it would be interesting to include qualitative attributes in the evaluation of the impact of a proposed change. For example in this stage, evaluating the visual impact of the different generative design by keeping a constant parameters such as density and the existing road as input could give us an outputs that we can use as indicators such as; number of buildings, volume of buildings, roof area, square meters of green area, and road length.

Evaluating performances

Occlusivity (Openness)

Stamps (2005a) gives a broad overview of empirical research relating the geometrical aspects of space to the experience of space. Visual permeability, locomotive permeability and enclosure of a pedestrian’s environment are amongst others found to correlate with judgements on safety. Recent neurophysiologic findings even indicate that there is a region in the brain that responds strongly to spatial enclosure (Epstein and Kanwisher 1998).

In this research, urban occlusivity is taken as a variable which in the end is considered as an urban comfort scale. This empirical background is probably not complete. Nevertheless it provides enough evidence of a strong relation between visual measures of space, perceptions about space, and its use, to put visibility analysis when it comes to designing urban spaces.

Trees in urban environments are likely to play an increasingly significant role in improving the quality of life in cities due to their environmental and social benefits for the population, and they are considered to be an essential urban feature for defining the urban structure of cities and for evaluating the quality of public areas.

Urban landscape studies have typically found that locations in urban areas with a view containing vegetation are preferred (Smardon, 1988) [1].





UI

From the simulations generated earlier we then could develop a user interface for simulating green and urban spaces in Barcelona to understand more about its quality in different areas of the city

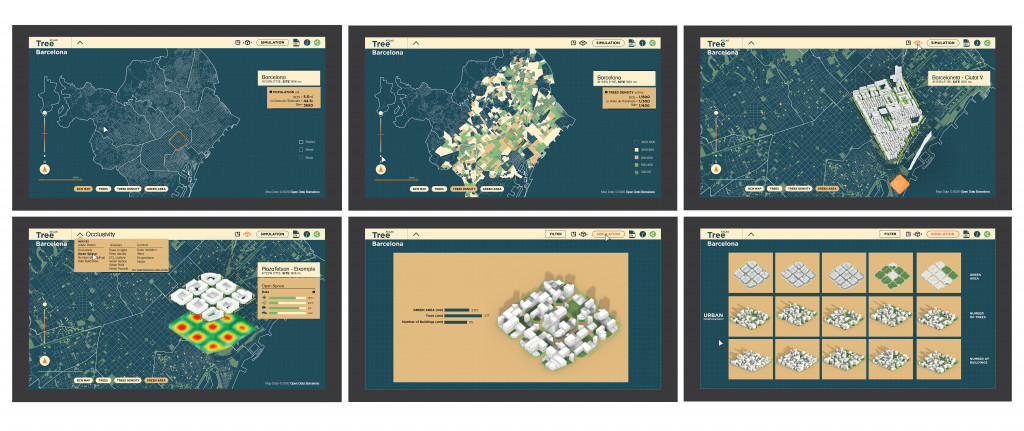

The user interface will feature different indexes of key performance indicators, which could display data of a selected area/neighborhood when selected. The key performance indicators include; occlusivity, open space/public space, number of buildings, total build area, trees in sight, tree density, CO2 capture, and other comfort related parameters such as solar radiation, wind, temperature and noise level.

In the end, the application of data rich models and analysis tools will help to develop block and master plan typology that can help meet Barcelona urban reconfiguration while maintaining proper selected key performance indicators to residential units and streets. Ultimately, the characteristics that will make a lively and well functioning neighborhood will come from the architectural and urban design, but grounded on rigorous, data driven analysis.

Best Soil for Monstera Houseplants

Without the aid of these tools and methodology the process for determining compliance with city regulations can take months and testing individual designs can be time and cost consuming. Using computational algorithms to determine the iterations of complying options could be able to quickly analyze future design options.



Discussion and future work

Establishing new green spaces in developed areas is a long-term challenge for urban planners. Planners would like to have the ability to automatically generate new buildings following the regulations of the city. It is also suggested that being able to optimize designs that are relative to specified attributes would greatly help influence the actual design process. The GreenAtlas is valuable for evaluating visual green spaces at different types of urban typologies.

Different proposal were brought up by the members of the jury to keep going with our research:

  • What if we were to consider real time parameters that affects our cities. How a ‘healthiest path’ could change based in real time Data? Which data and parameters can we use to evaluate this?
  • What if we could build a Real Estate Advisor generator to optimize the building based on the surfaces, but fulfilling at the same time other type of requirements such as minimum sizes?
  • How these could be transformed in a tool to advise the plans of the Government? Where is the best place to plant new trees, considering aspects like land use or proximity to other points of interest such schools, metro stations etc…? And more specifically, what type of tree would be ideal in every specific condition?





References//

Open Data BCN.

Treepedia.

Lobelia.

[1] Smardon, R.C., 1988. Perception and aesthetics of the urban environment: review of the role of vegetation. Landscape Urban Plan. 15 (1–2), 85–106.

[2] Aoki, Y., 1991. Evaluation methods for landscapes with greenery. Landscape Res. 16, 3–6.

Van Bilsen, Arthur. (2008). Isovist-Based Visibility Analysis for Urban and Regional Design.

Wang, Wen & Lin, Ziyan & Zhang, Luwei & Yu, Tao & Ciren, P. & Zhu, Yan. (2018). Building Visual Green Index: A Measure of Visual Green Spaces for Urban Building. Urban Forestry & Urban Greening. 10.1016/j.ufug.2018.04.004.

Ajuntament de Barcelona. “Barcelona Green Infrastructure and Biodiversity Plan 2020”. 2013. PDF File

Àrea d’Ecologia Urbana. Ajuntament de Barcelona. “TREES FOR LIFE Master Plan for Barcelona’s Trees 2017 – 2037”. 2017. PDF File

Fleming, Amy. “The Importance of Urban Forests: Why Money Really Does Grow on Trees.” The Guardian, Guardian News and Media, 12 Oct. 2016



Green Atlas is a project of IaaC, Institute for Advanced Architecture of Catalonia
developed at Master in City & Technology in (2019/2020) by:
Students: Alejandro Quinto, Byron Cadena, Elijah Munn, Aryo Dhaneswara
Faculty: Eugenio Bettucchi, Rodrigo Aguirre
Faculty Assistant: Alex Mademochoritis, Iacopo Neri
