EPICYCLOID

THREE BIFURCATED COLUMNS, ONE BRANCHING SYSTEM

What is an epicycloid?
This project uses an epicycloid to produce a series of columns and a branching system.

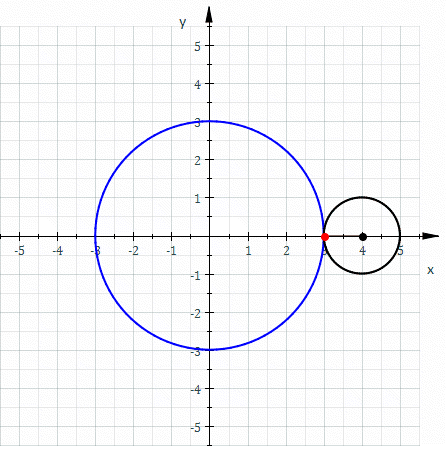

An epicycloid is a curve traced by a point on the circumference of a circle rolling on the
exterior of another circle.





01-Influential Works

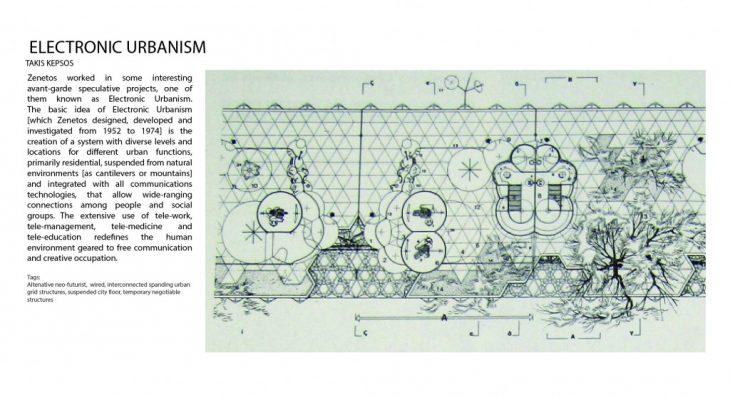

Takis Kepsos; Electronic Urbanism (The interconnected city)



02-Structural Form Finding

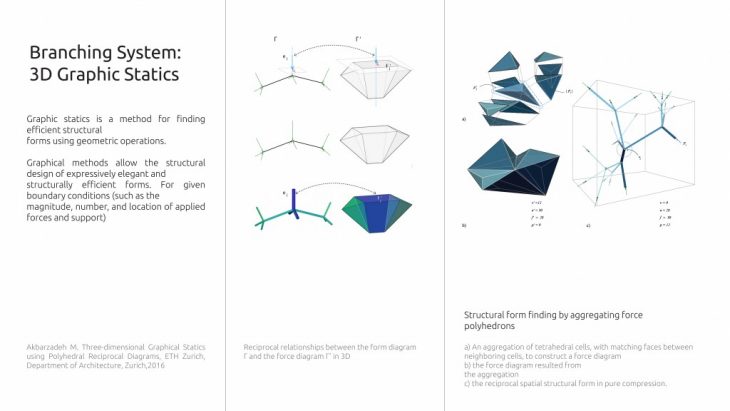

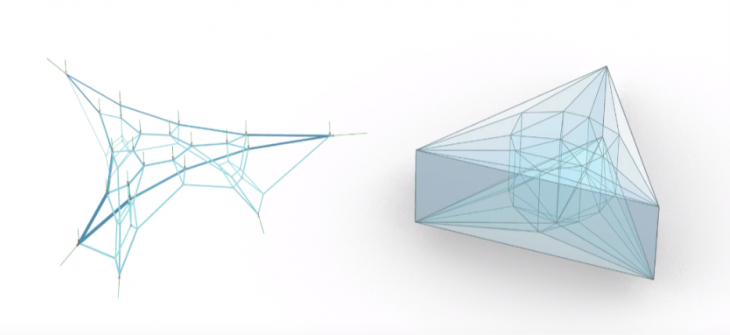

Following the principles of 3D Graphic Statics Systems

03-Profiles

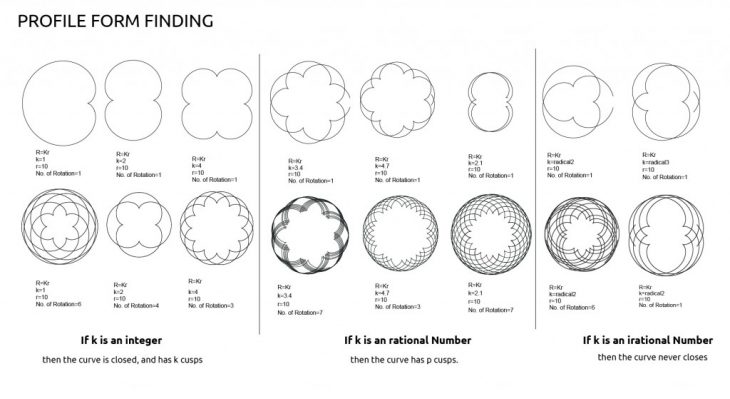

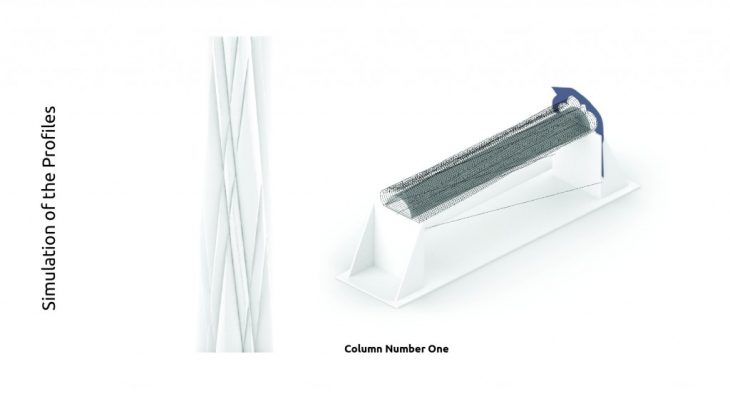

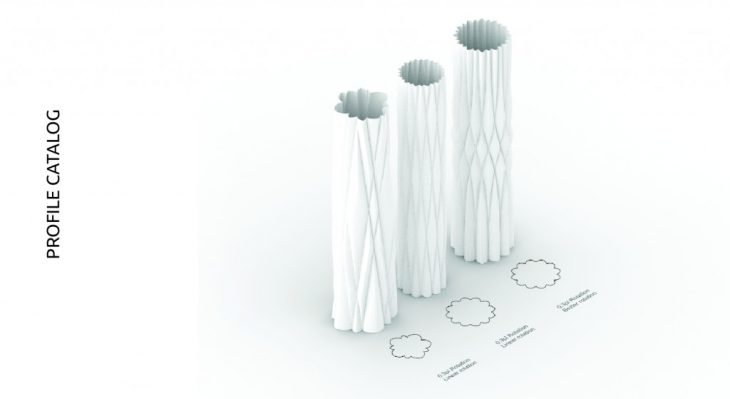

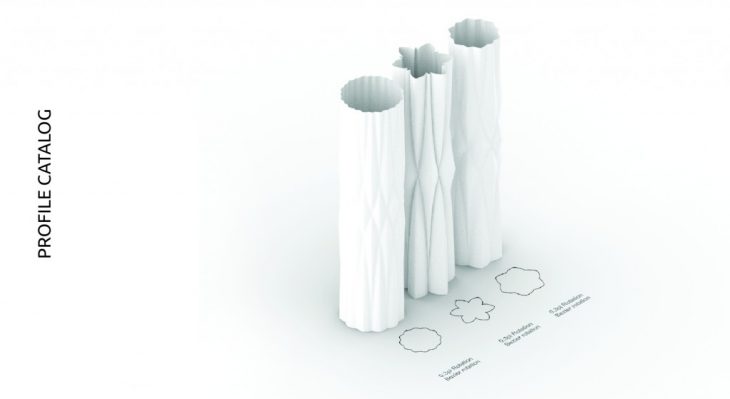

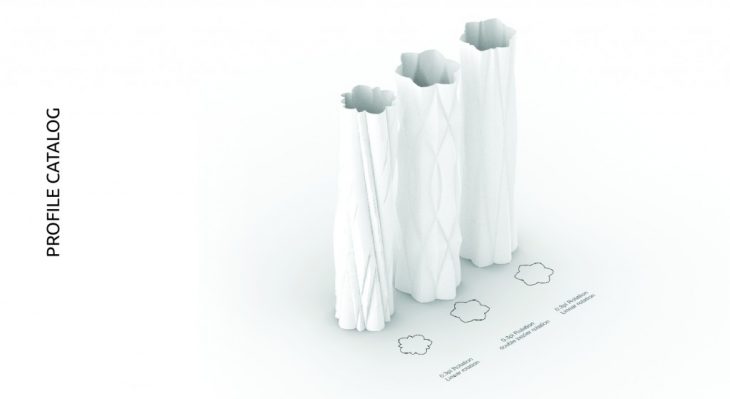

Column catalouge based on an epicycloid profile.

05-Guide-Rails
Various rails (linear and bezier)

05-Branching System

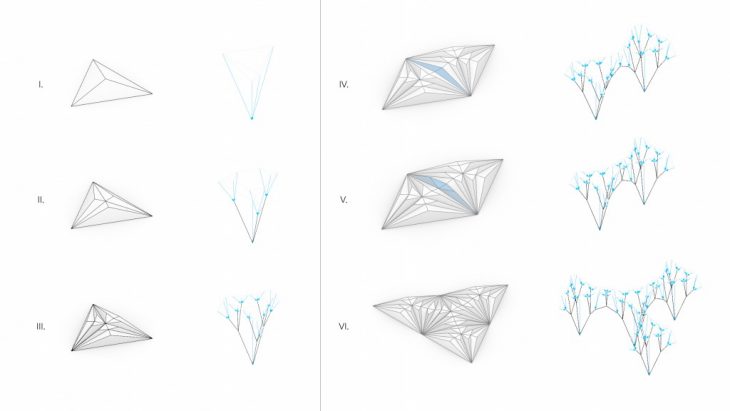

Branching systems, organizing our columns into a tree system and using off-axis rotation as part of the bifurcation strategy.



04-Architectural Approach
Public Space, A Raised Ground & Canopy




05-Documentation

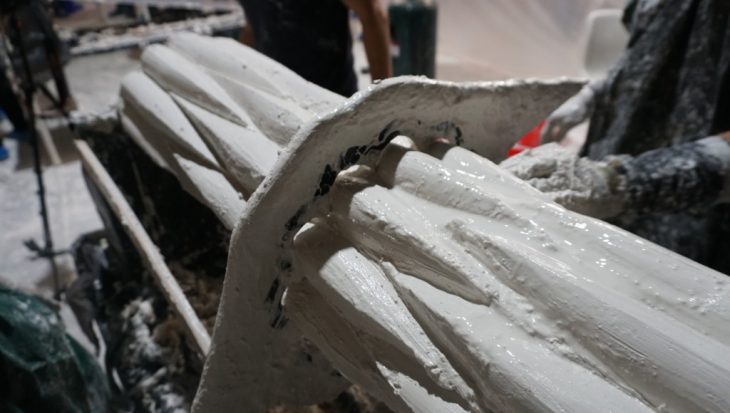

Fabrication Process

































































Bifurcation 2018
Tutors: Mark Burry, Rodrigo Aguirre
Technical Support: Keesje Avis,  Ricardo Mayor, Sebastian Amorelli, Sujal K. Suresh
Authors: Mario Espinoza, Lars Erik Elseth, Soroush Garivani, Nikoleta Nikolova, Baran Tehrani, Amin Ziaie Bigdeli
