The Parametric Tunnel

The Tunnel consists of three major parameter

1.Sine Curves     2. Extruding Pyramids     3. Responsive Surface Panels

The Process

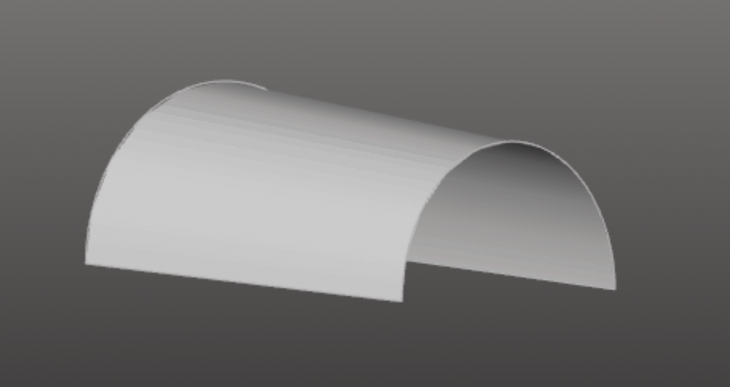

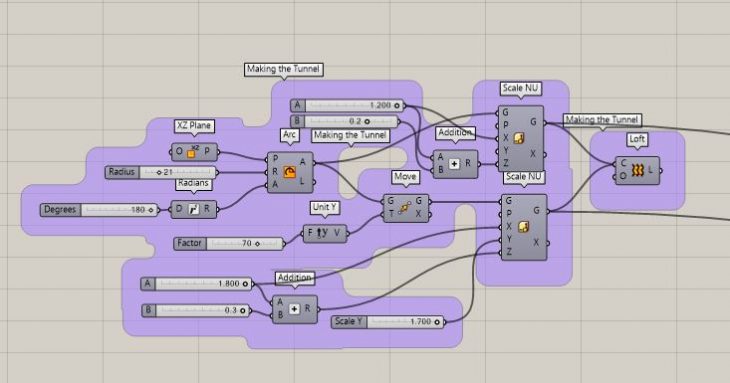

Initial Tunnel Form

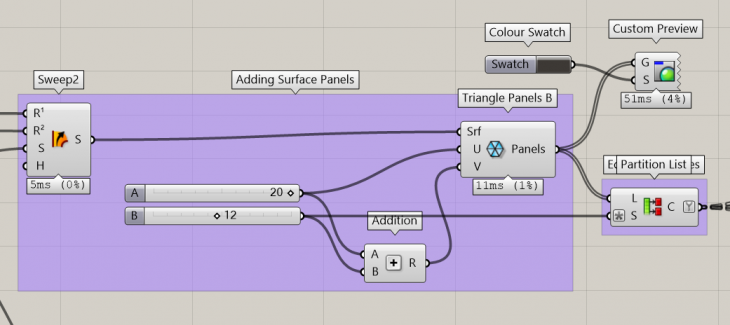

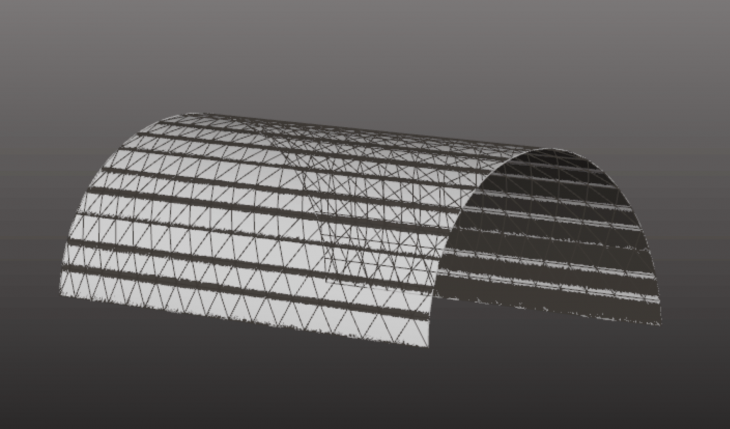

Creating Triangular Surface Panels for Parametric movement

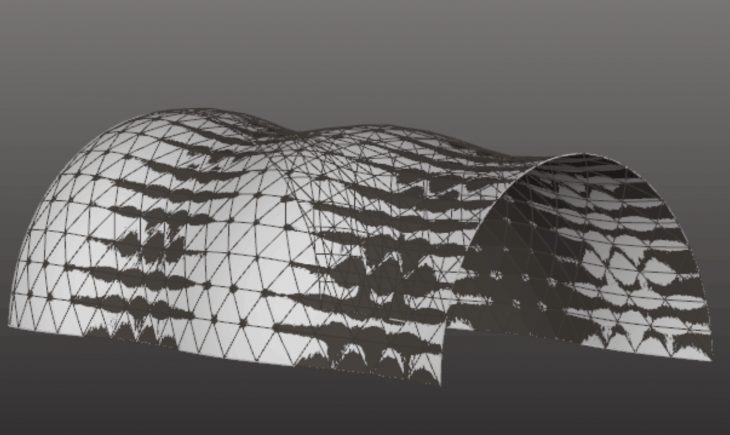

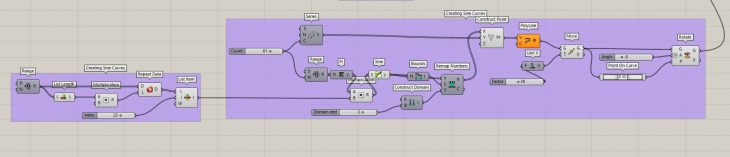

 Sine Curves : Varying form

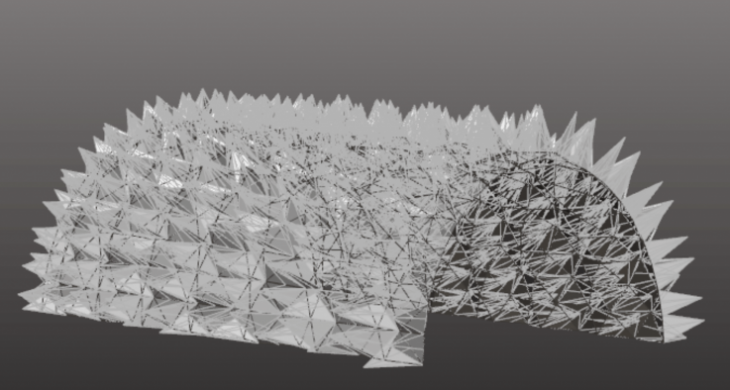

Intrude and Extrude : Pyramidal Geometry (heating and contraction)

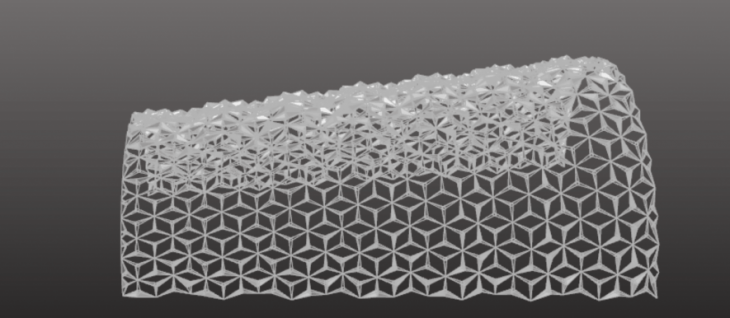

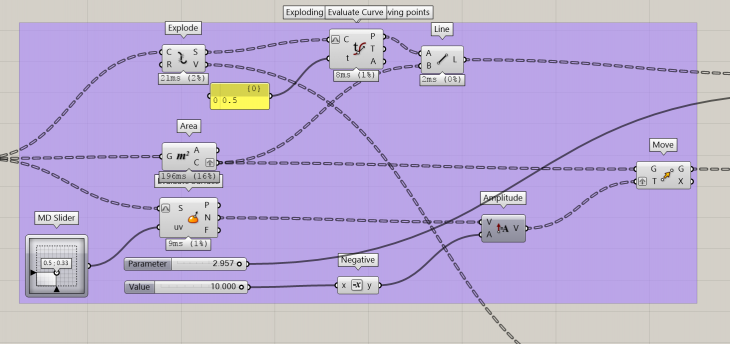

Panels Responsive to the Sun movement each day (closed in the afternoon and opened up at evenings/night).

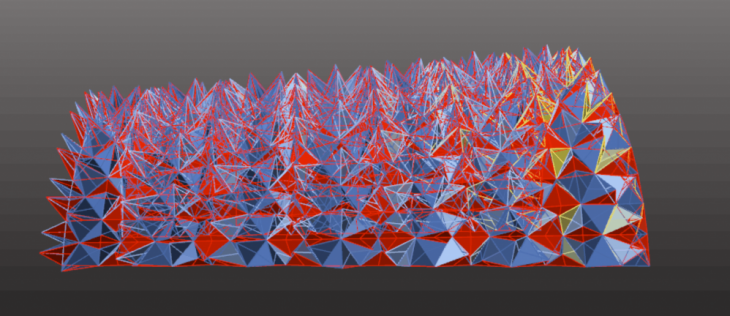

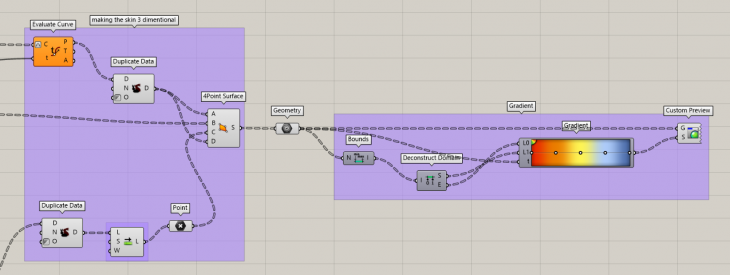

Gradient

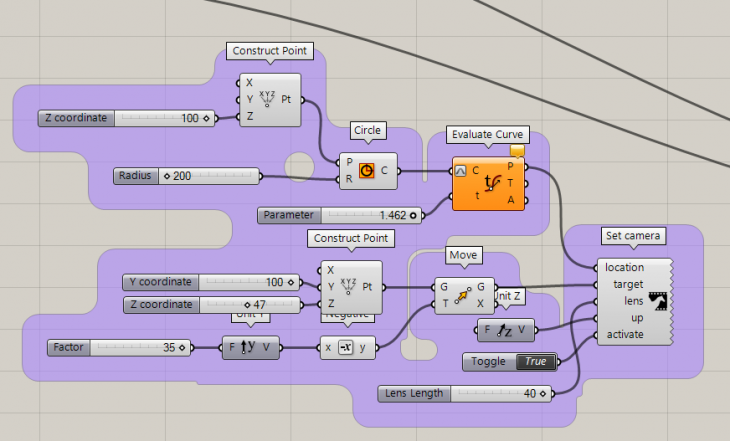

Horster script for animation

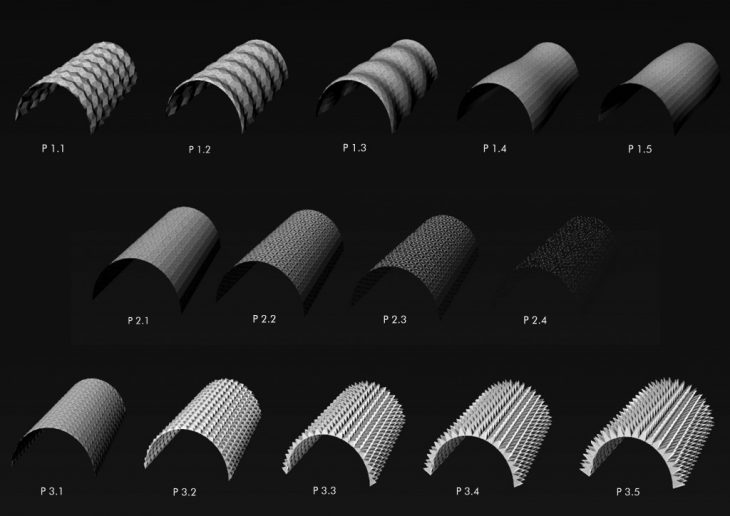

Probable geometry and physical form manipulations with the three main parameters

Project by : Abhishek Soman

MAA01 // Computational Design // IaaC 2017-18

Faculty: Rodrigo Aguirre and Aldo Sollazzo
