Forms that we design, ideas that we have are independent from the matter that is constructed of. We don’t work with the behavior of the matter but we dictate our ideas on it, whereas matters´ behavior should determine its form. So I start to think, how can architecture be freed of its predetermined forms ? How can the boundaries of space be situations and behaviors ?

IAAC_Asya Guney_Atmosphera_References

Starting with the beginning of 20th century, architects’ ambition was the disappearance of the layer that defines the form. Abandon the static and permanent.

IAAC_Asya Guney_Atmosphera_01

In 1970s Superstudio did Supersurface. It was basically an infinite grid of infrastructure. They called it a motherboard sustaining nothing less than life itself.

IAAC_Asya Guney_Atmosphera_02

Archizoom with No-Stop City had a similar but critical approach, a utopian city of an infinite grid which modifies life and territory.

IAAC_Asya Guney_Atmosphera_03

Reyner Banham’s famous Environmental Bubble was a transparent living pod with nothing but an air conditioning output. Where people can live without any boundaries or any clothes on.

IAAC_Asya Guney_Atmosphera_04

Yves Klein’s Air Architecture. In 196O he designed a Garden of Eden which the barrier between exterior and interior dissipated, which walls and roofs are made of fire and air.

IAAC_Asya Guney_Atmosphera_05

Christo in his Wrapped Trees worked in 97 also intended to immaterialize the space and object.

IAAC_Asya Guney_Atmosphera_06

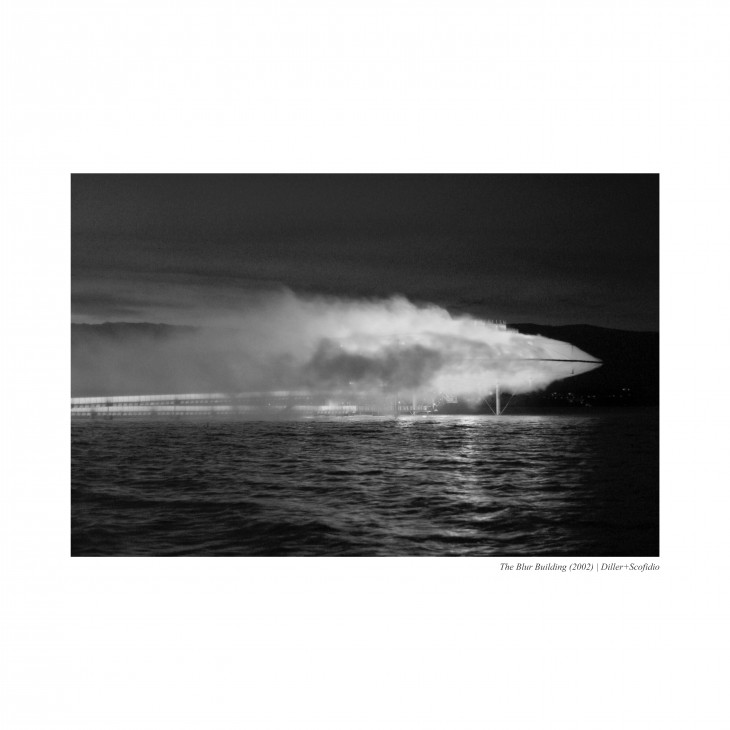

One of the recent examples of immaterialization of boundaries is the Blur Building.

IAAC_Asya Guney_Atmosphera_07

Olafur Eliasson in all of his works allows the viewer to peer into a world of constant change, continual process of disappearance and appearance. He simply does that by exposing the innate behavior of the matter itself. Like I mentioned before.

IAAC_Asya Guney_Atmosphera_08

Cloudscapes is a work done in Bienalli in 2010. One of the rooms is filled with smoke. The smoke is constantly changing so the experience of the space is always dynamic.

IAAC_Asya Guney_Atmosphera_10

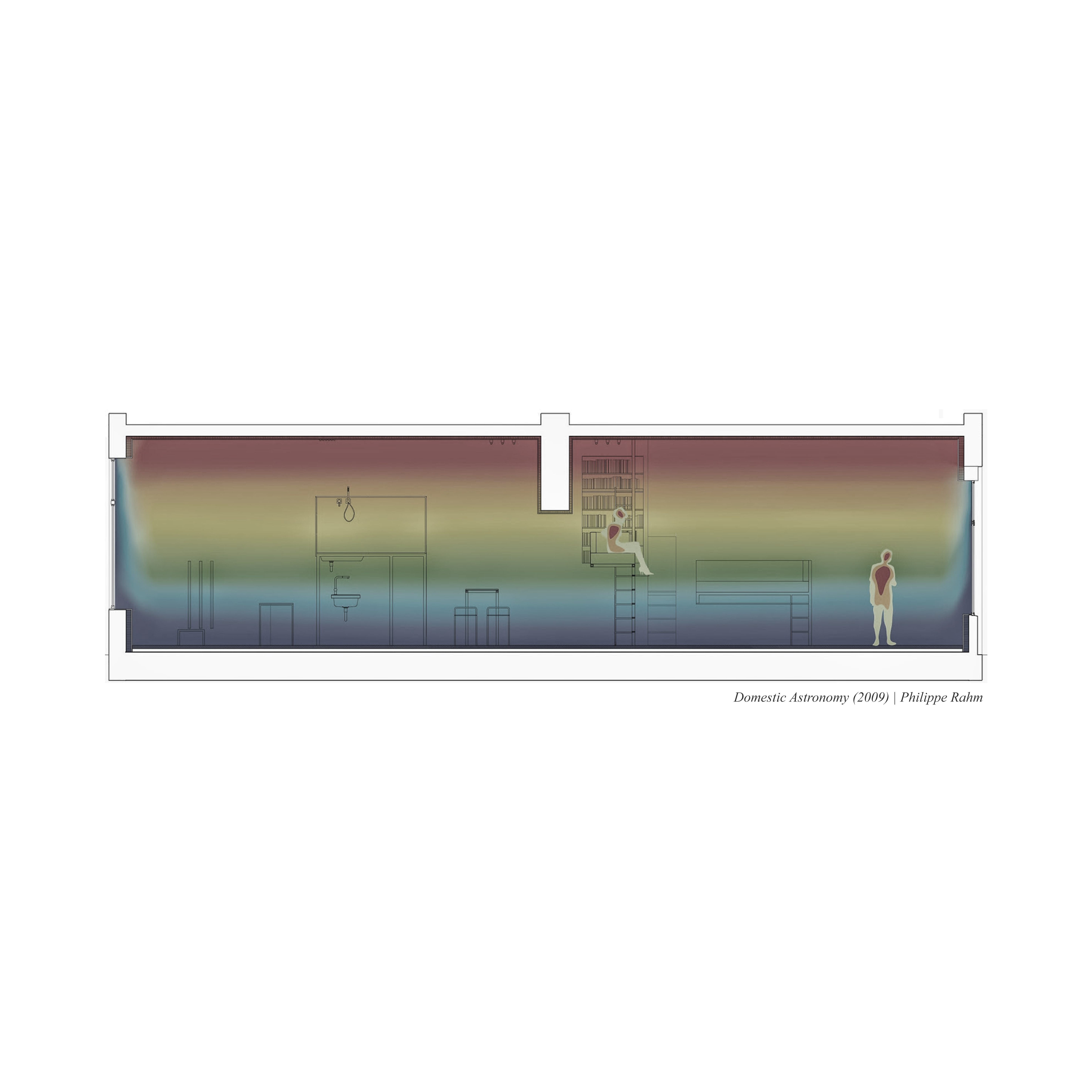

And lastly, one of the biggest influences of this project was the work of Philippe Rahm. As many know, he is the founder of the motto “Function follows climate.” With basic terms, he uses climatic phenomenas as new tools for architectural compositions. However, in all of his practices he uses completely sealed up spaces. His designs are always closed systems. Therefore, a simple question arises “what happens when you want to open the window in these systems ?”, “what happens if we open all the windows and smash all the walls ? “

IAAC_Asya Guney_Atmosphera_11

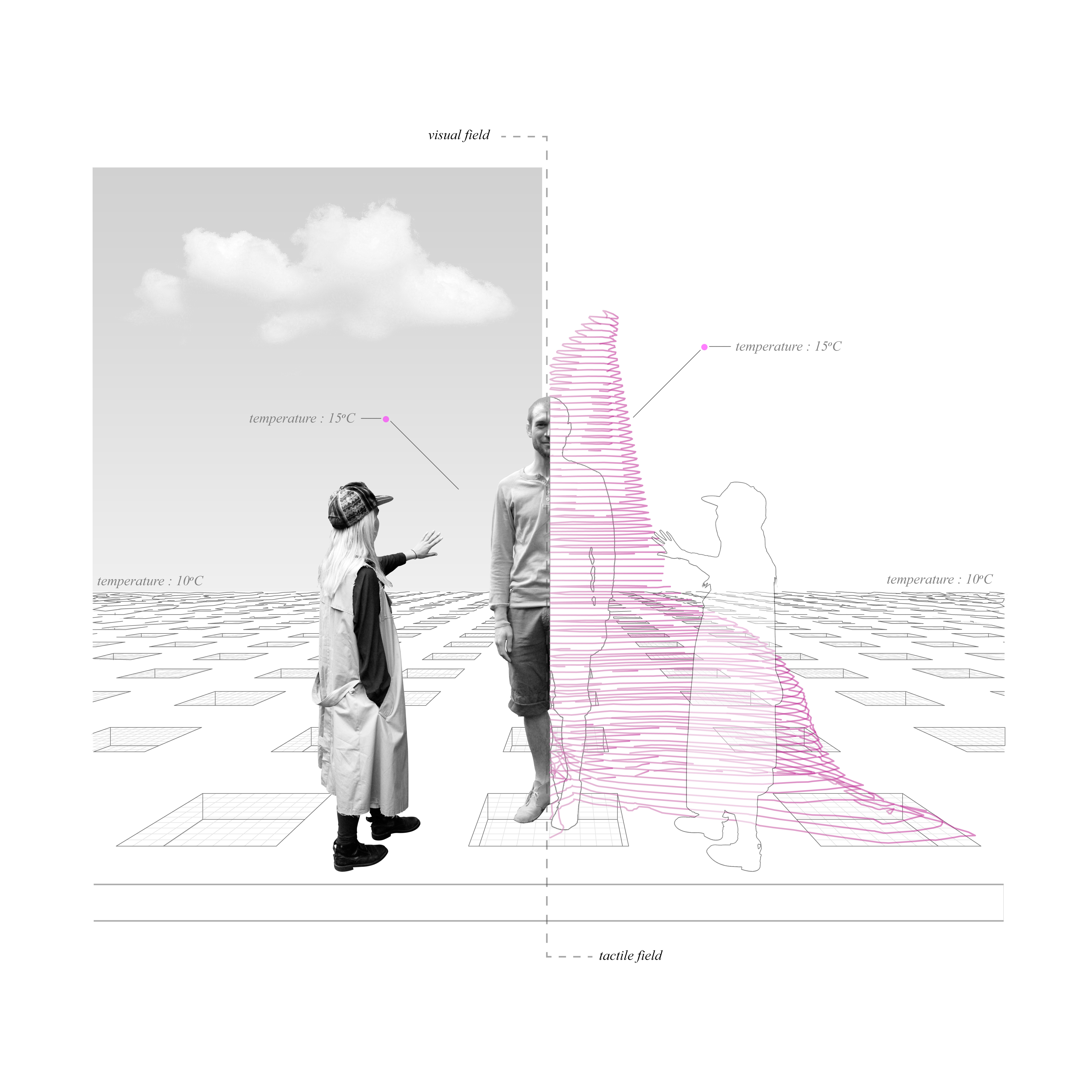

Is it possible to define spatial boundaries by distribution of temperature in an open system ? We all know how close we want to sit in front of a fireplace. Not too close because you can get burned, or not too far because you don’t want to be cold. So there’s a boundary. It is not visible. But it is physical. And it is there. °Atmosphera is a garden of temperature fields, creating microclimates. The garden almost creates a parallel universe, one that eliminates the eye but amplifies the sense of touch. It enables a new way to experience and discover the space, one that we almost forgot about.

IAAC_Asya Guney_Atmosphera_12

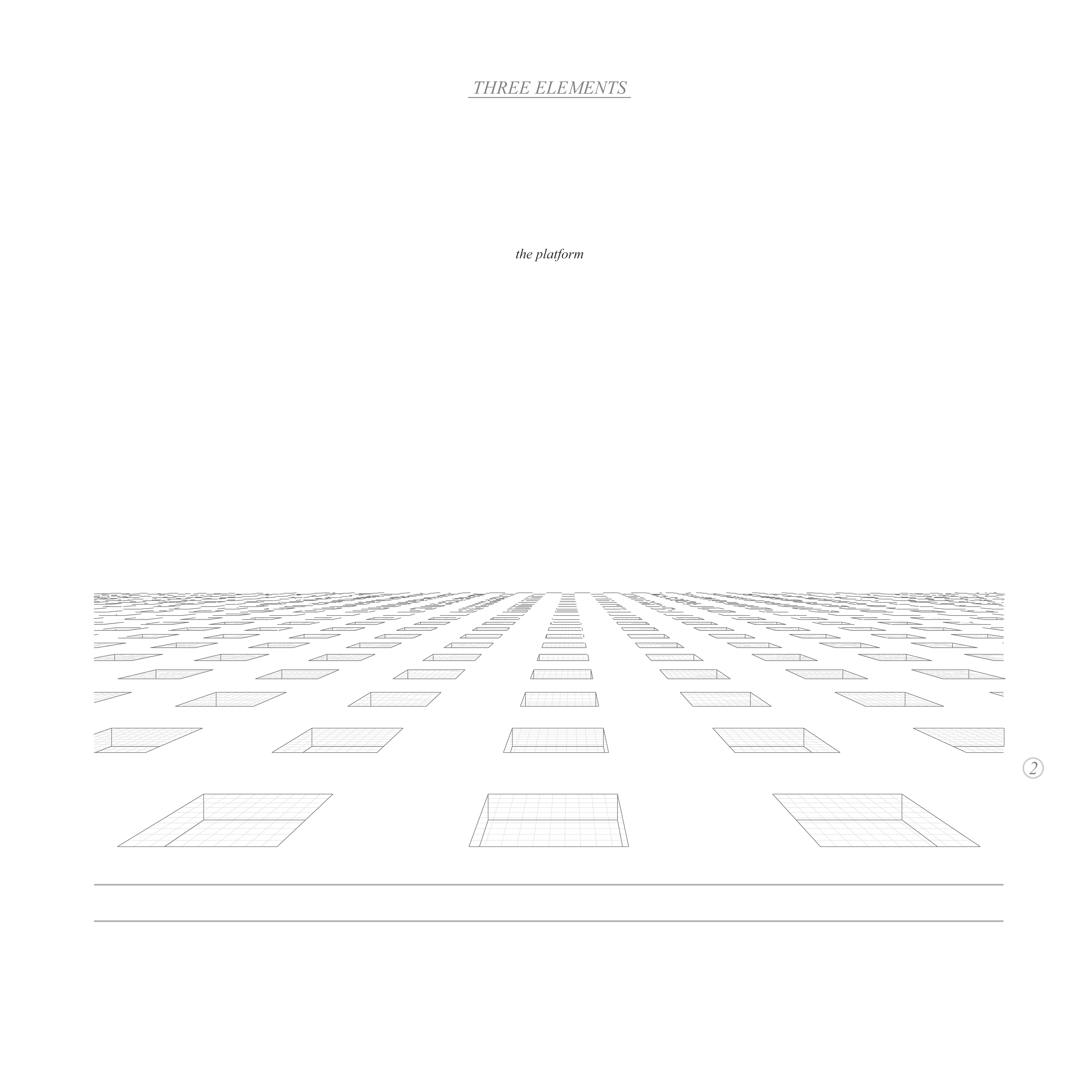

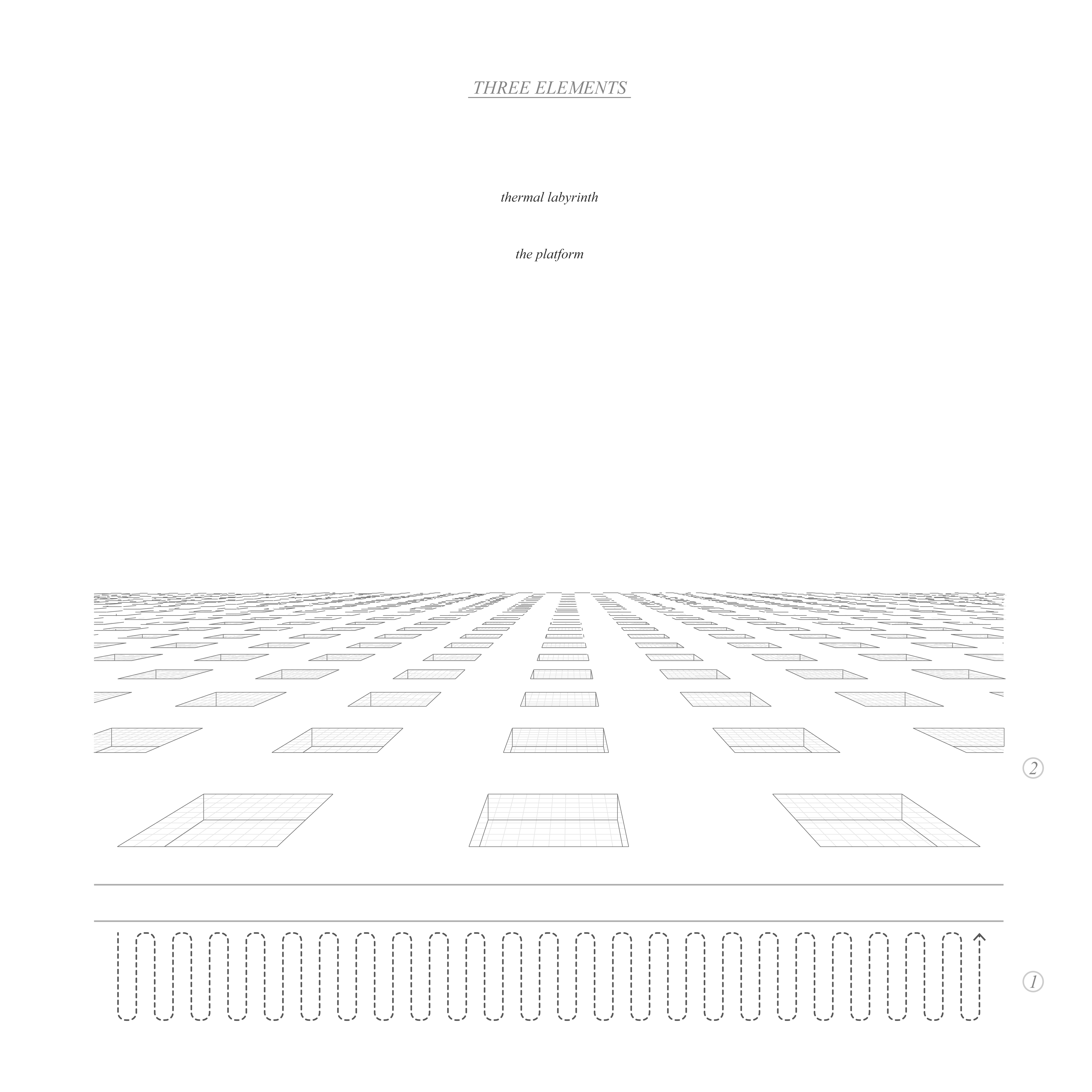

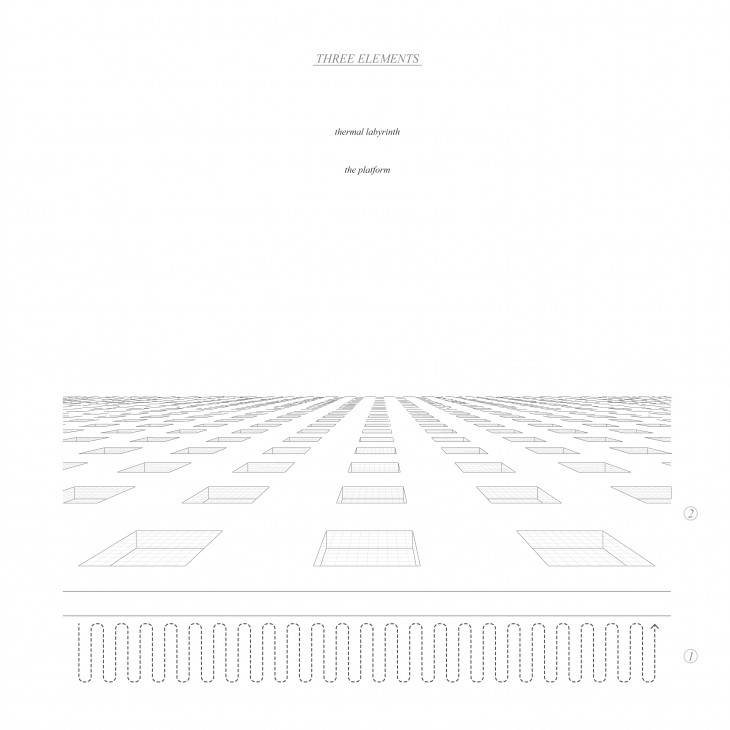

The garden is simple. It is composed of three elements. There is a platform, includes a gird of warm or cold air emitters.

IAAC_Asya Guney_Atmosphera_12copy

The second element is a underground thermal labyrinth which regulates the temperature of the air.

IAAC_Asya Guney_Atmosphera_13

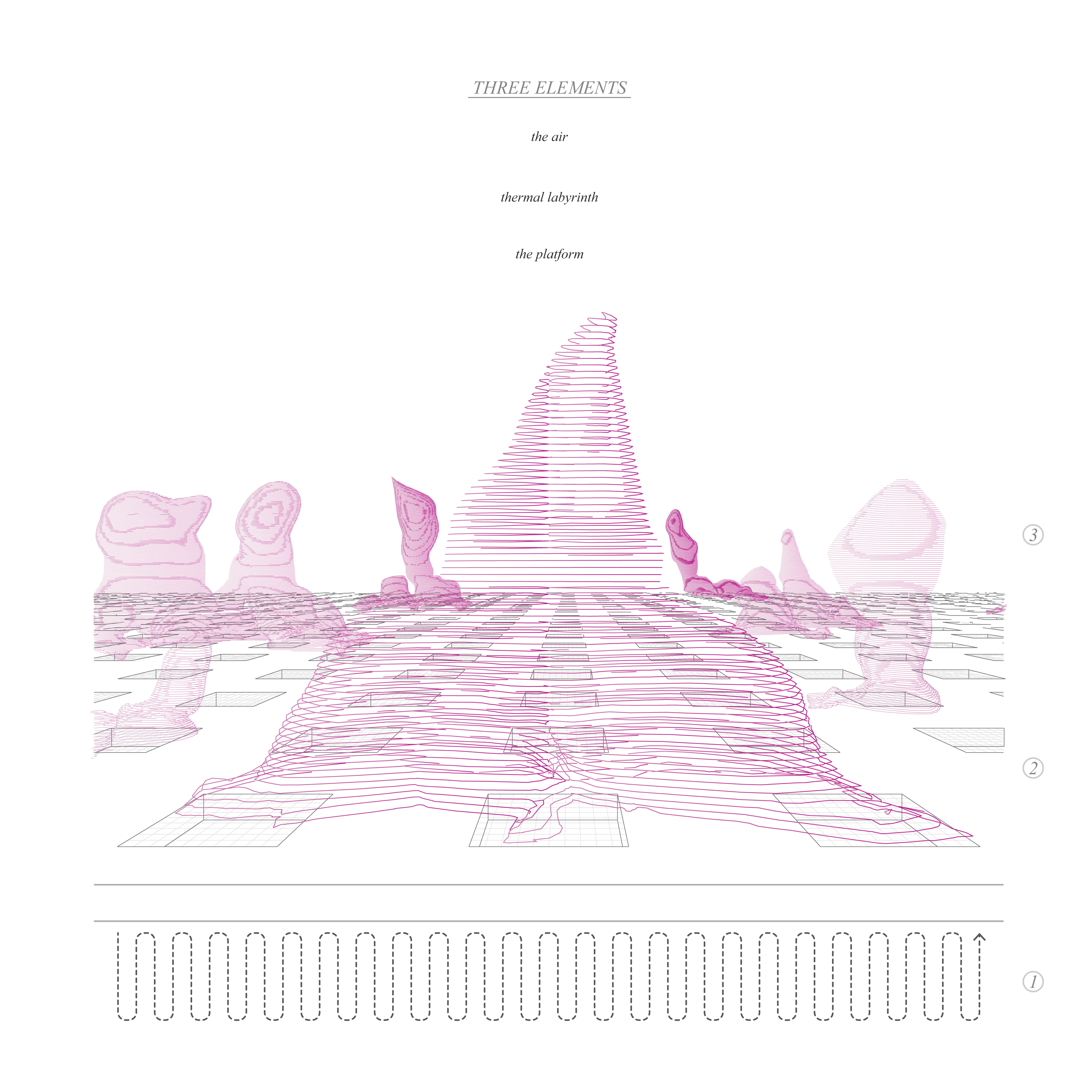

And the third is the air.

IAAC_Asya Guney_Atmosphera_14

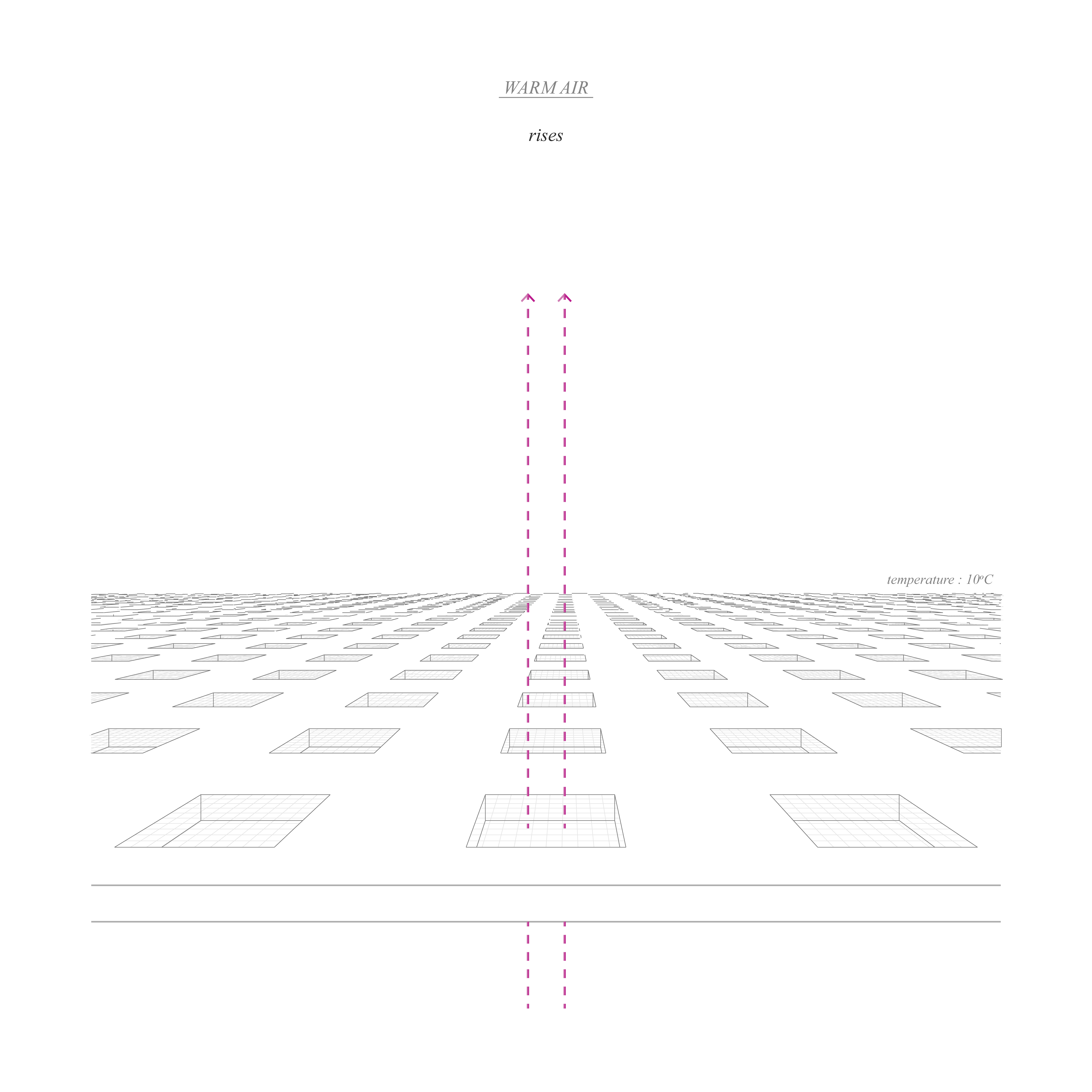

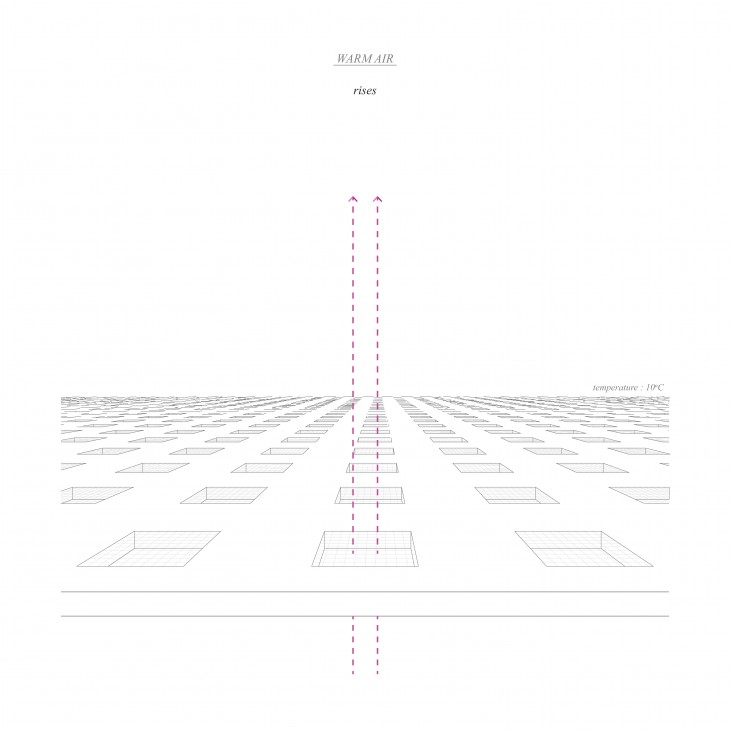

°Atmosphera works with one basic rule of thermodynamics. Hot air rises and cold air sinks.

IAAC_Asya Guney_Atmosphera_15

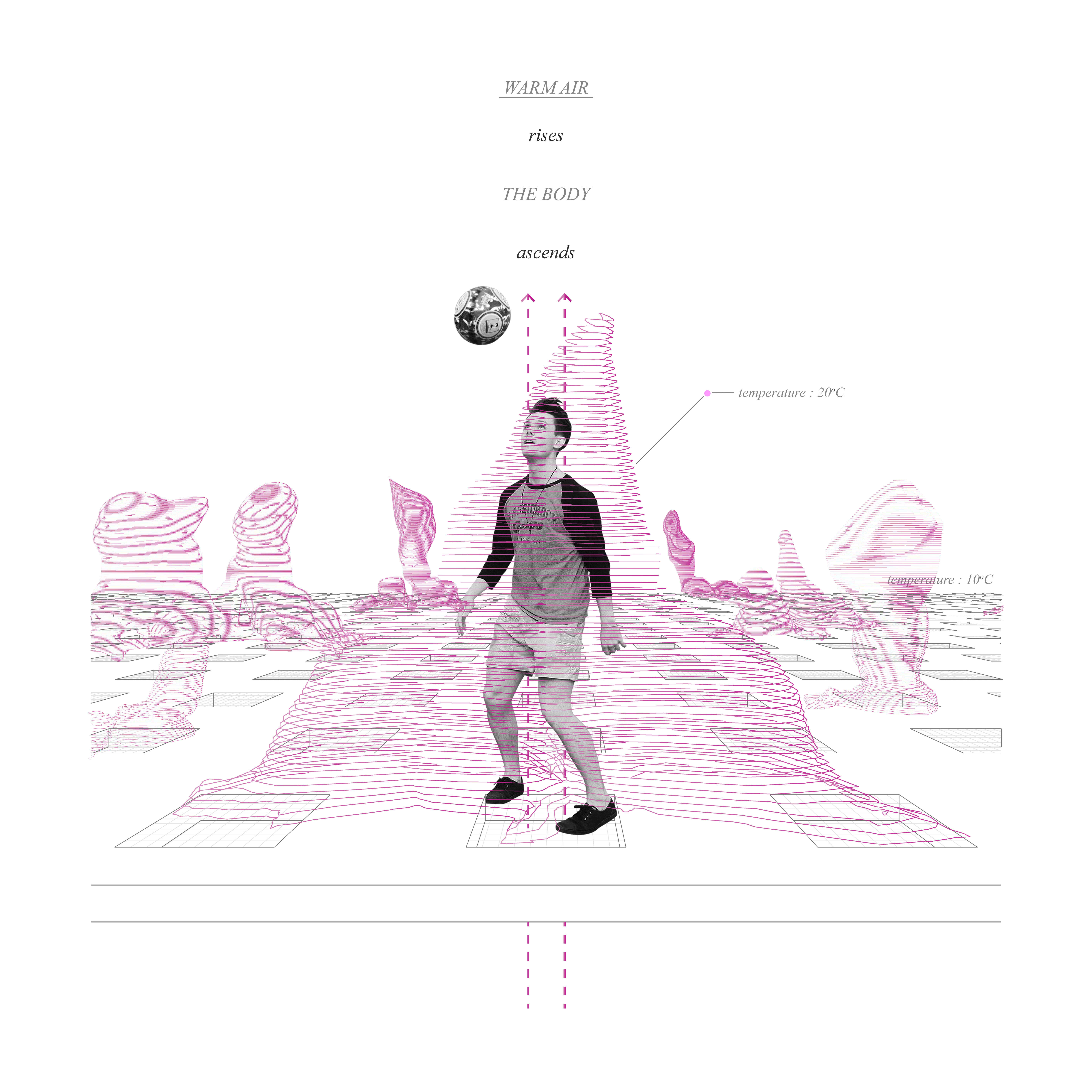

Hence, air in different temperatures behaves differently, the spatial boundary it defines differ along with it, likewise the interaction of the body of those dynamic boundaries. Hot air rises, and the body ascends.

IAAC_Asya Guney_Atmosphera_16

IAAC_Asya Guney_Atmosphera_17

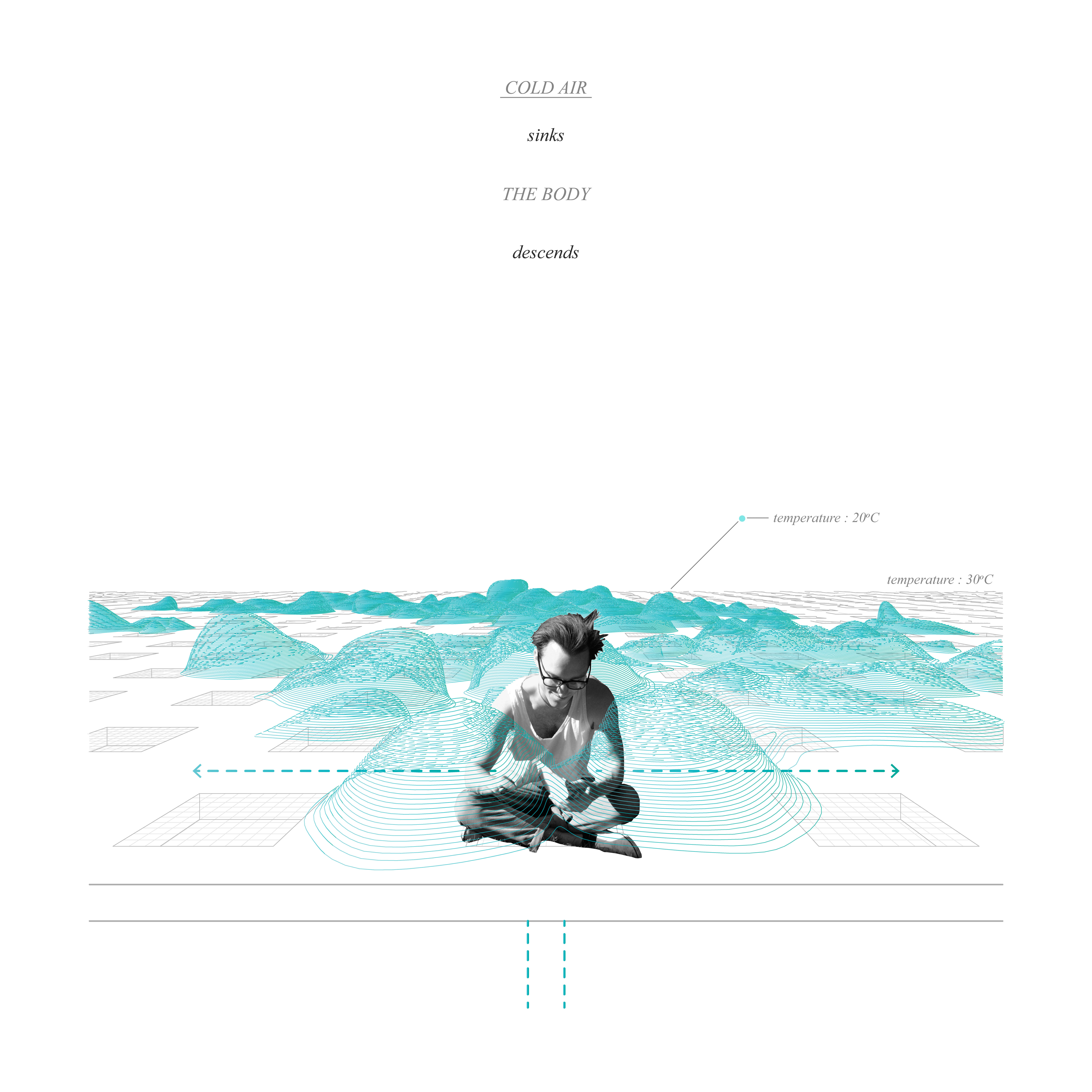

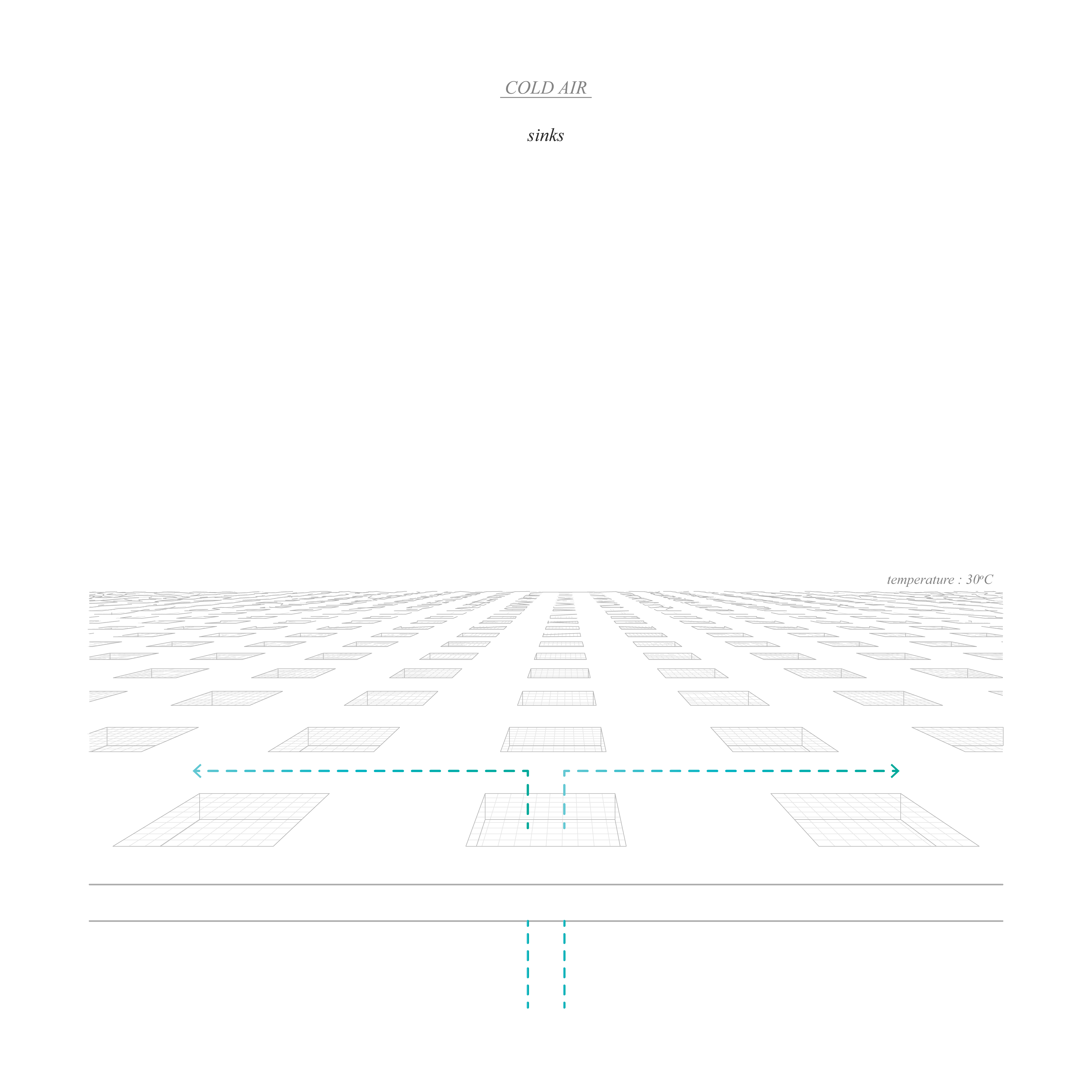

Cold air sinks, and the body descends.

IAAC_Asya Guney_Atmosphera_18

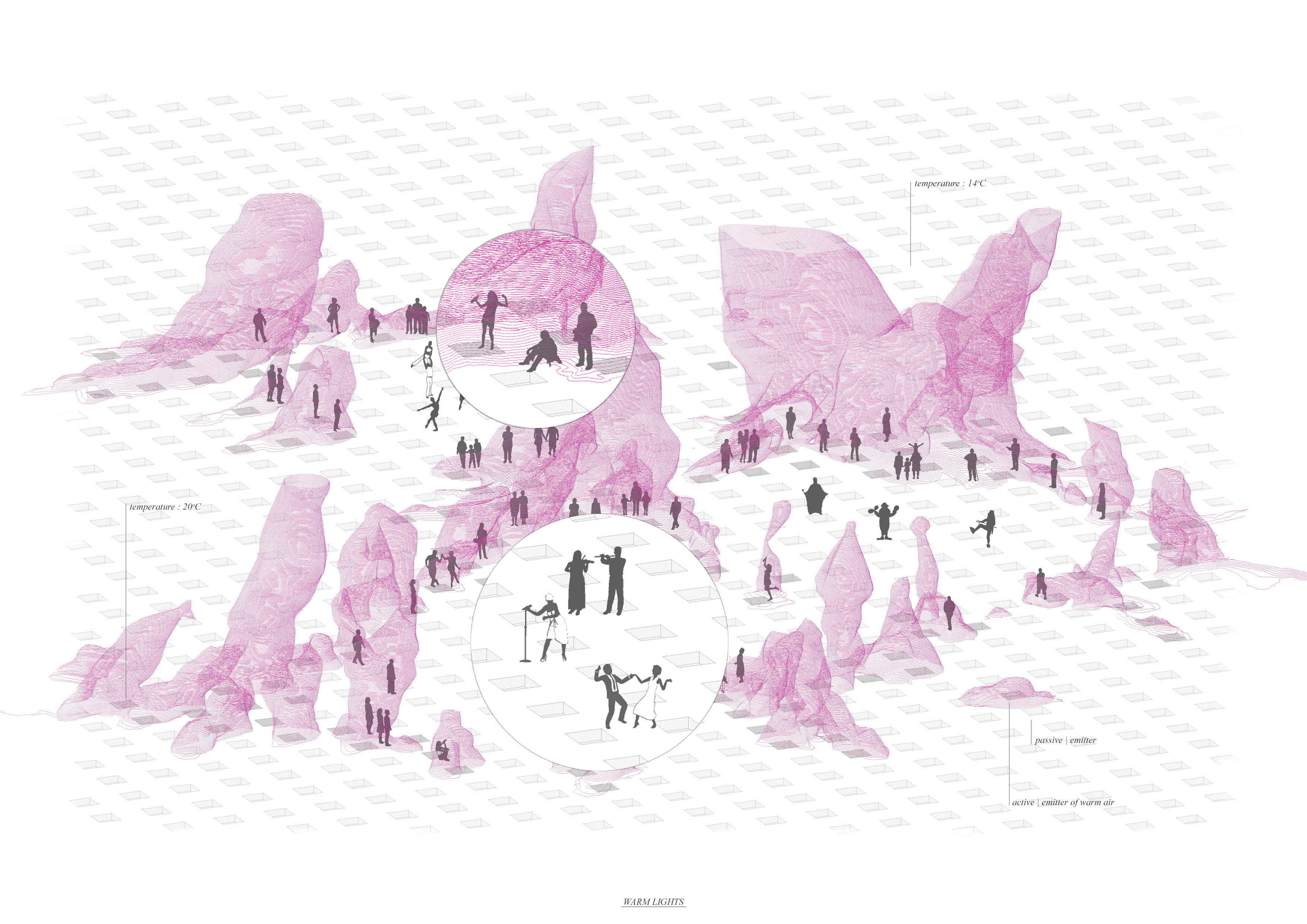

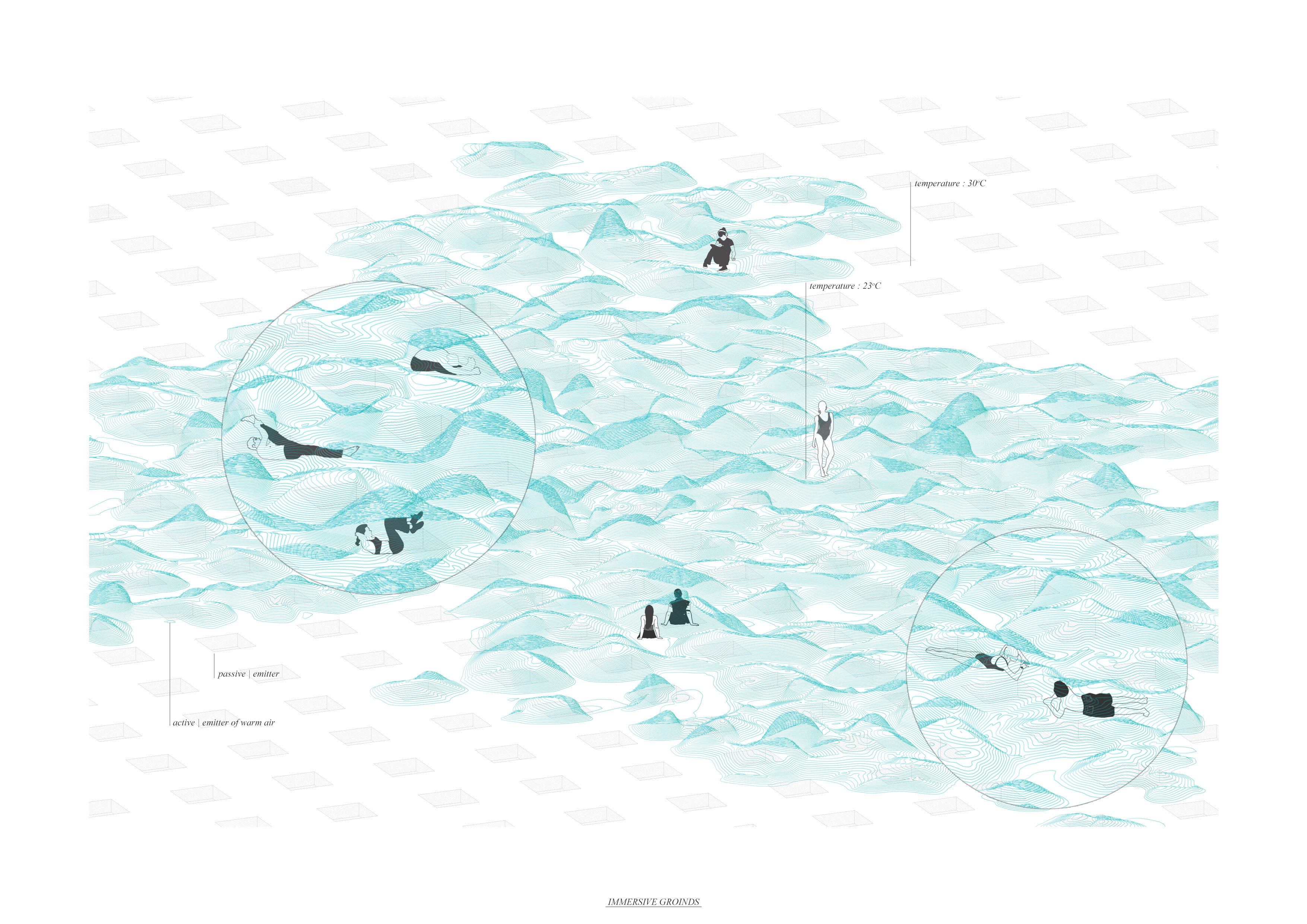

Temperature of the air, determines its behaviour. And this determines the way you interact with the space. You immerse your body in this field of temperature and let yourself be moved by garden.

IAAC_Asya Guney_Atmosphera_19

IAAC_Asya Guney_Atmosphera_20

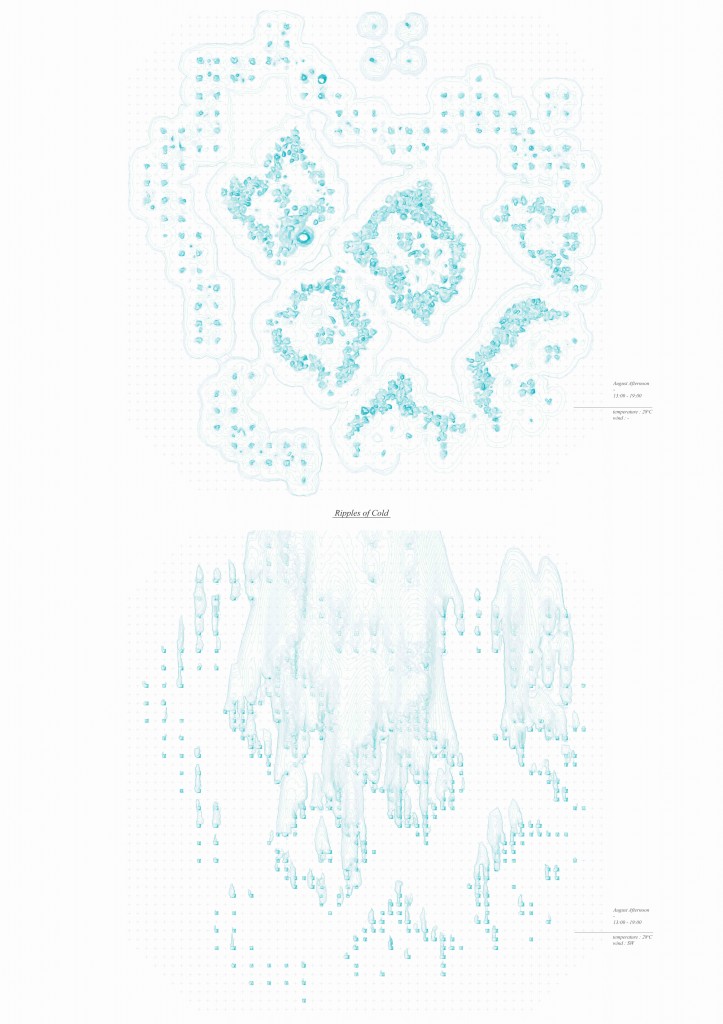

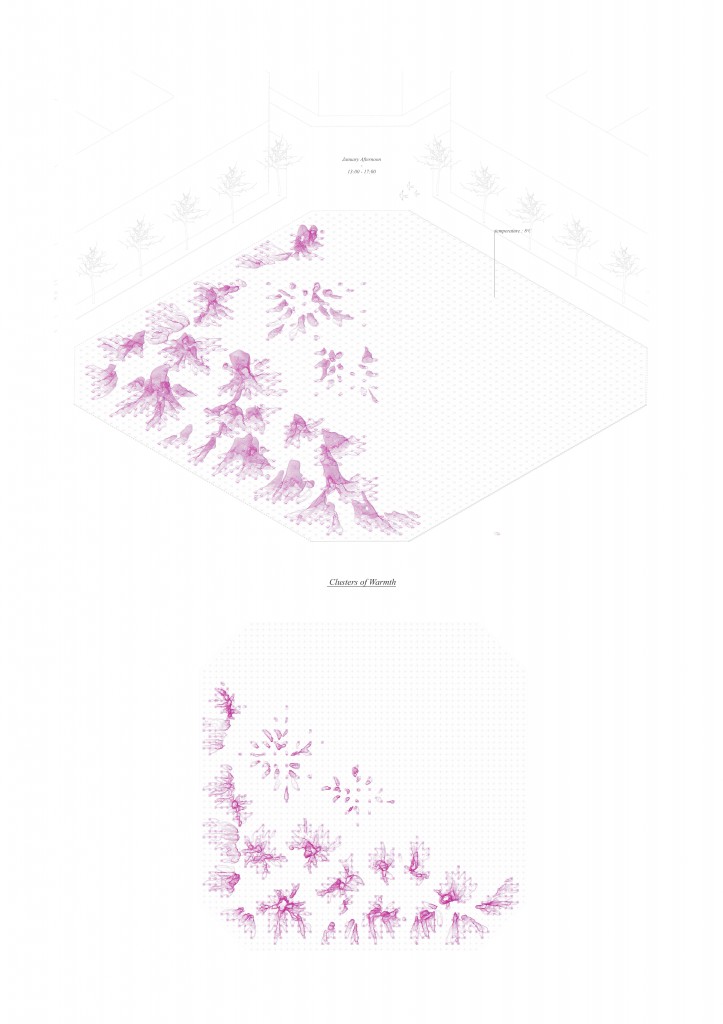

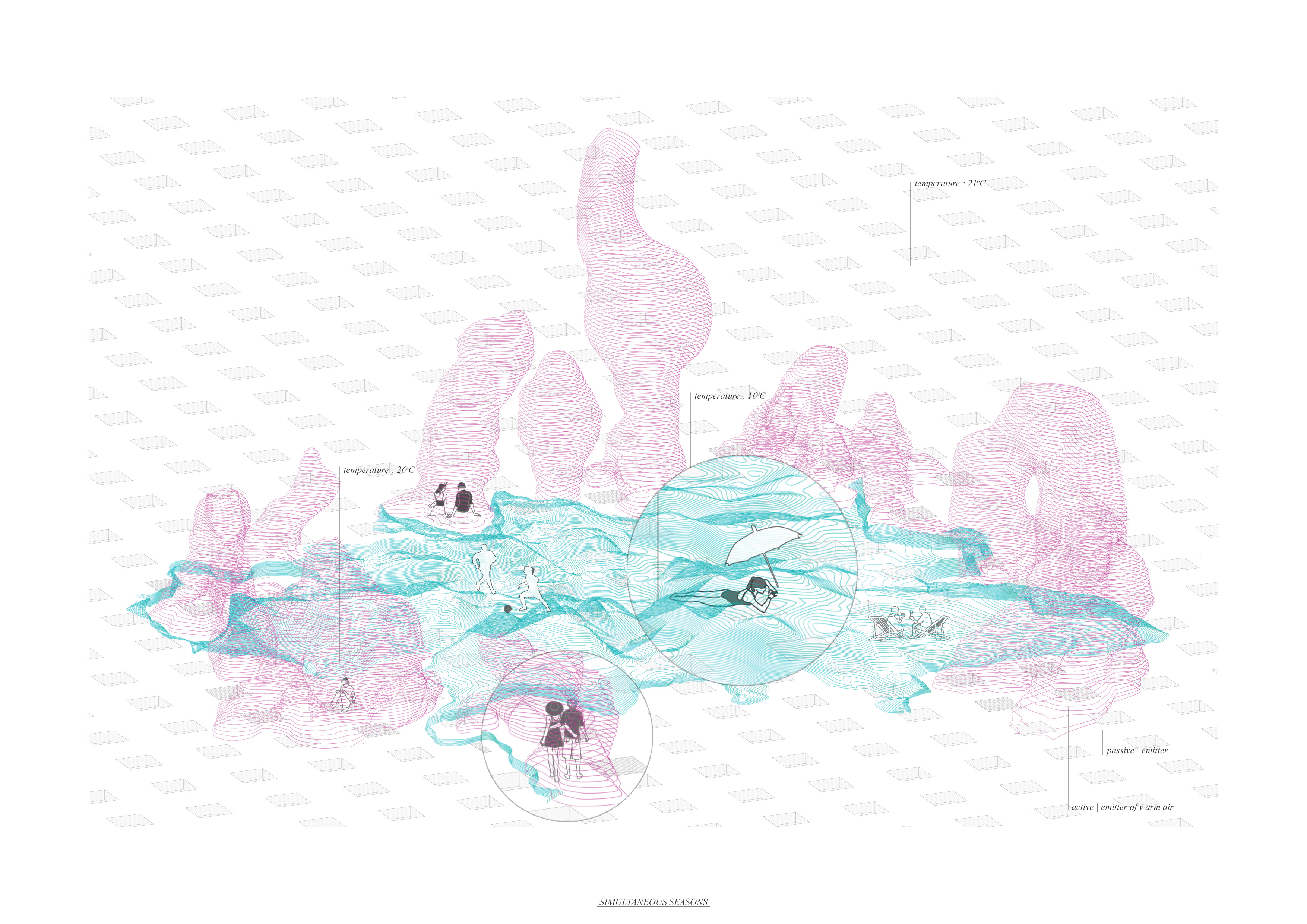

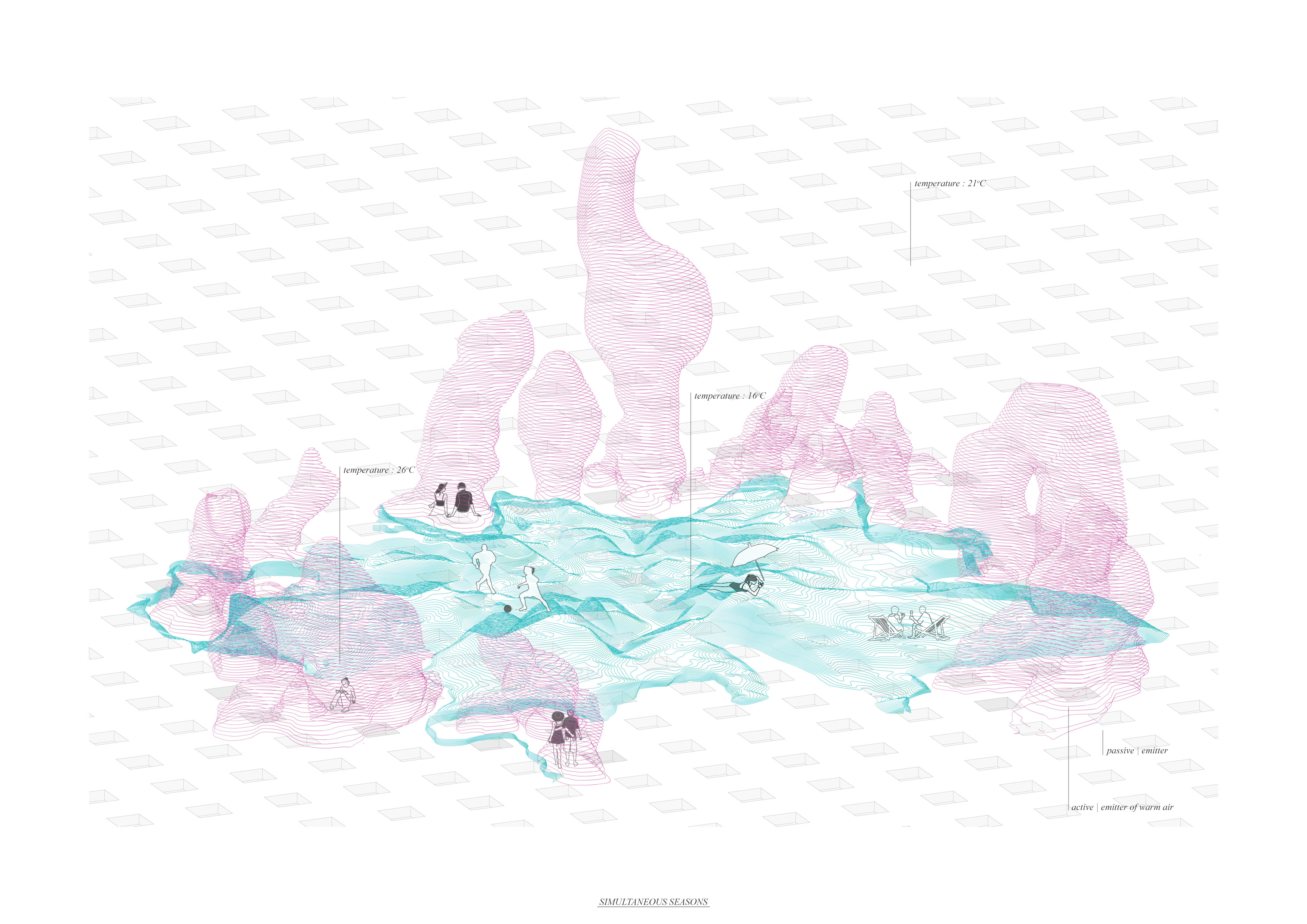

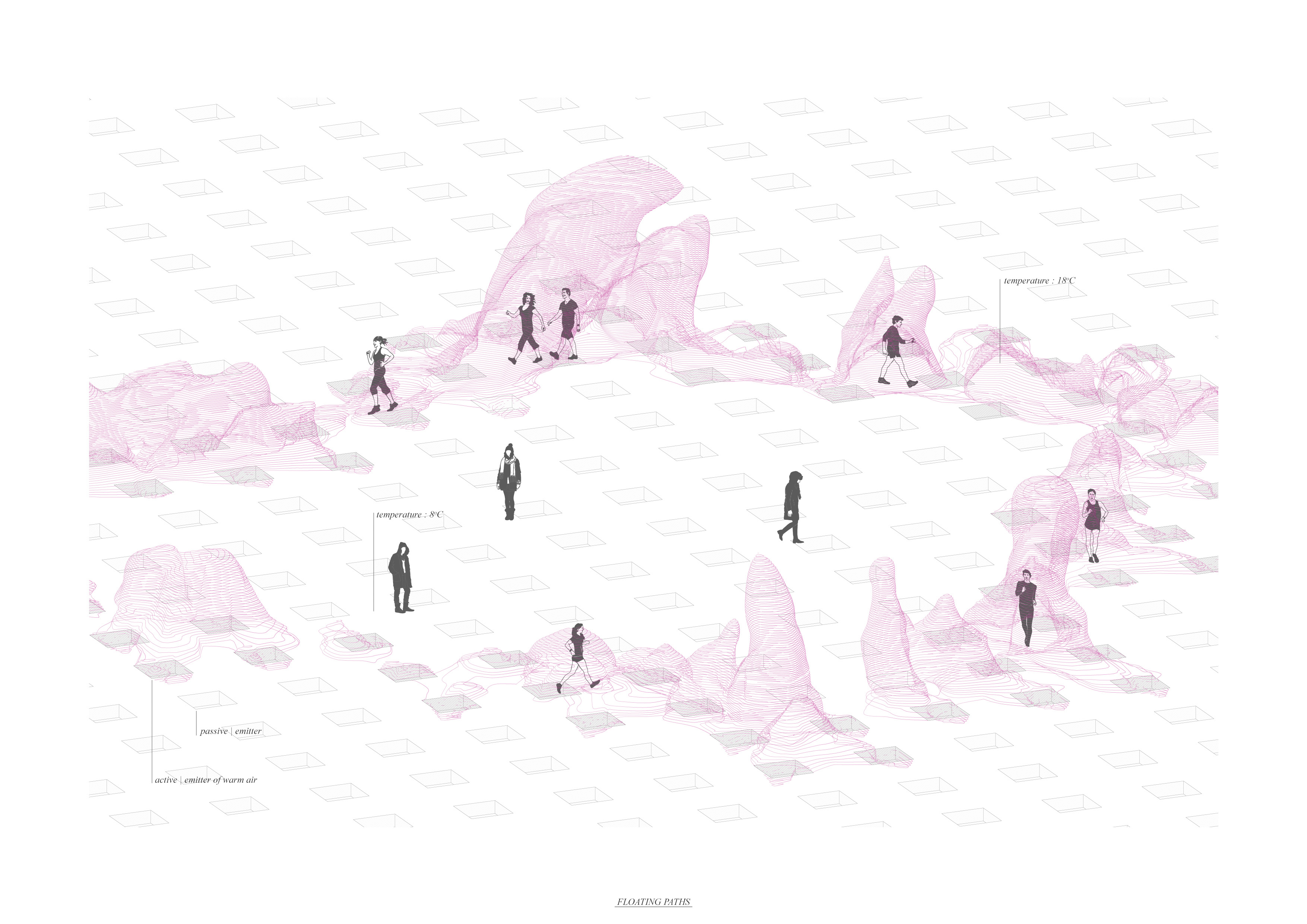

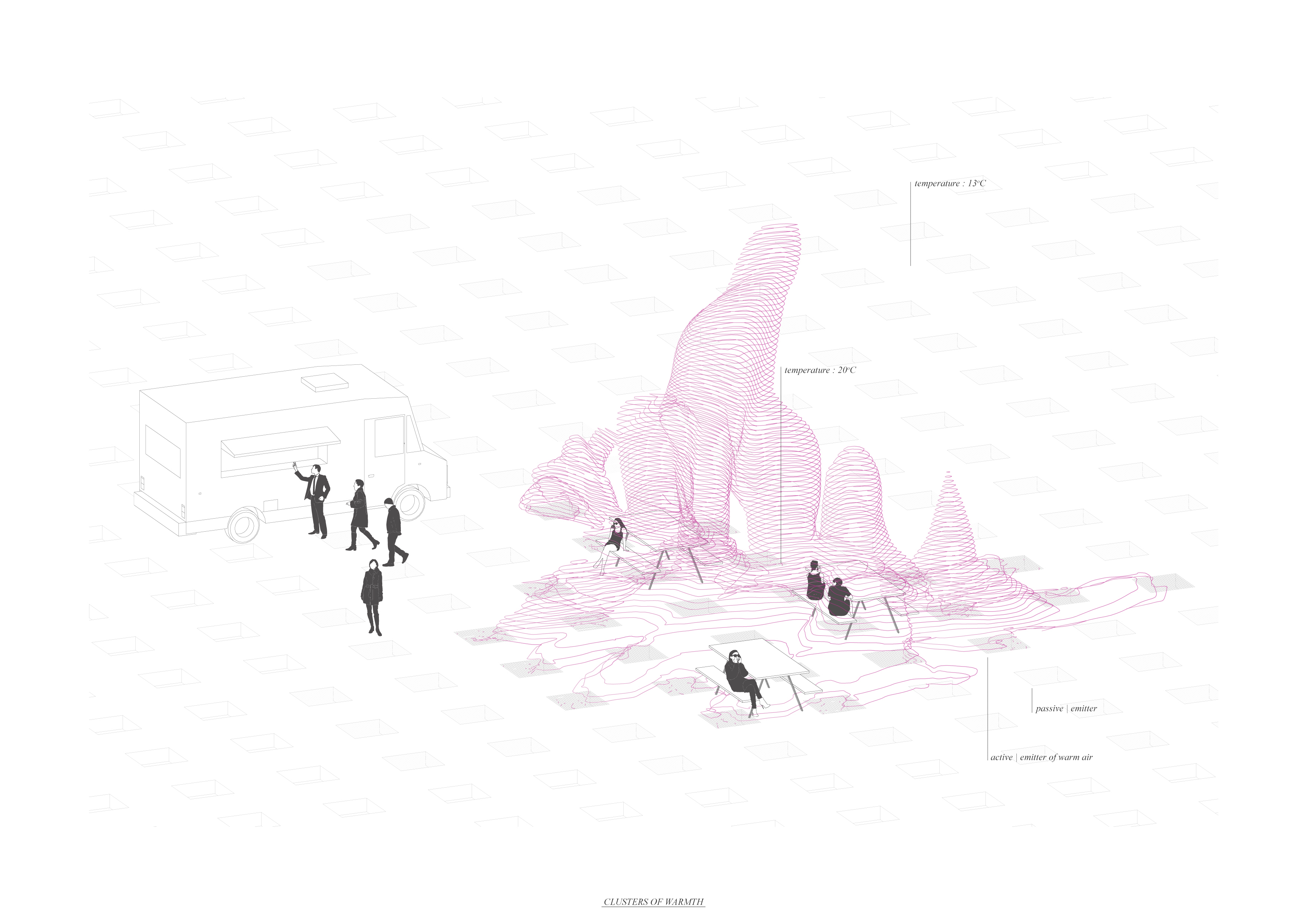

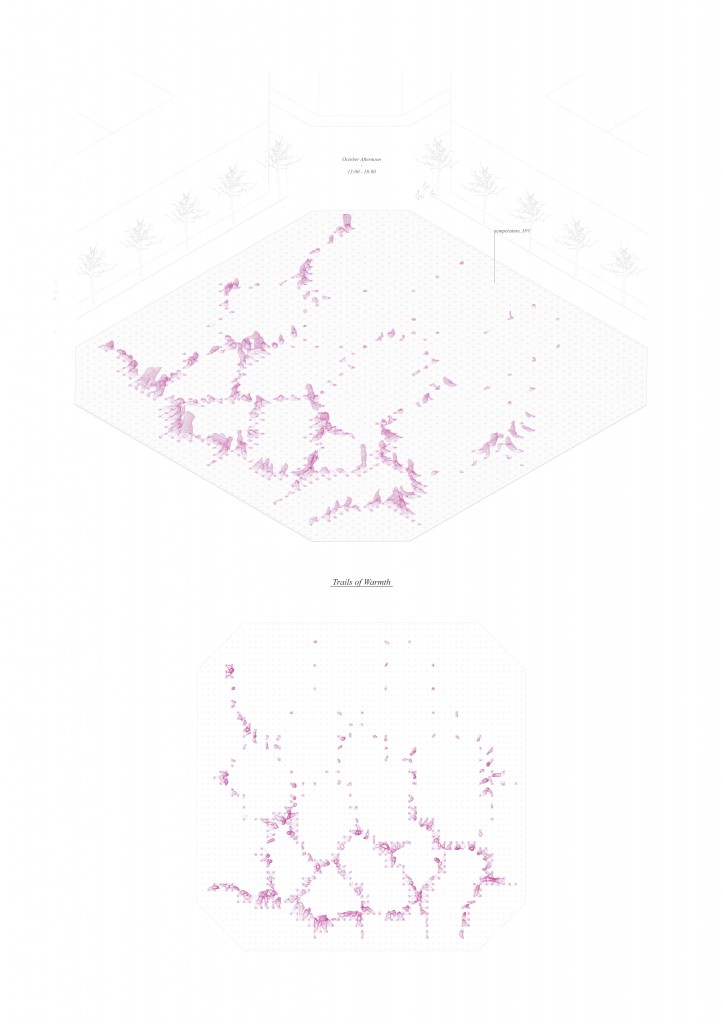

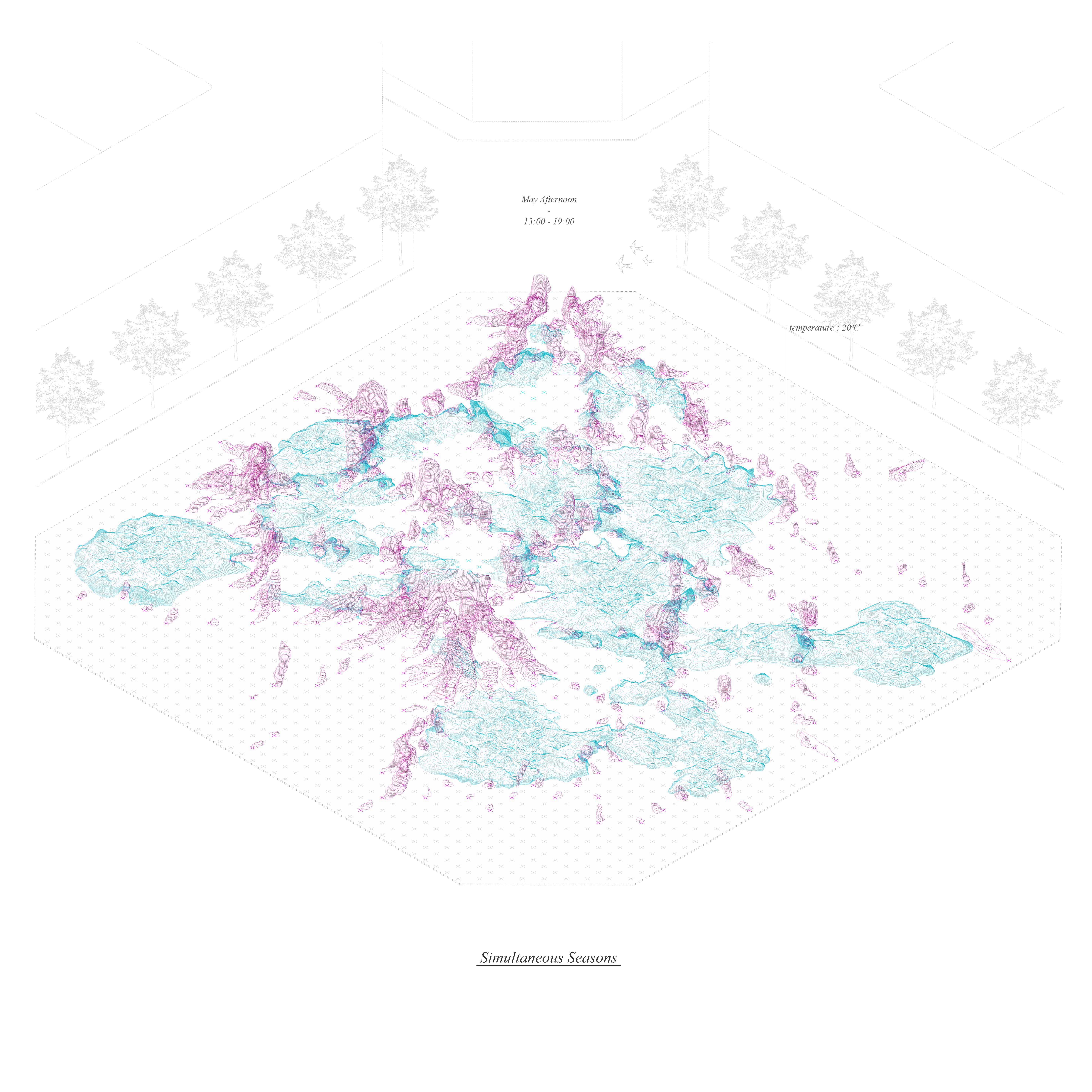

The garden °Atmosphera can take many shapes according to the seasons or time of the day. In summer it can be cold grounds which can get less than 10 degrees than its surrounding temperature. Or in winter it can be a gathering point, stage and seating shaped by the warm air. °Atmosphera is a garden amplifying the tactile experience and provide enhanced spatial boundaries.

IAAC_Asya Guney_Atmosphera_21 IAAC_Asya Guney_Atmosphera_22 IAAC_Asya Guney_Atmosphera_23 IAAC_Asya Guney_Atmosphera_24 IAAC_Asya Guney_Atmosphera_25 IAAC_Asya Guney_Atmosphera_26 IAAC_Asya Guney_Atmosphera_27 IAAC_Asya Guney_Atmosphera_28 IAAC_Asya Guney_Atmosphera_29IMG_8781 IMG_8793 IMG_8795

<p>

</p>

IAAC_Asya Guney_Atmosphera_30Thermal labyrinth is a passive thermal energy system which takes advantage of the thermal mass of the materials. It consist of underground tunnels built from a high thermal mass material that use air to transfer the thermal storage capacity of the labyrinth to the required space. These systems work by flooding the labyrinth with cool night air, which in turn cools the high thermal mass material. During the day, air is drawn through the labyrinth where it is cooled before entering the required space. In winter, the process is generally reversed.IAAC_Asya Guney_Atmosphera_31

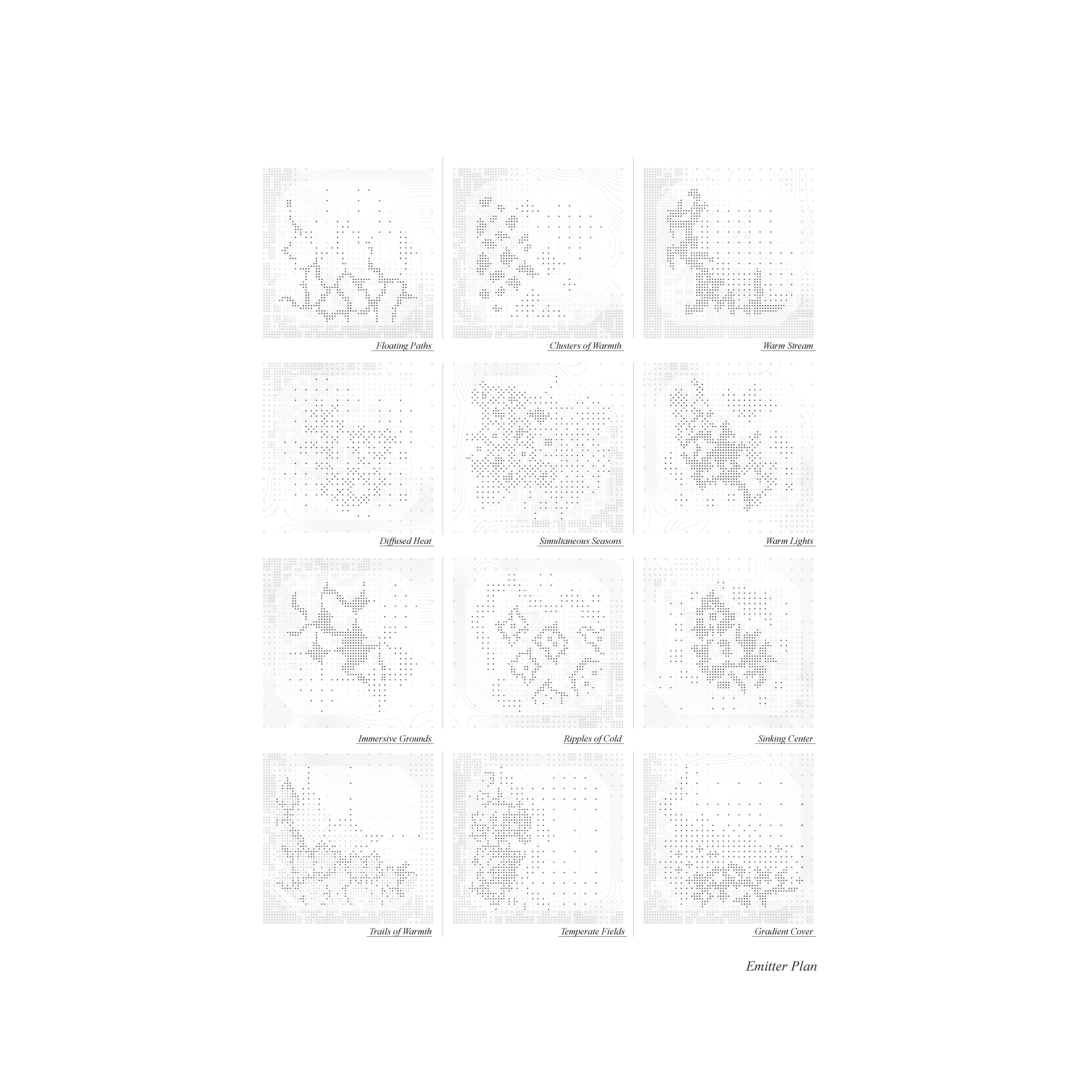

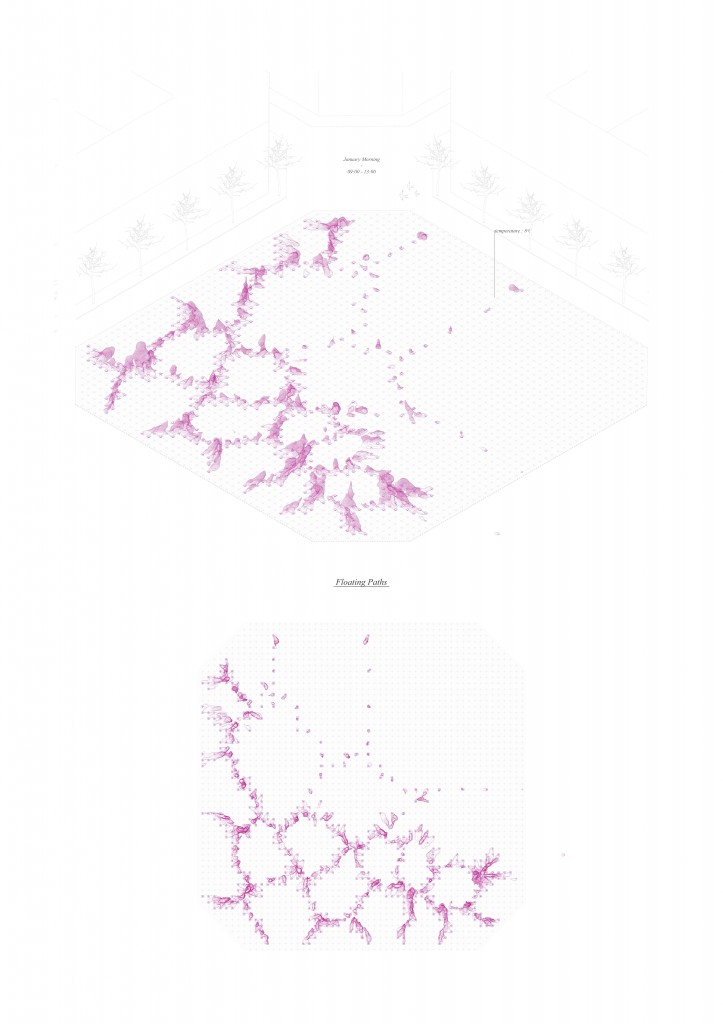

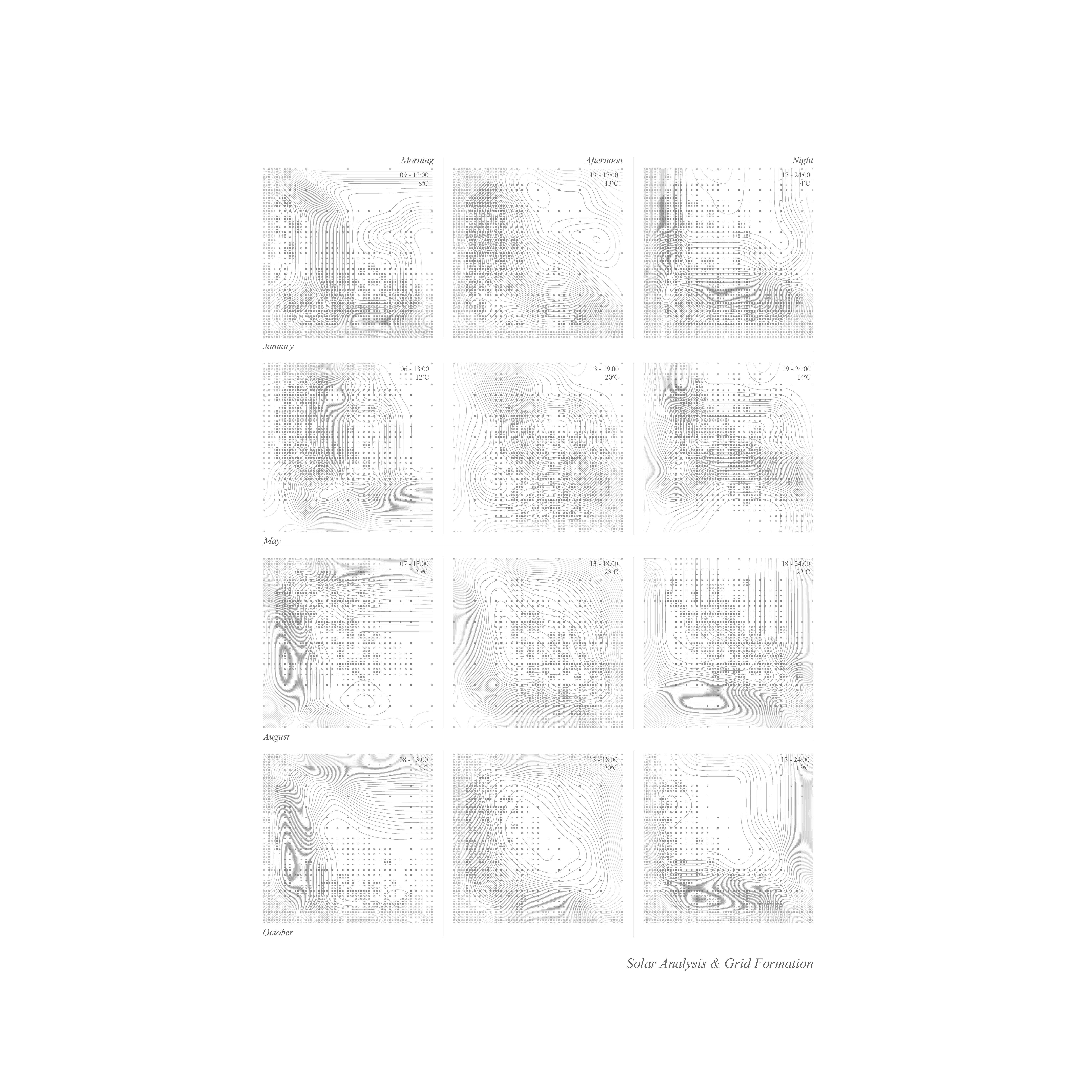

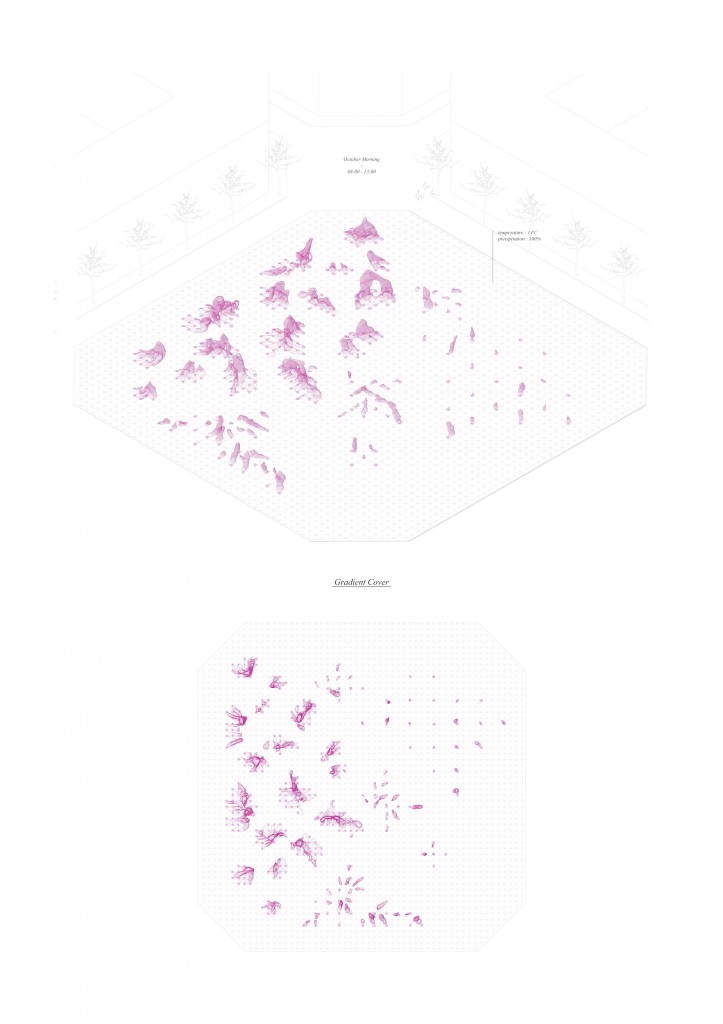

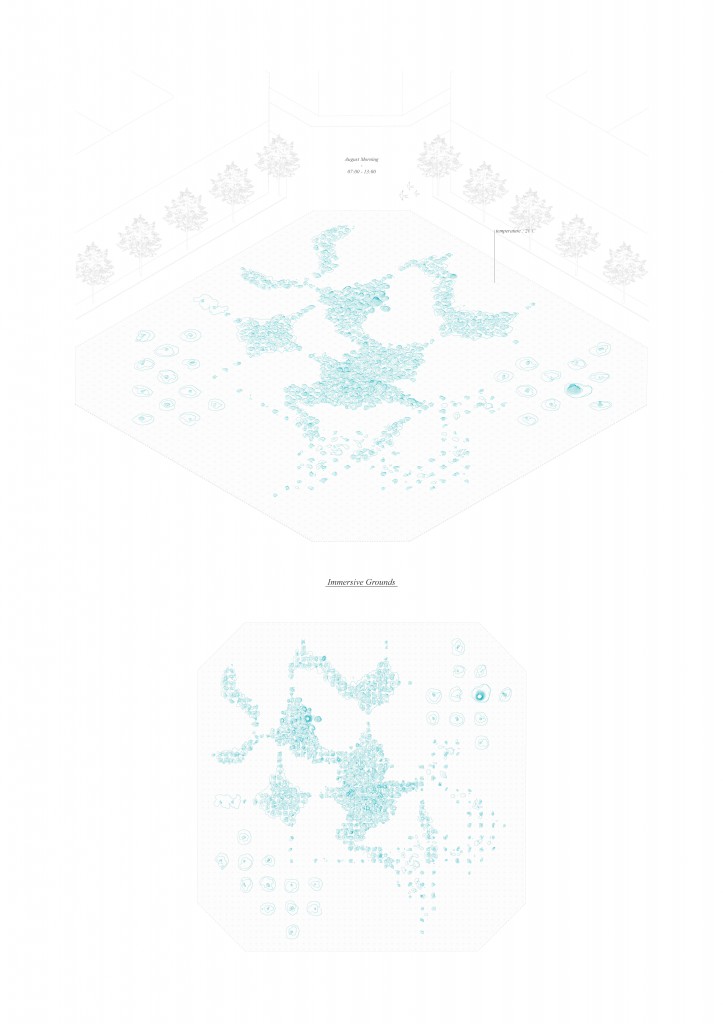

Atmosphera is located in one generic “manzana” of Barcelona for creating a garden of temperature fields. Solar analysis were done for the site, for each month of the year along with average morning, afternoon and night values. Then a grid of emitters were placed differing in density according to the solar analysis (during winter, colder areas will have emitters closely placed to each other).

IAAC_Asya Guney_Atmosphera_32

As a last step, various configurations were attained considering the required activity, interaction and climatic conditions.

IAAC_Asya Guney_Atmosphera_33

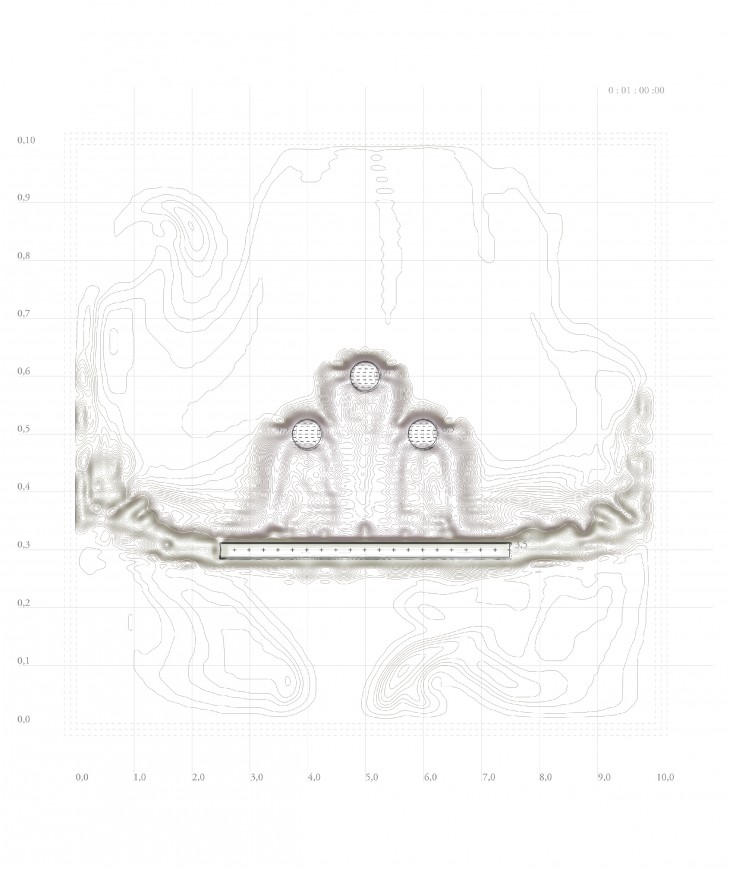

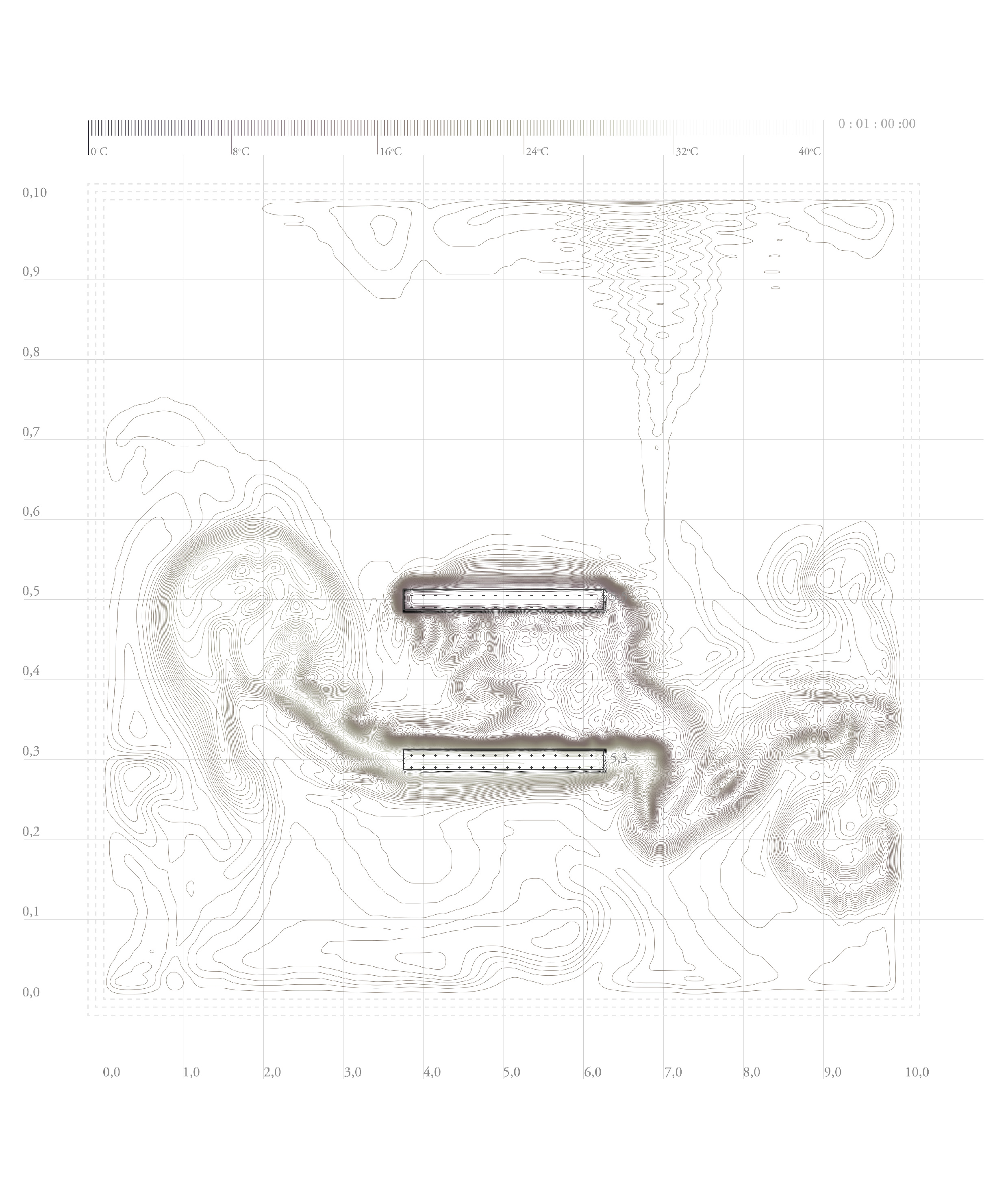

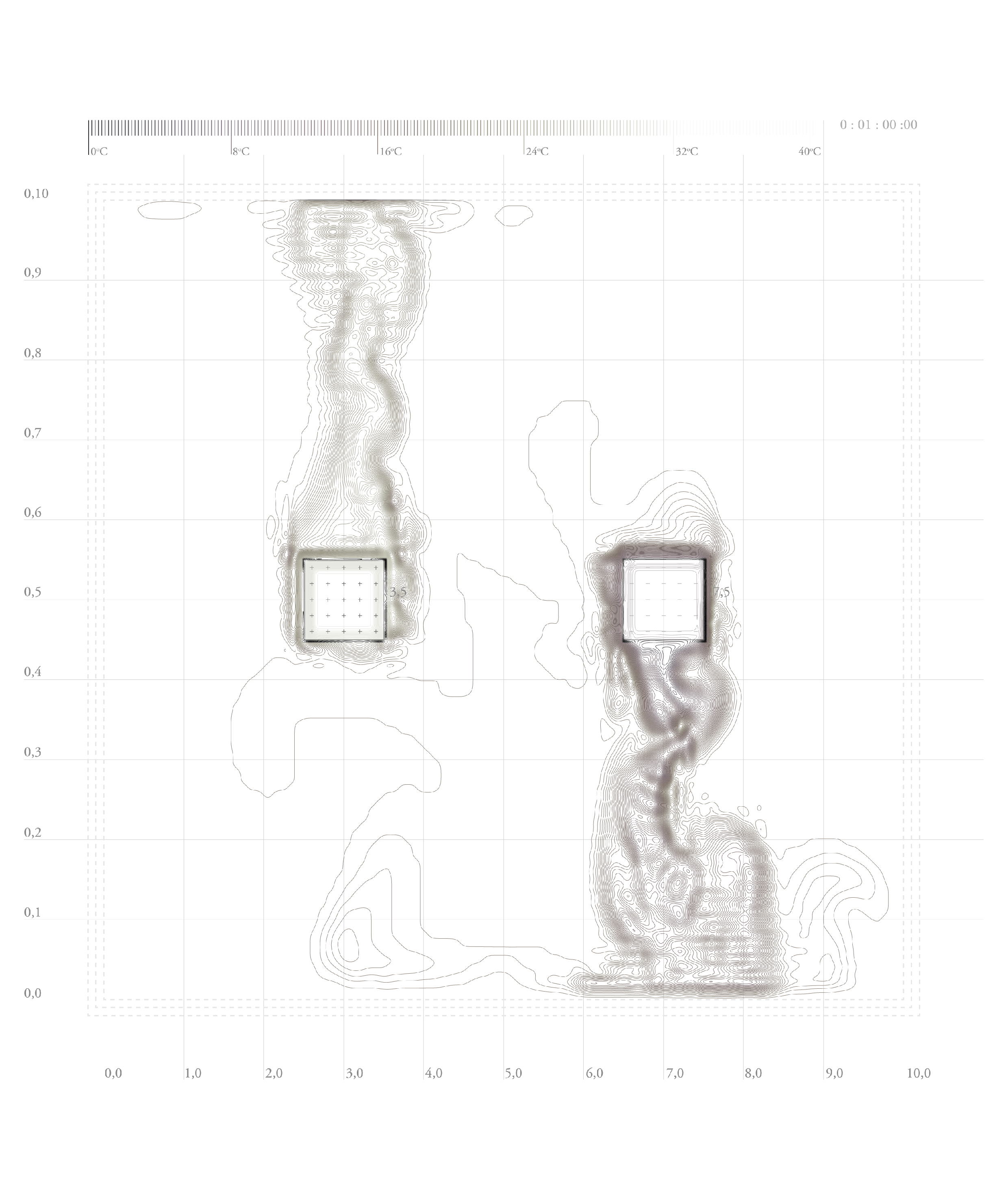

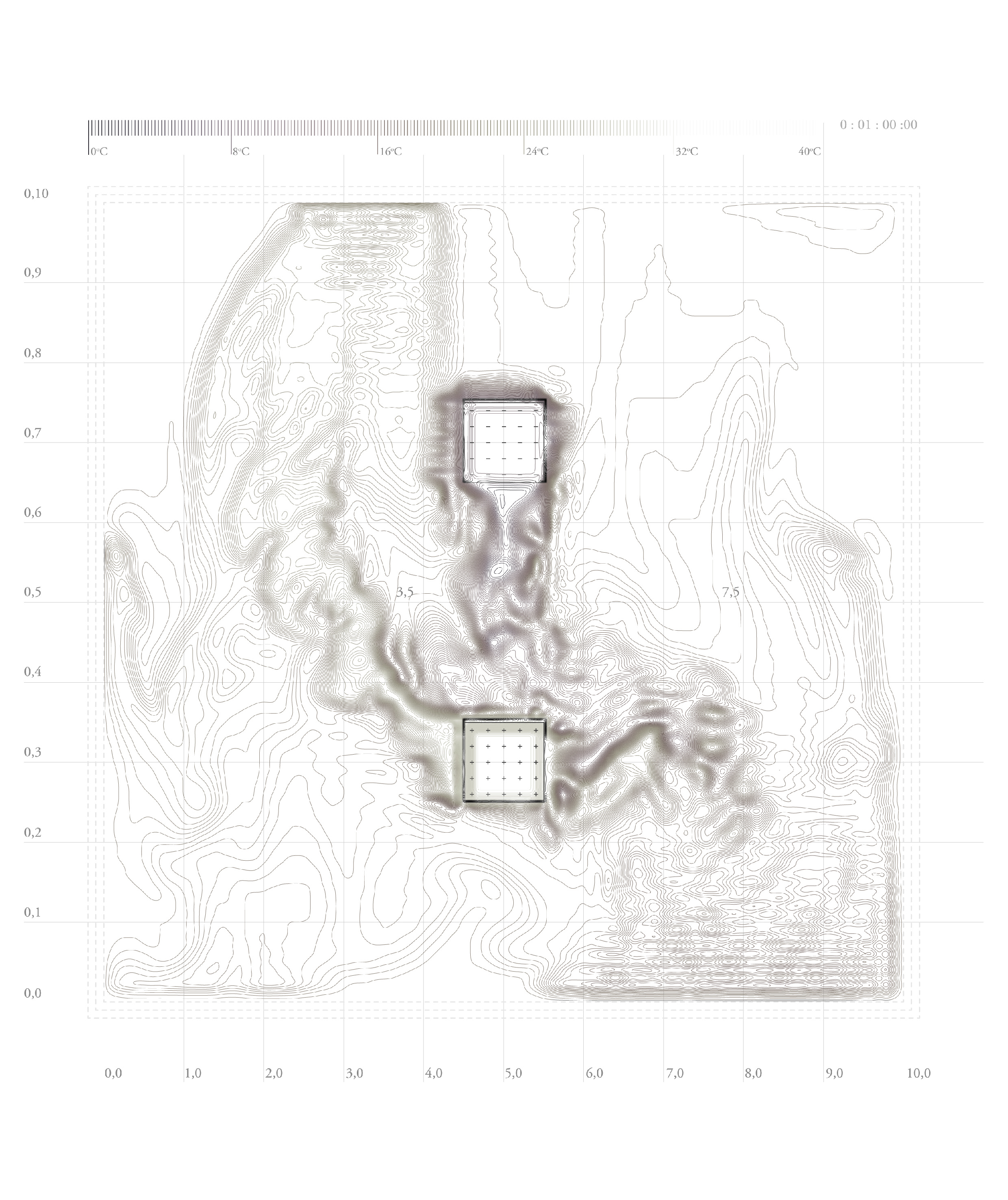

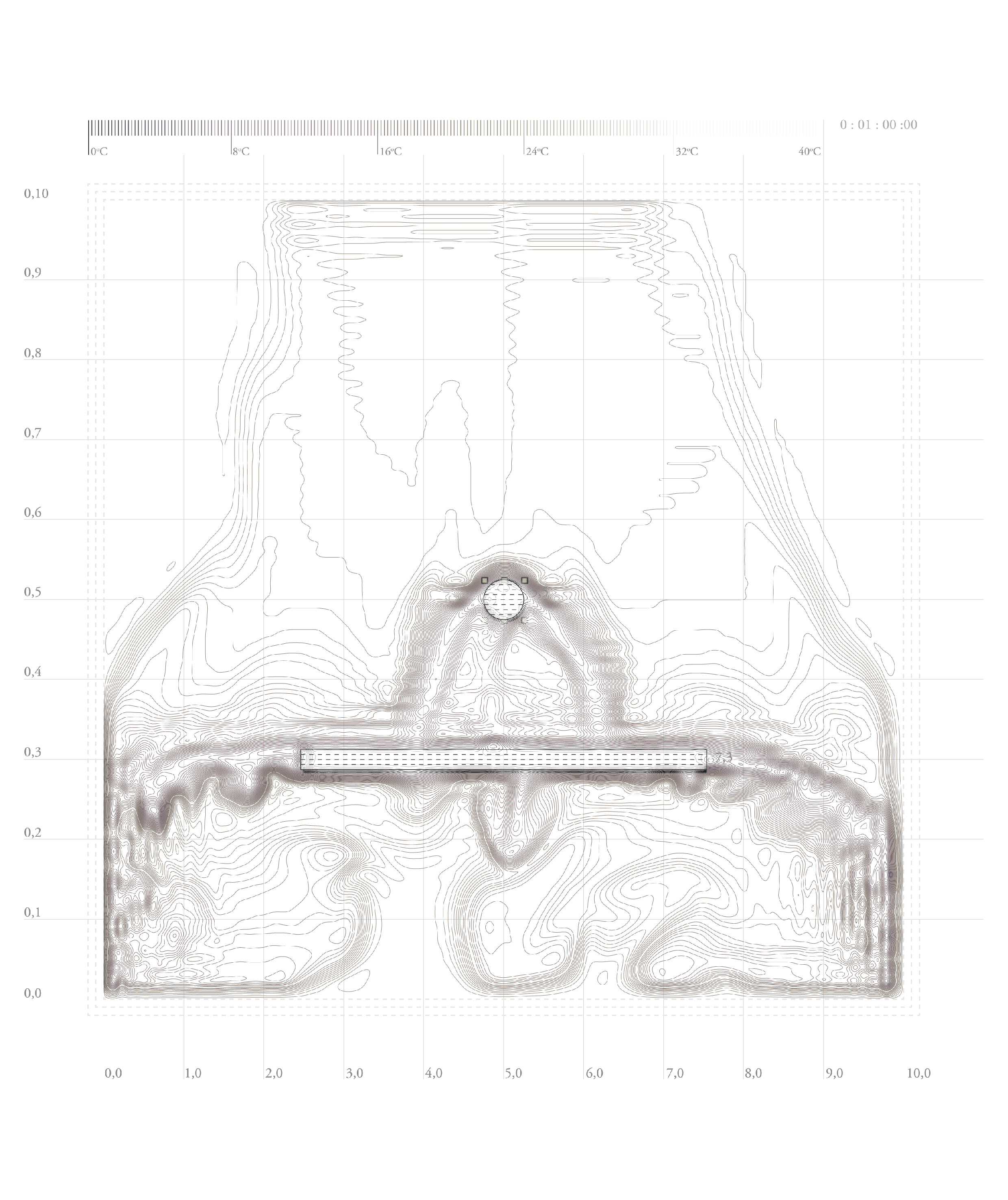

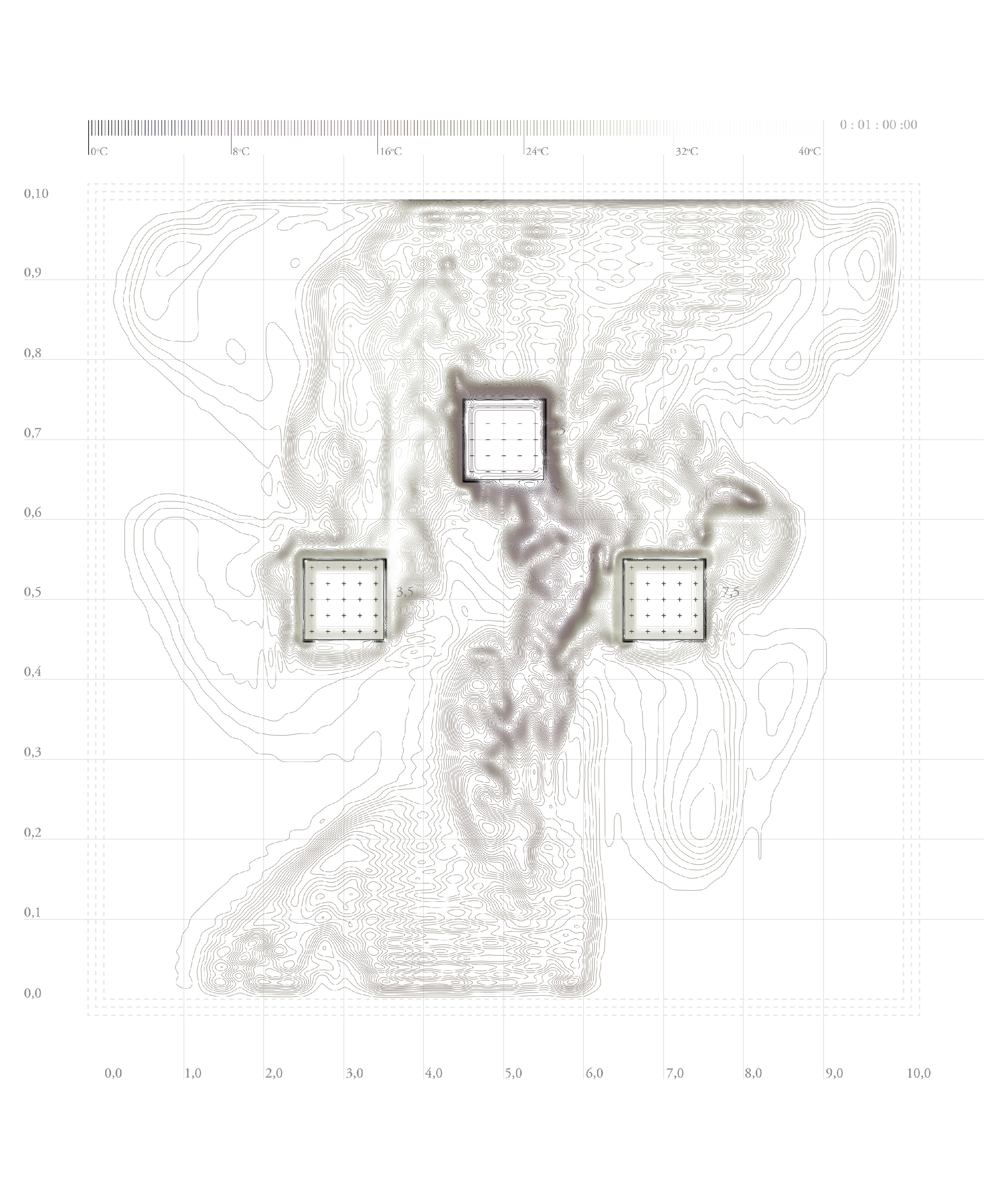

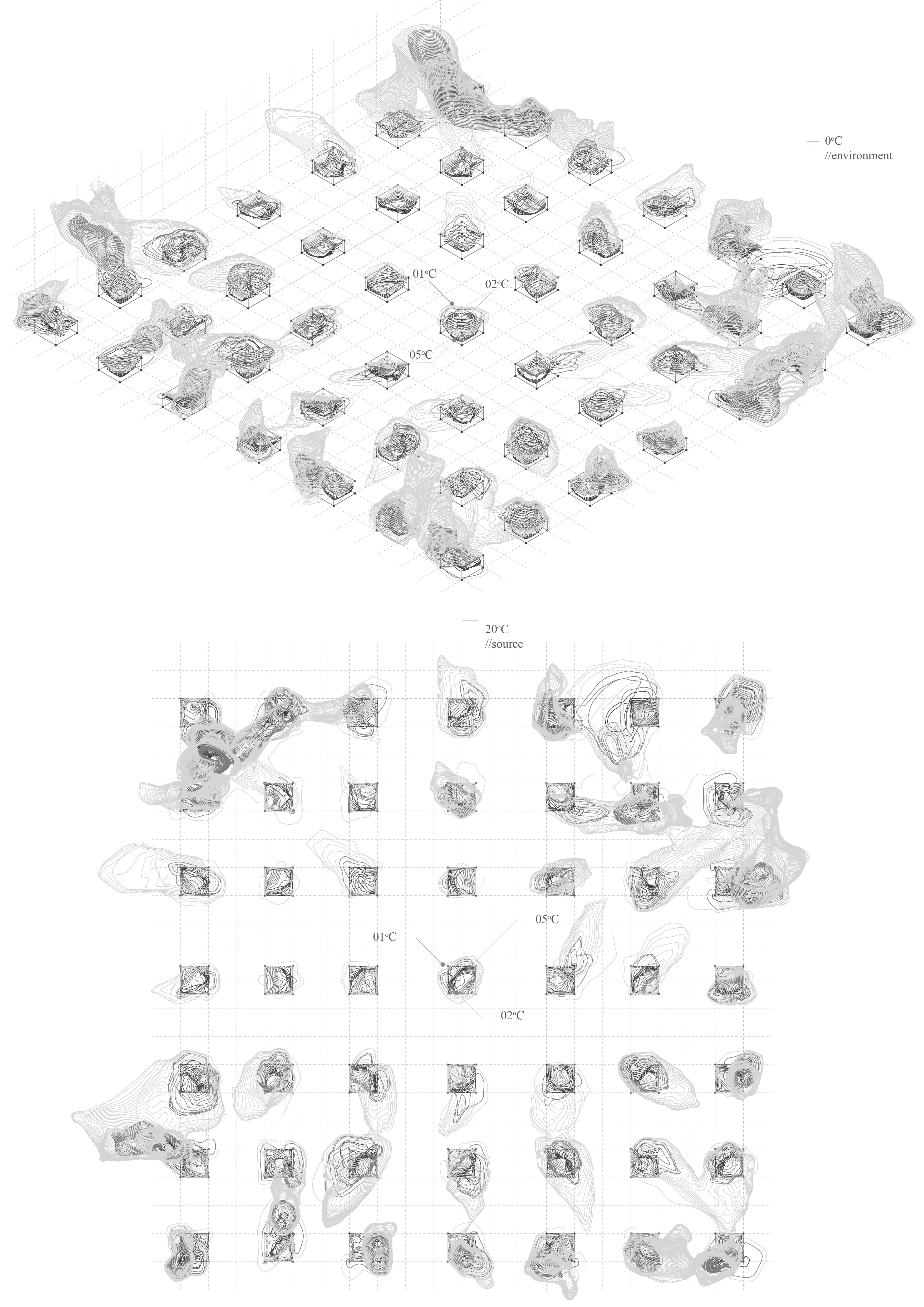

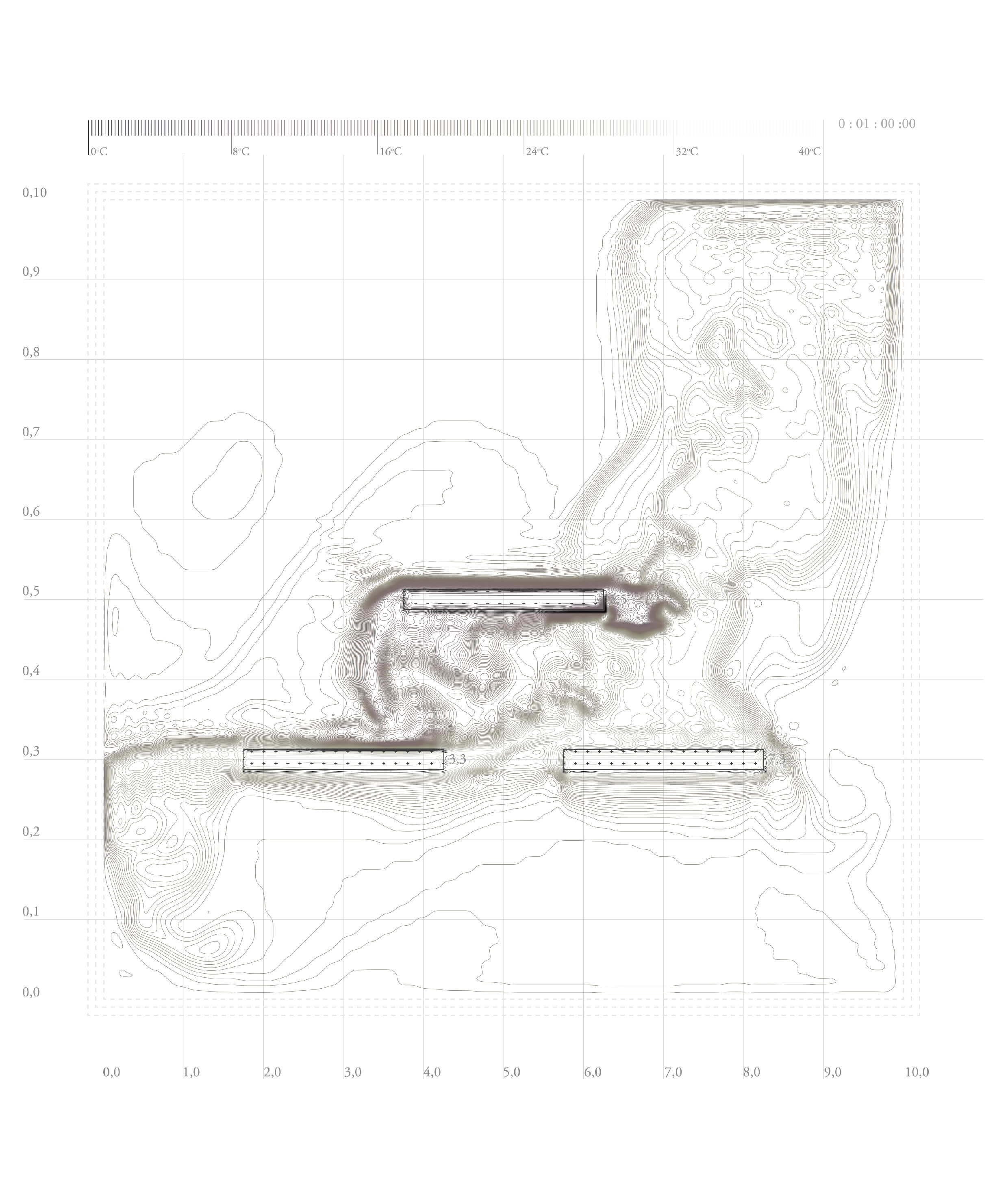

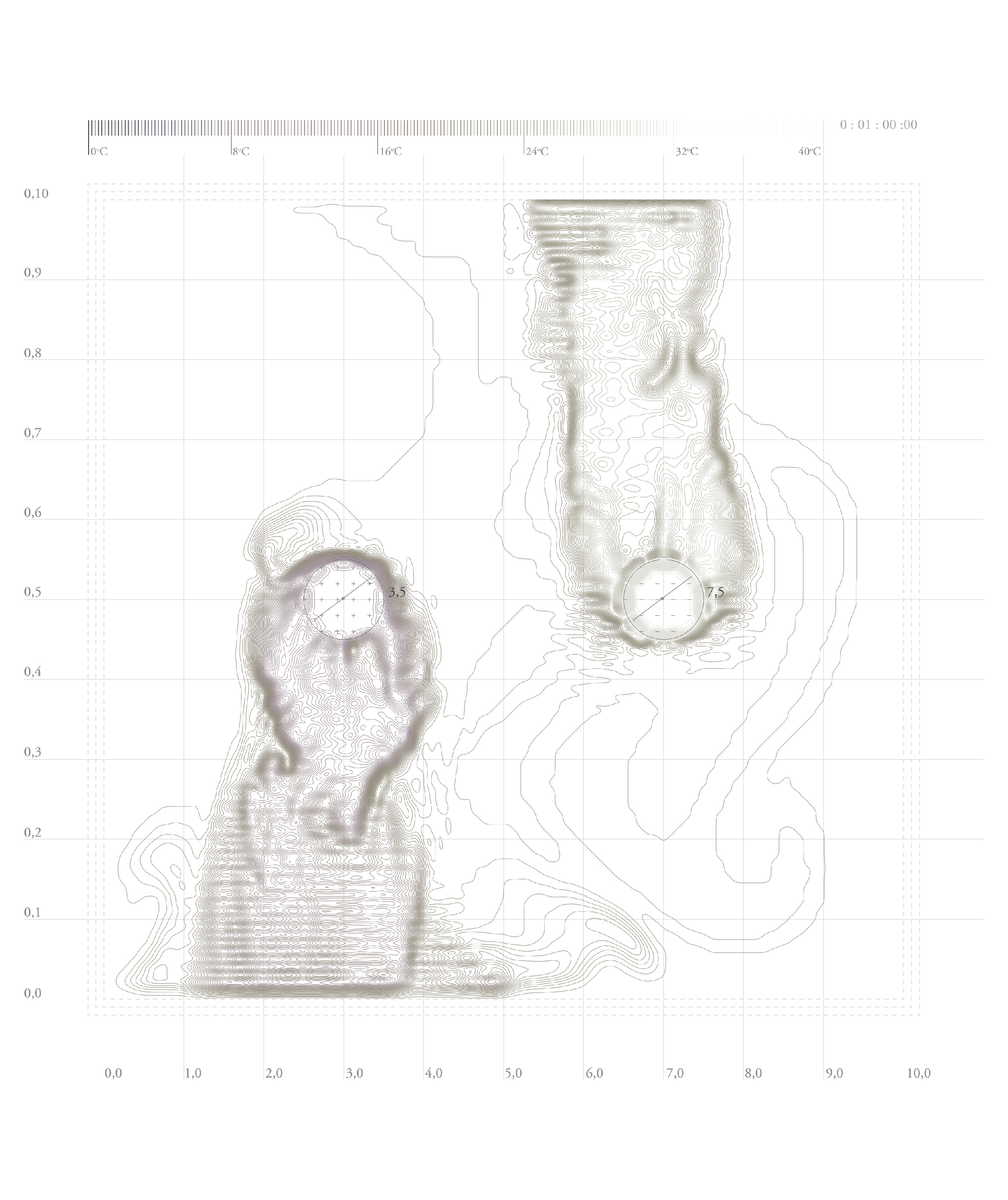

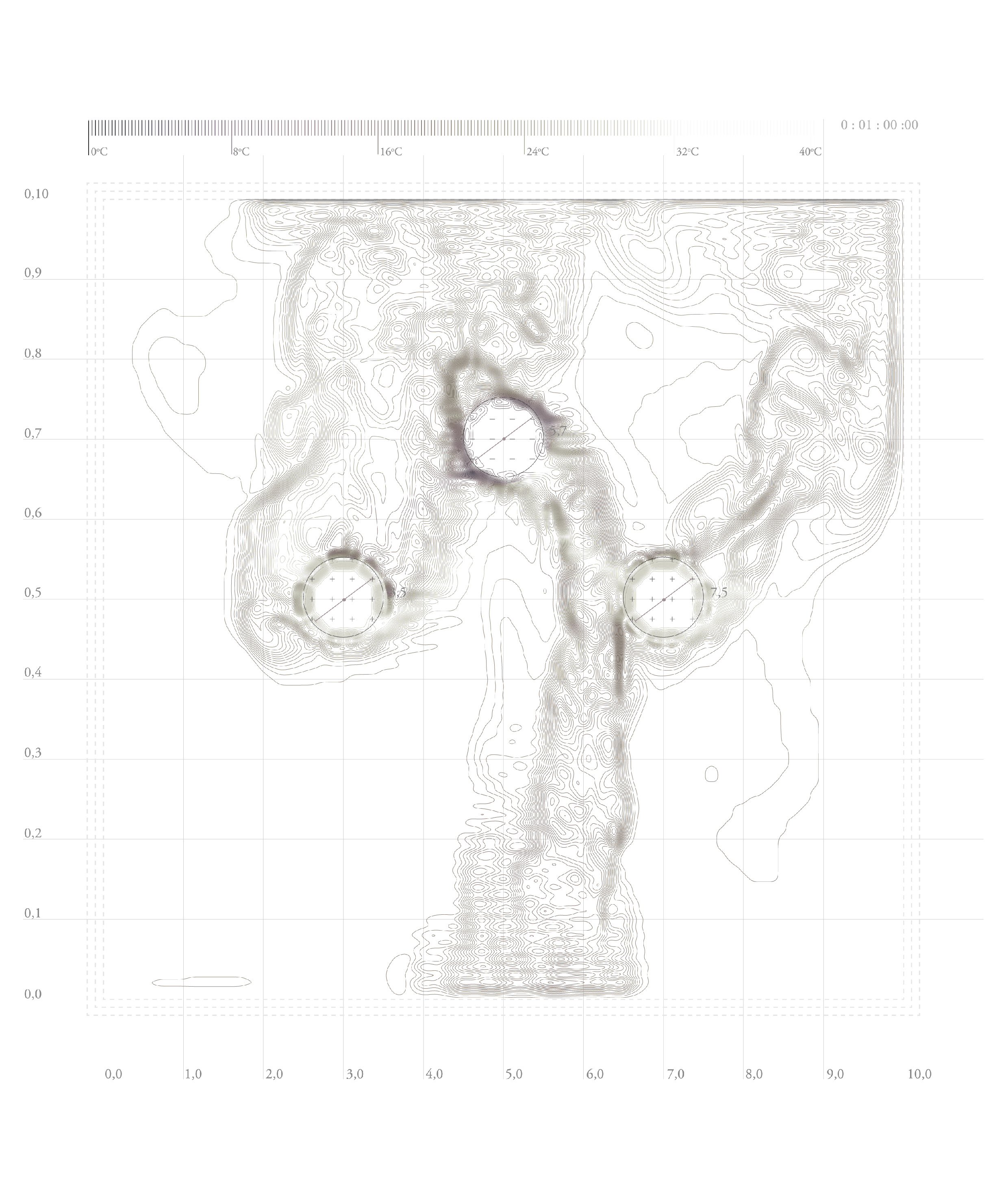

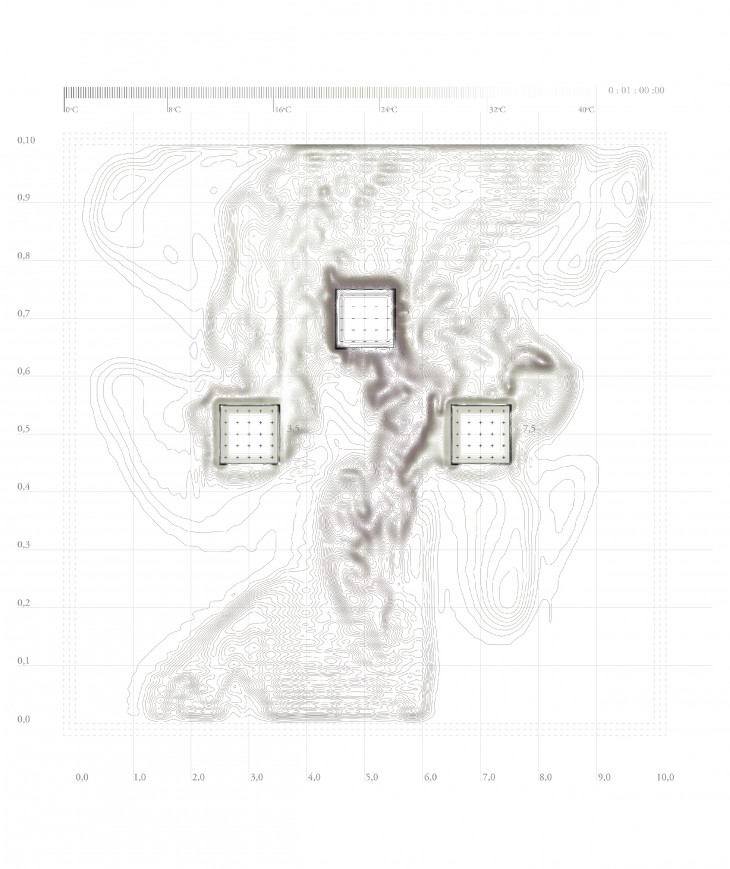

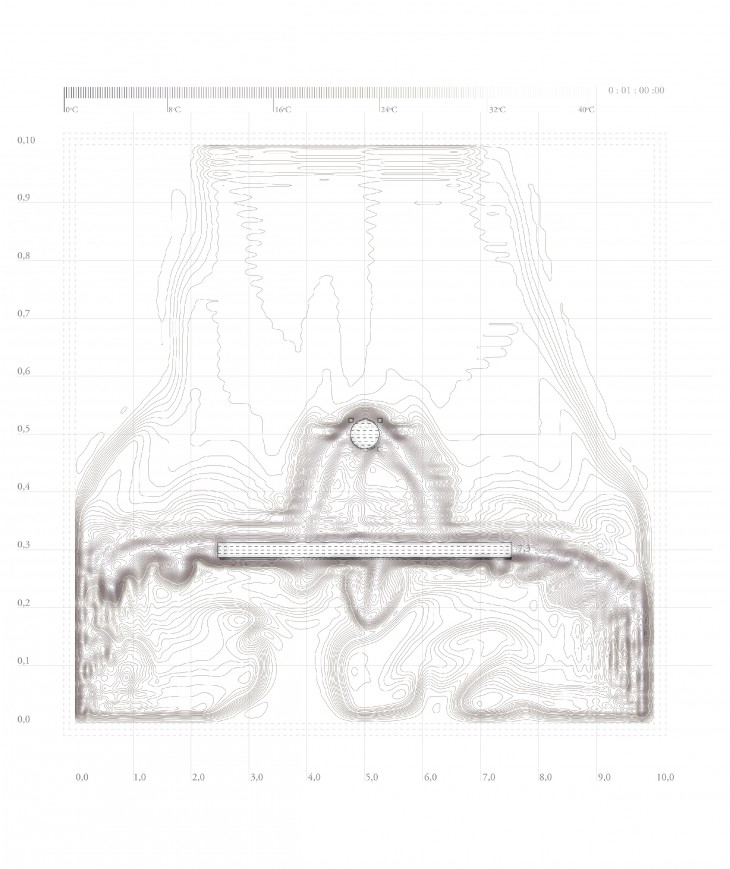

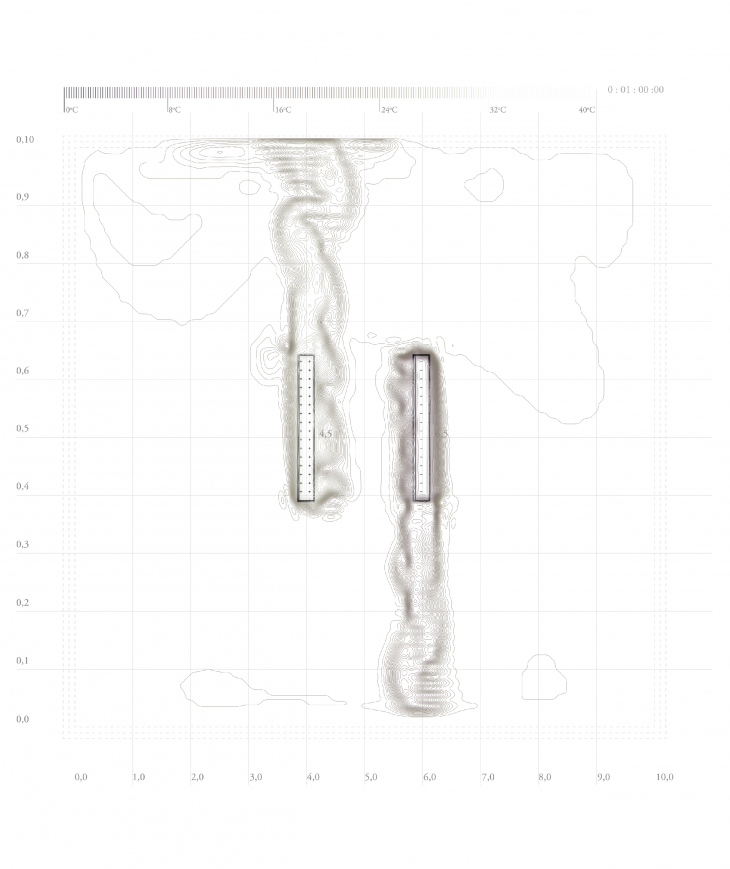

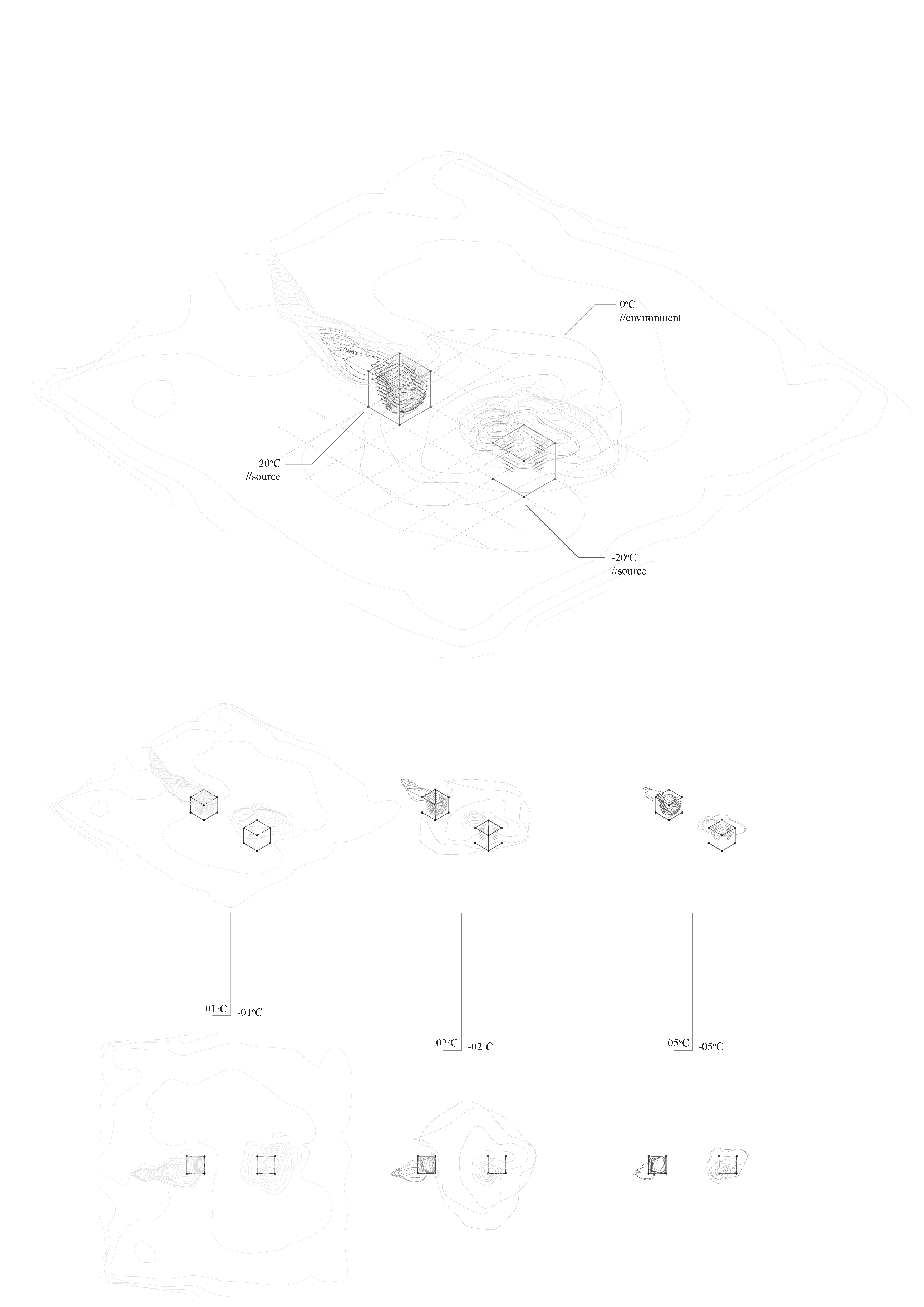

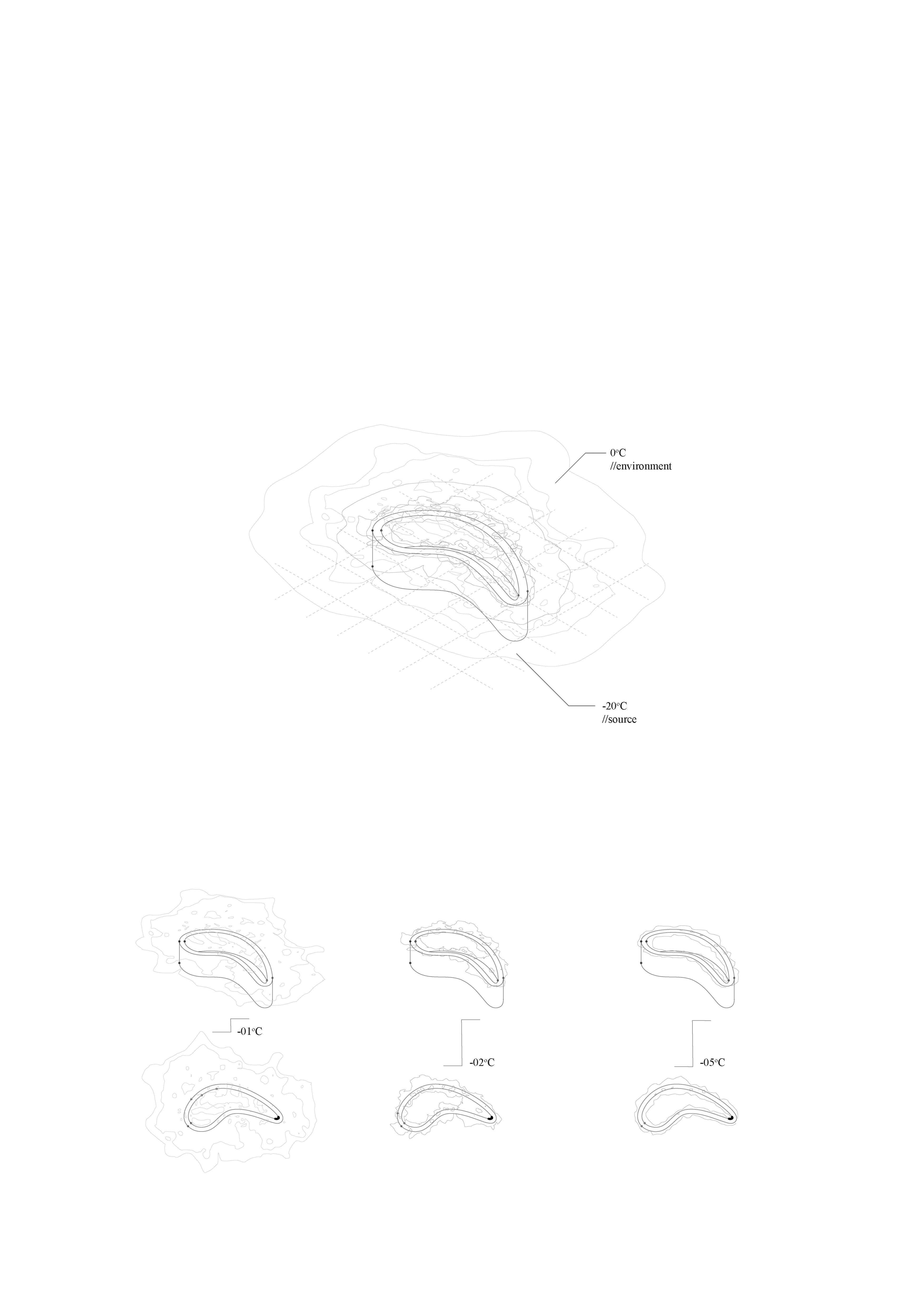

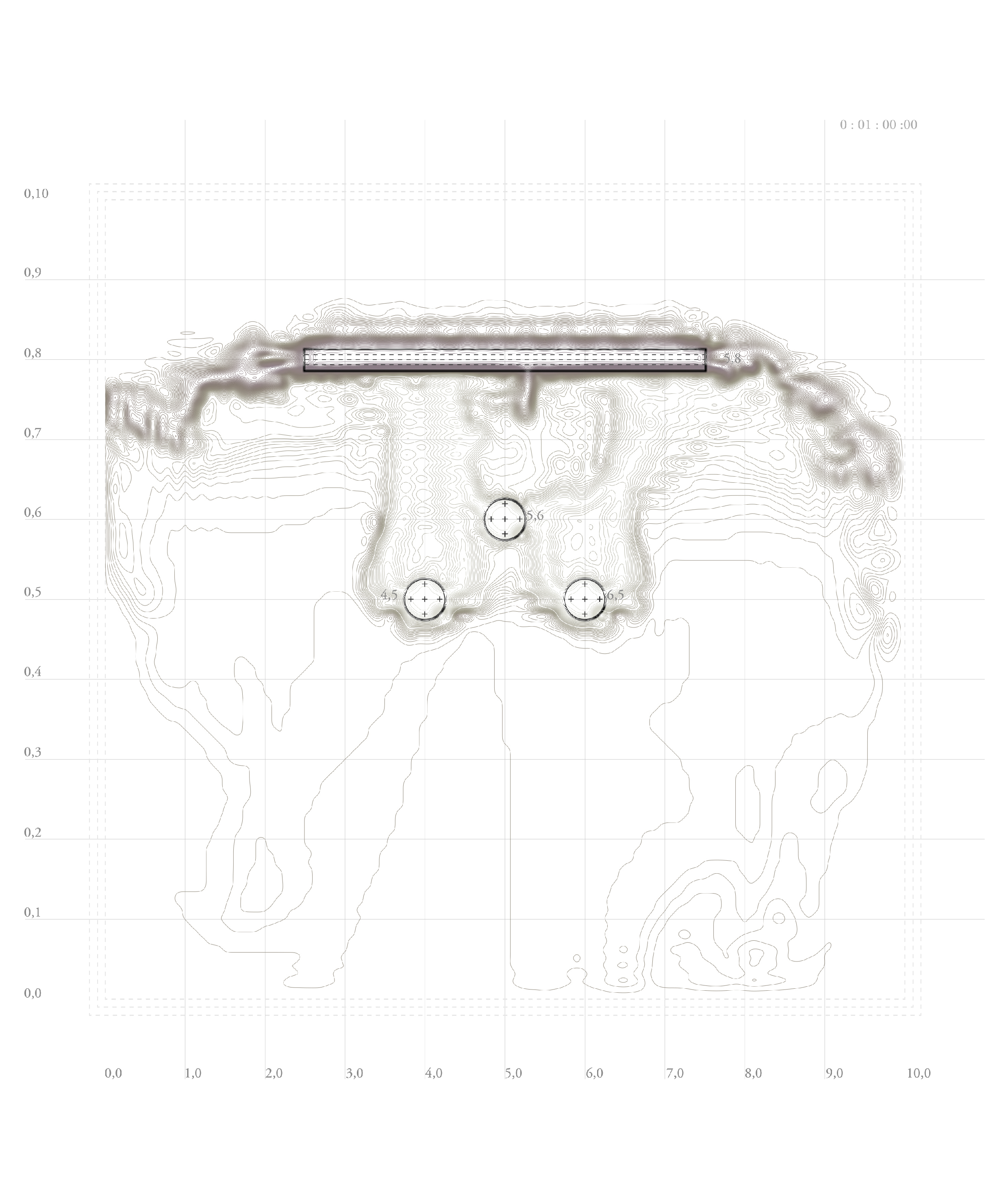

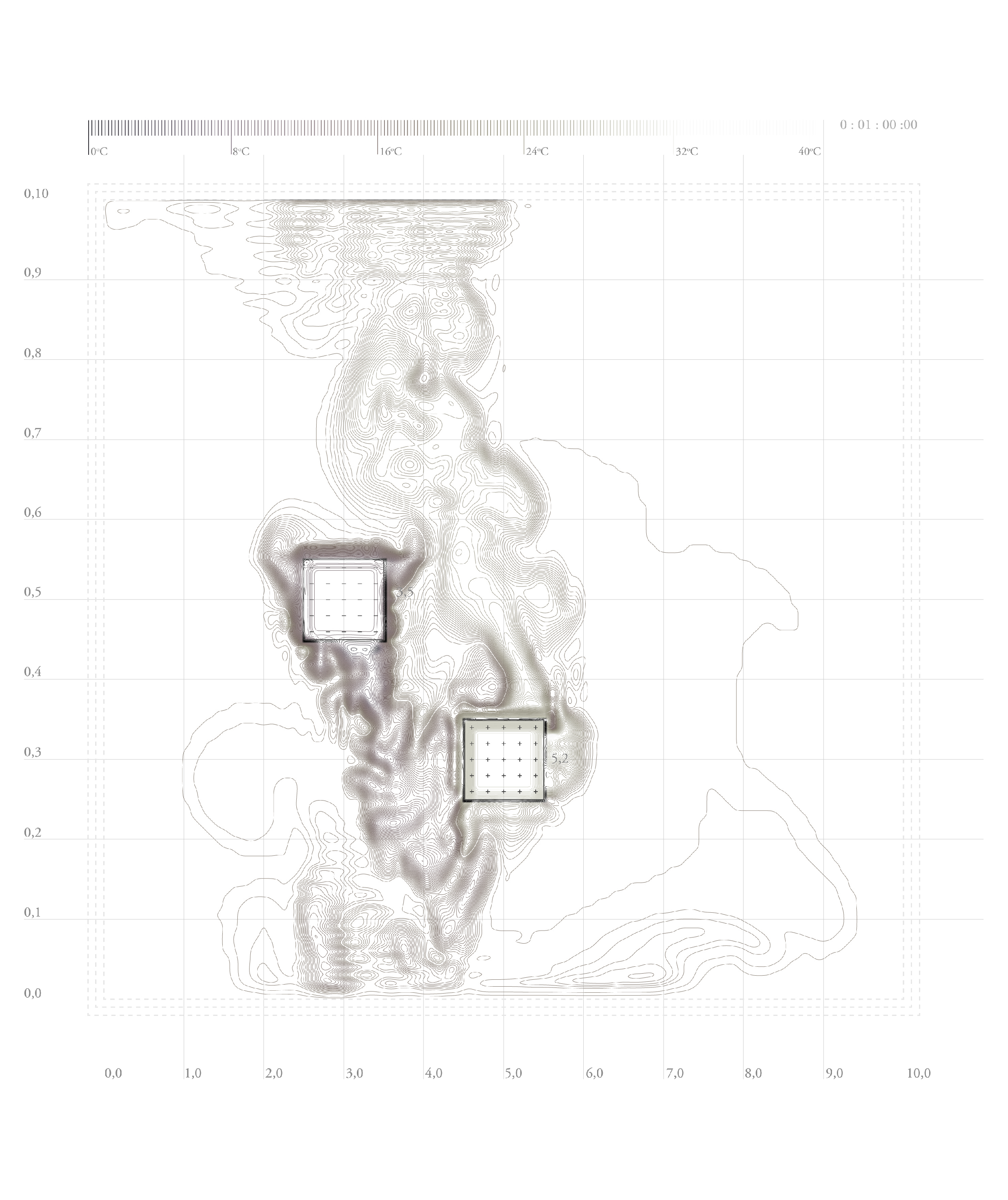

A computational fluid dynamic software (Autodesk CFD) was used to simulate the convection between heat sources and its surrounding. Various tests were done in order to analyse the behaviour and form of the air in specific temperature. First the simulations were carried out in closed systems without any exterior input. Analysis were done in 2D level. Parameters in these simulations were the shape of the heat source, temperature of the heat source, number of the heat source, and its location relative to other heat sources.

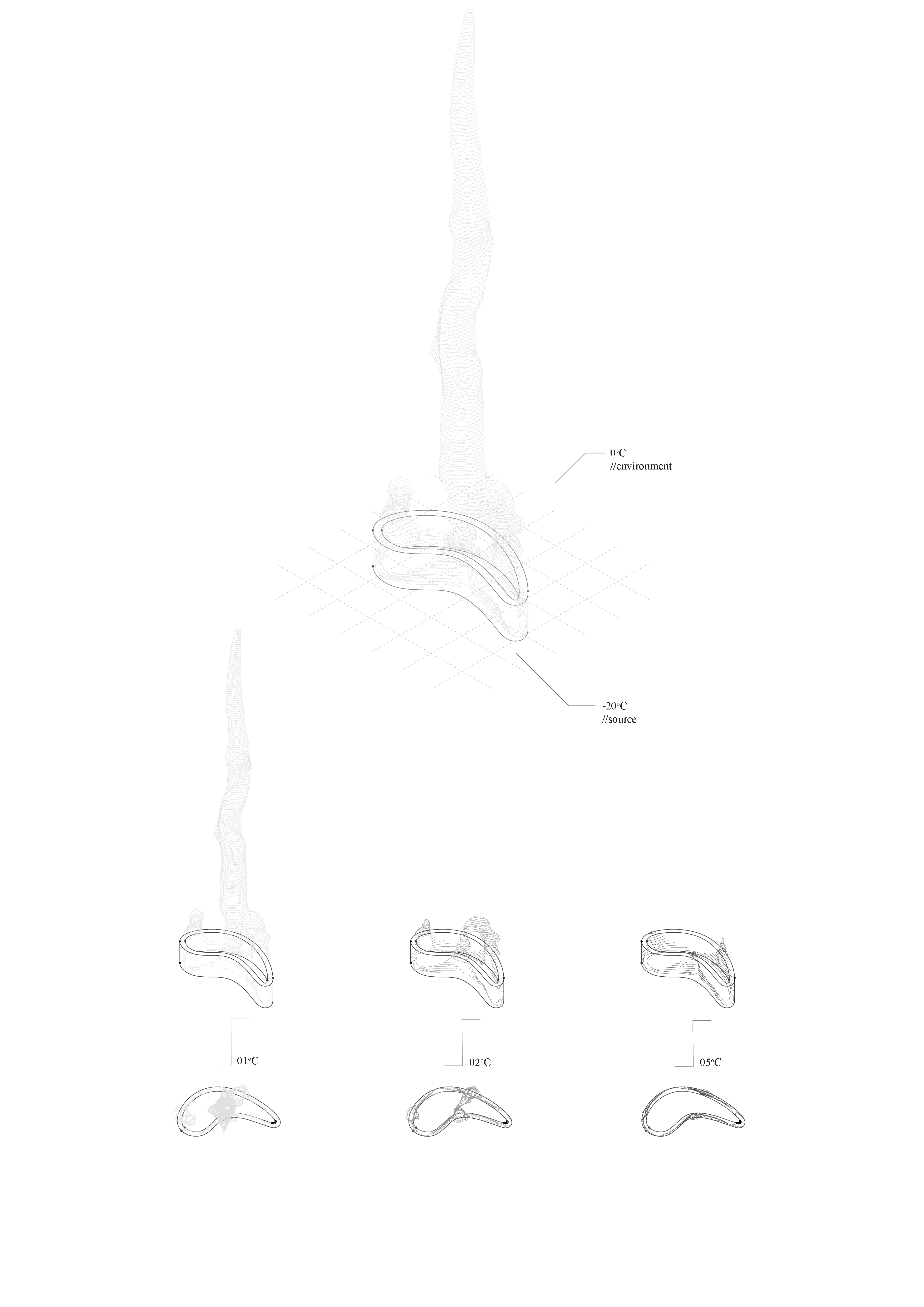

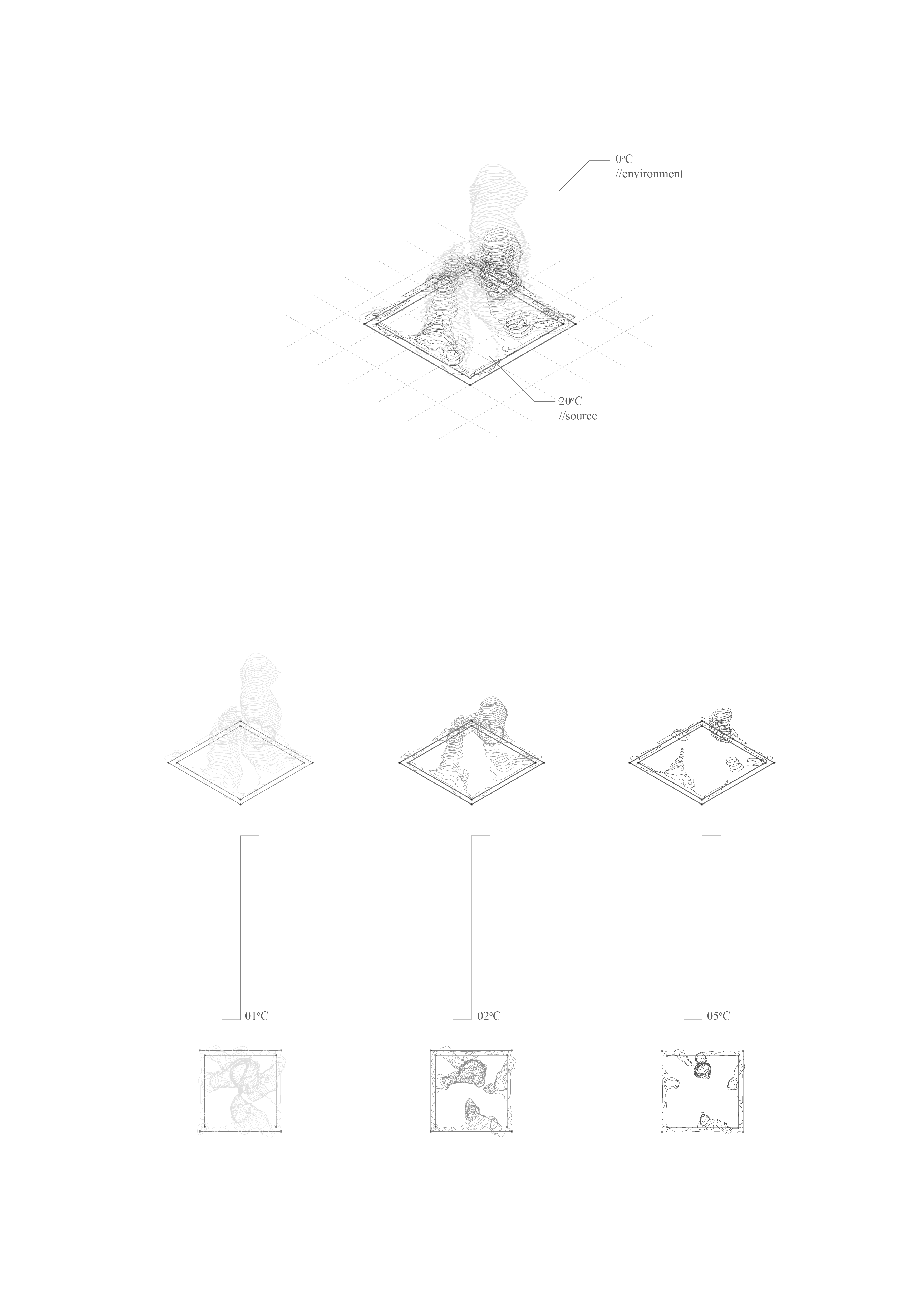

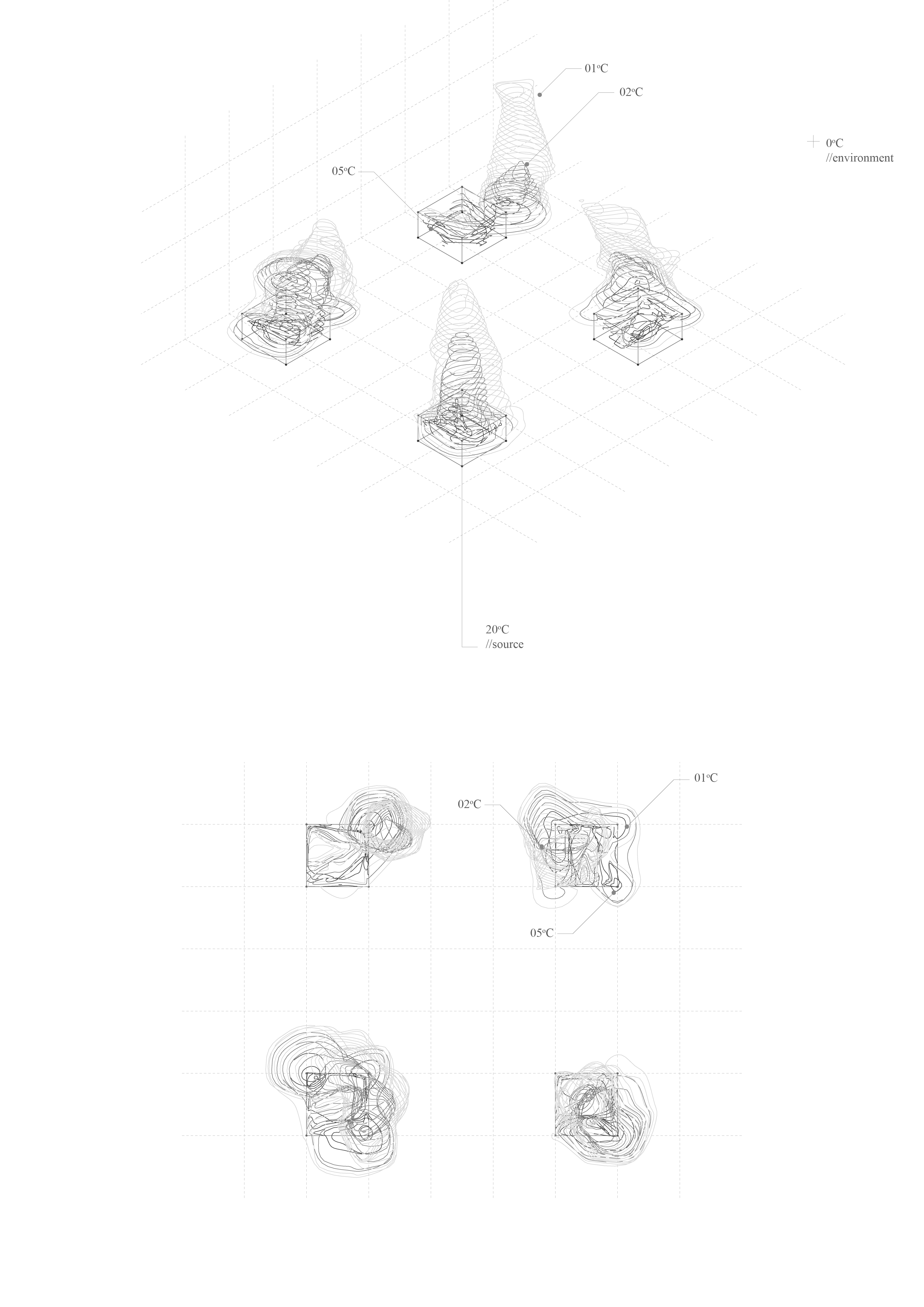

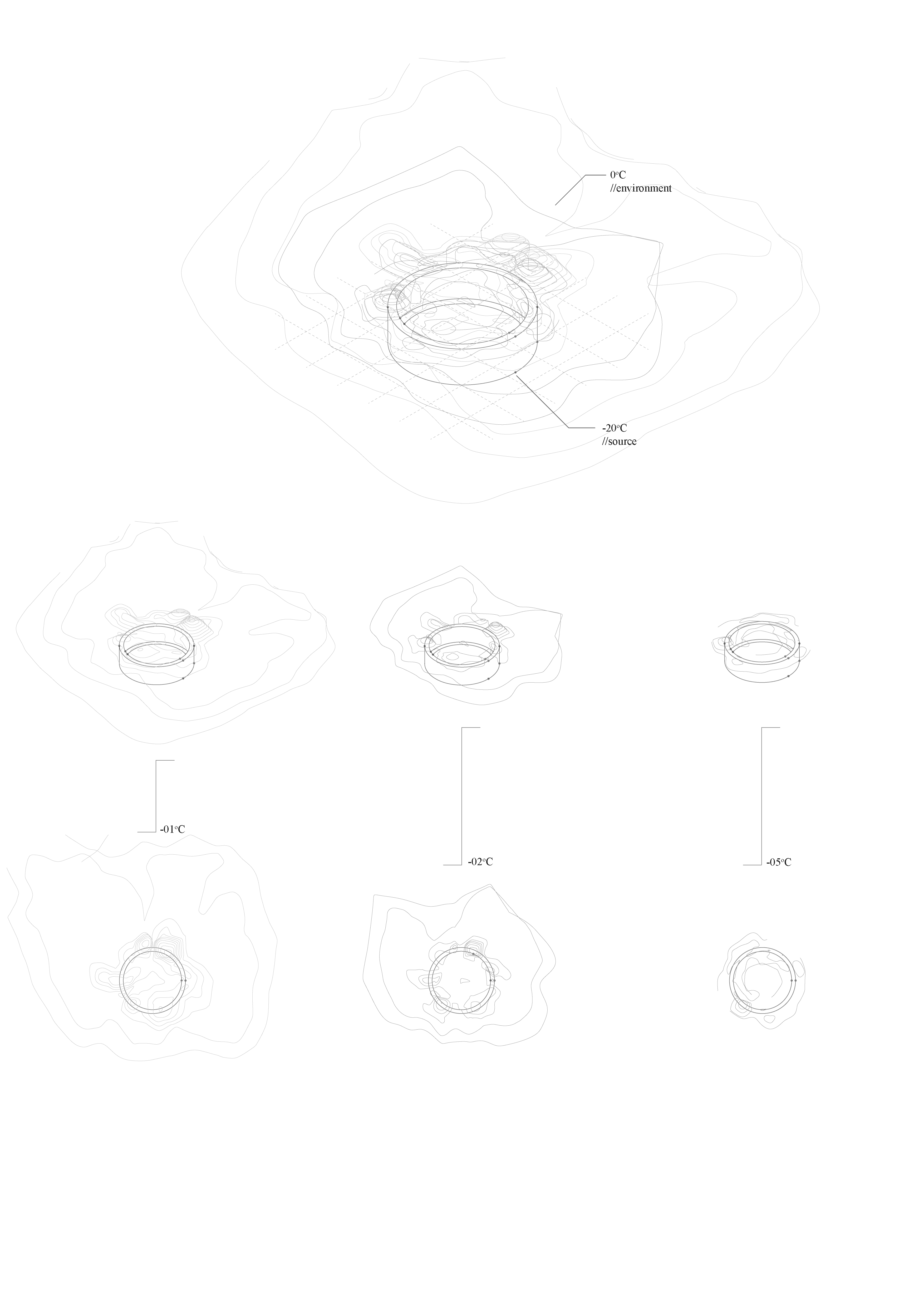

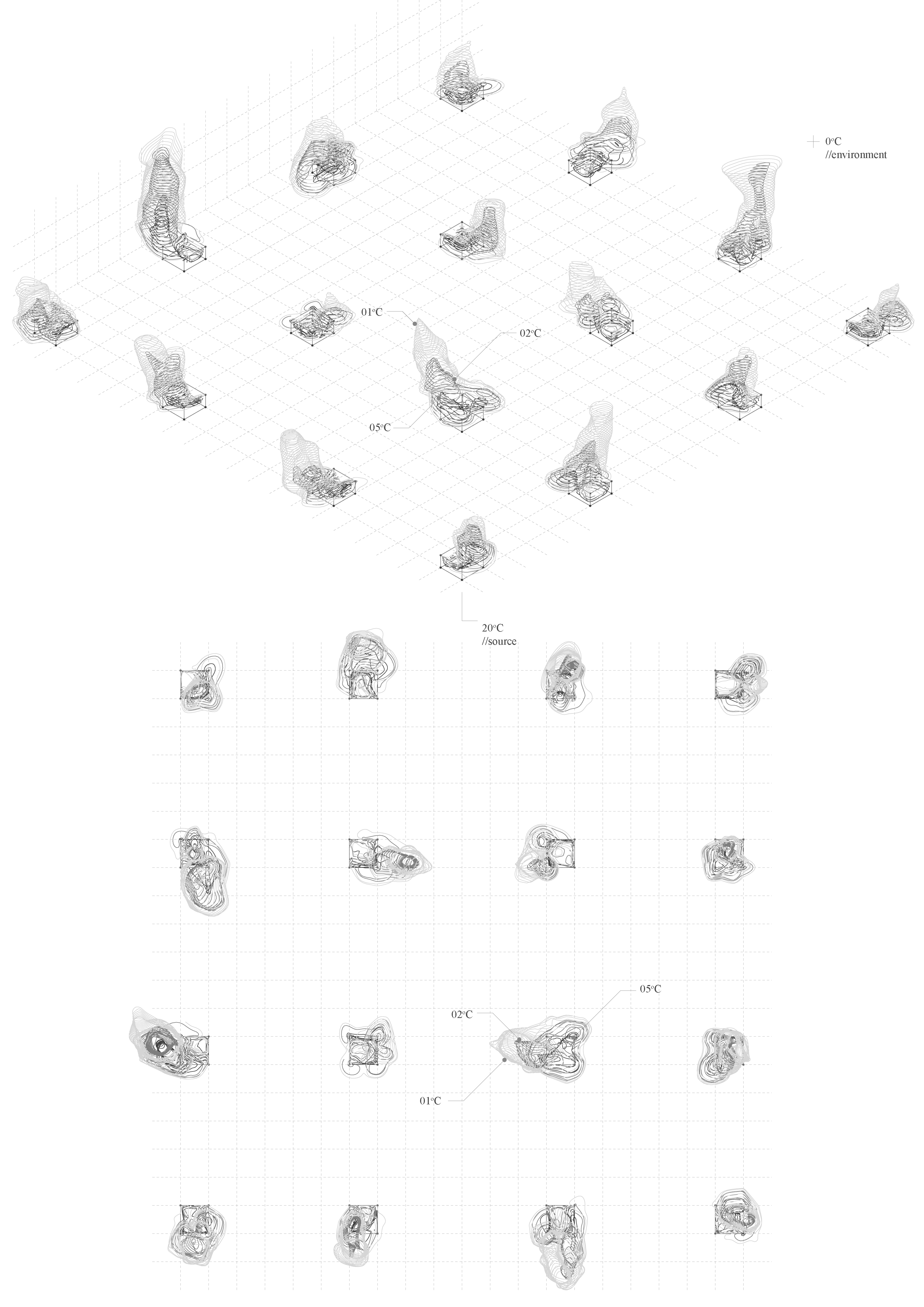

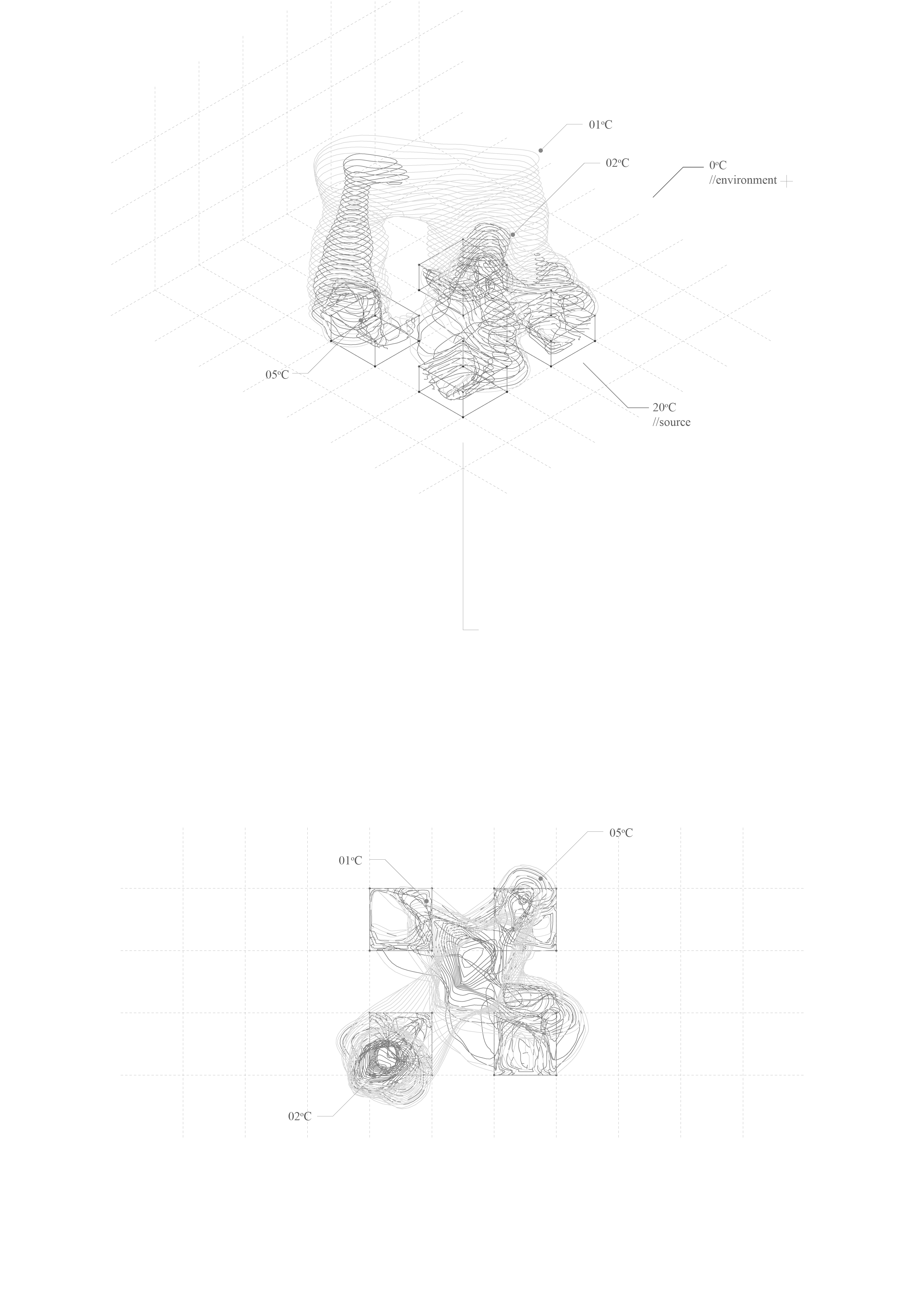

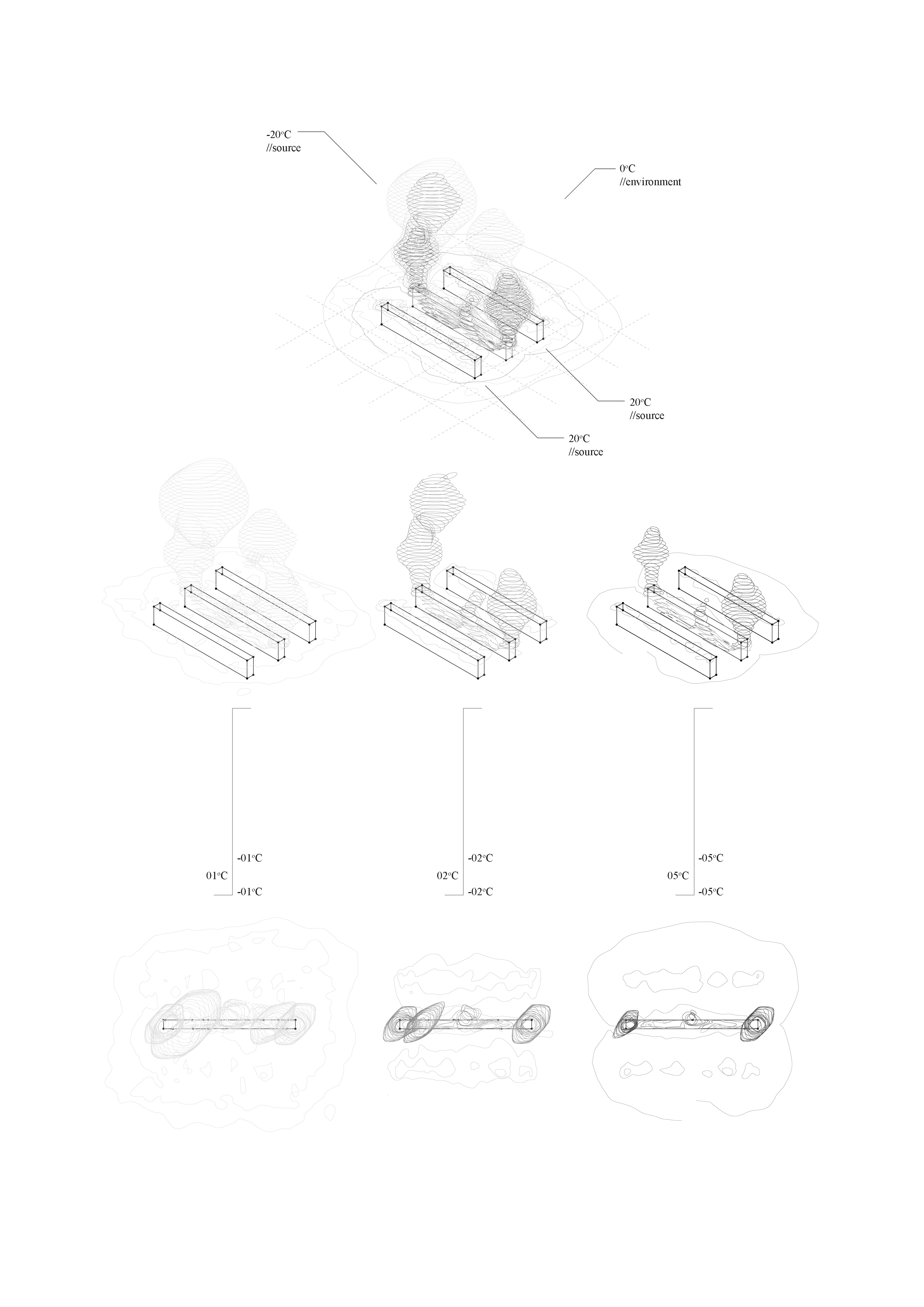

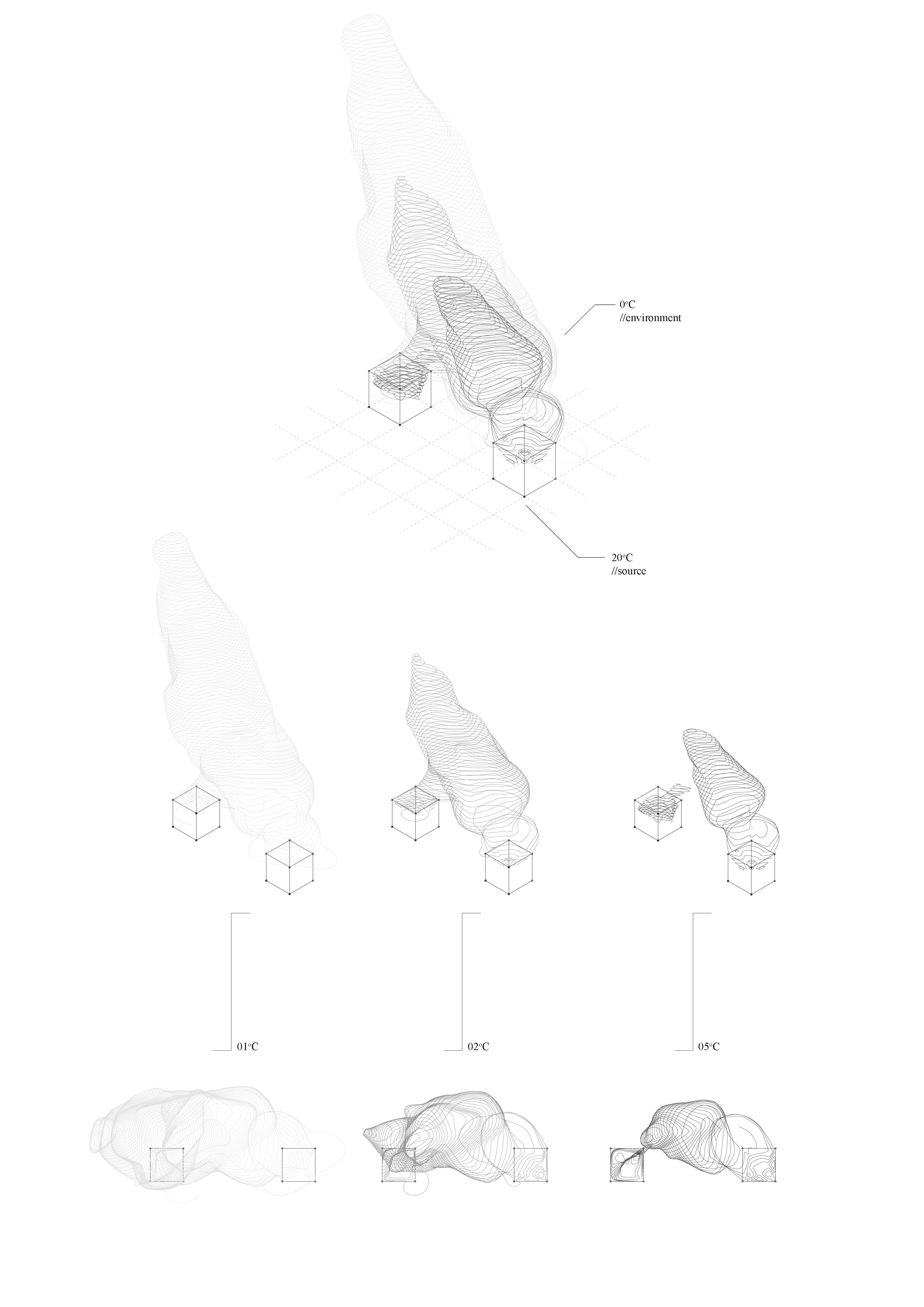

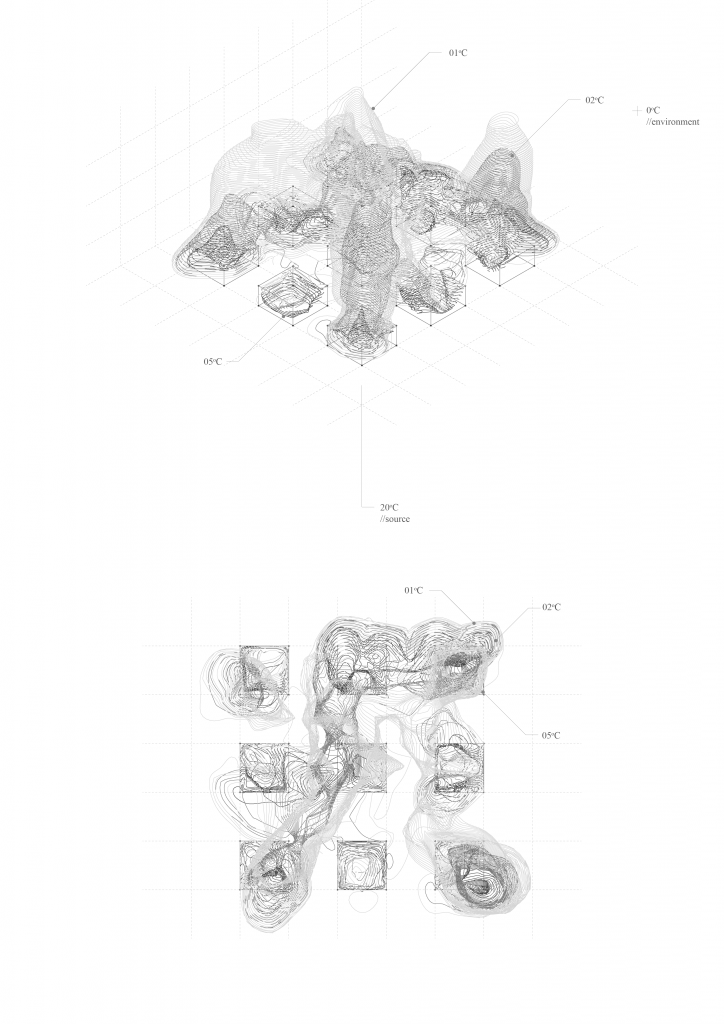

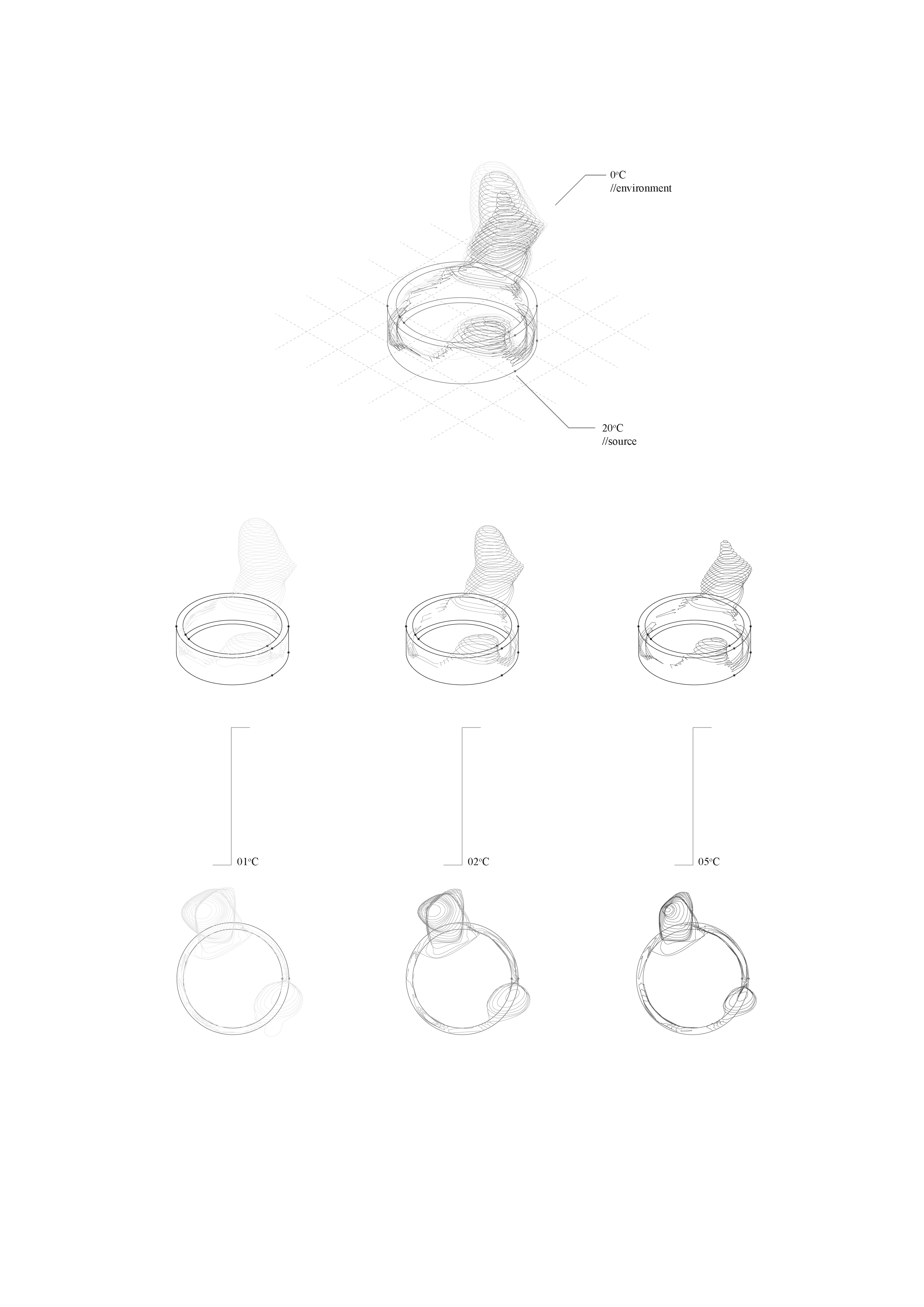

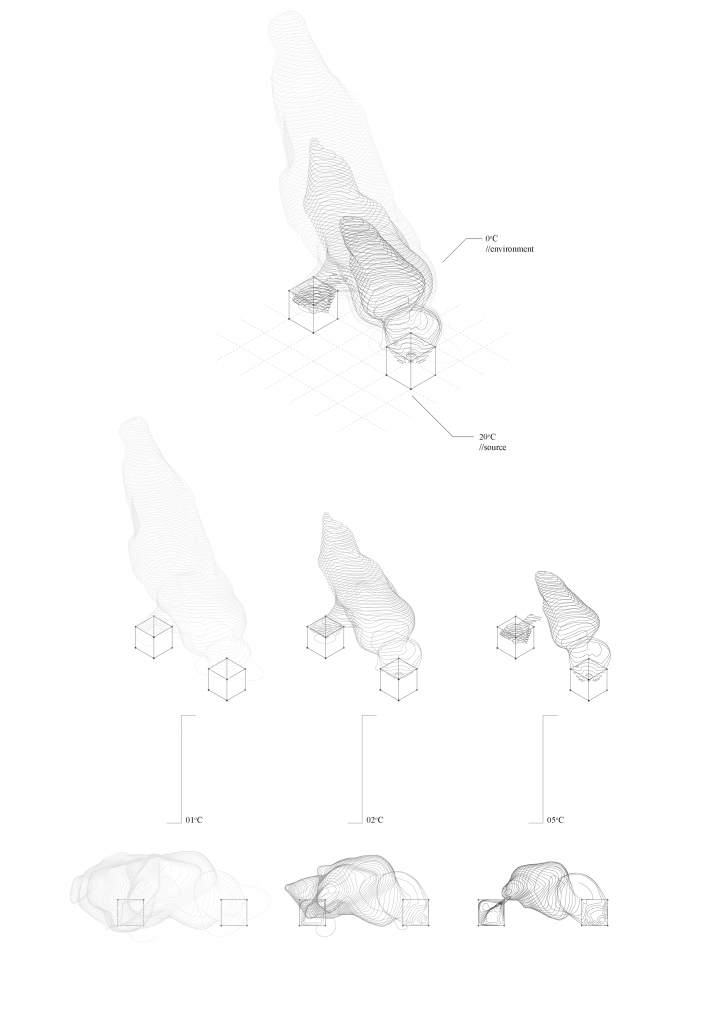

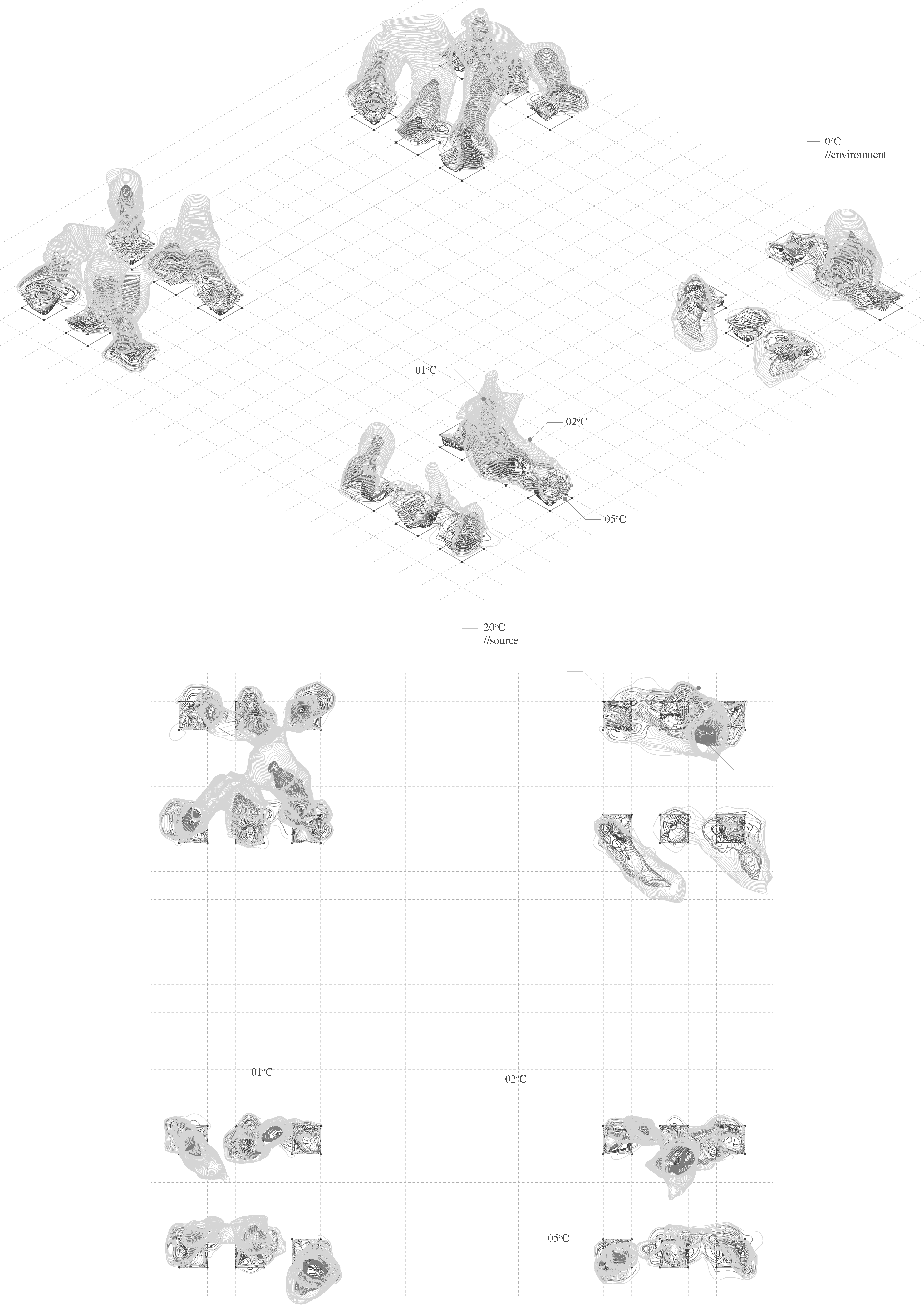

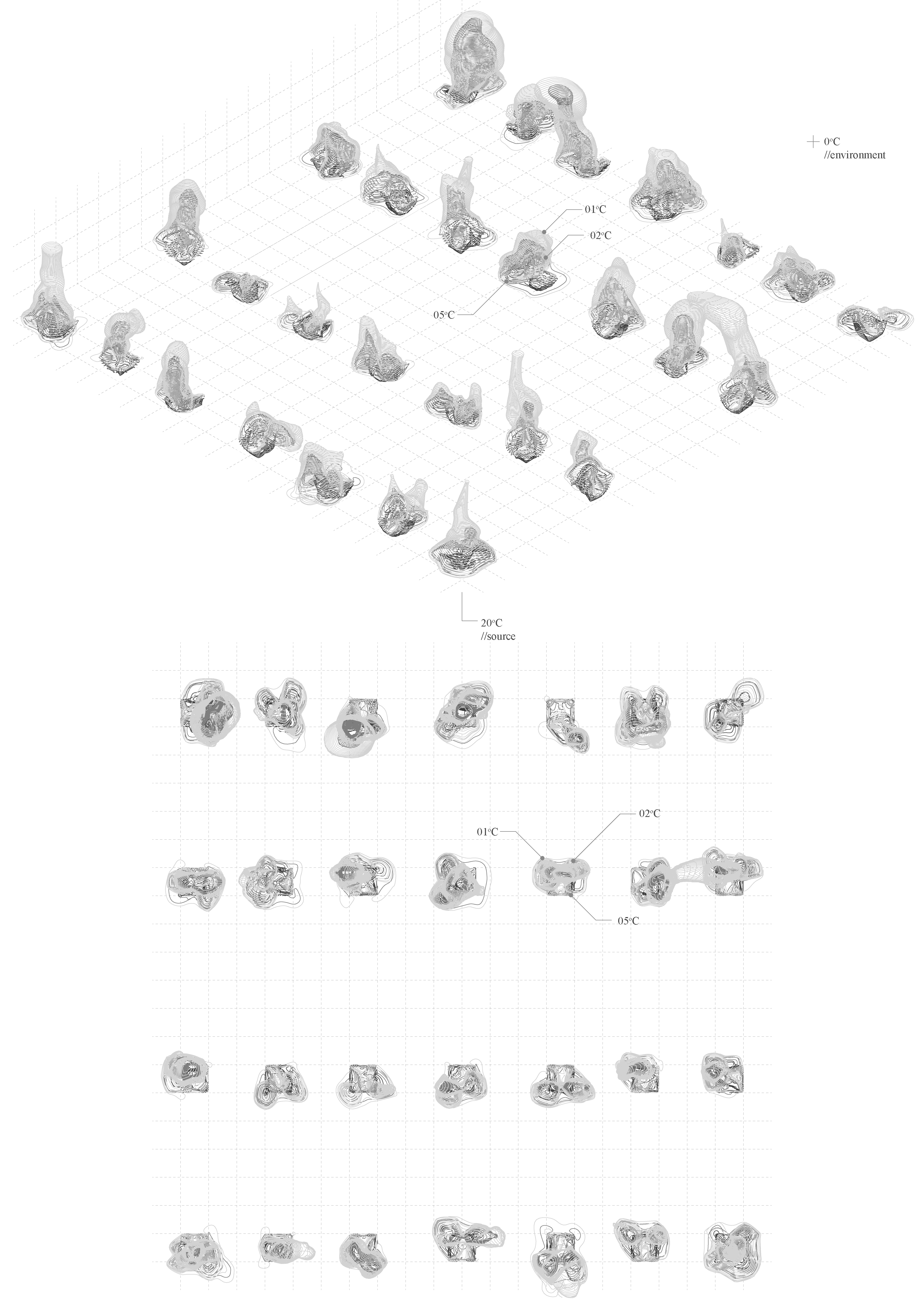

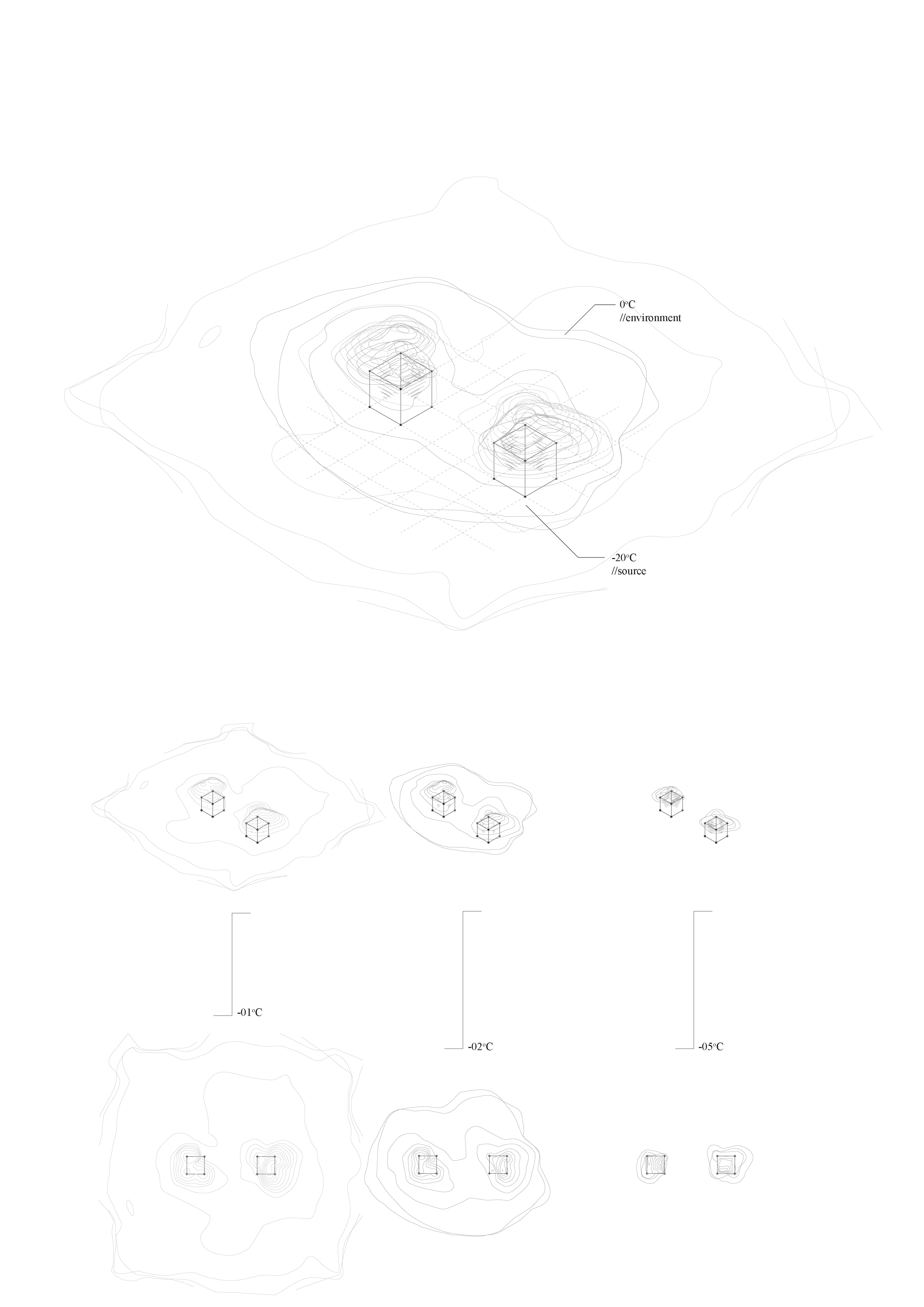

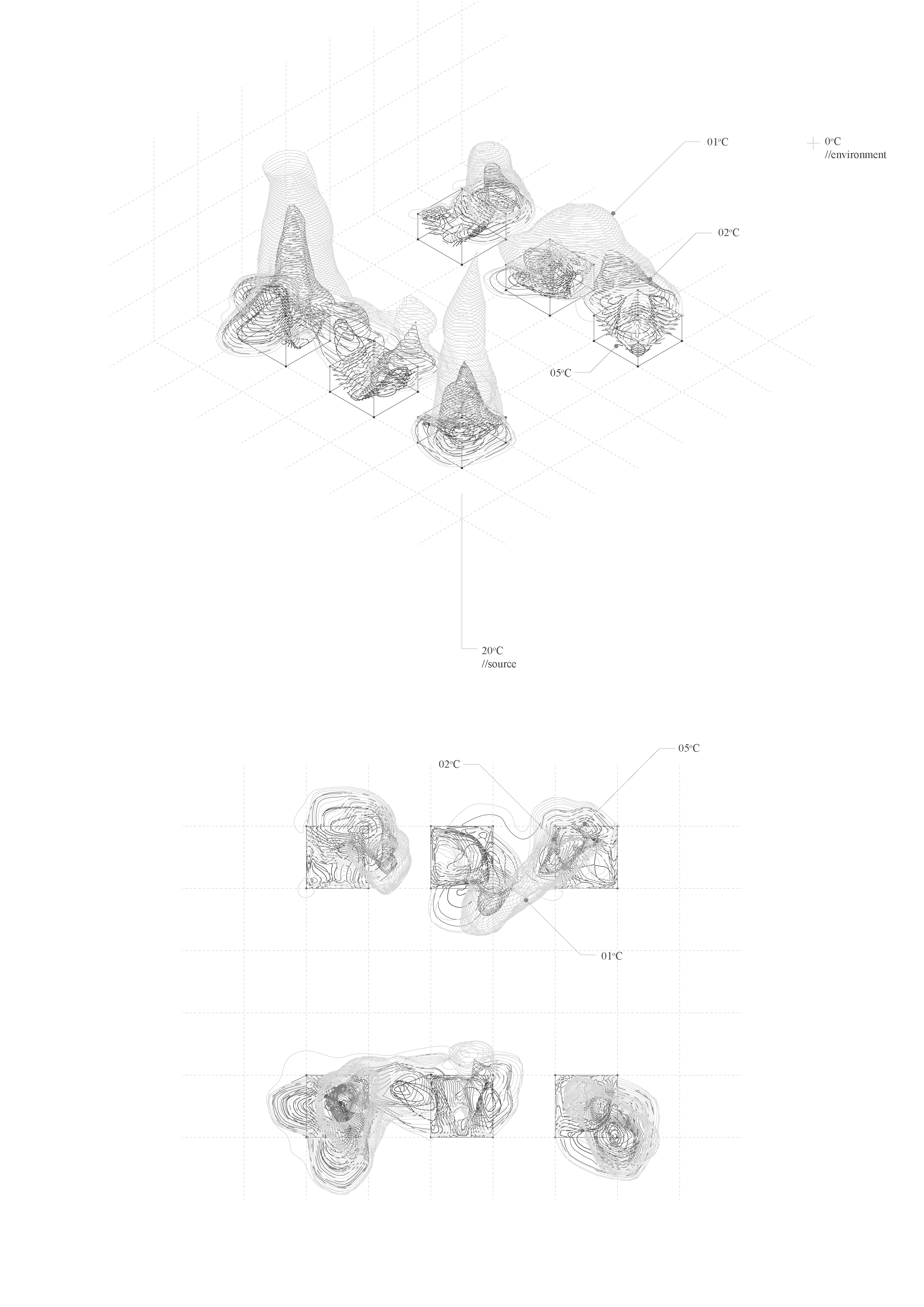

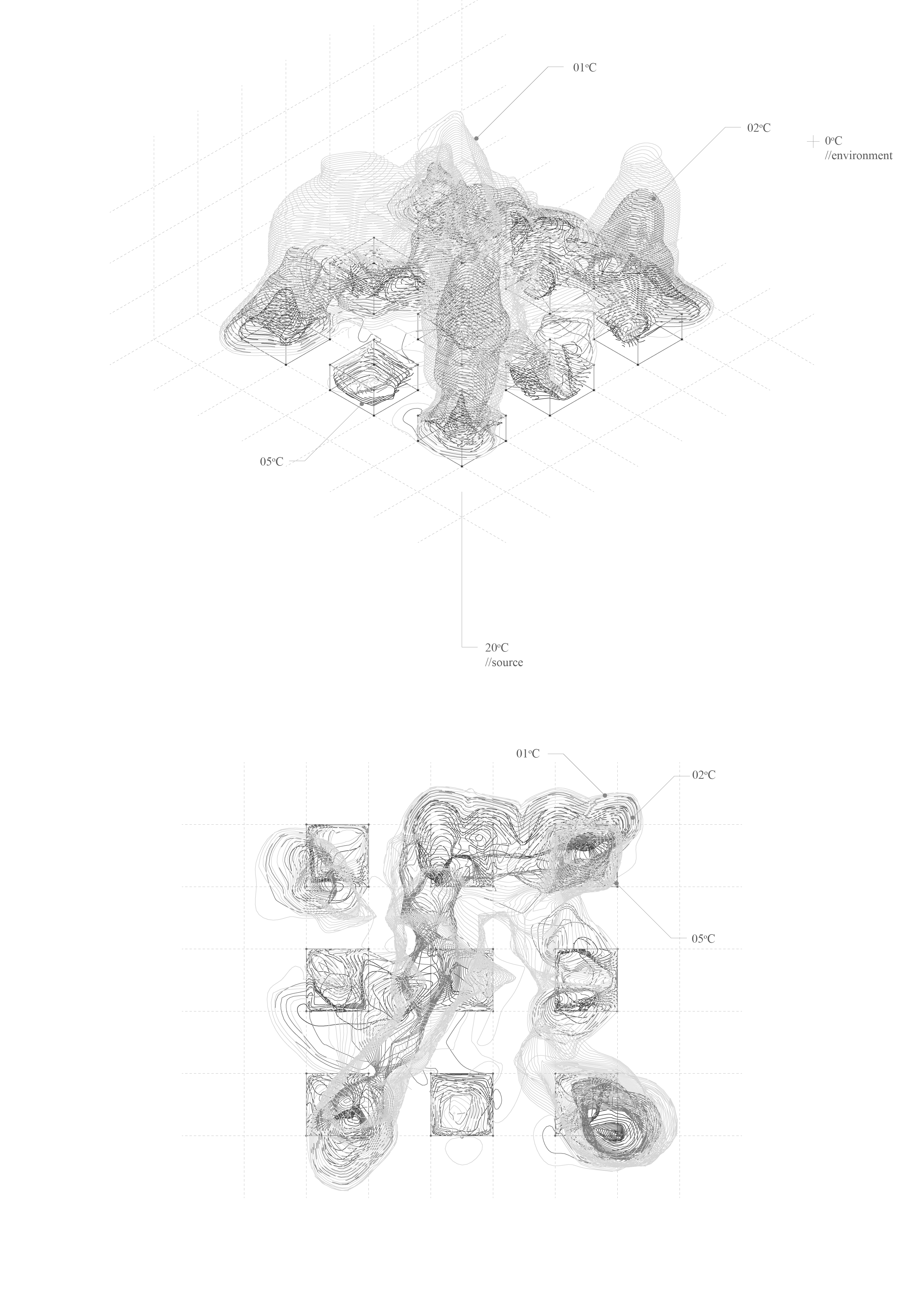

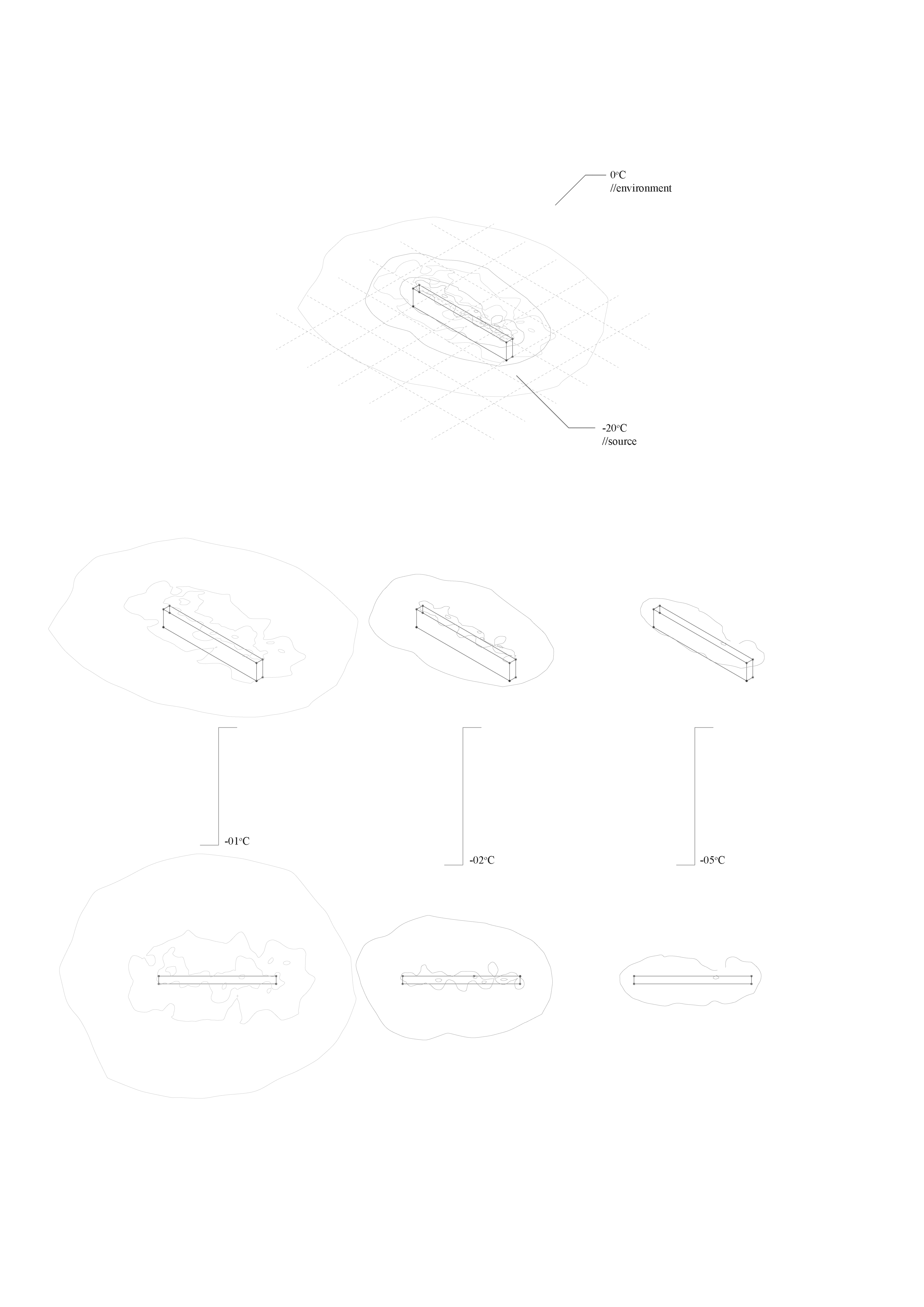

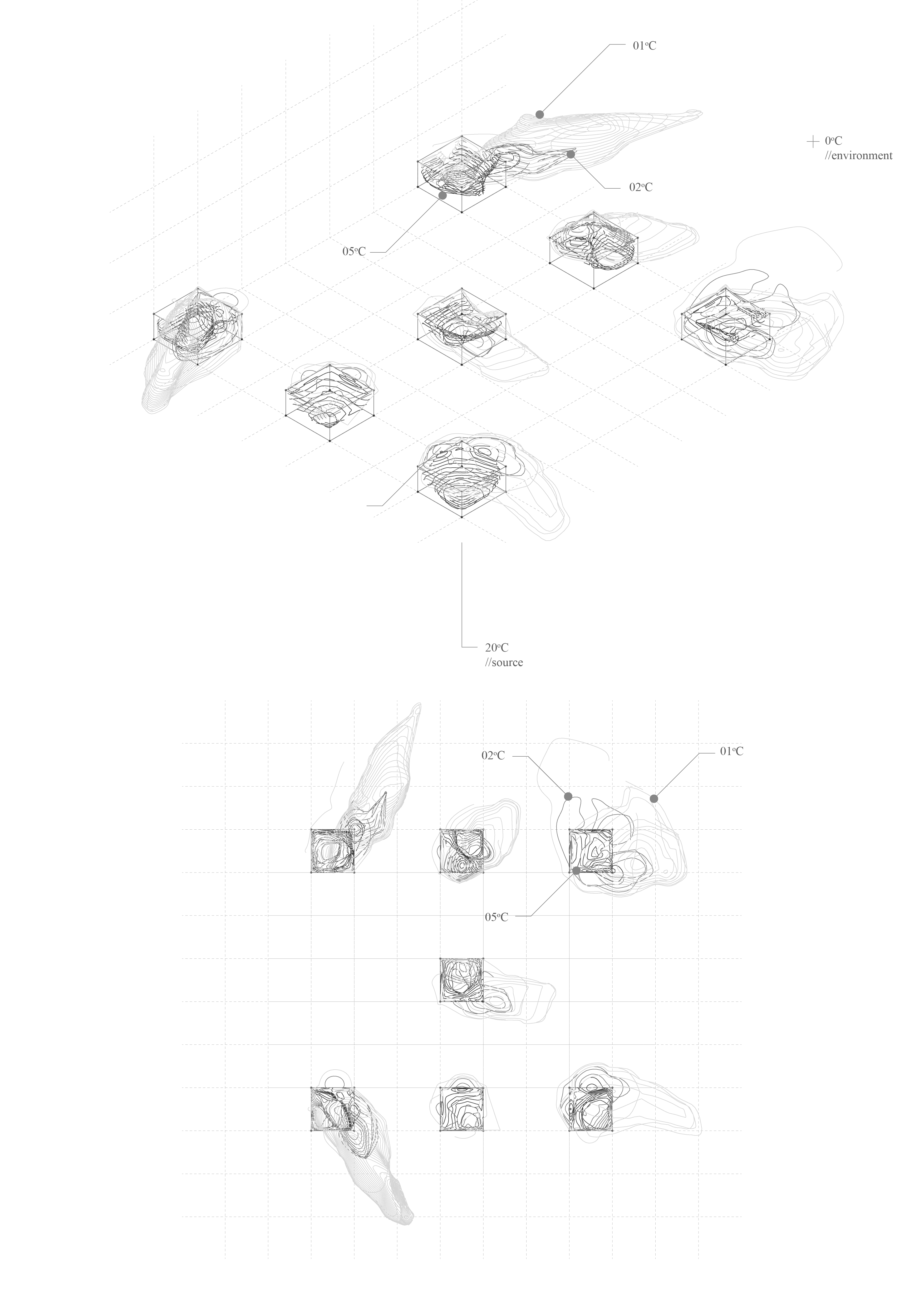

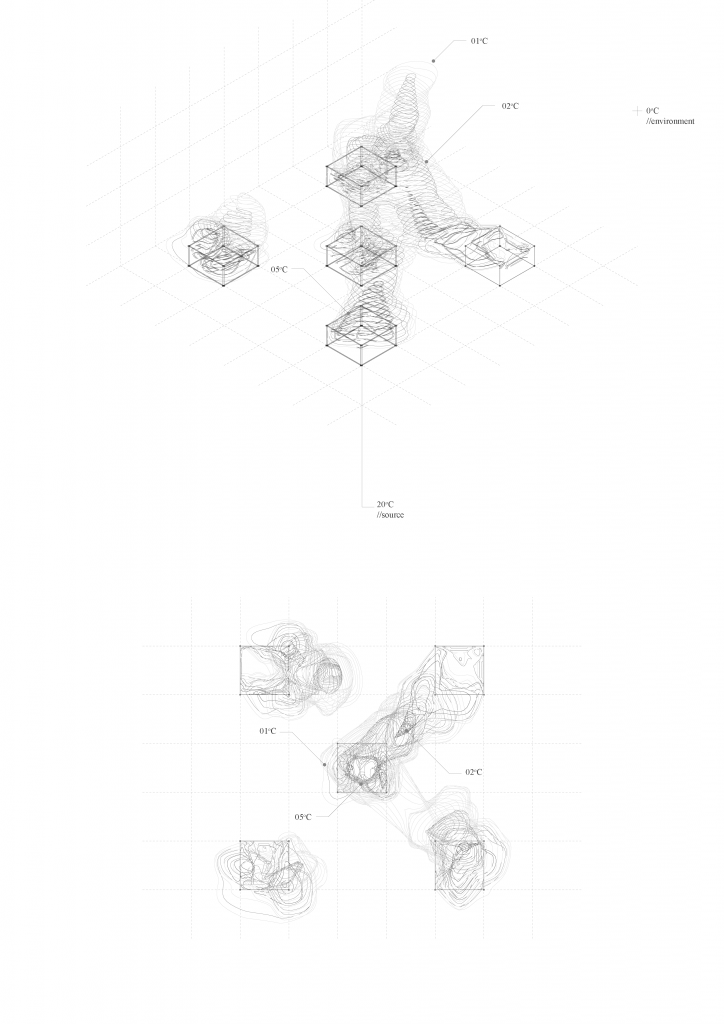

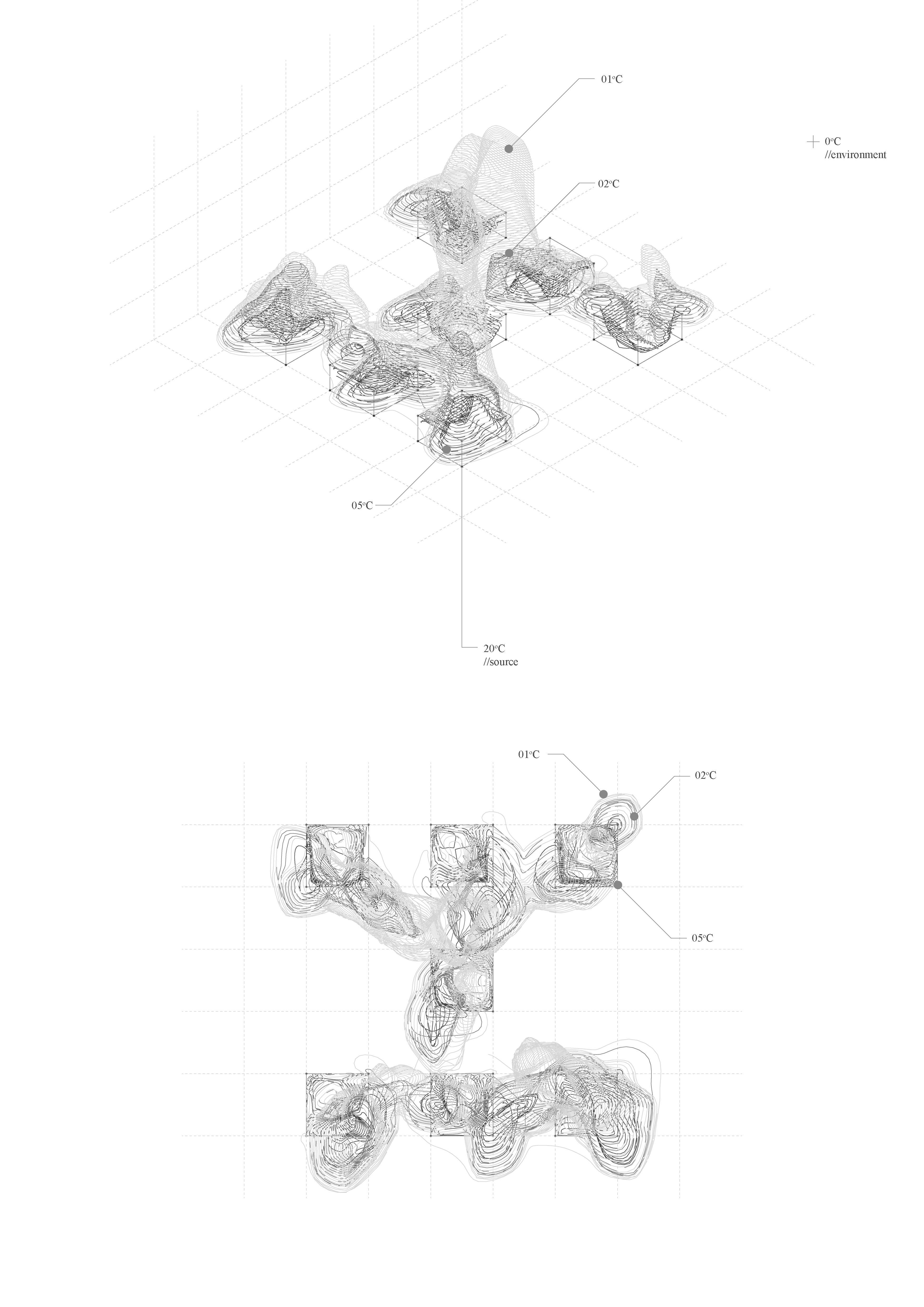

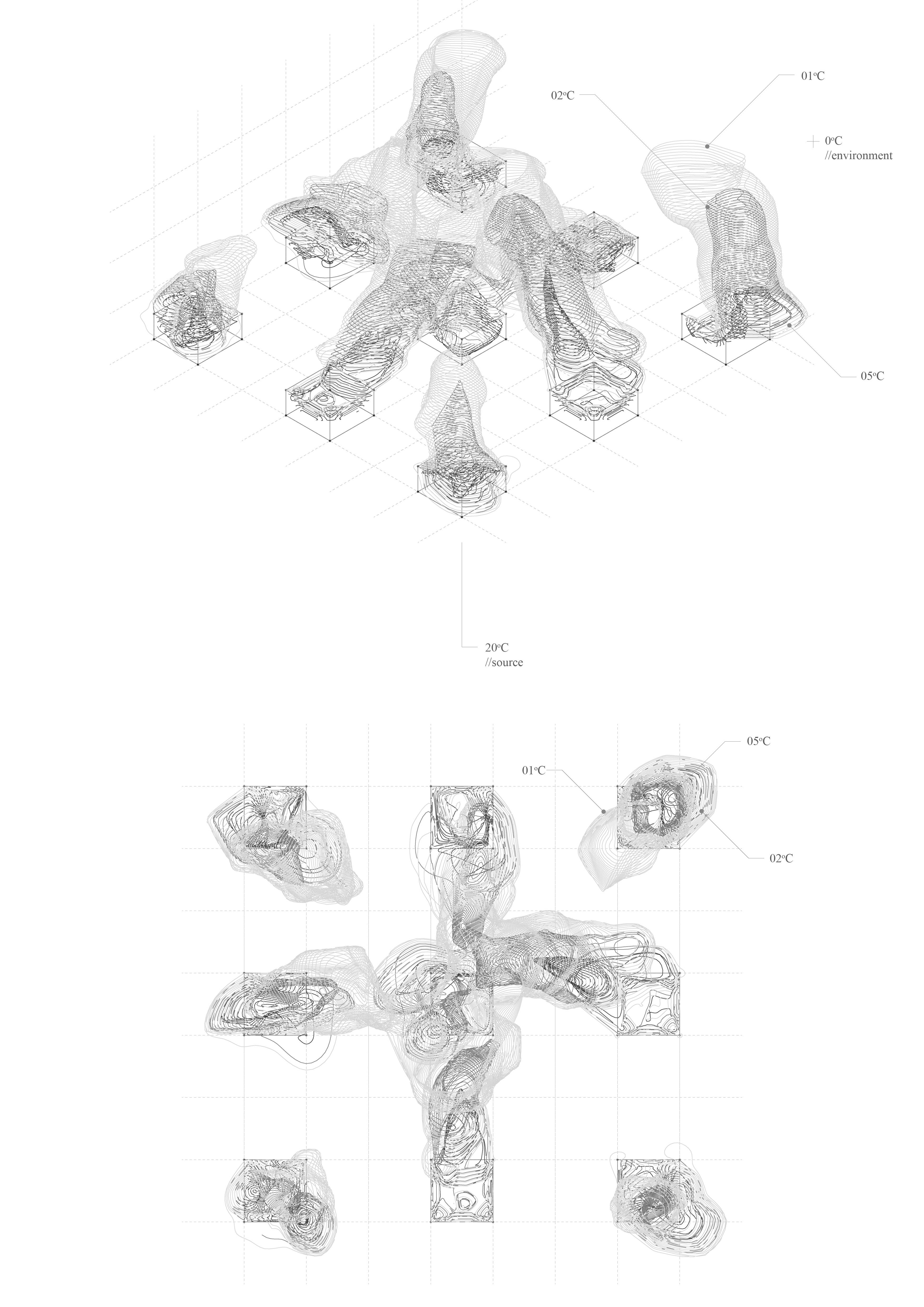

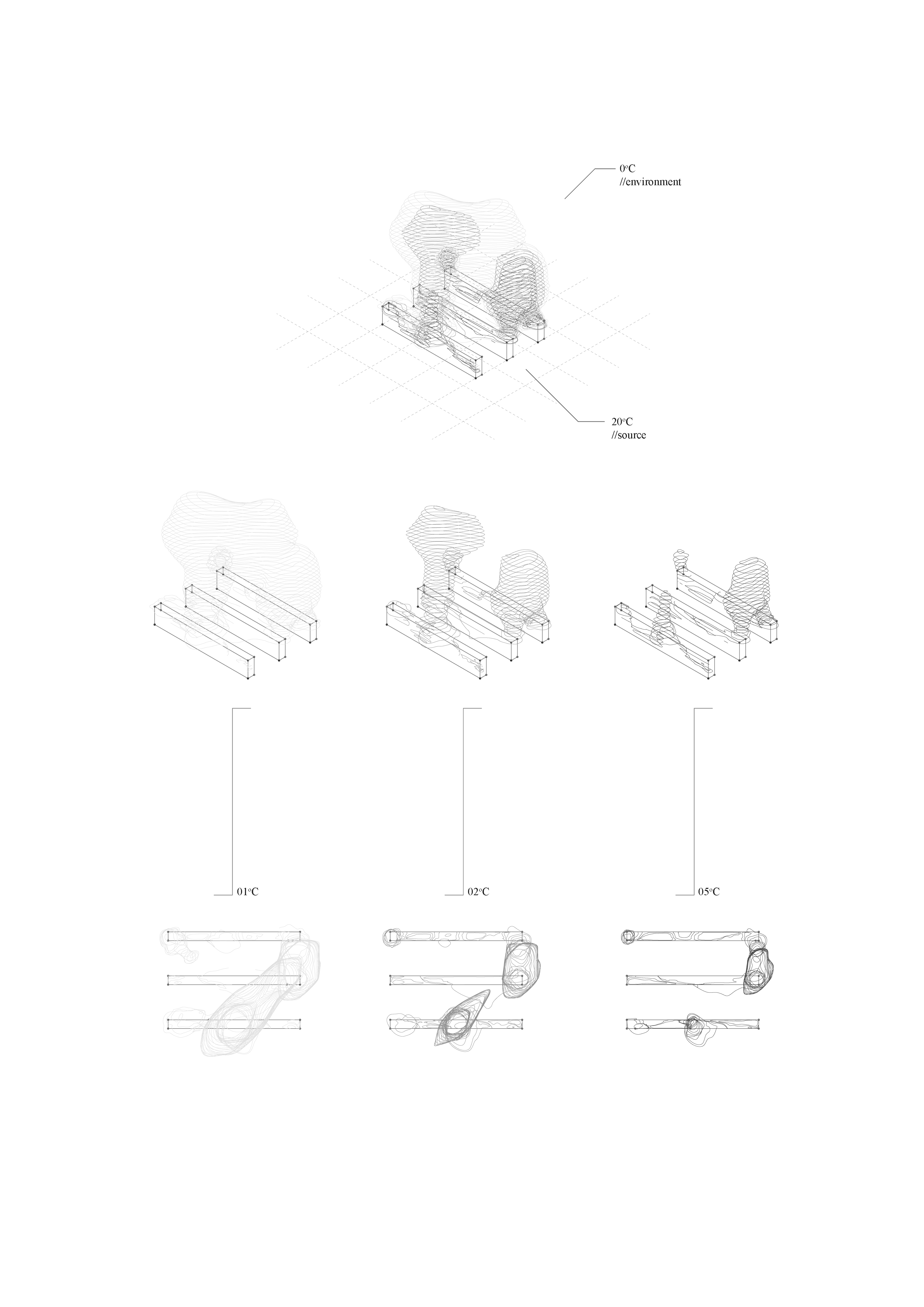

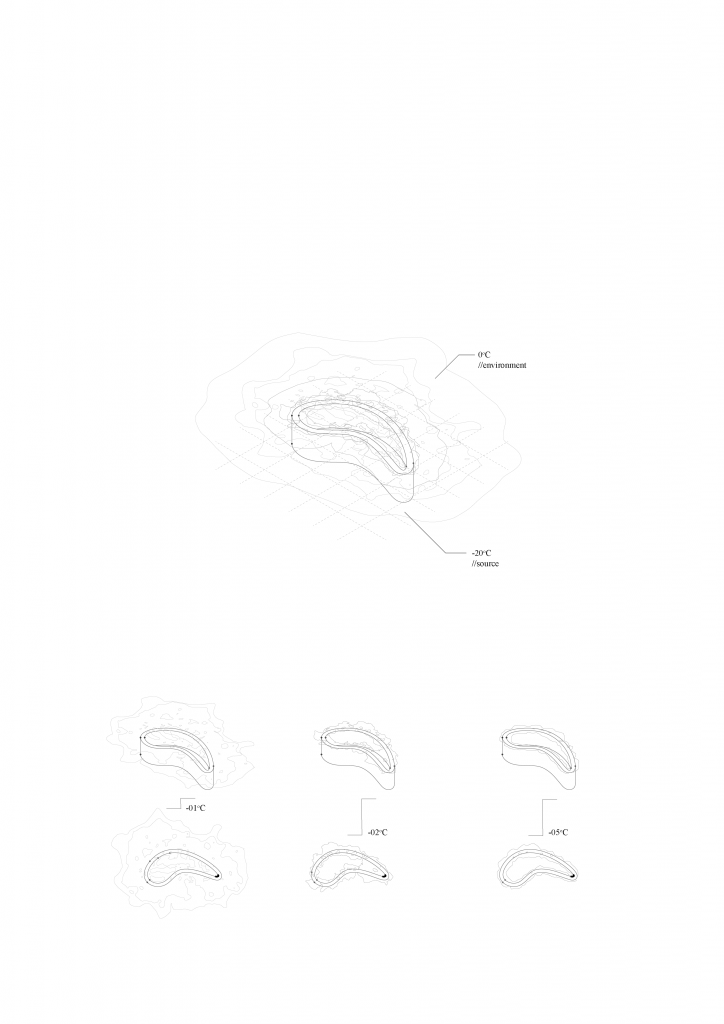

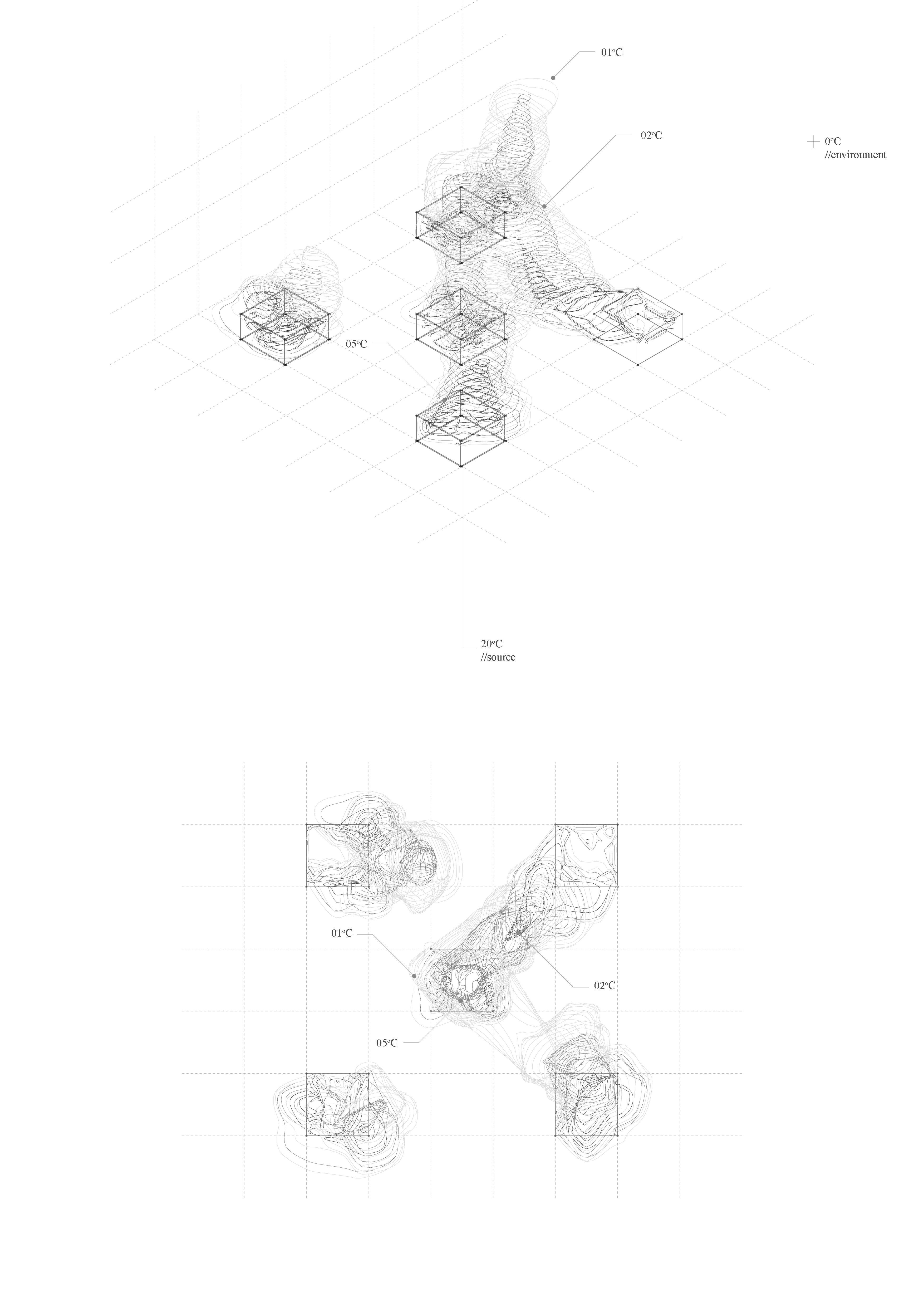

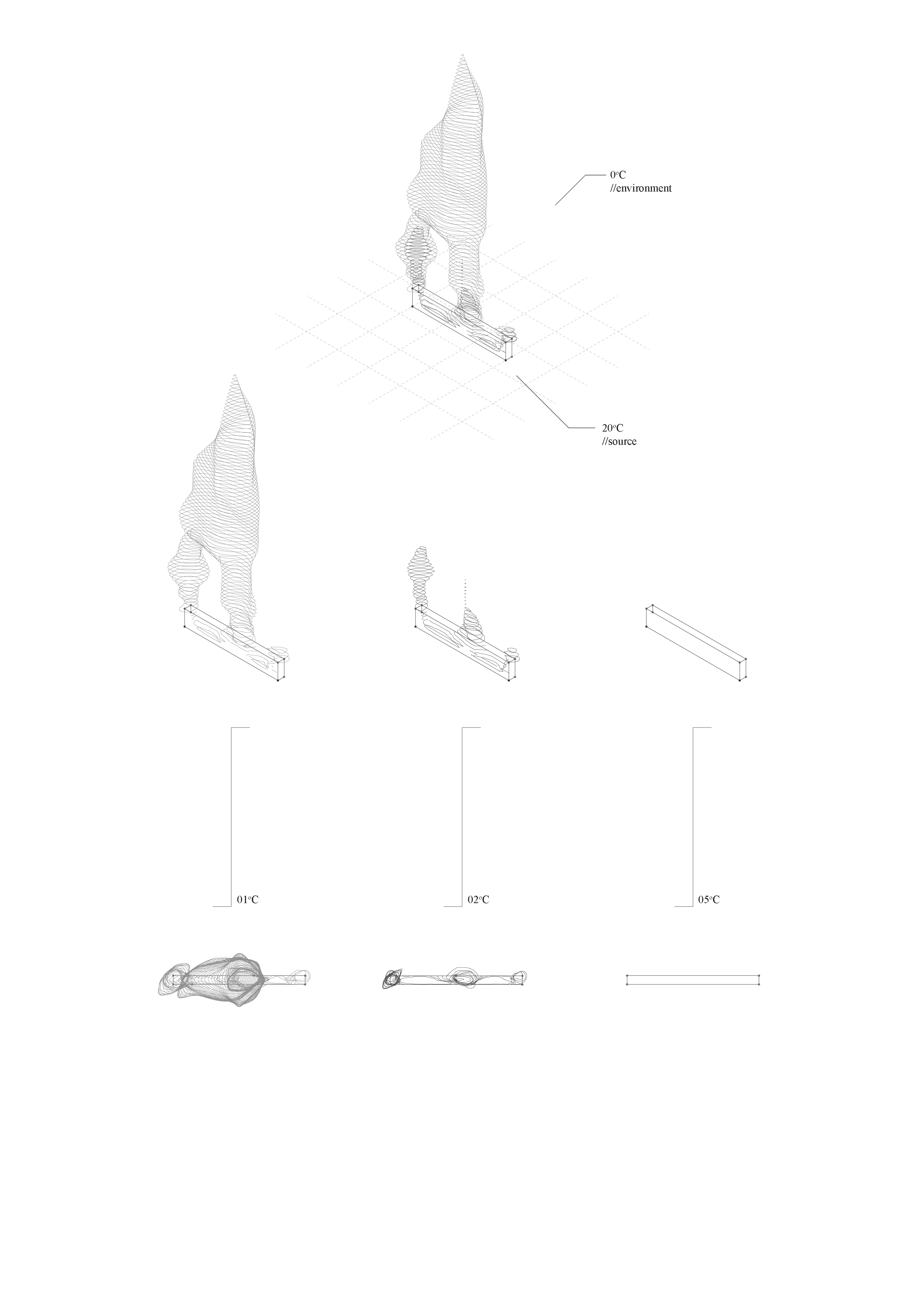

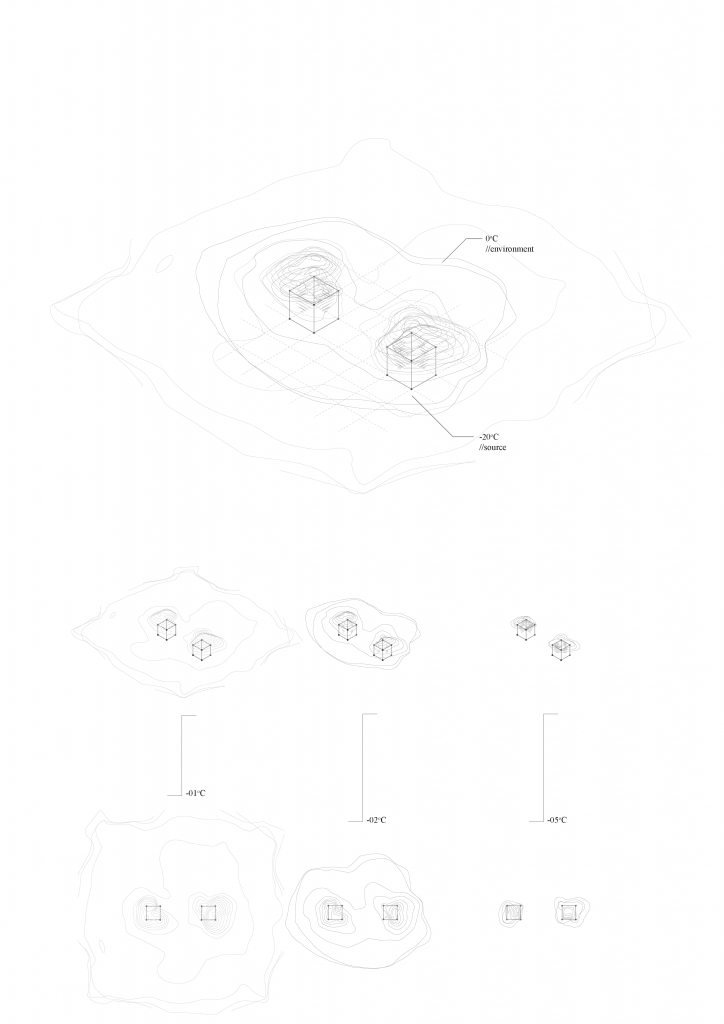

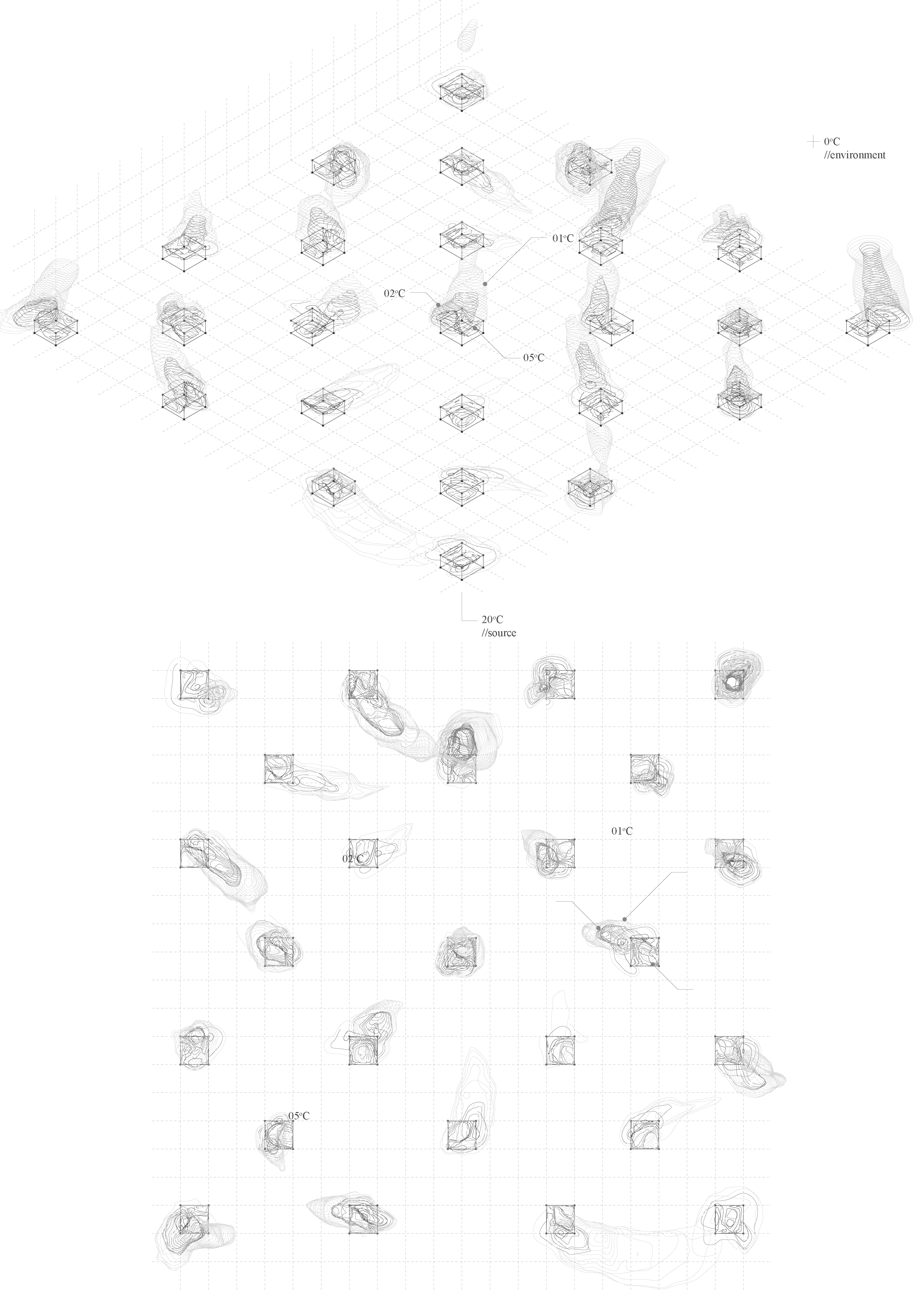

IAAC_Asya Guney_Atmosphera_34 IAAC_Asya Guney_Atmosphera_35 IAAC_Asya Guney_Atmosphera_36 IAAC_Asya Guney_Atmosphera_37 IAAC_Asya Guney_Atmosphera_38 IAAC_Asya Guney_Atmosphera_39 IAAC_Asya Guney_Atmosphera_40 IAAC_Asya Guney_Atmosphera_41 IAAC_Asya Guney_Atmosphera_42 IAAC_Asya Guney_Atmosphera_43 IAAC_Asya Guney_Atmosphera_44 IAAC_Asya Guney_Atmosphera_45 IAAC_Asya Guney_Atmosphera_46 IAAC_Asya Guney_Atmosphera_49 IAAC_Asya Guney_Atmosphera_50In the second stage, tests were done in 3D, open systems. Parameters were the same with the former, along with new ones such as wind direction and strength, humidity, temperature of the surrounding air. After this stage, a new method of design was formed which each specific heat source configuration was equivalent to a specific spatial characteristics. IAAC_Asya Guney_Atmosphera_51 IAAC_Asya Guney_Atmosphera_52 IAAC_Asya Guney_Atmosphera_53 IAAC_Asya Guney_Atmosphera_54 IAAC_Asya Guney_Atmosphera_55 IAAC_Asya Guney_Atmosphera_56 IAAC_Asya Guney_Atmosphera_57 IAAC_Asya Guney_Atmosphera_58 IAAC_Asya Guney_Atmosphera_59 IAAC_Asya Guney_Atmosphera_60 IAAC_Asya Guney_Atmosphera_61 IAAC_Asya Guney_Atmosphera_62 IAAC_Asya Guney_Atmosphera_63 IAAC_Asya Guney_Atmosphera_65 IAAC_Asya Guney_Atmosphera_66 IAAC_Asya Guney_Atmosphera_67 IAAC_Asya Guney_Atmosphera_68 IAAC_Asya Guney_Atmosphera_69 IAAC_Asya Guney_Atmosphera_70 IAAC_Asya Guney_Atmosphera_71 IAAC_Asya Guney_Atmosphera_72 IAAC_Asya Guney_Atmosphera_73 IAAC_Asya Guney_Atmosphera_74 IAAC_Asya Guney_Atmosphera_75 IAAC_Asya Guney_Atmosphera_76
