Project Brief :

The concept of the project is to present the problem of pollution in the big cities in a digital
abstract way. The idea is to extract the physical data of the air pollution and represent it using
computational programs (Processing and Arduino).

Data :
The project input is the percentage of the polluted air in Barcelona exported to processing as a CSV file in order to apply these data as a variables in Arduino. Connecting each two Mist machine to a relay and setting a domain for the relay that represent the data as a pollution (Outputs)  The smoke moves in the surface between the plates and based on the relay it starts revolving inside the space using a fan that is connected to the same relay.

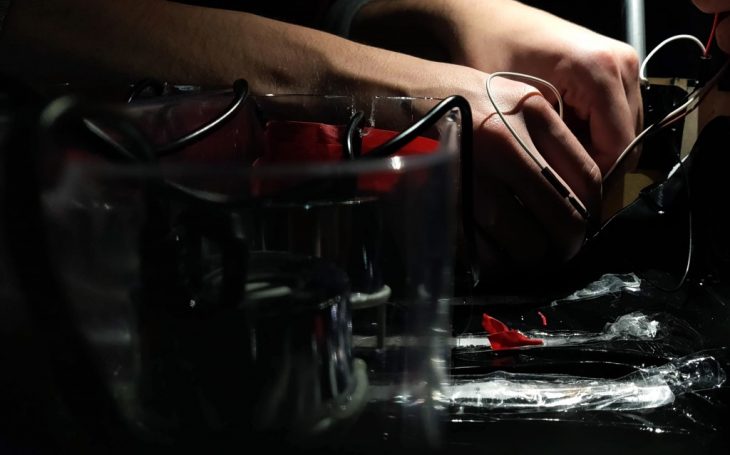

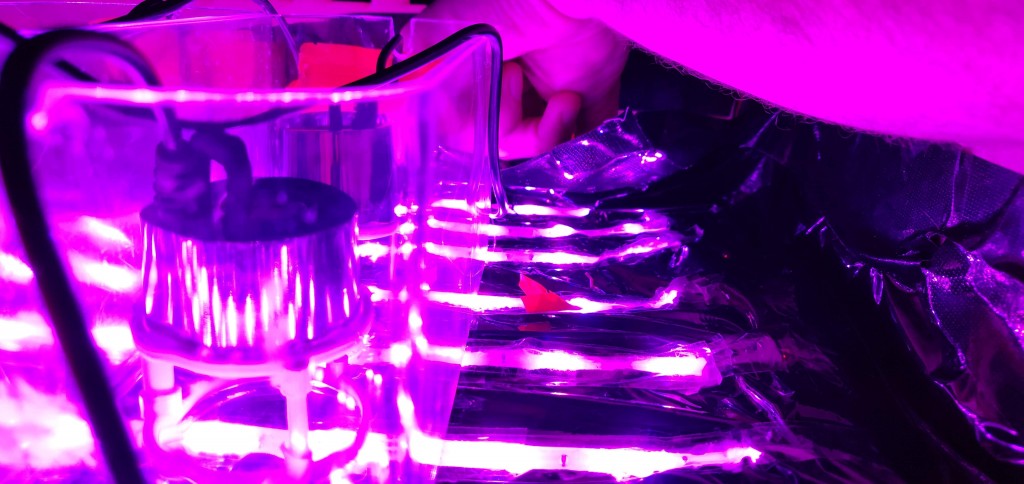

Process :

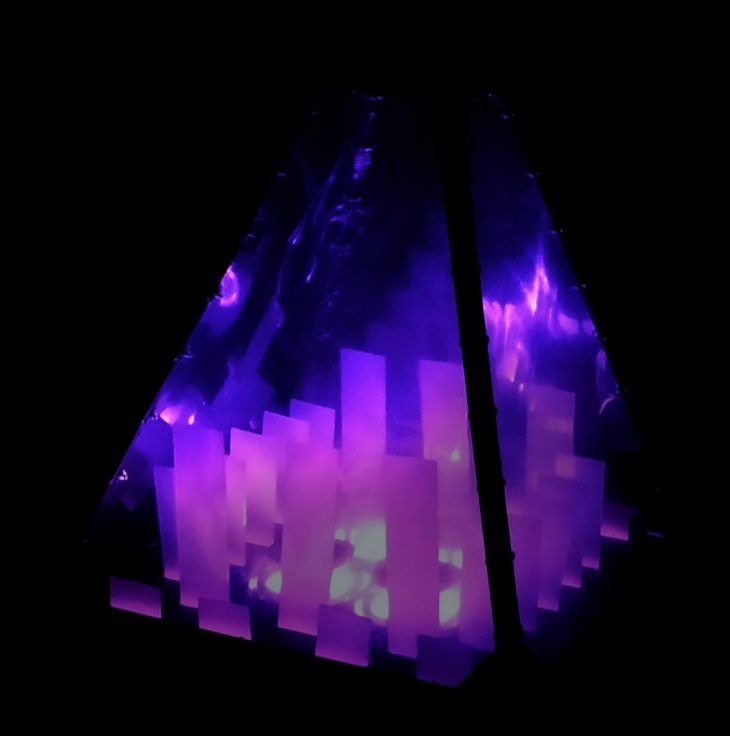

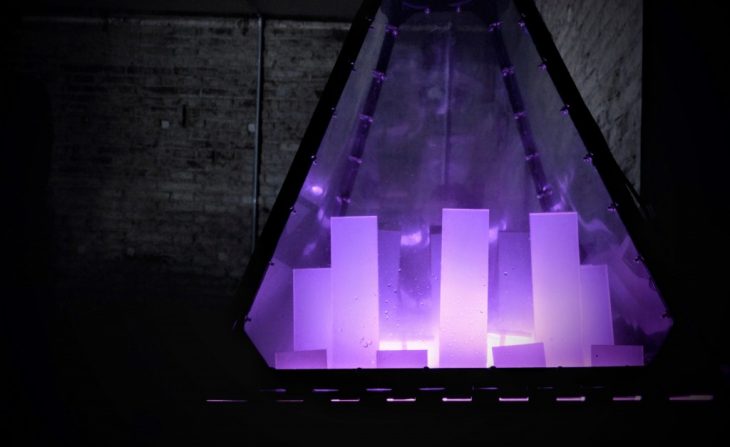

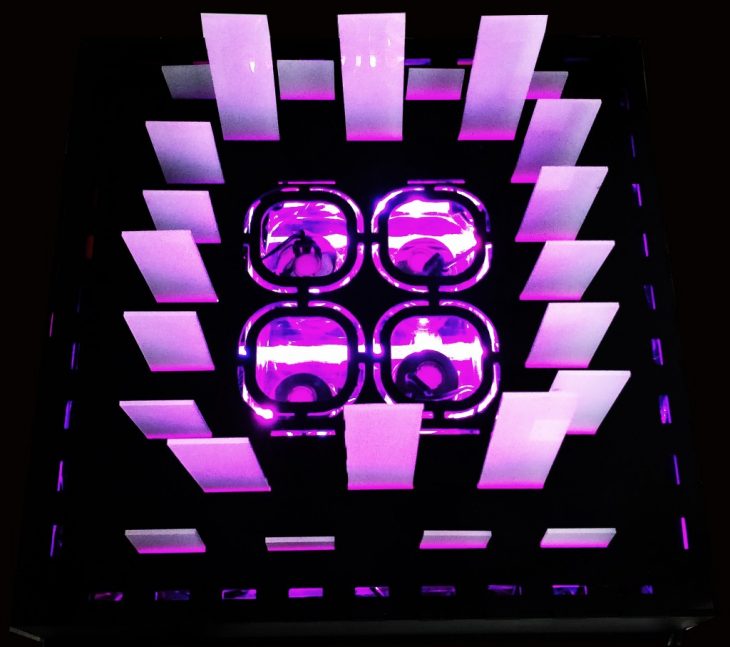

OUTPUT :

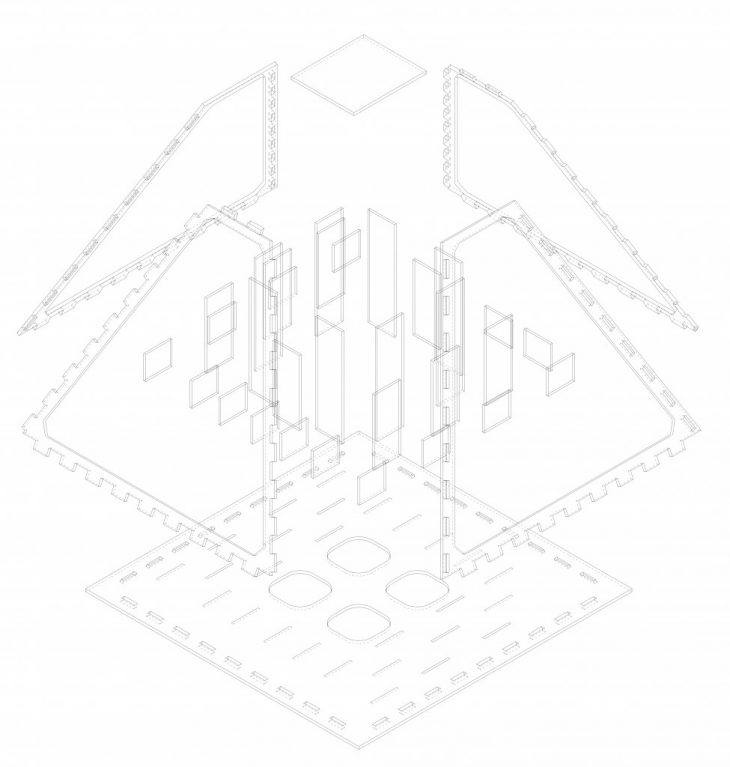

ISOMETRIC VIEW :
